The Ubiquiti LBE-5AC-GEN2-US LiteBeam Wireless Bridge is designed for fast and easy setup, with a dedicated management WiFi for support through the UISP mobile app. Its ultra-lightweight design and proprietary airMAX ac chipset offer increased efficiency and reliable performance.
Mechanical

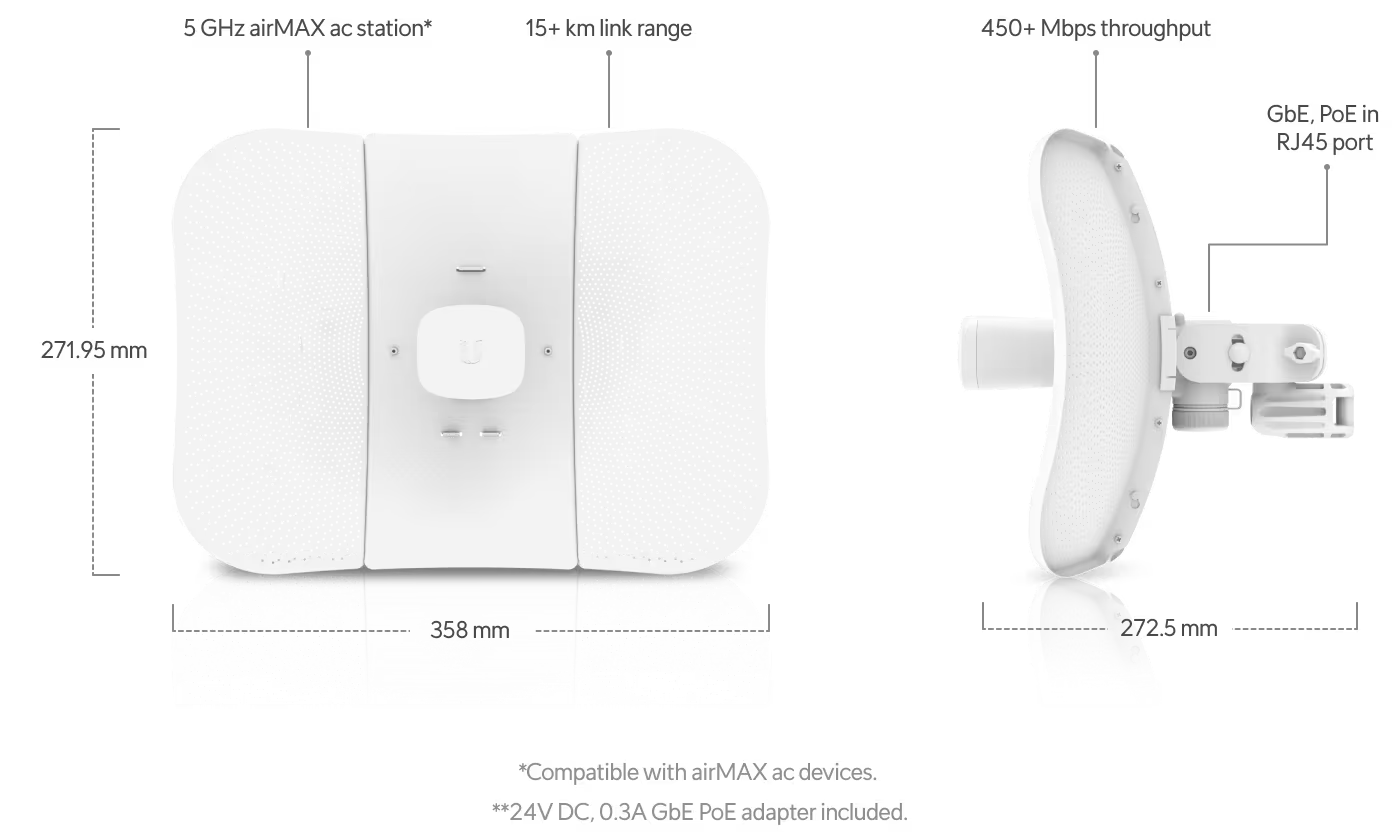

Dimensions:
358 x 271.95 x 272.5 mm (14.1 x 10.7 x 10.7")
Weight:
Without mount: 800 g (1.8 lb)
With mount: 980 g (2.2 lb)
Wind Survivability:
200 km/h (125 mph)
Wind Loading:
275 N at 200 km/h (61.8 lbf at 125 mph)
Hardware
Networking Interface:
(1) GbE RJ45 port
Power Method:
Passive PoE 2-pair (4, 5+; 7, 8 return)
Power Supply:
24V, 0.3A gigabit PoE adapter (Included)
Supported Voltage Range:
22–27V DC
Max Power Consumption:
7W
Max Power Output:
25 dBm
Gain:
23 dBi
Ambient Operating Temperature:
-40 to 70° C (-40 to 158° F)
Ambient Operating Humidity:
5 to 95% noncondensing
Certifications
CE, FCC, IC
NDAA Compliant: Yes
Operating Frequency (MHz)
Worldwide:
5150–5875 MHz
USA:
U-NII-1: 5150–5250 MHz
U-NII-2A: 5250–5350 MHz
U-NII-2C: 5240–5725 MHz
U-NII-3: 5725–5850 MHz
Management Radio (MHz)
Worldwide:
2412–2472 MHz
US/CA:
2412–2462 MHz
