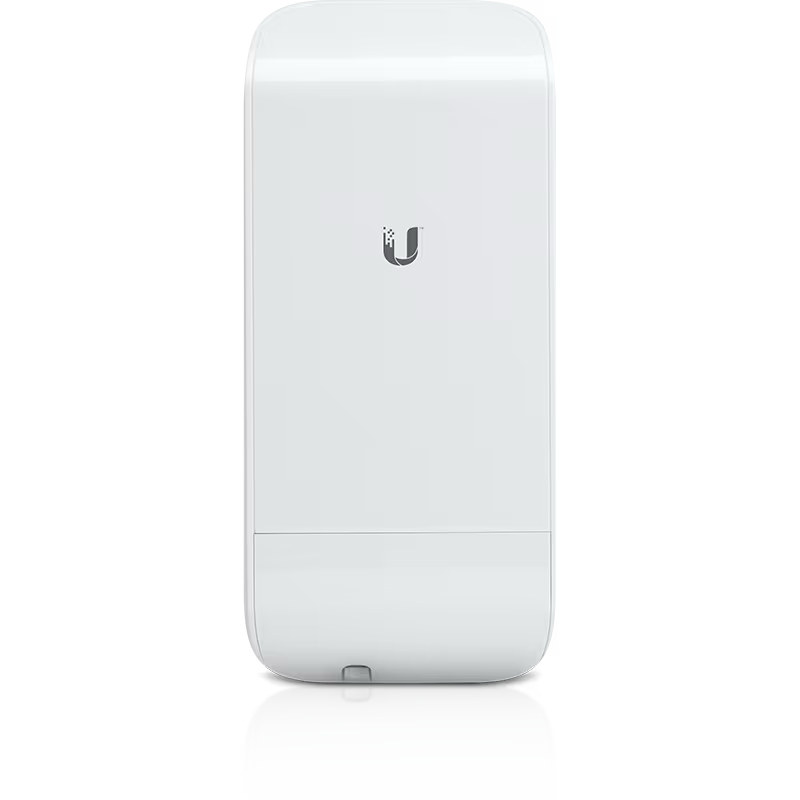

The Ubiquiti NanoStation locoM2 is a low-cost and efficient 2.4 GHz CPE that provides reliable broadband connectivity. With an airMax 8dBi CPE, this indoor/outdoor device is perfect for fast and secure internet access.
Mechanical
Dimensions:
161 x 31 x 80 mm (6.3 x 1.2 x 3.2")
Weight:
180 g (6.4 oz)
Enclosure Material:
Outdoor UV-stabilized plastic
Mounting:
Pole-mount (Kit included)
Hardware
Networking Interface:
(1) 10/100 MbE RJ45 port
Power Method:
Passive PoE 2-pair (4, 5+; 7, 8 return)
Power Supply:
24V, 0.5A PoE adapter (Included)
Supported Voltage Range:
22–27V DC
Max Power Consumption:
5.5W
Ambient Operating Temperature:
-30 to 75° C (-22 to 167° F)
Ambient Operating Humidity:
5 to 95% noncondensing
Shock & Vibration:
ETSI300-019-1.4
Certifications
FCC, IC, CE, RoHS
NDAA Compliant: Yes
System
Frequency:
2.4 GHz
Operating Frequency:
2412–2462 MHz
Gain:
8.5 dBi
Cross-Pol Isolation:
20 dB Min.
Max VSWR:
1.4:1
Beamwidth:
60° (H-pol) / 60° (V-pol) / 60° (Elevation)
Polarization:
Dual linear
