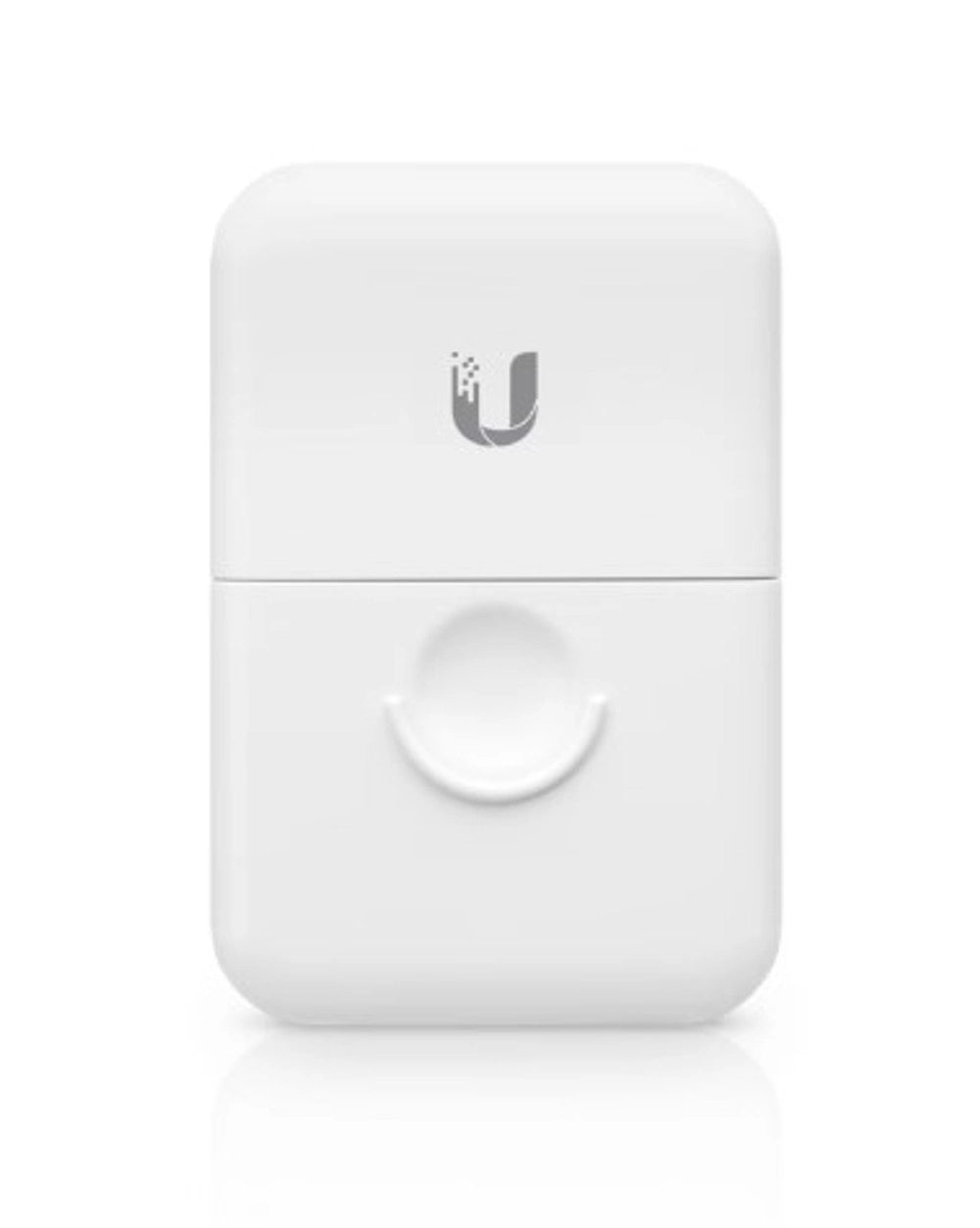

ESD protection for outdoor high-speed networks.
- Protects outdoor Ethernet devices
- (2) Passive, surge-protected RJ45 connections
- Quick and easy installation
- Compatiblewith GbE networks
Mechanical
Dimensions:
91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3")
Weight:
80 g (2.8 oz)
Weatherproofing:
IPX5
Hardware
Networking Interface:
(2) RJ45 female connectors
ESD/EMP Protection:
Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs
DC Spark-Over Voltage:
90V @ 100V/s
Max Impulse Spark-Over Voltage:
700V @ 1kV/µs
Discharge Current:
10kA+
Max Insulation Resistance:
1G ohm @ 50V
Max Capacitance:
1.0 pF @ 1 MHz
Data Line Protection:
Up to 2.5 Gbps
PoE Support:
Yes
Shock and Vibration Certification:
ETSI300-019-1.4 Standard
Ambient Operating Temperature:
-30 to 65° C (-22 to 149° F)
Ambient Operating Humidity:
10 to 90% noncondensing
