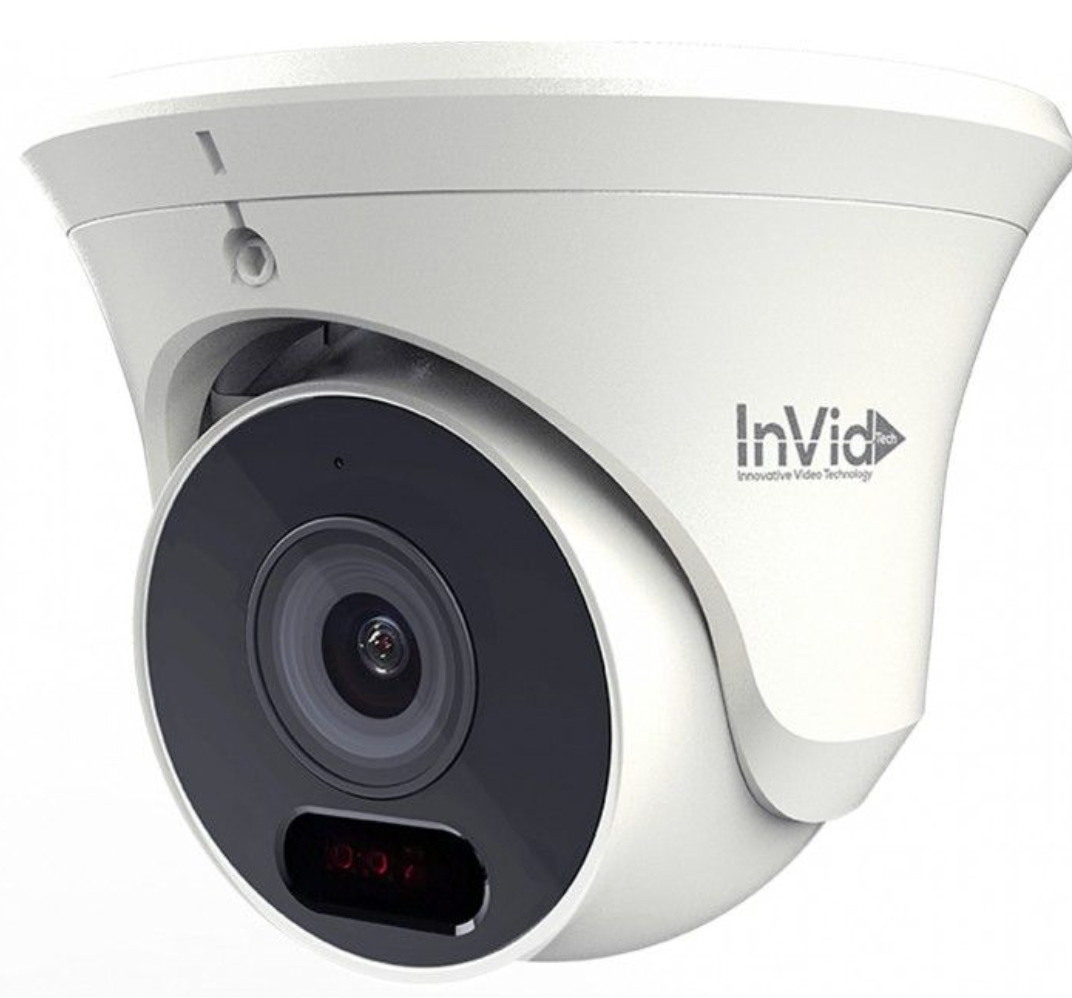

Camera Model: PRT-P8TXIR28-AI
Sensor + DSP:
SC8238 + SSC338Q
Image Sensor:
1/2.7" Progressive scan CMOS Sensor
Min. Illumination:
0.01 lux (Color), 0 lux (IR on)
Lens Type & Focal Length:
Fixed focal lens, 2.8mm @ F1.6
Field of View:
Horizontal: 114°
Vertical: 61°
Diagonal: 131°
IR:
2pcs Array LED
IR Range: 98' (30m)
Deterrent Light:
Supported (white light on event)
Smart IR:
Supported
Shutter Time:
Auto/Manual, 1/3 ~ 1/10000s
Day/Night:
IR cut filter with auto switch
Wide Dynamic Range:
WDR/DWDR
Digital Noise Reduction:
2D/3D DNR
Video Compression:
H.264/H.264+/H.265/H.265+
Codec Profiles:
H.264: Base/Main/High
H.265: Main
Video Bit Rate:
11 Kbps ~ 10 Mbps
Triple Streams:
Supported
Audio Compression:
G.711A / G.711U
Audio Bit Rate:
64 Kbps
Max. Image Resolution:
8MP (3840 × 2160)
Frame Rates:
50Hz: 15fps 8MP, 25fps 5MP/4MP/3MP/1080P
60Hz: 15fps 8MP, 30fps 5MP/4MP/3MP/1080P
Sub Stream:
50Hz: 25fps 720P/D1/CIF
60Hz: 30fps 720P/D1/CIF
Third Stream:
50Hz: 25fps CIF
60Hz: 30fps CIF
Note:
When the primary stream is 8MP @ 15fps, sub- and third-streams are limited to 15fps.
Image Settings:
Brightness, Contrast, Saturation, Hue, Sharpness
BLC / HLC / ROI / Defog / Rotate:
Supported
Network Storage:
NAS
Protocols:
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P, Bonjour
Events:
Motion Detection, Smart Motion Detection (Human & Vehicle), Video Shelter
Perimeter Protection:
Line Crossing, Intrusion Detection (Human & Vehicle Classification)
Analytics:
Unattended Object, Object Missing, Region Entrance/Exit, Fast Moving, Loitering, People Gathering, Parking, Blur, Scene Change, Audio Exception, Line Statistics
Face Detection:
Supported
System Compatibility:
ONVIF (Profile S), CGI
Security:
User authentication, IP filtering, Video masking
Web Browsers:
IE, Edge, Chrome, Firefox
Mobile Apps:
iPhone, iPad, Android
Interfaces:
1 x RJ45 10M/100M Ethernet Port
Built-in Mic
Reset Button: Supported
Audio I/O: N/A
Storage:
MicroSD up to 128GB
Operating Conditions:
-22°F ~ 140°F (-30°C ~ 60°C), Humidity ≤ 95% (non-condensing)
Power:
DC 12V ±10%, PoE (802.3af)
Power Consumption:
Max. 7W
Weatherproof:
IP67
Dimensions:
4 x 3.2 in (102 x 82.4 mm)
Weight:
1 lb (450g)

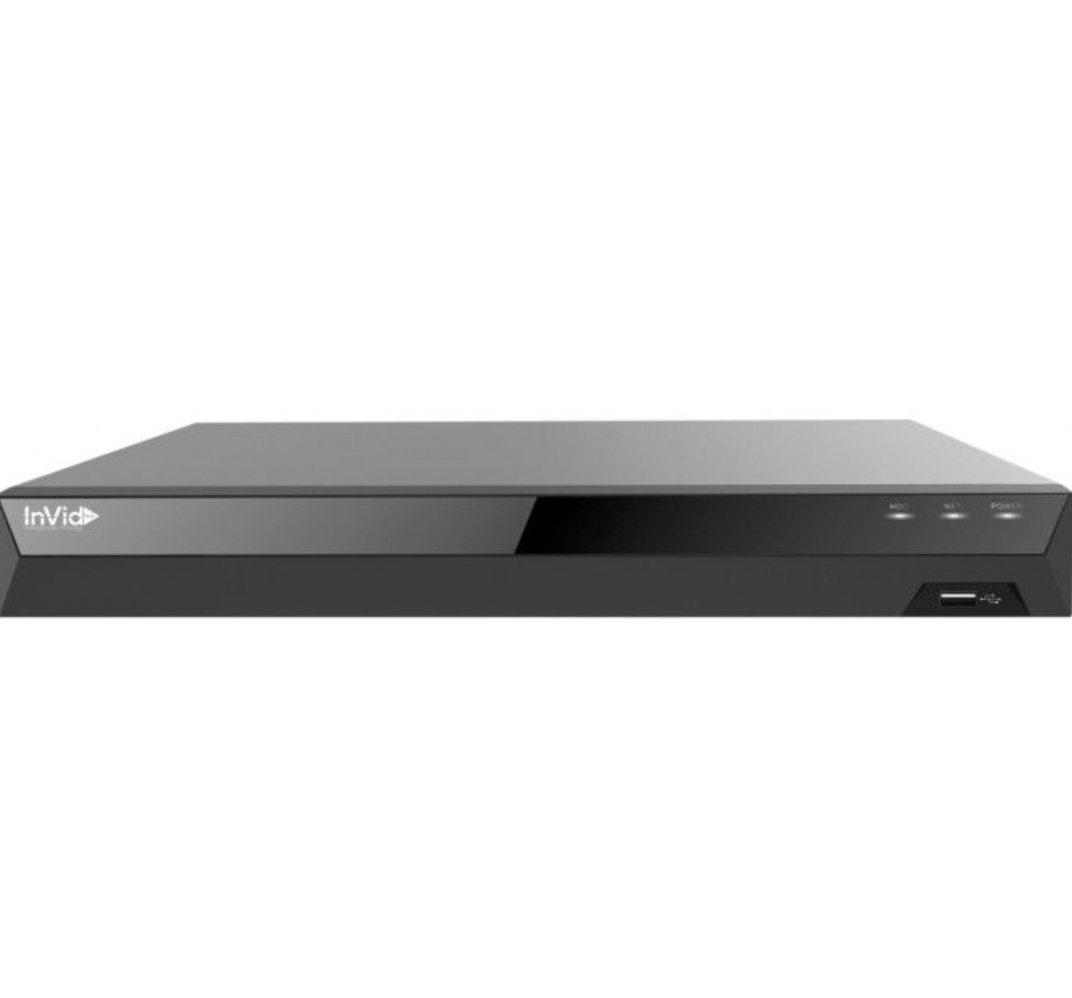

NVR Model: PRTN-16X16
Chipset:
NT98323
IP Video Input:
16 Channels
Two-Way Talk:
1-ch RCA
Video Outputs:
HDMI: 4K/1080p/1280x1024/720p
VGA: 1080p/1280x1024/720p
Audio Output:
1-ch RCA
Video Compression:
H.265+/H.265/H.264+/H.264
Supported Resolutions:
12MP, 8MP, 5MP, 4MP, 3MP, 1080P, 720P, D1, CIF, QCIF
Bit Rate:
64 Kbps ~ 10 Mbps
Decoding Capability:
4ch @ 1080P, 2ch @ 5MP, 1ch @ 8MP, 1ch @ 12MP
Playback:
8-channel Synchronous Playback
Playback Modes:
Smart Playback, Normal, Time Division, Label, Event, Log Playback
Backup:
USB Device, Network
Smart Detection:
Area Intrusion, Line Crossing, Region Entrance/Exit, Object Missing, Unattended Object, Loitering, Parking Detection, Face Detection, People Gathering, Blur, Scene Change, Audio Exception, SMD, PP
Smart Playback:
Face Detection, Line Crossing, Area Intrusion, Motion Detection
Cloud Features:
Cloud Storage & Upgrade Supported
Network:
Incoming: 160 Mbps
Outgoing: 160 Mbps
Ethernet: 1 x RJ-45 10/100/1000 Mbps
Protocols: HTTPs, HTTP, TCP/IP, IPv4, UPnP, RTSP, UDP, SMTP, SNMP, Multicast, NTP, DHCP, DNS, IP Filter, DDNS, FTP, P2P, ONVIF
Remote Access:
Up to 32 Users
Mobile Apps: iOS, Android
Storage:
2 x SATA interfaces, up to 14TB each
PoE Interfaces:
16 independent 10/100 Mbps ports
USB Ports:
Front: 1 x USB 2.0
Rear: 1 x USB 2.0
Alarm I/O:
4-ch In / 1-ch Out
Power Supply:
DC 48V / 3.75A
Power Consumption:
≤15W (without HDD or PoE)
Operating Environment:
32°F ~ 131°F (0°C ~ 55°C), 10% ~ 90% RH
Dimensions:
15 x 12 x 1.8 in (380 × 305 × 45 mm)
Weight:
7.9 lb (3.6 kg)
