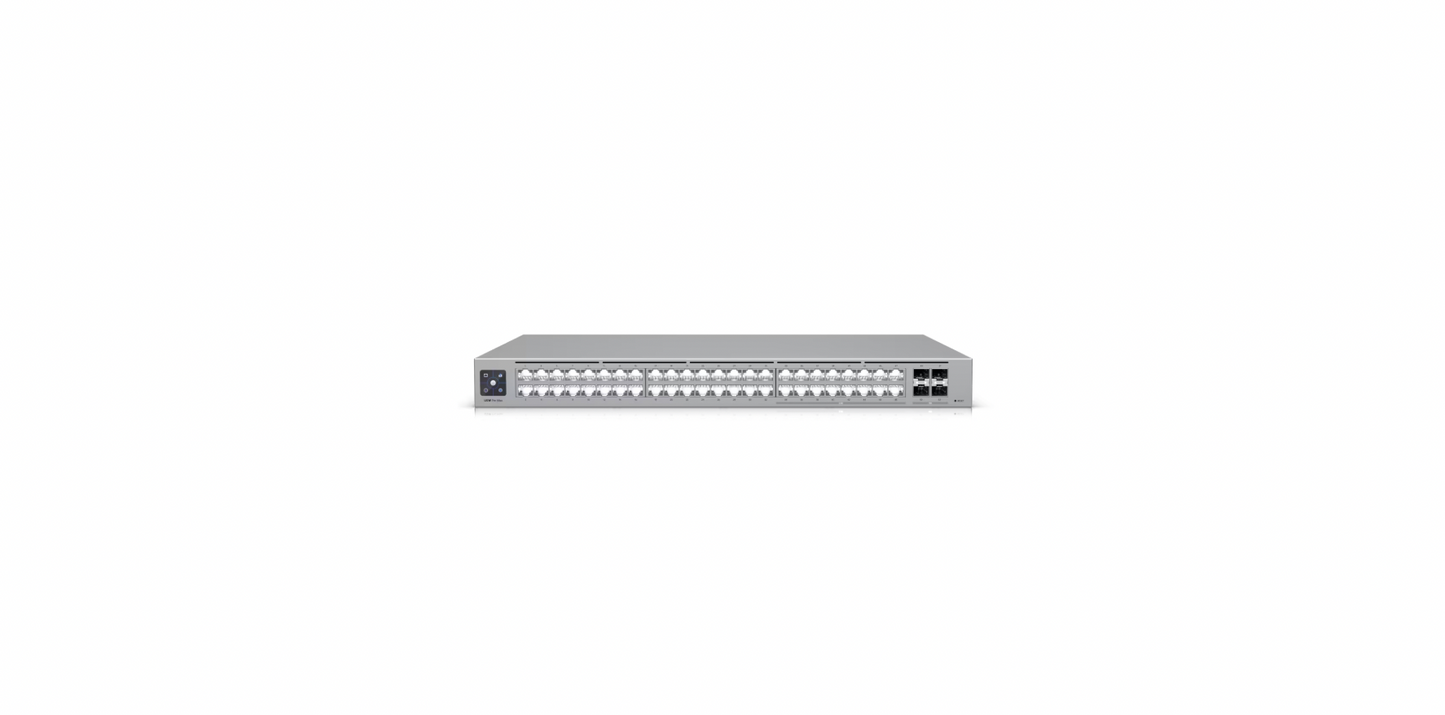

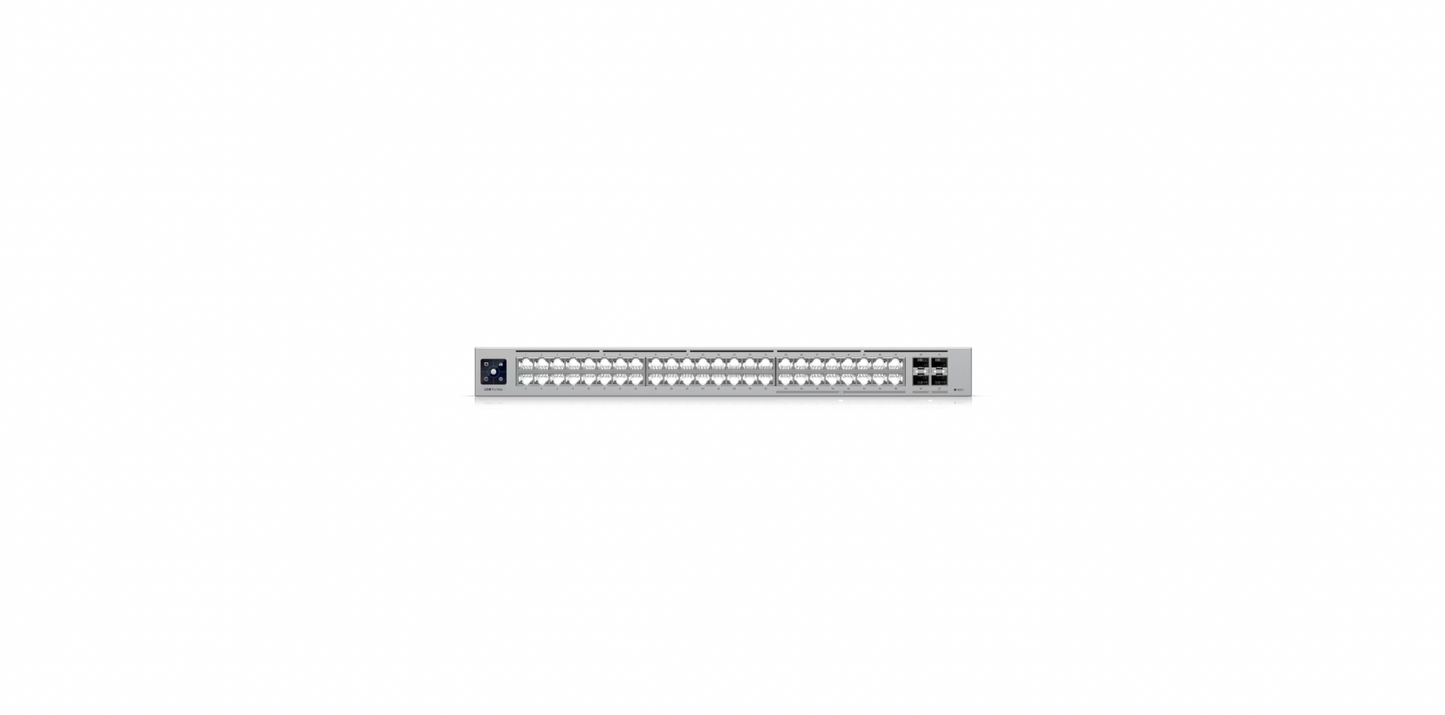

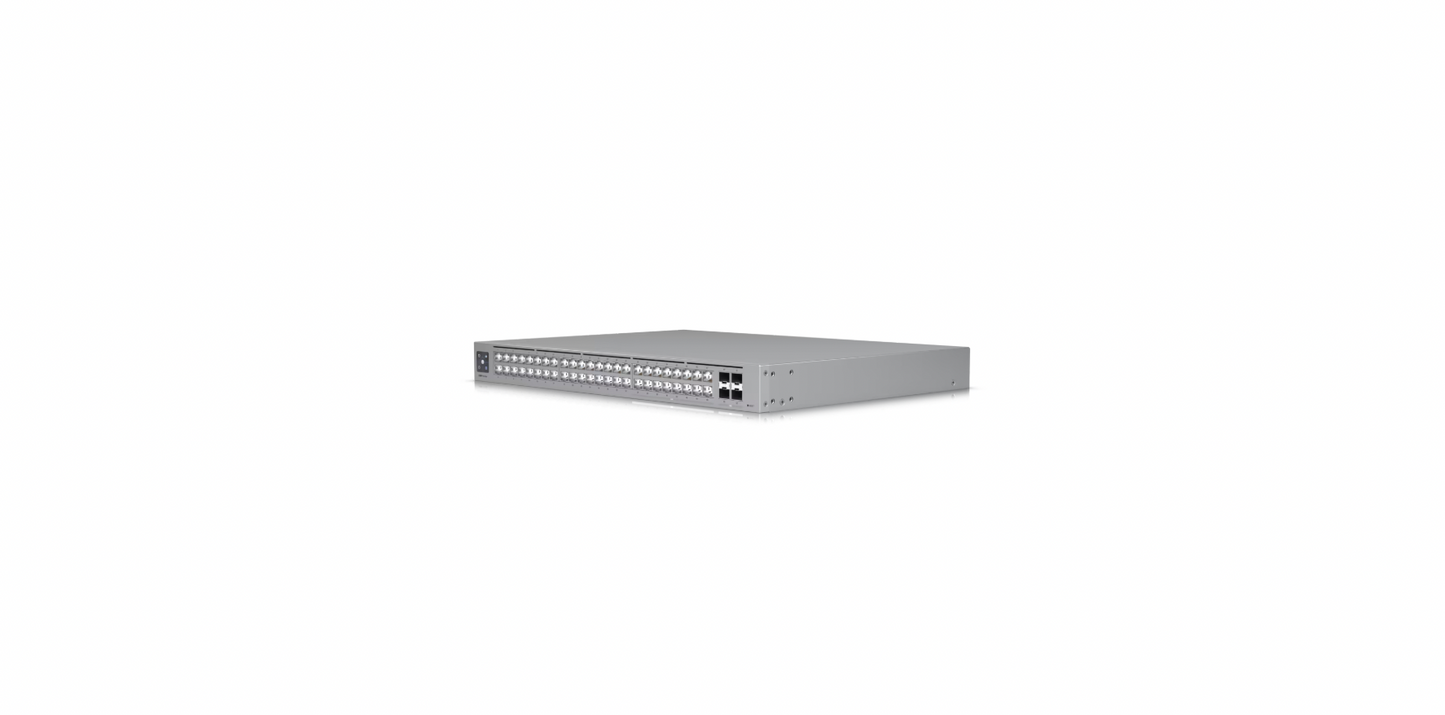

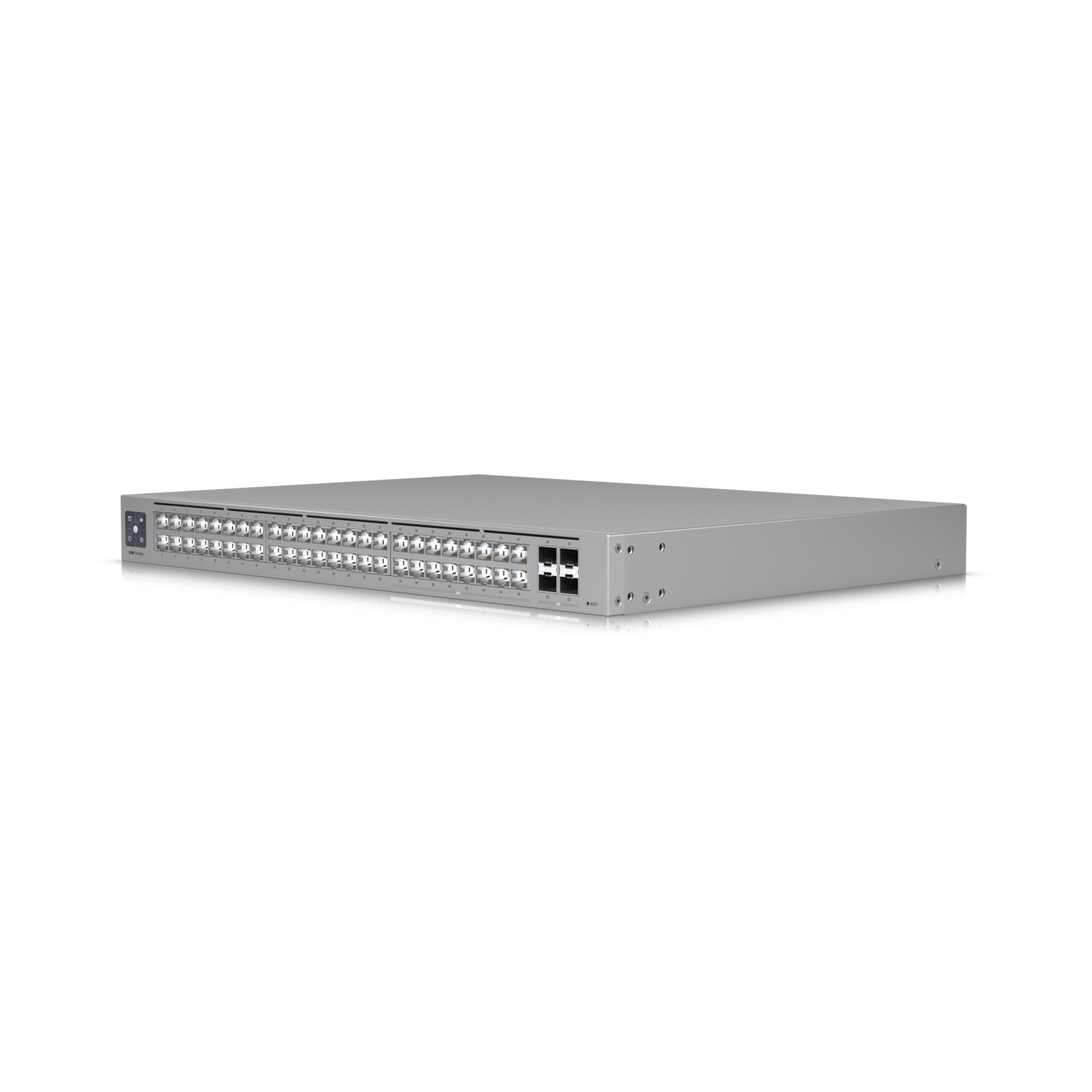

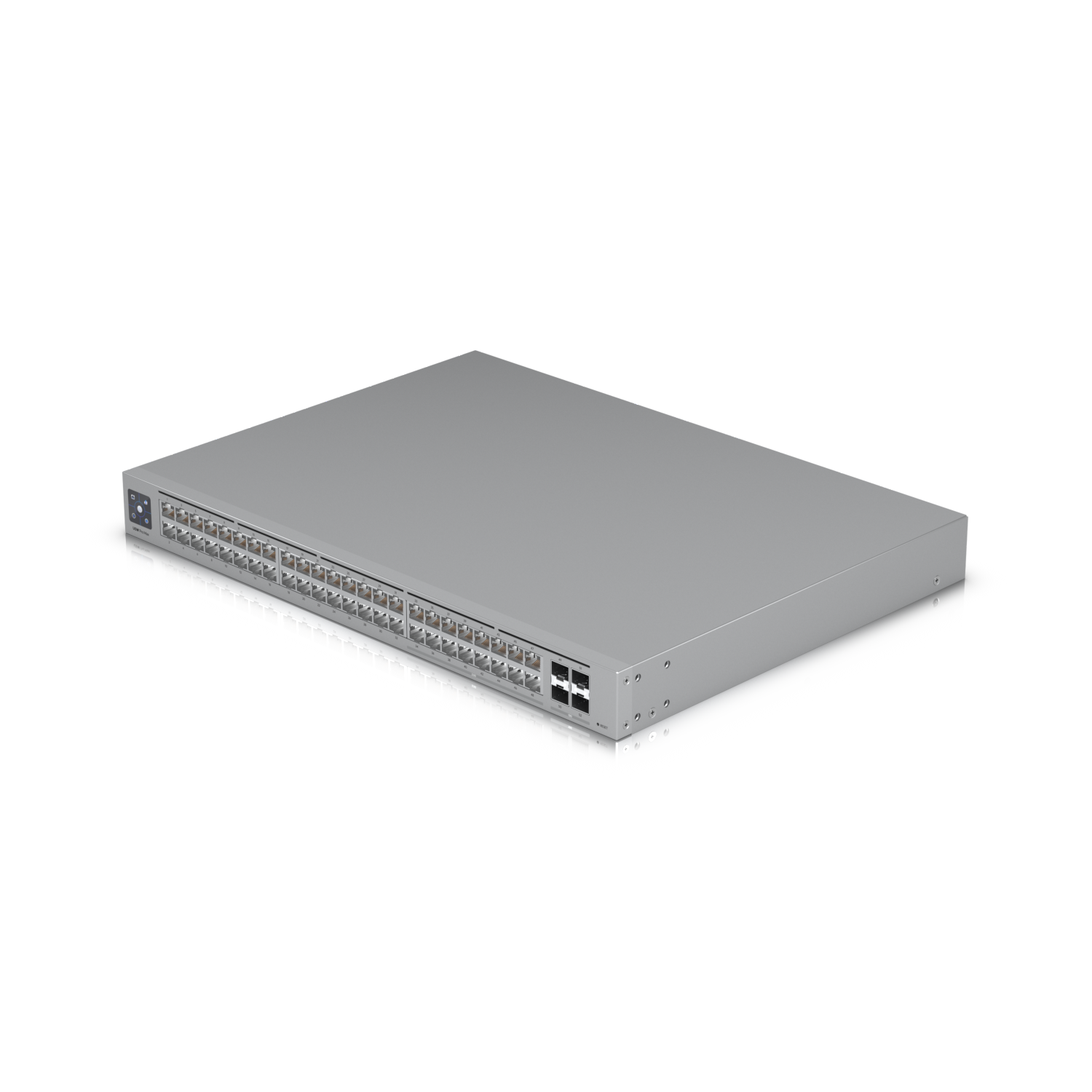

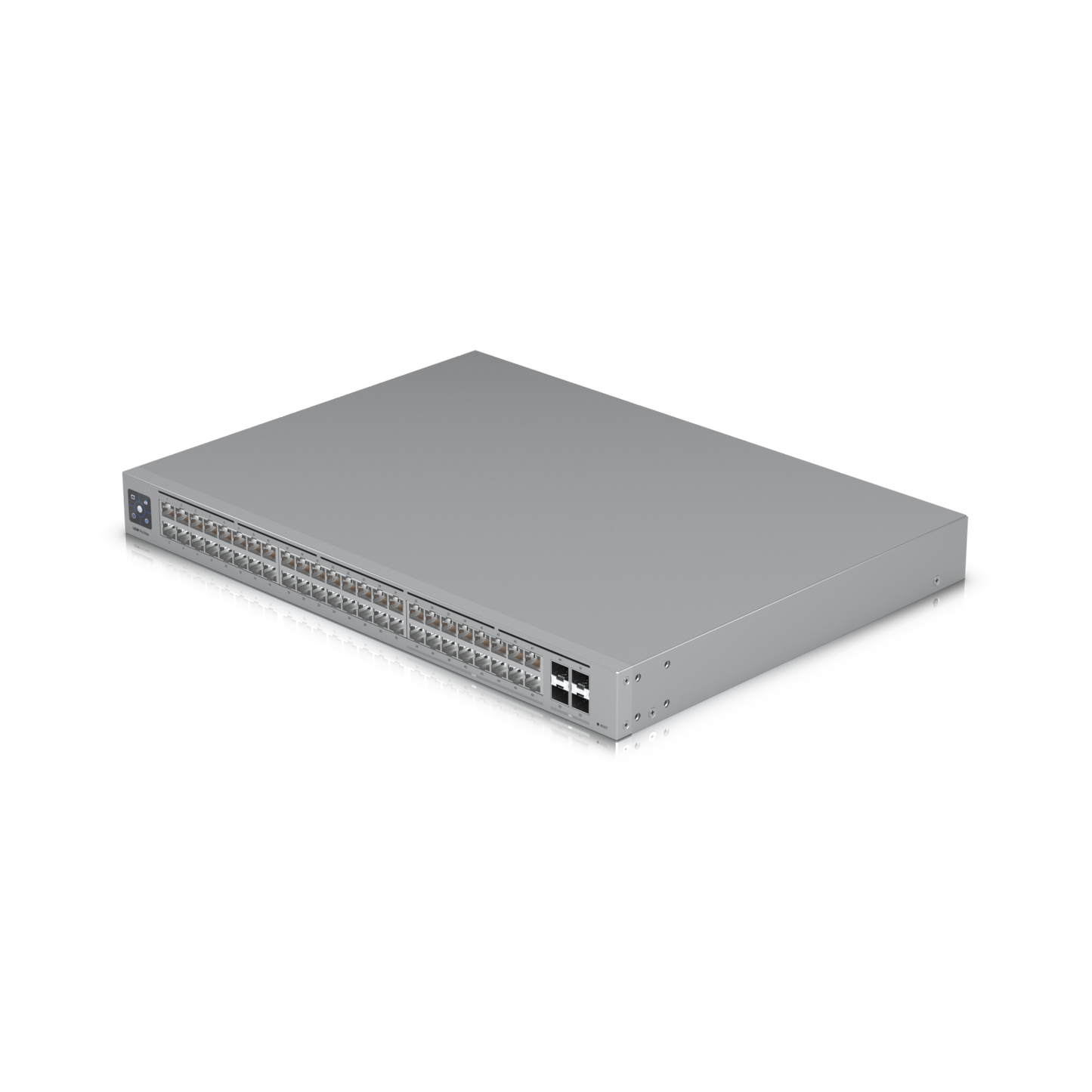

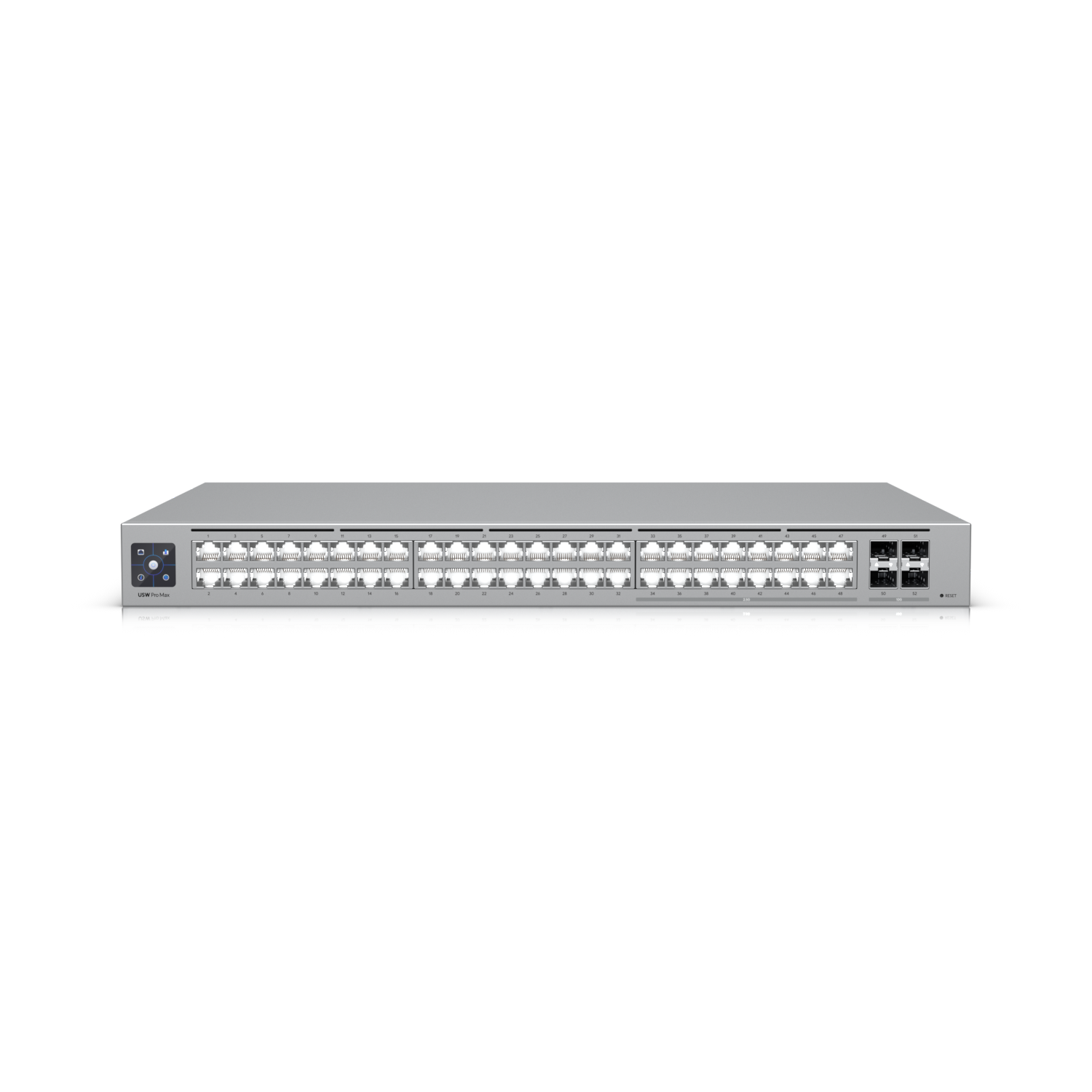

Ubiquiti USW-Pro-Max-48 – 48-Port Layer 3 Switch with 2.5G Uplinks, 10G SFP+, and Etherlighting™
High-performance 1U Layer 3 UniFi switch featuring 32x 1G RJ45, 16x 2.5G RJ45, and 4x 10G SFP+ ports. Designed for enterprise deployments requiring advanced Layer 3 routing and Etherlighting™ monitoring.
The USW-Pro-Max-48 delivers a switching capacity of 224 Gbps and supports 1,000 VLANs, 12,000 IPv4 routes, and advanced Layer 2/3 features. It includes redundancy via USP RPS and a 1.3" LCM touchscreen for real-time status monitoring. Managed through UniFi Network version 8.0.24 and later, it provides visibility via Etherlighting™ LEDs for all Ethernet and SFP+ ports.
Key Features:

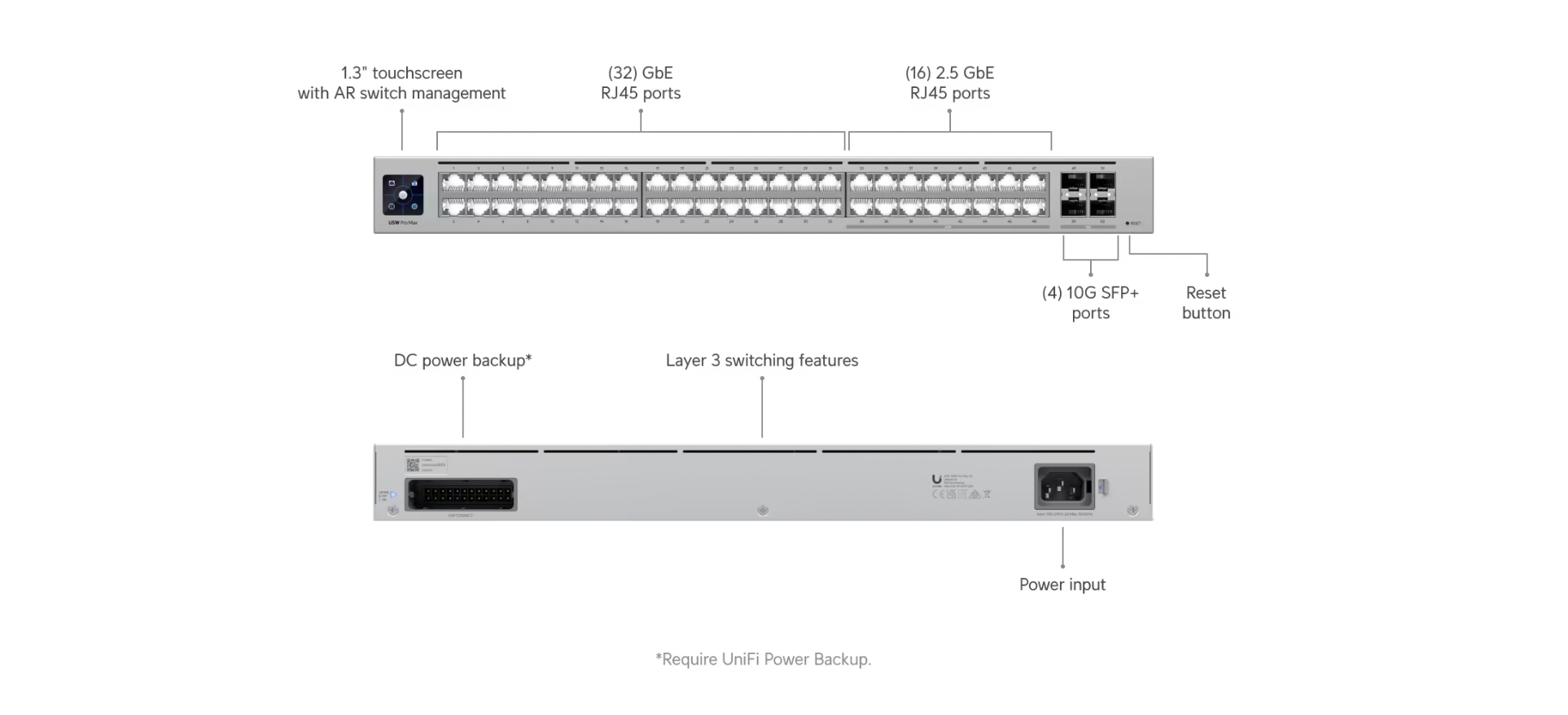

• 48 RJ45 ports: 32 × 1G, 16 × 2.5G
• 4 × 10G SFP+ uplinks
• Switching capacity: 224 Gbps
• Total throughput: 112 Gbps
• Forwarding rate: 167 Mpps

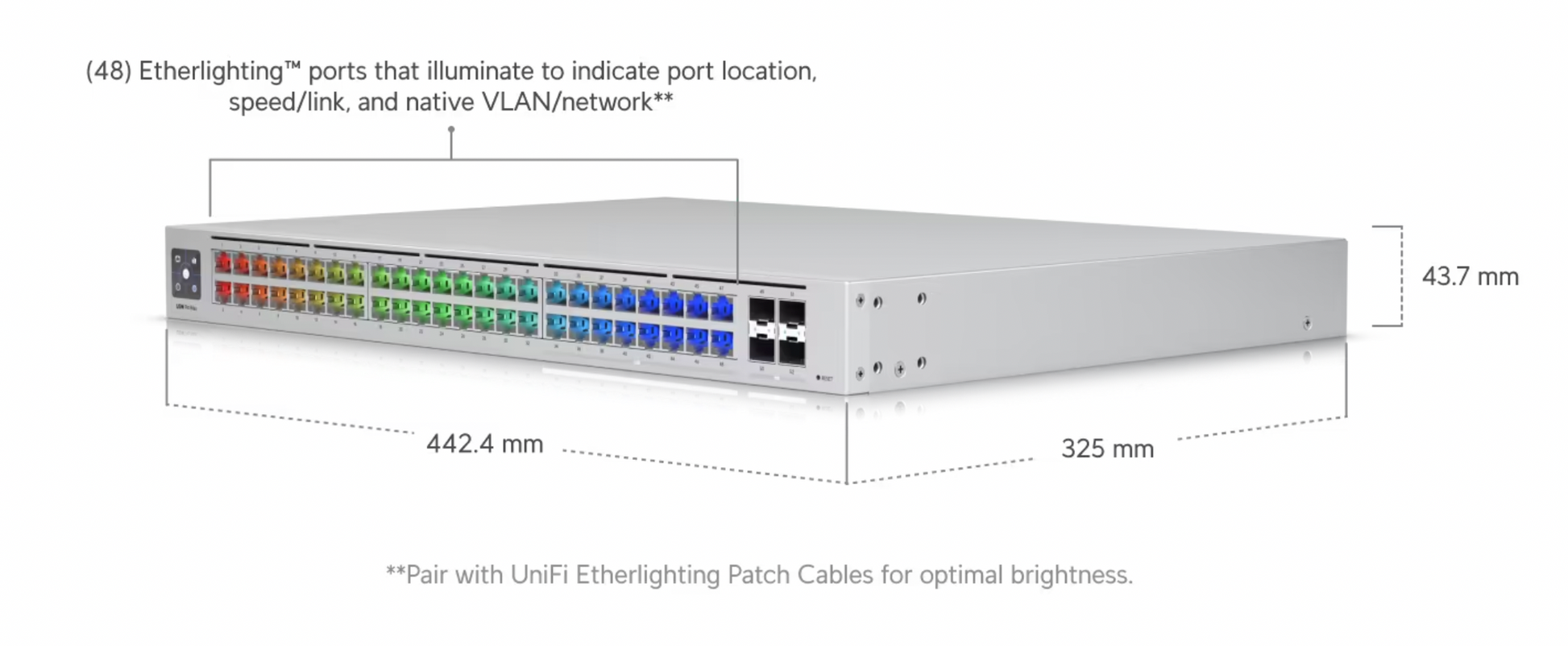

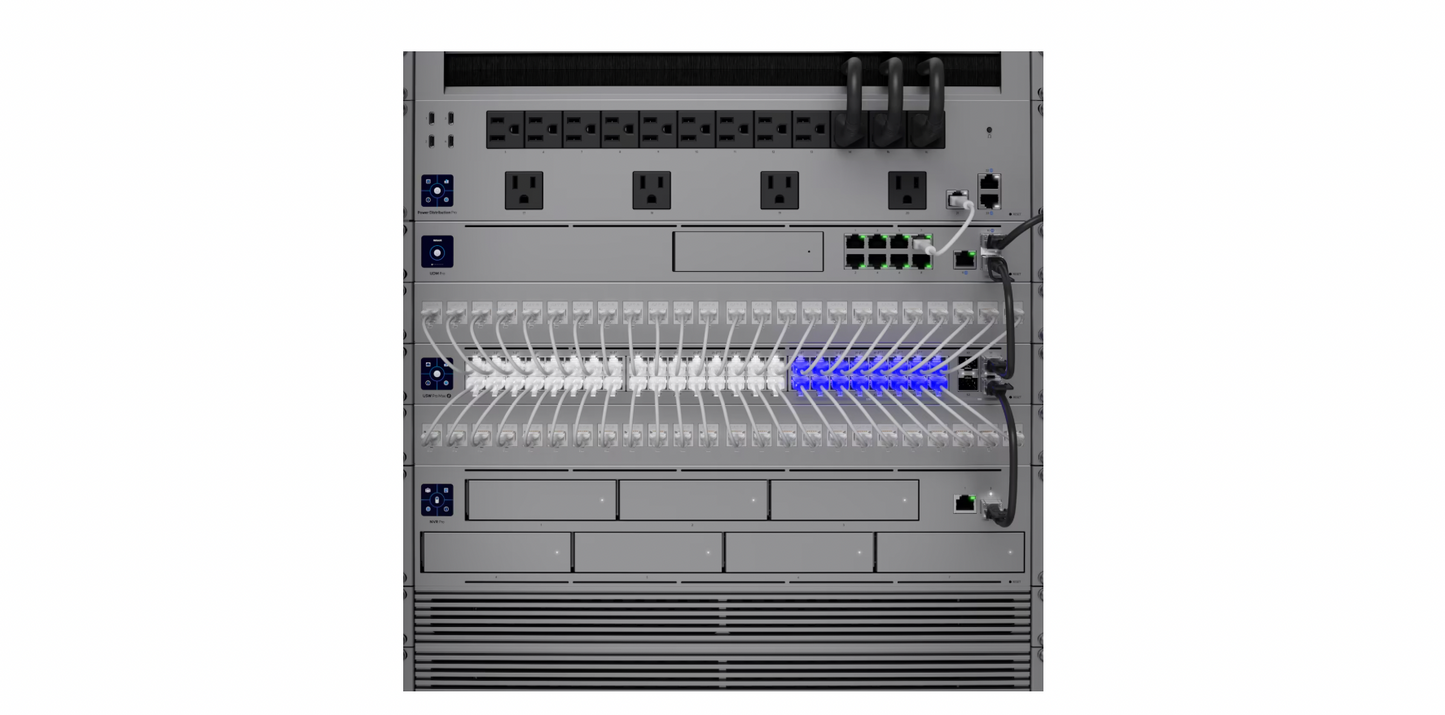

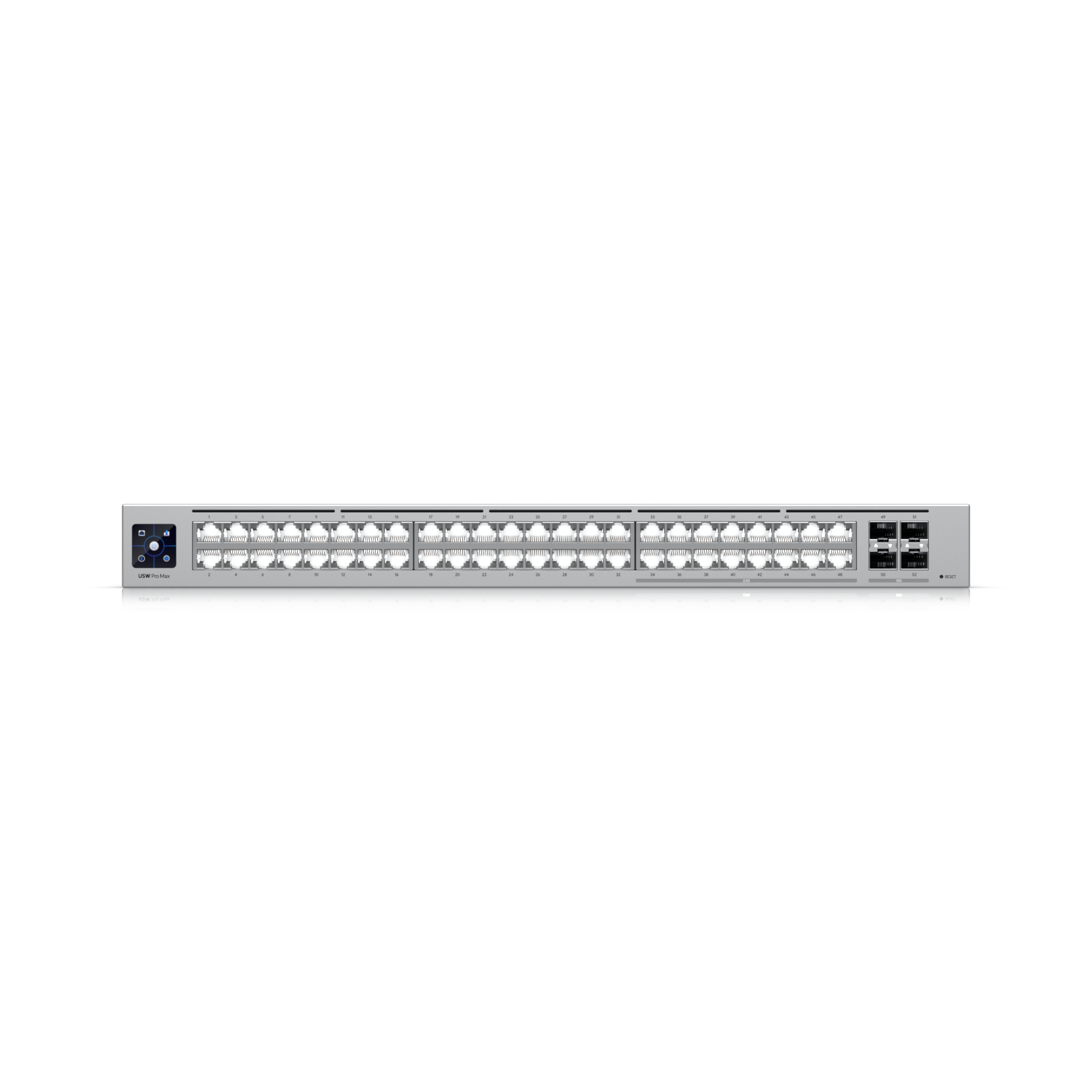

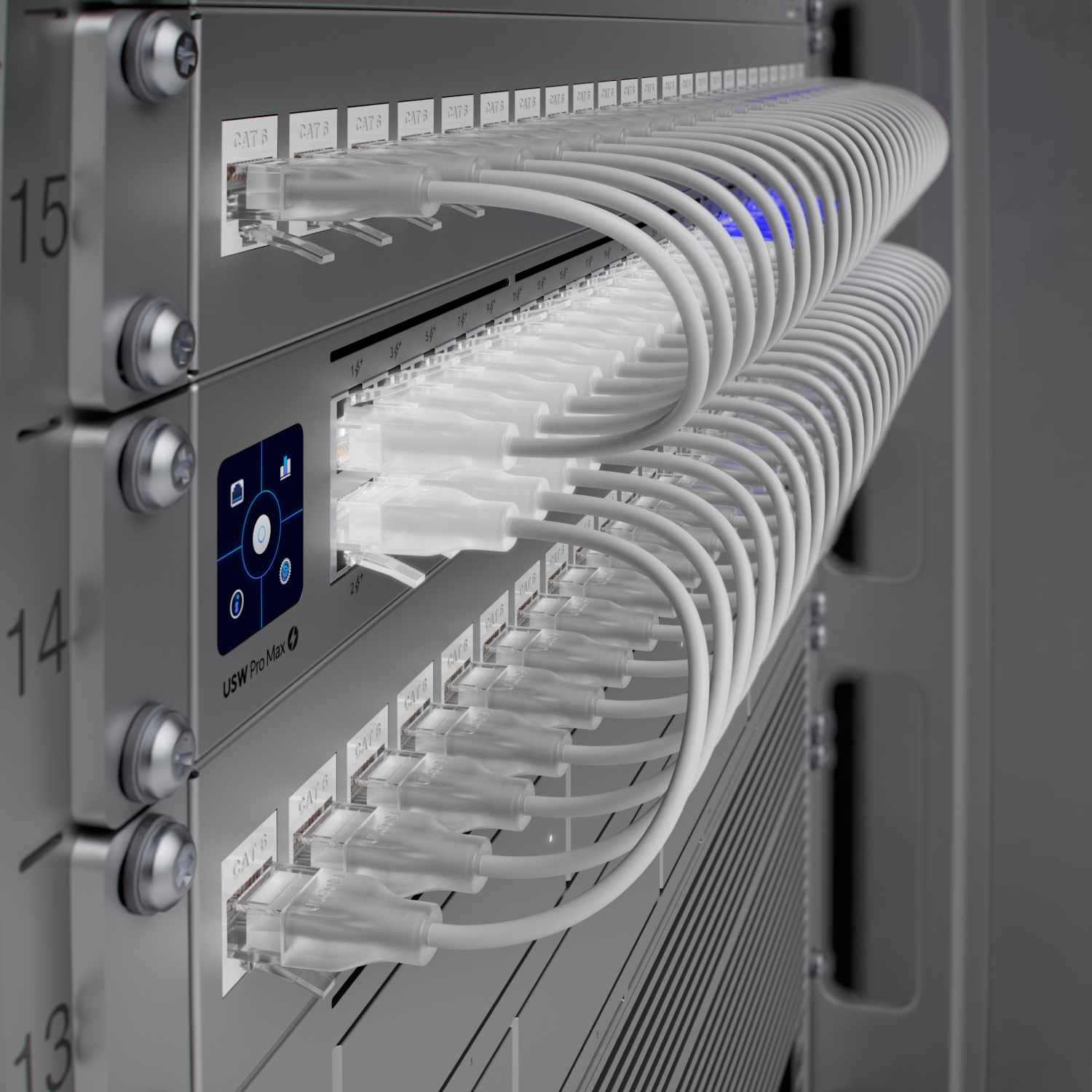

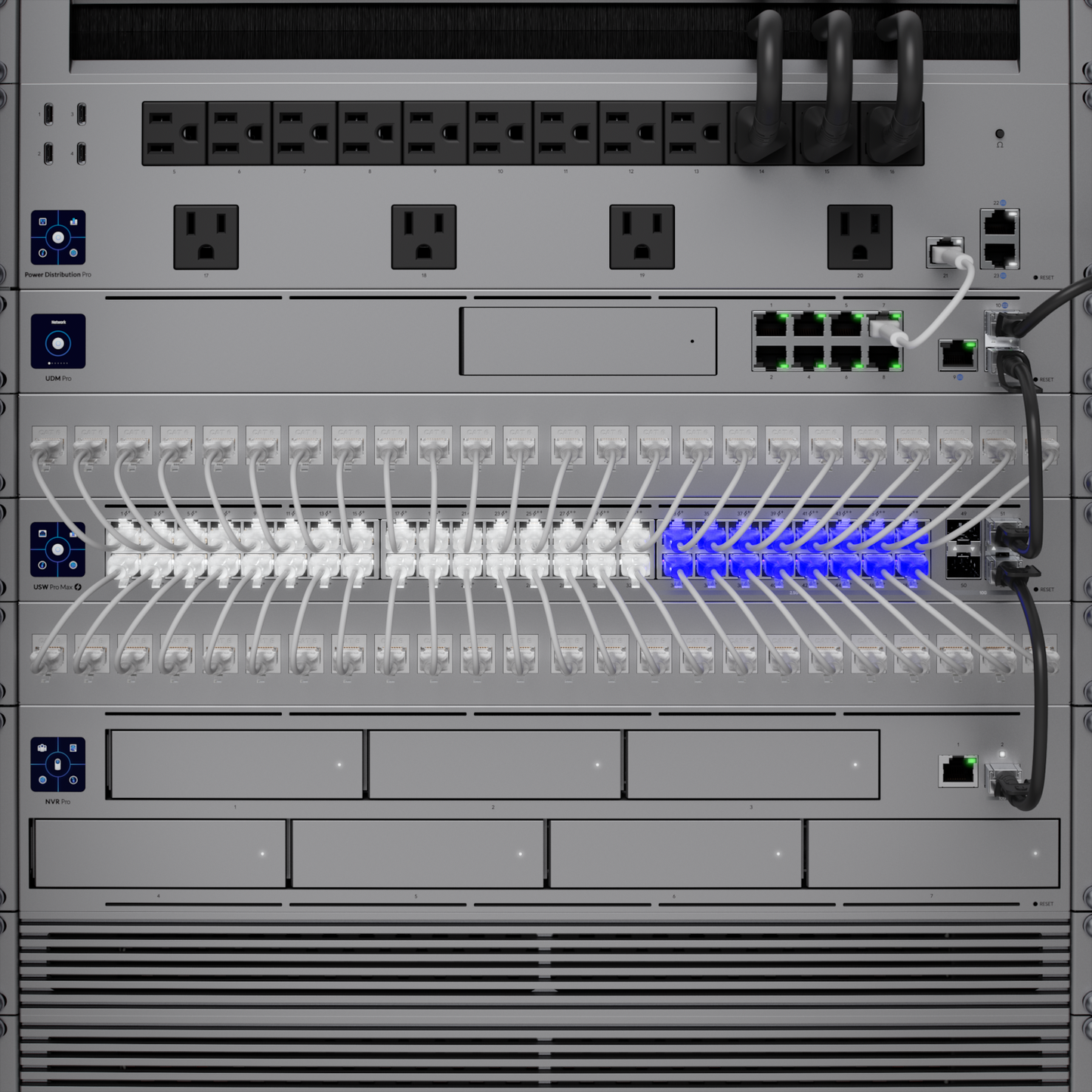

• Etherlighting™ visual port feedback
• Layer 3 routing with static, VLAN, and DHCP features

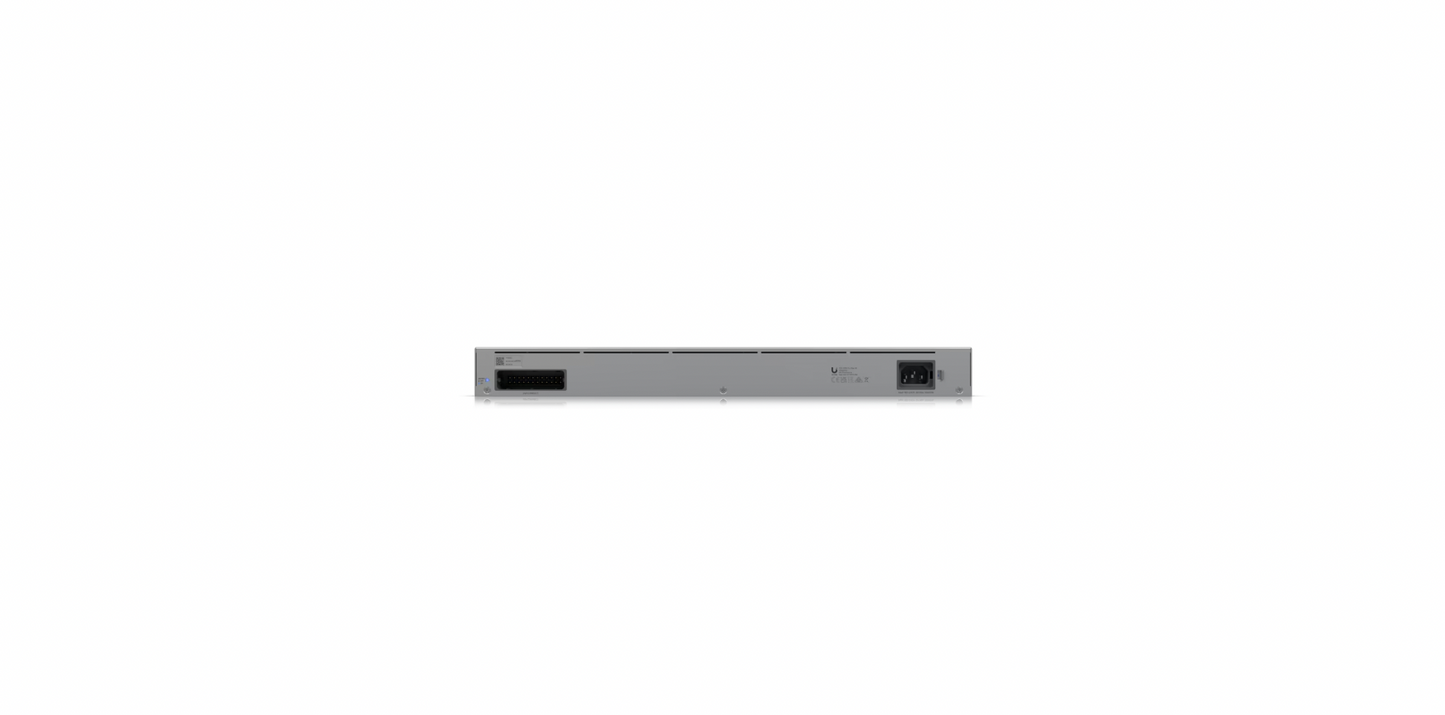

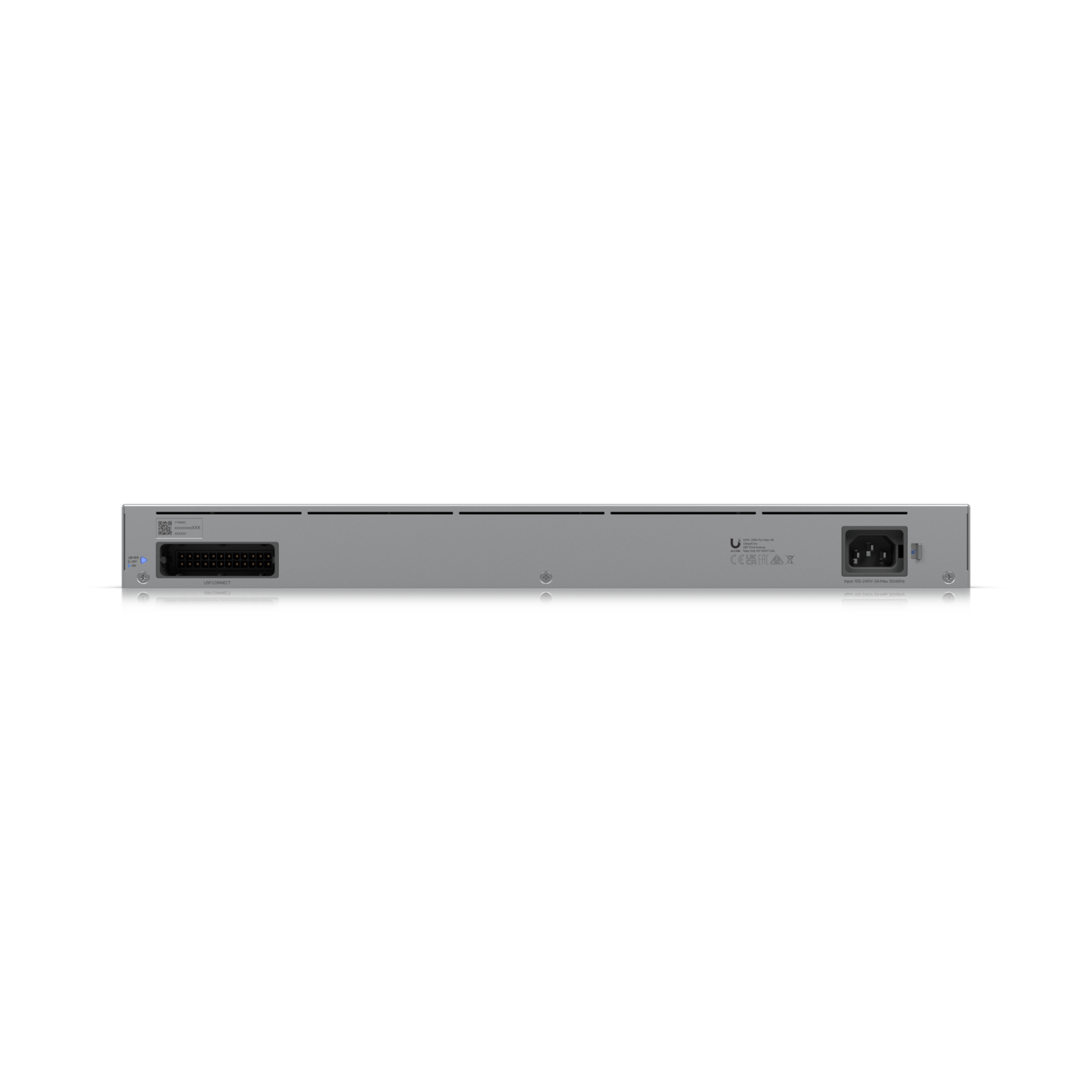

• Redundant DC power via USP RPS
• 1.3" touchscreen for local system display
Ideal For:

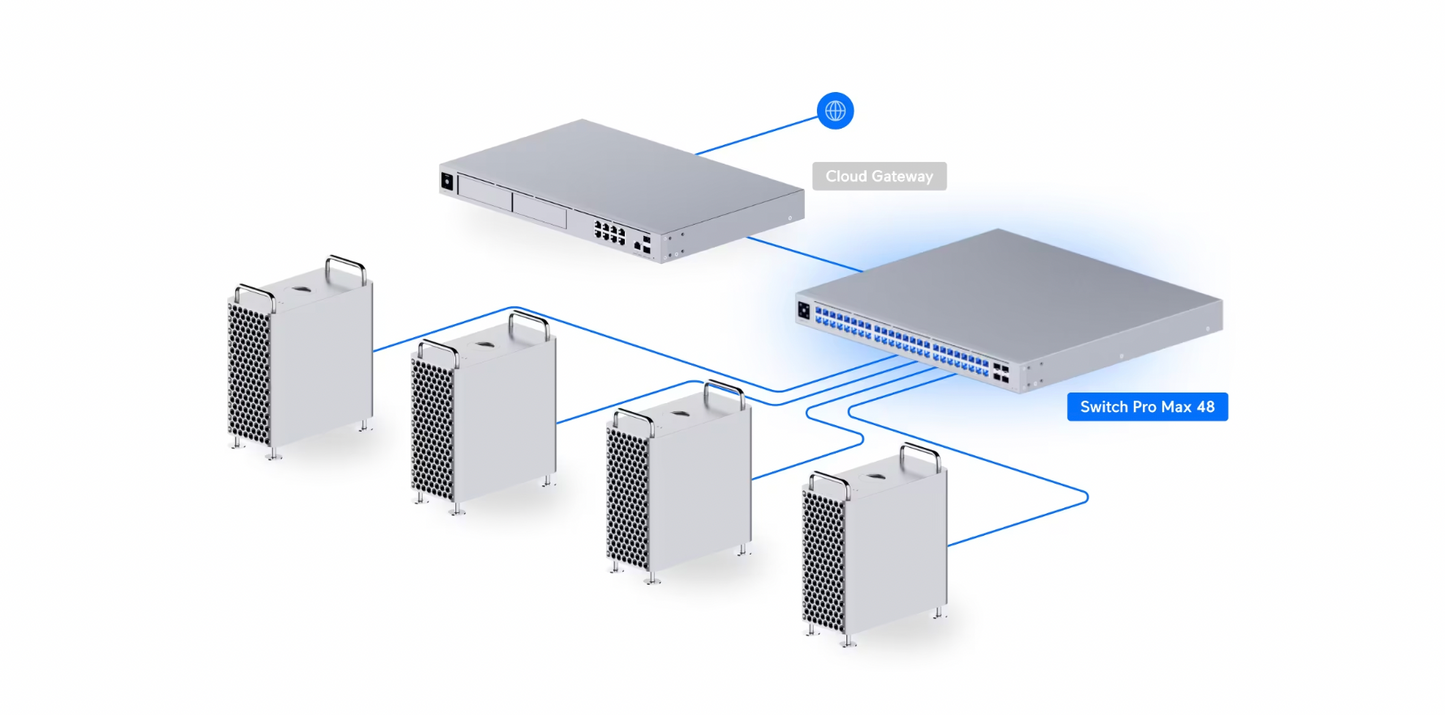

• Enterprise-grade network cores
• Environments requiring VLAN segmentation
• Multi-speed Ethernet (1G / 2.5G)
• High-throughput Layer 3 routing and real-time visibility
Key Highlights:
✅ 48 RJ45 ports with 2.5G support on 16 ports
✅ 4x 10G SFP+ for high-speed uplinks
✅ Etherlighting™ with visual diagnostics for ports
✅ Advanced L3 switching and full L2 support
✅ Redundant USP RPS compatibility and internal power
Frequently Asked Questions:
Q: How many ports support 2.5G speeds?
A: 16 RJ45 ports support 2.5G/1G/100M/10M Ethernet with Layer 3 switching.
Q: Does this switch support redundancy?
A: Yes, it includes DC backup input via Ubiquiti's USP RPS system.
Q: What is Etherlighting™?
A: Etherlighting™ provides visual port feedback via built-in Ethernet and SFP+ LEDs.
Q: Is this switch managed?
A: Yes, it is managed via UniFi Network version 8.0.24 and later.
Q: What Layer 3 features are included?
A: DHCP Server, DHCP Relay, Static Routing, and Inter-VLAN Routing.
