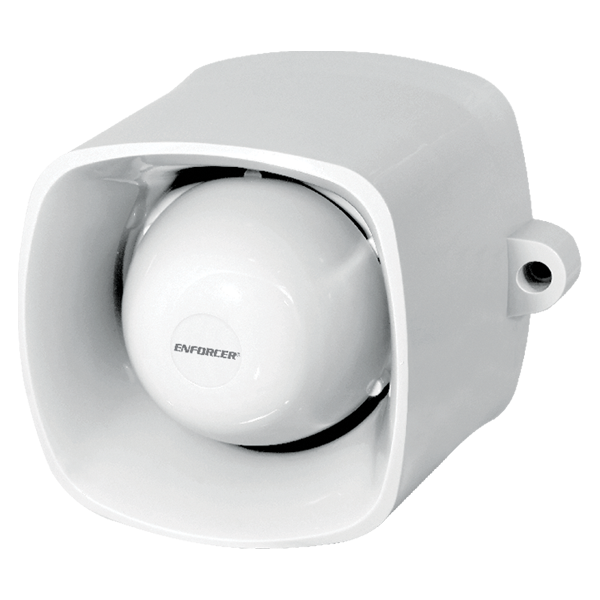

SECO-LARM SH-816S-BQ – Self-Contained Siren and Speaker (120dB, IP65)
High-output, multi-purpose siren and speaker with weatherproof IP65 housing for indoor or outdoor alarm applications.
The SH-816S-BQ is a self-contained siren and speaker combo offering both 120dB siren output and 25W audio broadcasting capability. Designed for integration with security and alarm systems, it features built-in tamper protection, low power draw, and can mount directly to a wall or back box. Its IP65-rated housing ensures reliable performance in harsh environments.
Key Features:
• Output: 120dB warble-tone siren
• Speaker: 25W peak audio or broadcast input support
• Voltage: 9~15 VDC operation
• Current Draw: 680mA max (siren), 870mA max (combined)
• Tamper Alarm: Built-in tamper output rated 100mA @ 30V AC/DC
• Mounting: Surface or gang box mount
• Weatherproofing: IP65-rated for indoor or outdoor use
• Dimensions: 6-1/8″ x 4-15/16″ x 4-1/2″ (155 x 126 x 115 mm)
Ideal For:
• Perimeter security and outdoor alarm installations
• Audio broadcasting in commercial or industrial environments
• Alarm panels needing a loud, compact siren with tamper protection
Why You Should Use This:
• Combines 120dB siren and 25W speaker in one compact unit
• IP65-rated housing for worry-free outdoor mounting
• Simple installation with flexible mounting options and tamper output
Key Highlights:
- ✅ 120dB high-output warble-tone siren
- ✅ Integrated 25W speaker for broadcast or voice alerts
- ✅ IP65 weatherproof design for outdoor use
- ✅ Built-in tamper detection and low current draw
Frequently Asked Questions:
Q: Can the speaker play both siren and broadcast audio?
A: Yes, but broadcast input interrupts siren output during use.
Q: Is the housing weatherproof?
A: Yes, it's IP65-rated for reliable use indoors or outdoors.
Q: How is it mounted?
A: The unit mounts to most wall surfaces or standard single/double gang boxes.
