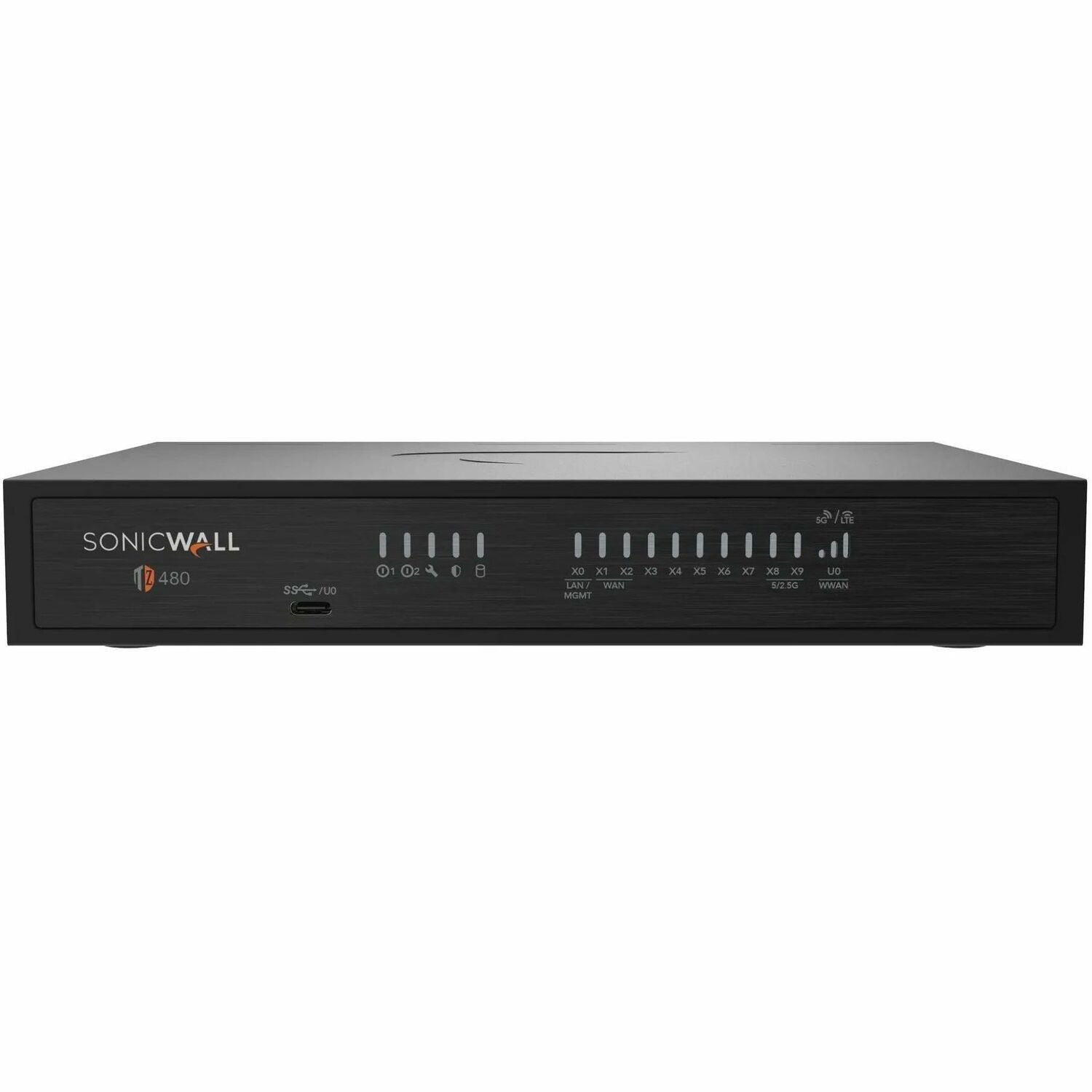

SonicWall TZ480 Network Security/Firewall Appliance - 03-SSC-6980
Key Features
- 5 Gigabit Ethernet Ethernet technology for a reliable, convenient way of communication and connectivity
- Can be placed on Desktop surface for standalone installation
- Designed to be the central hub of all network security activity with maximum productivity
- For securely connecting servers, workstations and storage and enabling secure data transfer, use this 8 ports firewall
- Proven firewall appliance with intrusion prevention firewall protection support provides secure data transfer on your network
- Secure your applications and files with the MD5 algorithm that is based on cryptographic hash function producing a 128-bit (16-byte) hash value
- USB allows powerful and efficient transfer of data with maximum productivity
Product Overview
Designed for small organizations and distributed enterprise with SD-Branch locations, the TZ480 series deliver industry-validated security effectiveness with best-in-class price-performance.
General Information
- Manufacturer: SonicWall Inc.
- Manufacturer Part Number: 03-SSC-6980
- Brand Name: SonicWall
- Product Series: TZ
- Product Model: TZ480
- Product Name: TZ480 Network Security/Firewall Appliance
- Product Type: Network Security/Firewall Appliance
Technical Information
- Functionality: Intrusion Prevention
- Firewall Protection Supported:
- Intrusion Prevention
- Malware Protection
- Application Control
- Content Filtering
- Anti-spyware
- URL Filtering
- Denial of Service (DoS)
- Stateful Packet Filtering
- Signature-based Intrusion Prevention
- Distributed Denial of Service (DDoS)
- Threat Protection
- Secure IPsec VPN Connectivity
- Deep Inspection Firewall
- Real-Time Deep Memory Inspection (RTDMI)
- Gateway Antivirus
- Reassembly-free Deep Packet Inspection
- TLS Decryption
- TLS Inspection
- SSL Decryption
- SSL Inspection
- Firewall Throughput: 4 Gbit/s
- Encryption Standard:
- MD5
- AES (128-bit)
- AES (192-bit)
- AES (256-bit)
- SHA-256
- SHA-384
- WPA
- WPA2
- WPA3
- EAP-PEAP
- EAP-TTLS
- TLS 1.3
- Number of VPN Supported: 200
- Data Link Protocols:
- HTTP
- HTTPS
- L2TP
- PPTP
- TCP/IP
- Connectivity Technology: Wired
- New Connections Per Second: 18000
Interfaces/Ports
- Total Number of Ports: 8
- USB: Yes
- Number of Network (RJ-45) Ports: 8
Media & Performance
- VPN Throughput: 256 MB/s
- IPS Throughput: 281.60 MB/s
Network & Communication
- Ethernet Technology: 5 Gigabit Ethernet
I/O Expansions
- Total Number of Expansion Slots: 2
- Expansion Slot Type: SFP (mini-GBIC)
- Number of SFP Slots: 2
Management & Protocols
- Manageable: Yes
Power Description
- Frequency:
- 50 Hz
- 60 Hz
- Power Consumption: 13.77 W
Physical Characteristics
- Form Factor: Desktop
- Height: 1.4"
- Width: 5.1"
- Depth: 7.5"
- Weight (Approximate): 1.81 lb
Miscellaneous
- Environmental Compliance:
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
- Support/Service Duration: 2 Year
- Support/Service Type: Secure Upgrade Plus Advanced Edition
