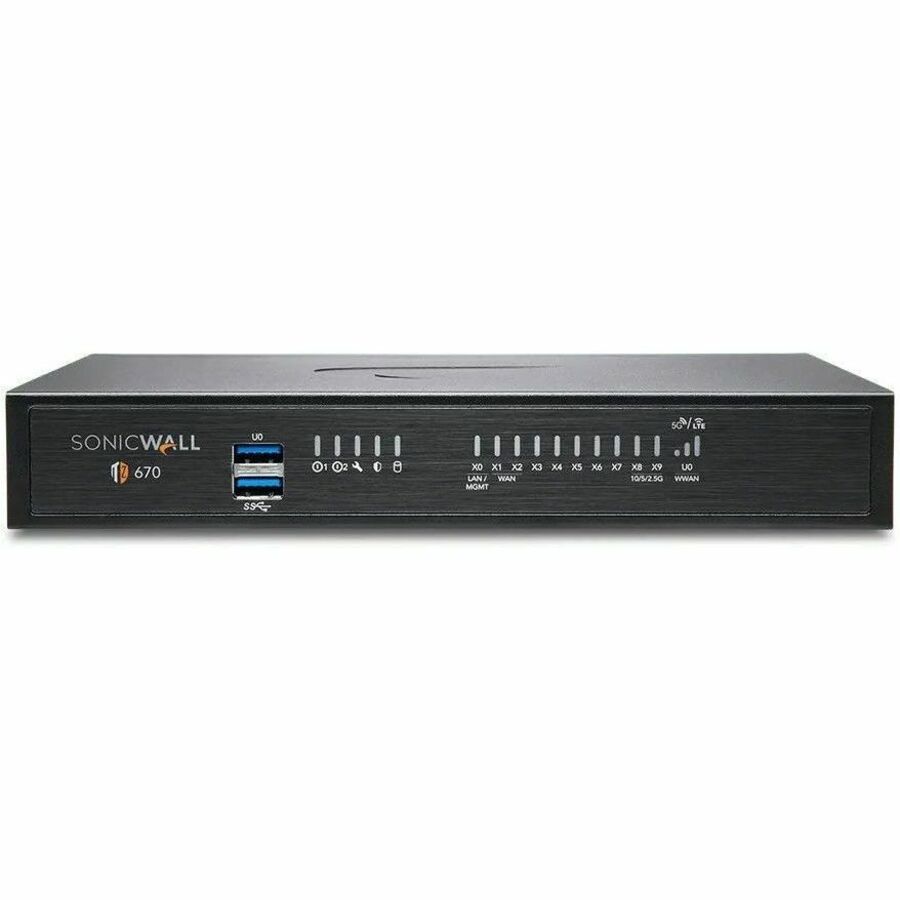

SonicWall TZ670 Network Security/Firewall Appliance - 03-SSC-3029
Key Features
- 10/5/2.5/1 GbE interfaces in a desktop form factor
- Built-in and expandable storage
- High port density
- Redundant power
- SD-Branch ready
- Secure SD-WAN capability
- Single-pane-of-glass-management through cloud or firewall
- SonicExpress App onboarding
- SonicWall Switch, SonicWave Access Point and Capture Client integration
- Zero-Touch Deployment
Product Overview
Designed for mid-sized organizations and distributed enterprise with SD-Branch locations, the TZ670 delivers industryvalidated security effectiveness with best-in-class price-performance.
General Information
- Manufacturer: SonicWall Inc.
- Manufacturer Part Number: 03-SSC-3029
- Brand Name: SonicWall
- Product Series: TZ
- Product Model: TZ670
- Product Name: TZ670 Network Security/Firewall Appliance
- Product Type: Network Security/Firewall Appliance
Technical Information
- Functionality: Intrusion Prevention
- Firewall Protection Supported:
- Intrusion Prevention
- Malware Protection
- Application Control
- Content Filtering
- Anti-spyware
- URL Filtering
- Denial of Service (DoS)
- Stateful Packet Filtering
- Signature-based Intrusion Prevention
- Distributed Denial of Service (DDoS)
- Threat Protection
- Secure IPsec VPN Connectivity
- Deep Inspection Firewall
- Real-Time Deep Memory Inspection (RTDMI)
- Gateway Antivirus
- Reassembly-free Deep Packet Inspection
- Firewall Throughput: 5 Gbit/s
- Encryption Standard:
- DES
- 3DES
- MD5
- SHA-1
- AES (128-bit)
- AES (192-bit)
- AES (256-bit)
- WPA
- WEP
- TKIP
- Connectivity Technology: Wired
- New Connections Per Second: 25000
Interfaces/Ports
- Total Number of Ports: 8
- USB: Yes
- Number of Network (RJ-45) Ports: 8
Media & Performance
- VPN Throughput: 268.80 MB/s
- IPS Throughput: 384 MB/s
Network & Communication
- Ethernet Technology: 10 Gigabit Ethernet
- Network Standard:
- 10/100/1000Base-T
- 10GBase-X
Wireless Specifications
- Wireless LAN: No
I/O Expansions
- Total Number of Expansion Slots: 2
- Expansion Slot Type: SFP+
- Number of SFP+ Slots: 2
Management & Protocols
- Manageable: Yes
Power Description
- Frequency:
- 50 Hz
- 60 Hz
- Power Consumption: 13.10 W
Physical Characteristics
- Form Factor:
- Desktop
- Rack-mountable
- Height: 1.4"
- Width: 8.9"
- Depth: 5.9"
- Weight (Approximate): 2.14 lb
Miscellaneous
- Environmental Compliance:
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
- Support/Service Duration: 3 Year
- Support/Service Type: Promotional Tradeup with EPSS and CSE
