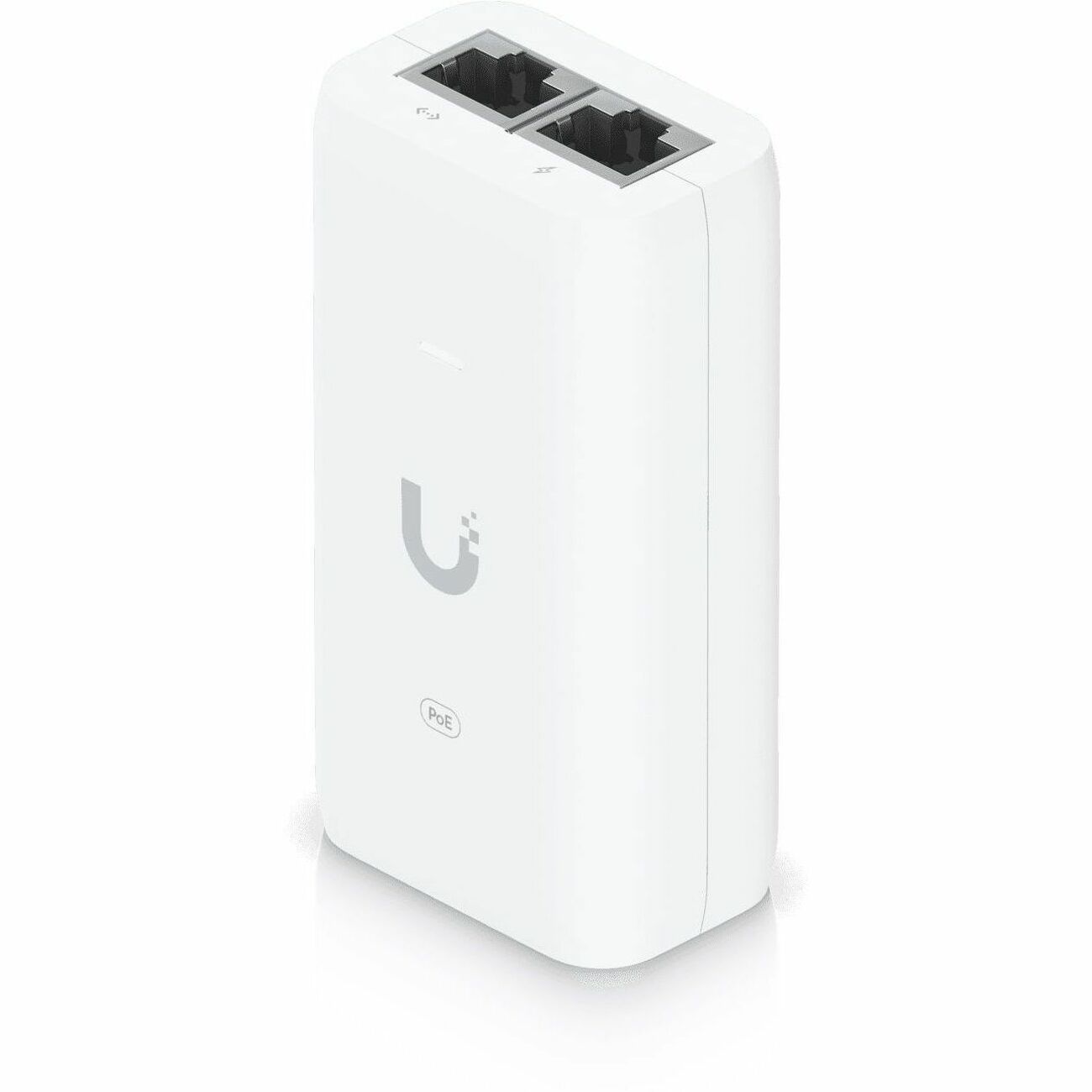

Ubiquiti U-PoE Injector (15W) - U-PoE
Product Overview
An adapter that can power UniFi PoE devices, reduce dependency on PoE switch power, and provide a Gigabit LAN connection.
- Delivers up to 15W of PoE
- Surge, peak pulse, and overcurrent protection

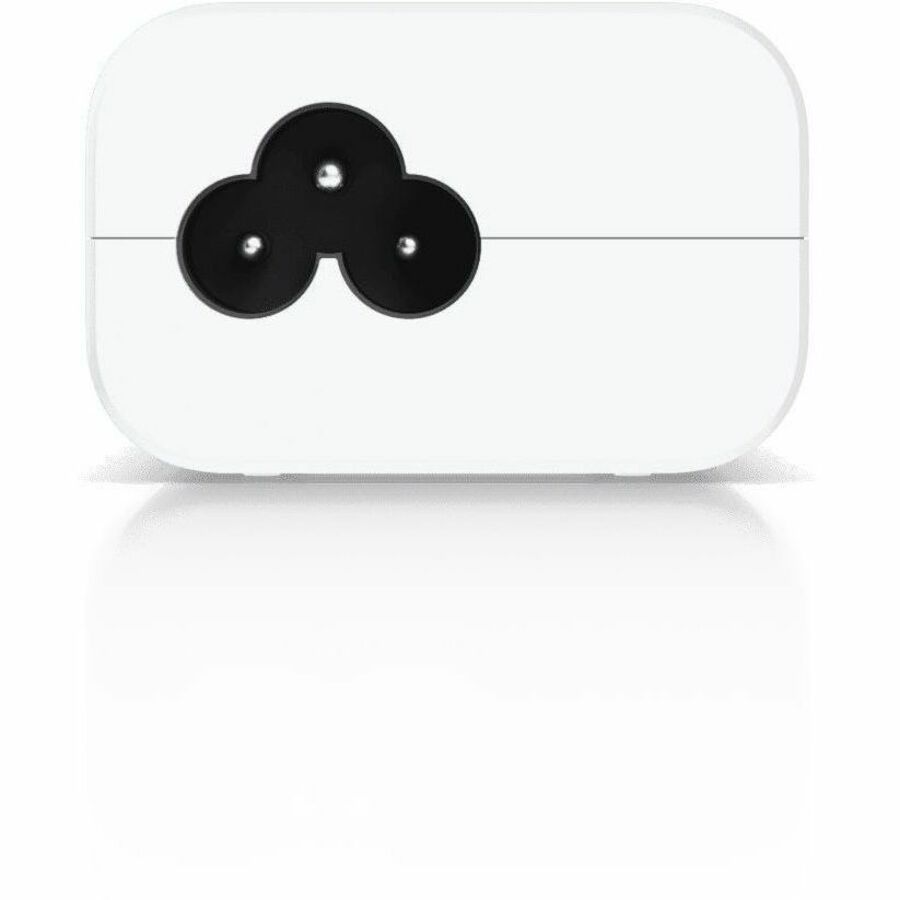

- Contains RJ45 data input, AC cable with earth ground, and PoE output
- LED indicator for status monitoring
General Information
- Manufacturer: Ubiquiti Inc.
- Manufacturer Part Number: U-PoE
- Brand Name: Ubiquiti
- Product Model: GP-V480-032G
- Product Name: GP-V480-032G 15W PoE Injector
- Product Type: PoE Injector
Technical Information
- Protection Type:
- Surge Protection
- Clamping Protection
- Peak Pulse Current
- Over Current
Power Description
- Input Voltage:
- 120 V AC
- 230 V AC
- Maximum Output Voltage: 48 V DC
- Maximum Input Current: 500 mA
- Maximum Output Current: 320 mA
- Maximum Output Power: 15 W
Interfaces/Ports

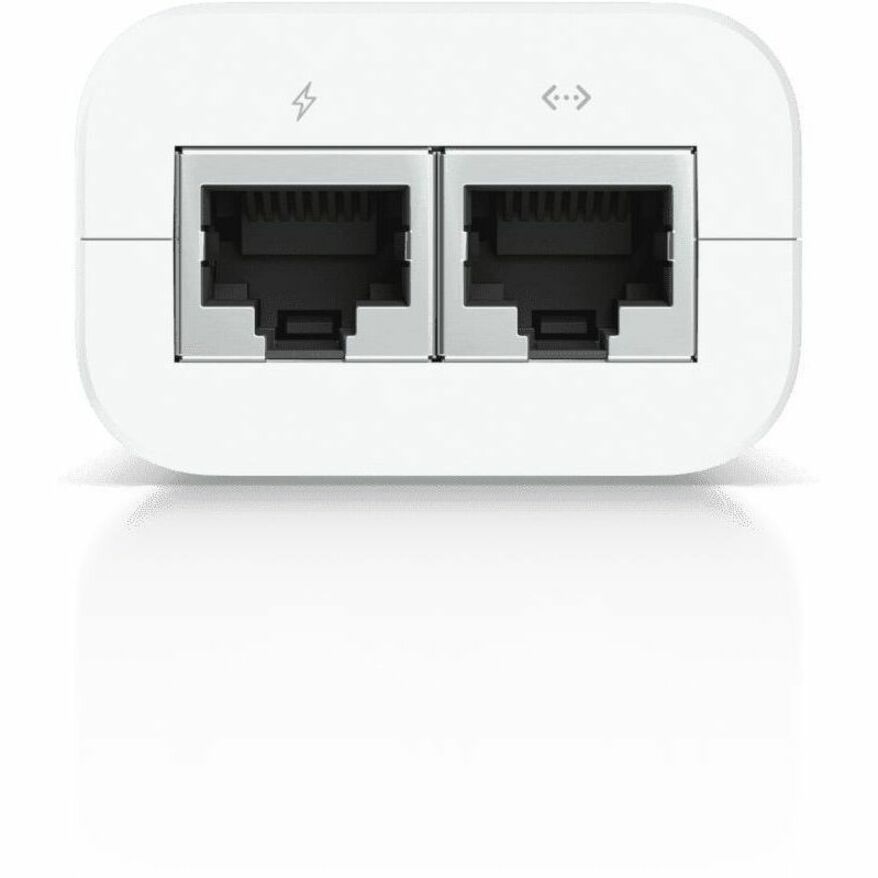

- Input Ports: 1 x RJ-45
- Output Ports: 1 x PoE
Physical Characteristics
- Height: 3.4"
- Width: 1.8"
- Depth: 1.3"
- Weight (Approximate): 3.53 oz
Miscellaneous
- Certifications & Standards:
- CE
- FCC
- IC
- UL
- UKCA
- KC
- EAC
- VI
- CCC
- cULus
- NOM
- KCC
- Environmental Compliance:
- Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Country of Origin: China
