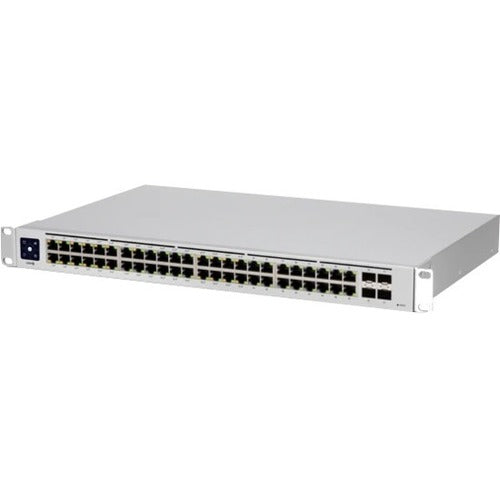

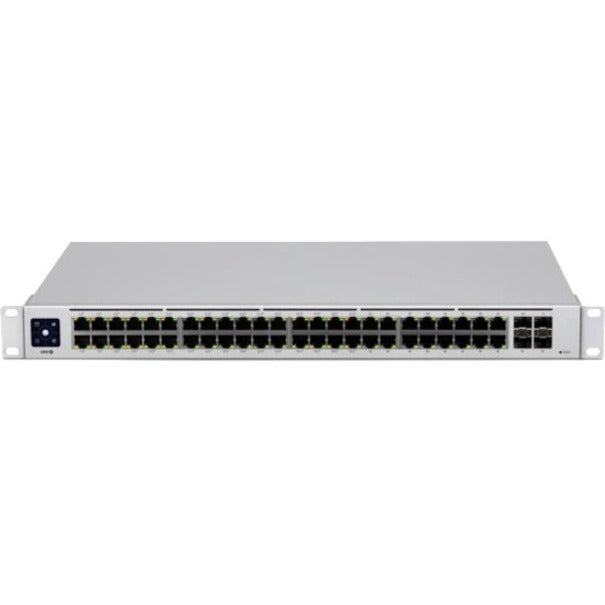

Ubiquiti UniFi USW-48-PoE Ethernet Switch - USW-48-POE
Key Features
- Auto-Sensing IEEE 802.3af/at PoE
- Quiet Cooling for Any Workspace
- SFP Ports for Gigabit Fiber Connectivity
Product Overview
Expand and power your network with the UniFi® PoE Switch, part of the Ubiquiti® UniFi Enterprise System. It is available in the following models:
- USW-16-PoE 16 RJ45 ports with 2 SFP ports
- USW-24-PoE 24 RJ45 ports with 2 SFP ports
- USW-48-PoE 48 RJ45 ports with 4 SFP ports
The 16-port and 24-port models measure only 7.9" in depth, making them ideal for convenient installation: rackmounted in a SOHO rack cabinet or placed on a desktop.
Fiber Connectivity
SFP ports enable network uplinks of up to 1 Gbps.
Fanless, Silent Cooling
The UniFi PoE Switch features fanless, silent thermal cooling, so it can be deployed in areas where fan noise would be distracting.
Switching Performance
The UniFi PoE Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
802.3af/at PoE
PoE support simplifies your network infrastructure and cabling. PoE ports offer 802.3af/at to power your PoE devices, such as UniFi APs and cameras.
Enterprise Edition
Looking for an enterprise version? Island Electrical Supply has you covered, find what you need right here!
General Information
- Manufacturer: Ubiquiti Inc.
- Manufacturer Part Number: USW-48-POE
- Brand Name: Ubiquiti
- Product Line: UniFi
- Product Model: USW-48-PoE
- Product Name: UniFi USW-48-PoE Ethernet Switch
- Product Type: Ethernet Switch
Interfaces/Ports
- Total Number of Network Ports: 48
- Uplink Port: Yes
- Modular: Yes
- Port/Expansion Slot Details:
- 32 x Gigabit Ethernet PoE
- 16 x Gigabit Ethernet Network
- 4 x Gigabit Ethernet Uplink
Media & Performance
- Media Type Supported:
- Twisted Pair
- Optical Fiber
- Ethernet Technology: Gigabit Ethernet
- Network Technology:
- 10/100/1000Base-T
- 1000Base-X
I/O Expansions
- Total Number of Expansion Slots: 4.0
- Expansion Slot Type: SFP (mini-GBIC)
- Shared SFP Slot: No
- Number of SFP Slots: 4
Network & Communication
- Layer Supported: 2
Management & Protocols
- Manageable: Yes
Power Description
- PoE (RJ-45) Port: Yes
- PoE Budget: 195 W
- Power Source:
- PoE
- Power Supply
- Power Consumption: 45 W
Physical Characteristics
- Compatible Rack Unit: 1U
- Form Factor:
- Rack-mountable
- Desktop
- Height: 1.7"
- Width: 17.4"
- Depth: 11.2"
- Weight (Approximate): 9.96 lb
Miscellaneous
- Environmentally Friendly: Yes
- Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
- Limited Warranty: 1 Year
