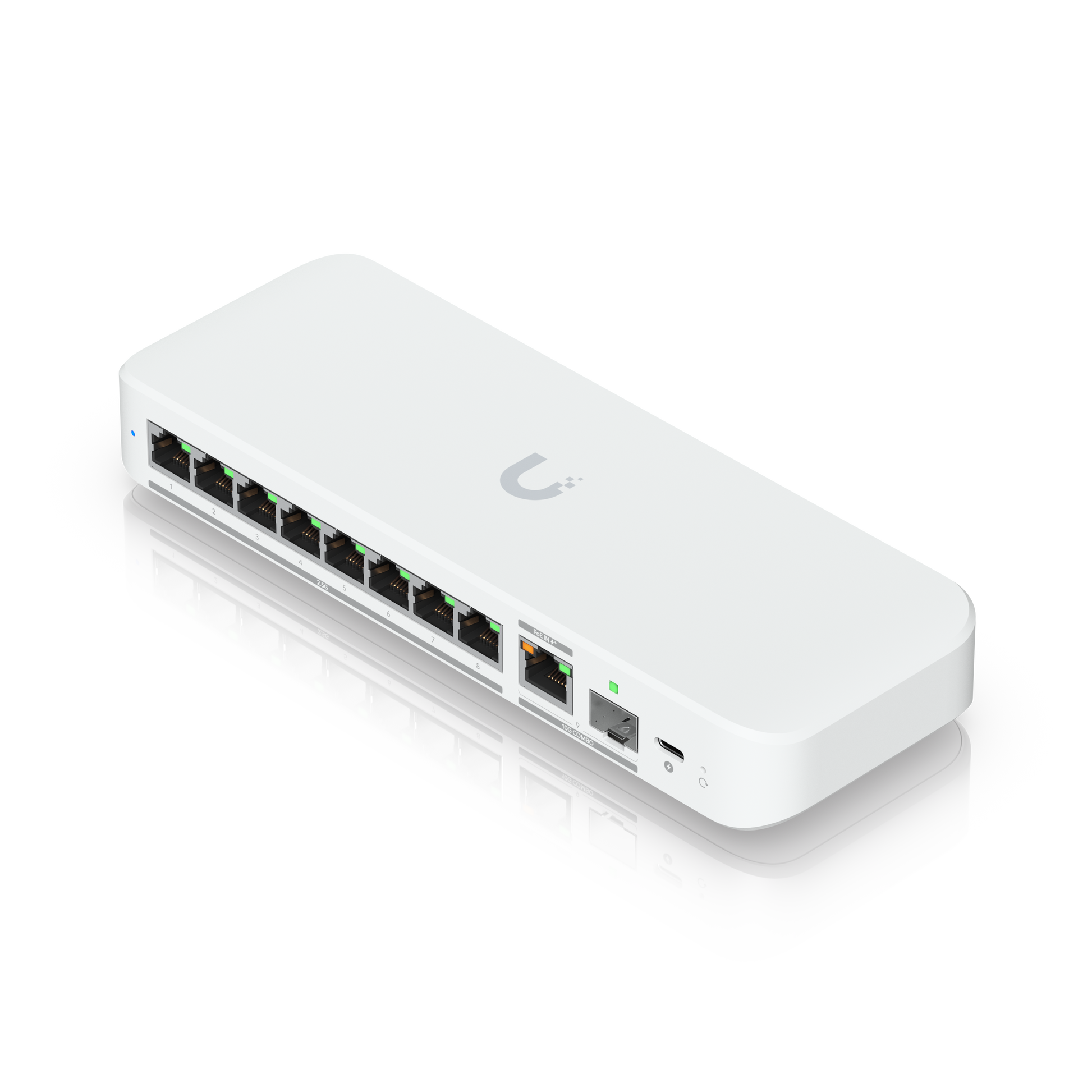

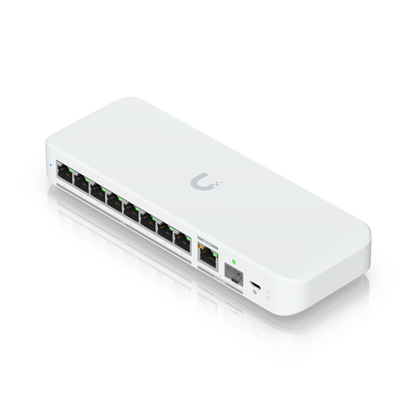

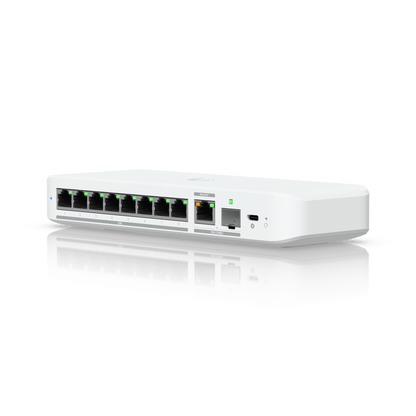

Ubiquiti USW-Flex-2.5G-8 Flex Ethernet Switch

Ubiquiti USW-Flex-2.5G-8 Flex Ethernet Switch

SKU: USW-Flex-2.5G-8

Regular price $184.99 USD
Regular price Sale price $184.99 USD
Sale Sold out

FINAL SALE

 211 in stock

View full details

Ubiquiti USW-Flex-2.5G-8 Flex Ethernet Switch
9-Port – Compact, Multi-Gigabit – 2.5G/10G

The Ubiquiti Flex Ethernet Switch (USW-Flex-2.5G-8) delivers powerful multi-gigabit switching in a compact, versatile form factor. Featuring 8 x 2.5 Gigabit RJ-45 ports and 1 x 10 Gigabit combo uplink port (RJ-45/SFP+), this Layer 2 switch is built for speed, reliability, and deployment flexibility.

Ideal for home, office, or industrial use, the USW-Flex-2.5G-8 supports both twisted pair and fiber media, DIN rail mounting, wall mount, or desktop placement. With loop protection and support for various DC power sources, it's engineered for efficiency and versatility in demanding network environments.

Why You Should Use This:
- Enables high-speed networking with 2.5G and 10G support
- Combines compact size with robust mounting options
- Supports a wide range of DC power input voltages
- Provides seamless integration into UniFi-managed networks

Ideal For:
- SMBs upgrading from 1G to multi-Gig
- Work-from-home setups with high-throughput needs
- Edge deployment in DIN-rail or wall-mounted environments
- Integrating with Ubiquiti’s broader UniFi ecosystem

Key Highlights:
- 8 x 2.5G RJ-45 ports
- 1 x 10G RJ-45/SFP+ combo uplink
- Layer 2 support
- 14W max power consumption

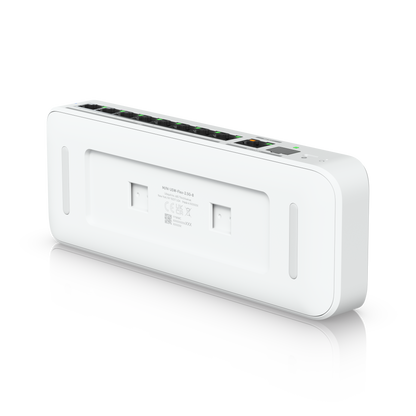

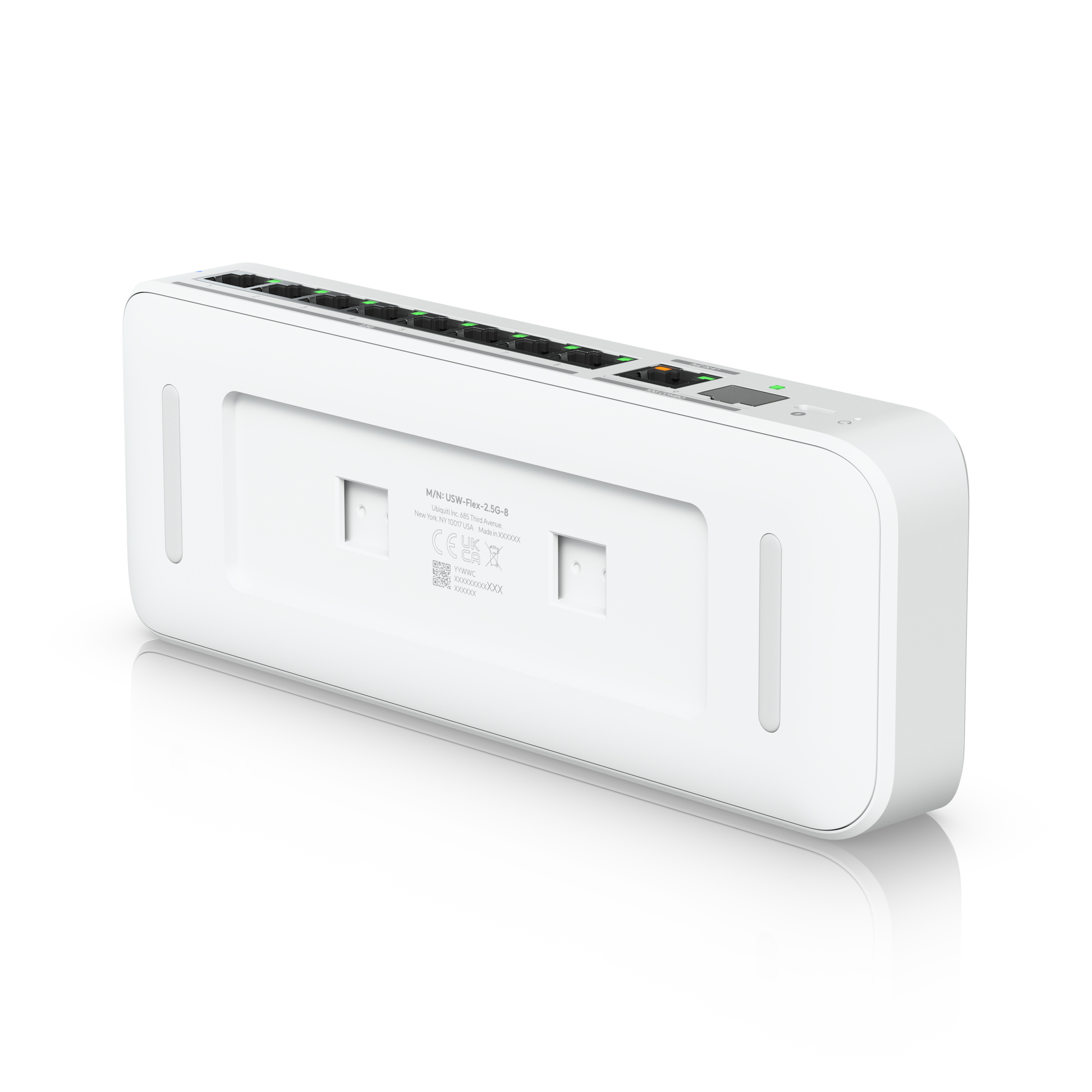

- Wall, DIN rail, or desktop mountable

FAQs:
Q: Does this switch support PoE?
A: No, this model does not include PoE output.
Q: Can it be managed via UniFi?
A: Yes, it is designed to integrate with Ubiquiti’s UniFi management system.

Overview:

Dimensions:
212.9 x 76 x 33.5 mm (8.4 x 3 x 1.3")

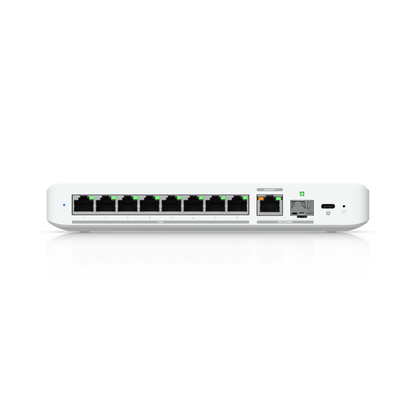

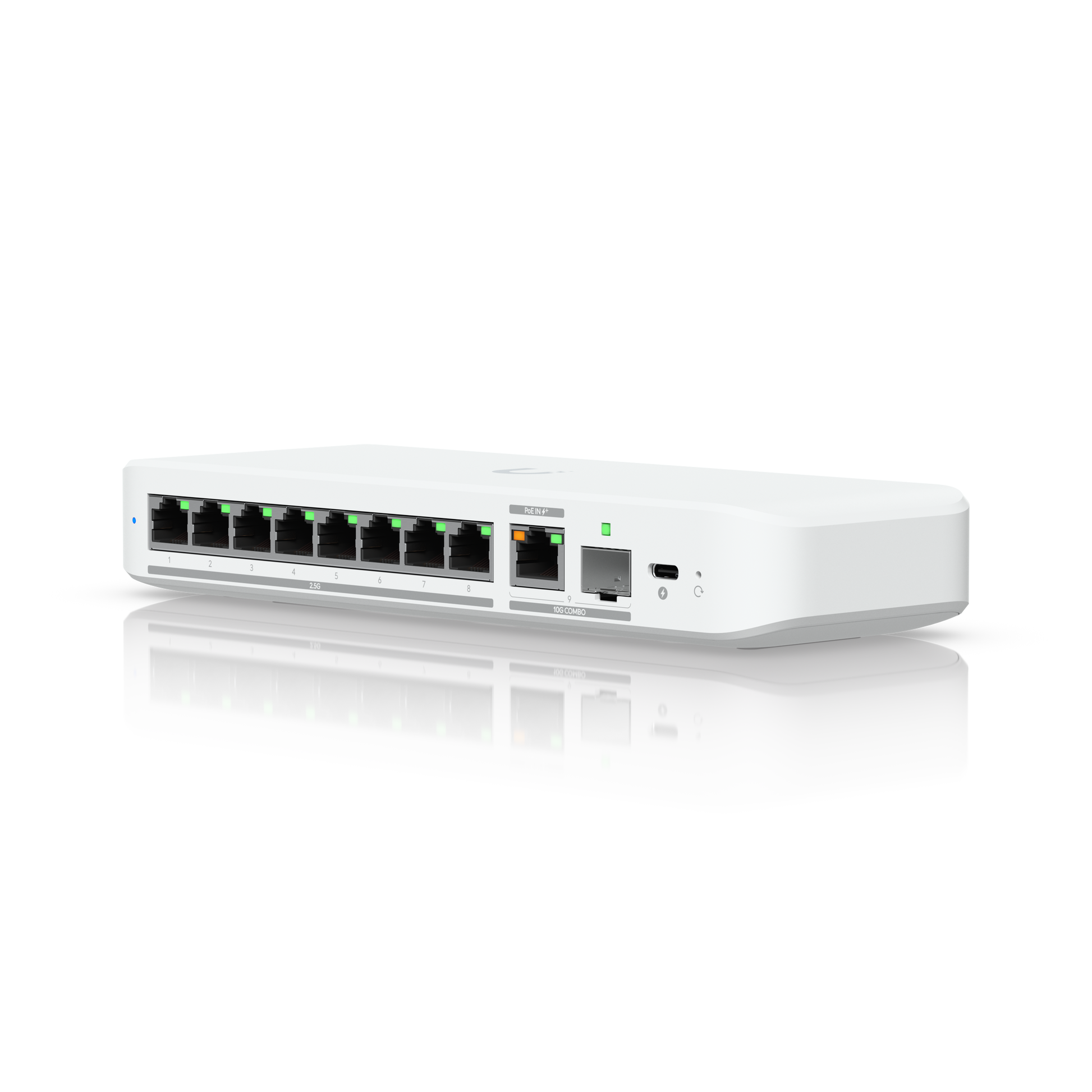

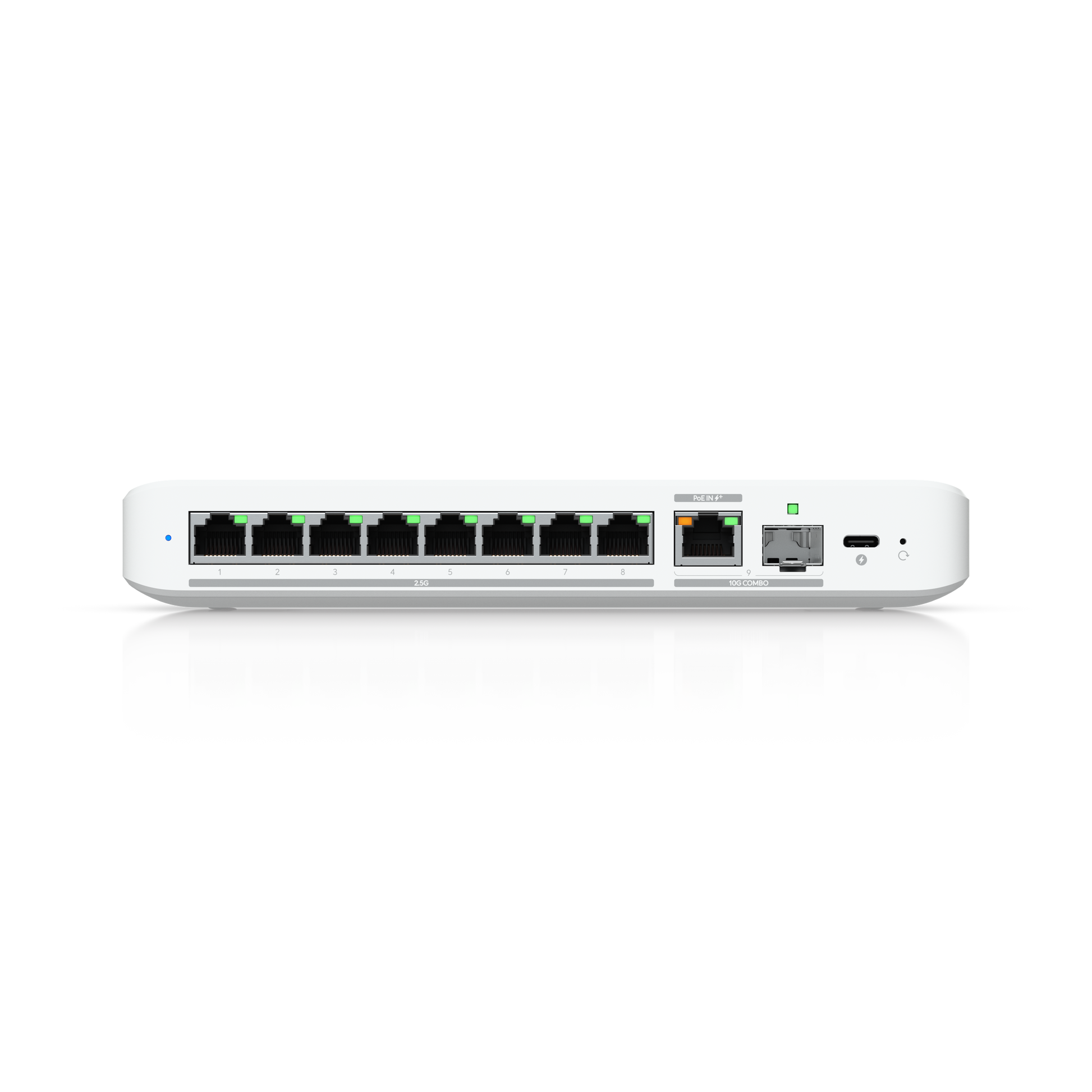

Port Layout:
8 x 2.5 GbE RJ45 (2.5G/1G/100M/10M)
1 x 10 GbE RJ45 (10G/5G/2.5G/1G/100M)
1 x 10G SFP+ (10G/1G)

Form Factor:
Compact Desktop, Wall, DIN, Magnetic

Performance:
Switching Capacity: 60 Gbps
Total Non-Blocking Throughput: 30 Gbps
Forwarding Rate: 45 Mpps
Supported VLANs: 256
MAC Address Table Size: 4,000

Layer 2 Features:
STP & RSTP: ✓
Egress Rate Limit: ✓
Flow Control: ✓
Storm Control: ✓
Multicast & Broadcast Rate Limiting: ✓
Port Isolation: ✓
Port Mirroring: ✓
Jumbo Frames: ✓
Loop Protection: ✓

Hardware:
Max. Power Consumption: 14W with PoE or AC adapter
Power Method: (1) USB Type-C, 5V DC, 3A
PoE+: Supported
Power Input Method: USB Input, PoE
Power Supply: AC/DC External, 15W
Supported Voltage Range: 4.8–5.2V DC (USB), 44–57V (PoE)

Management:
Managed via Ethernet
Software Requirements: UniFi Network Version 9.0.114 or later

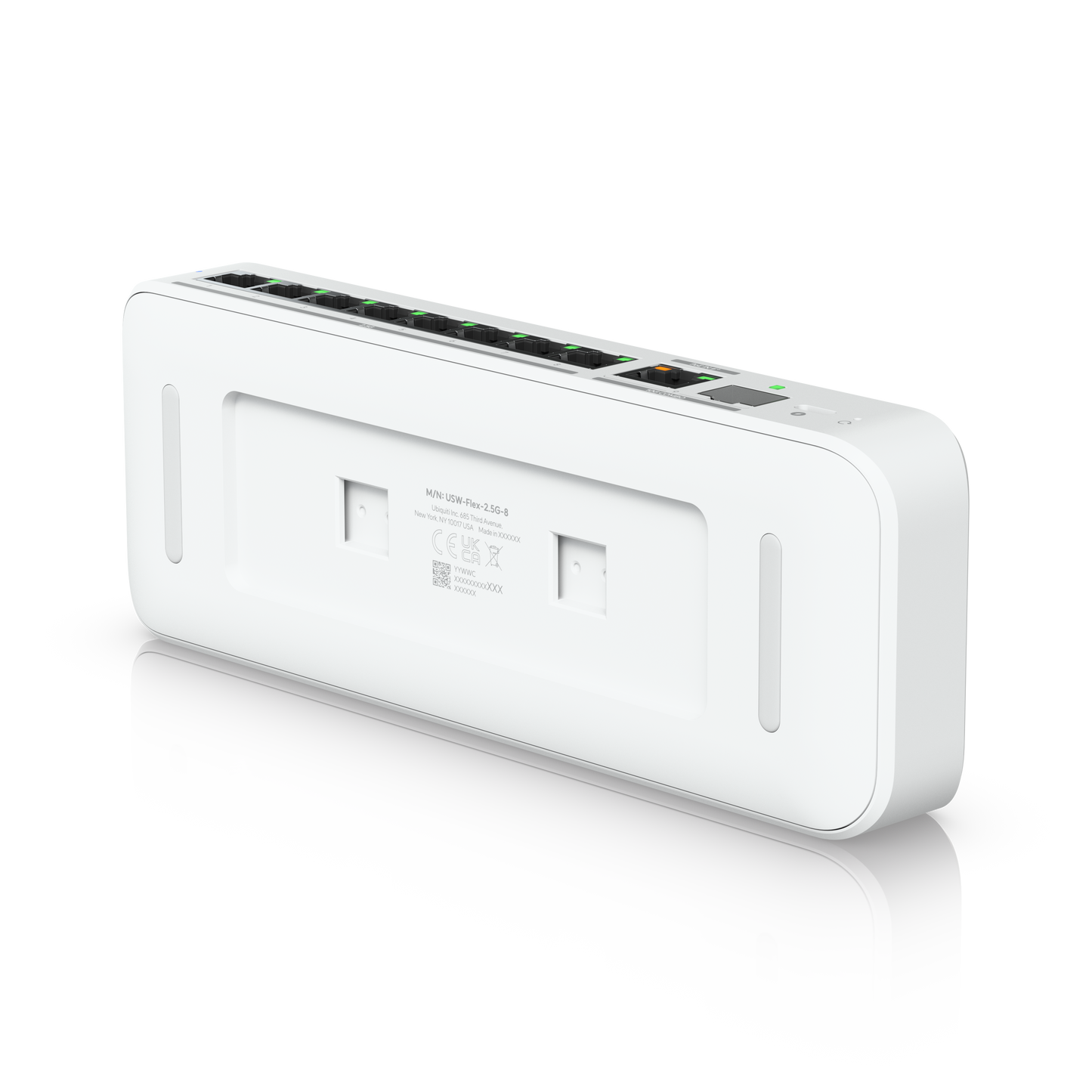

Material & Mounting:
Enclosure Material: Polycarbonate
Mount Material: Polycarbonate

Environmental:
Ambient Operating Temperature: -20 to 45°C (-4 to 113°F)
Ambient Operating Humidity: 10 to 90% (non-condensing)

Compliance:
NDAA Compliant: ✓
Certifications: CE, FCC, IC, Anatel
