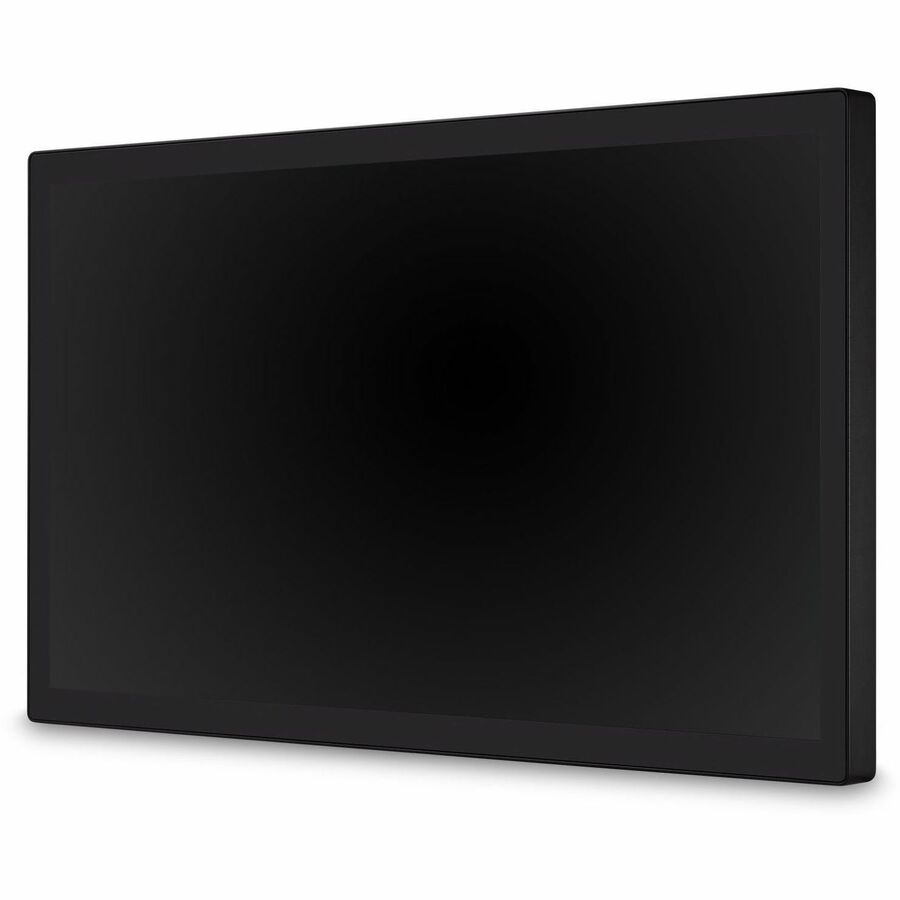

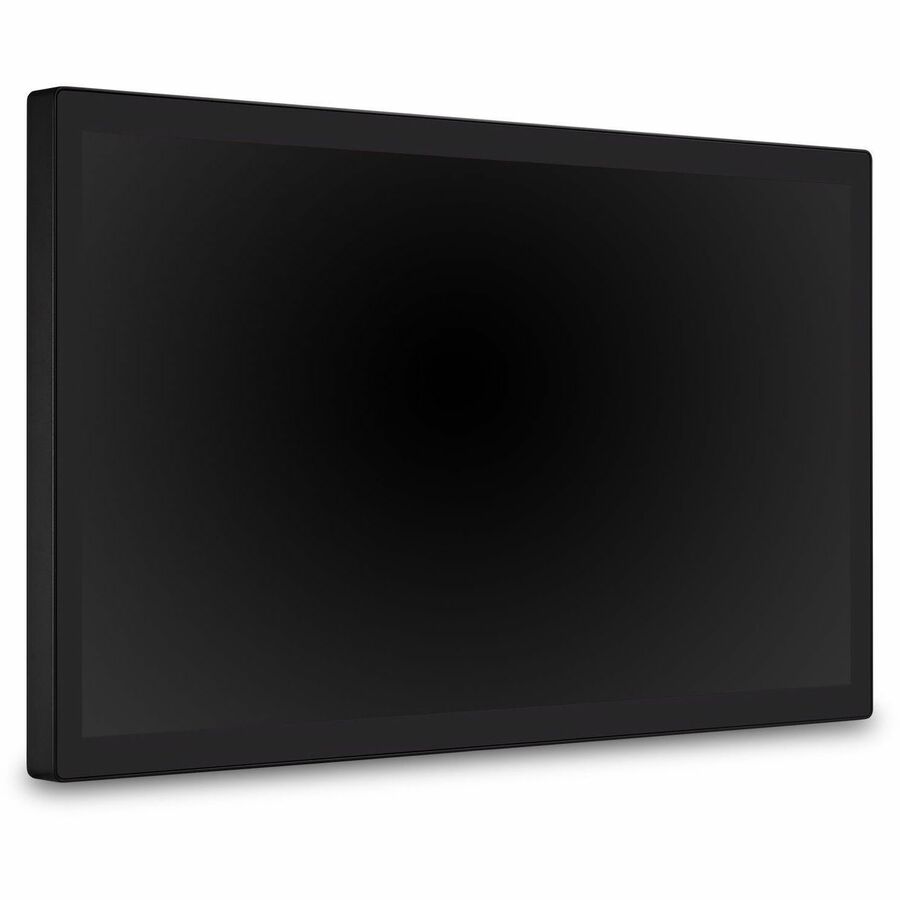

ViewSonic TD3207 32" Class Open-frame LED Touchscreen Monitor - 16:9 - 5 ms - TD3207
Key Features

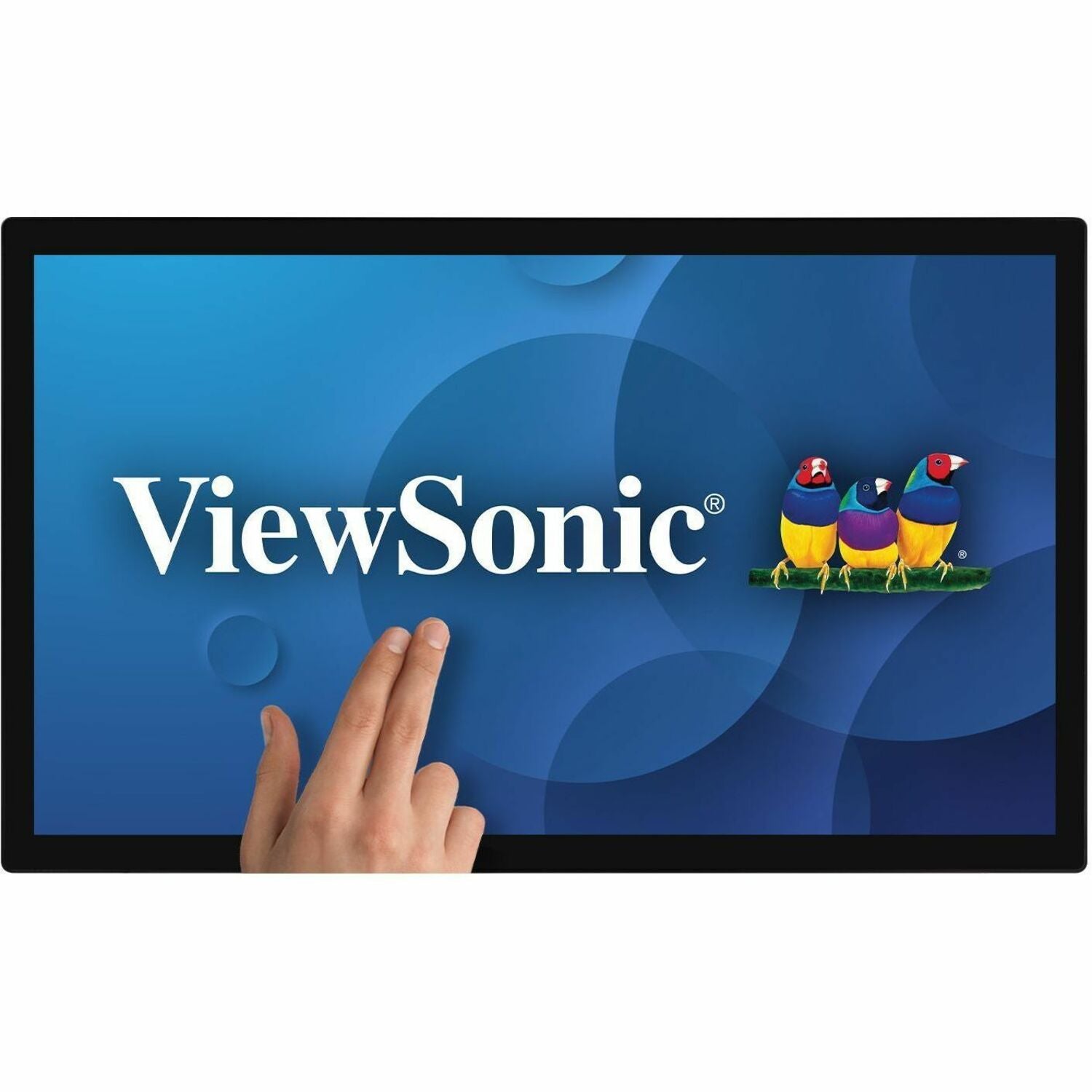

- ADVANCED TOUCH SCREEN: Robust 10-point Projected Capacitive (PCAP) technology provides a smooth and responsive experience with every tap, pinch, and swipe
- DURABLE VERSATILITY: Use Pen Touch Mode, Glove Touch Mode or Wet Hand Mode for interactivity in any environment
- FLEXIBLE CONNECTIVITY: The TD3207 supports laptops, PCs, Macs and POS Systems with USB, HDMI, DisplayPort and RS232 inputs
- FLEXIBLE STAND OPTIONS: Freestanding tablet design with muted black finish, stable adjustable stand, and 7H scratch resistant surface. Also comes with a traditional stand
- MULTI-TOUCH FOR MAC: MacOS users can access touch and gesture controls on touch displays connected to their Apple devices using ViewSonic's vTouch driver. Not available for iPhone and iPad
- VERSATILE TOUCH MONITOR: 32 Inch Full HD (1920x1080p) IPS touch monitor with thin bezels and 60Hz refresh rate
Product Overview
The e·Box® II Mobile Stand is a motorized mobile stand for interactive and non-interactive displays. It has a double-column design that guarantees stability for interactive display up to 98" diagonal with a 309 lbs (140 kg) total weight capacity. The wired remote control unit can be placed at a convenient location, allowing the user to adjust the height of the screen safely and quietly. The motorized stand has a dual anti-collision safety feature to prevent accidental pinching. The 25.6" travel will guarantee full screen access for all users, which makes the interactive display mounting solution ideal for small, tall or wheelchair users.General Information
- Manufacturer: ViewSonic Corporation
- Manufacturer Part Number: TD3207
- Brand Name: ViewSonic
- Product Model: TD3207
- Product Name: TD3207 32" LCD FHD Touch Screen Monitor (HDMI, DisplayPort)
- Packaged Quantity: 1
- Product Type: Open-frame LED Touchscreen Monitor
Technical Information
- Screen Size Class: 32"
- Viewable Screen Size: 31.5"
- Screen Mode: Full HD
- Panel Technology: In-plane Switching (IPS) Technology
- Response Time: 5 ms
- Aspect Ratio: 16:9
- Horizontal Viewing Angle: 178°
- Vertical Viewing Angle: 178°
- Backlight Technology: LED
- Features:
- Anti-glare
- On-screen Display (OSD)
- Anti-Burn-in Technology
- Horizontal Frequency:
- 15 kHz to 73 kHz - HDMI 1.4
- 15 kHz to 73 kHz - DisplayPort
- Vertical Frequency:
- 47 Hz to 75 Hz - HDMI 1.4
- 47 Hz to 75 Hz - DisplayPort
- Adjustable Stand: No
- Operation Hours: 24 Hours/7 Days
- Ingress Protection (IP) Rating: IP54
- Glass Hardness:
- 3H
- 7H
Video
- Maximum Resolution: 1920 x 1080
- Color Supported: 16.7 Million Colors
- Native Contrast Ratio: 3,000:1
- Dynamic Contrast Ratio: 50,000,000:1
- Brightness: 450 Nit
Audio
- Speakers: Yes
Touchscreen Information
- Touchscreen Type: Projected Capacitive
- Multi-touch Screen: Yes
- Number of Simultaneous Touchpoints: 10

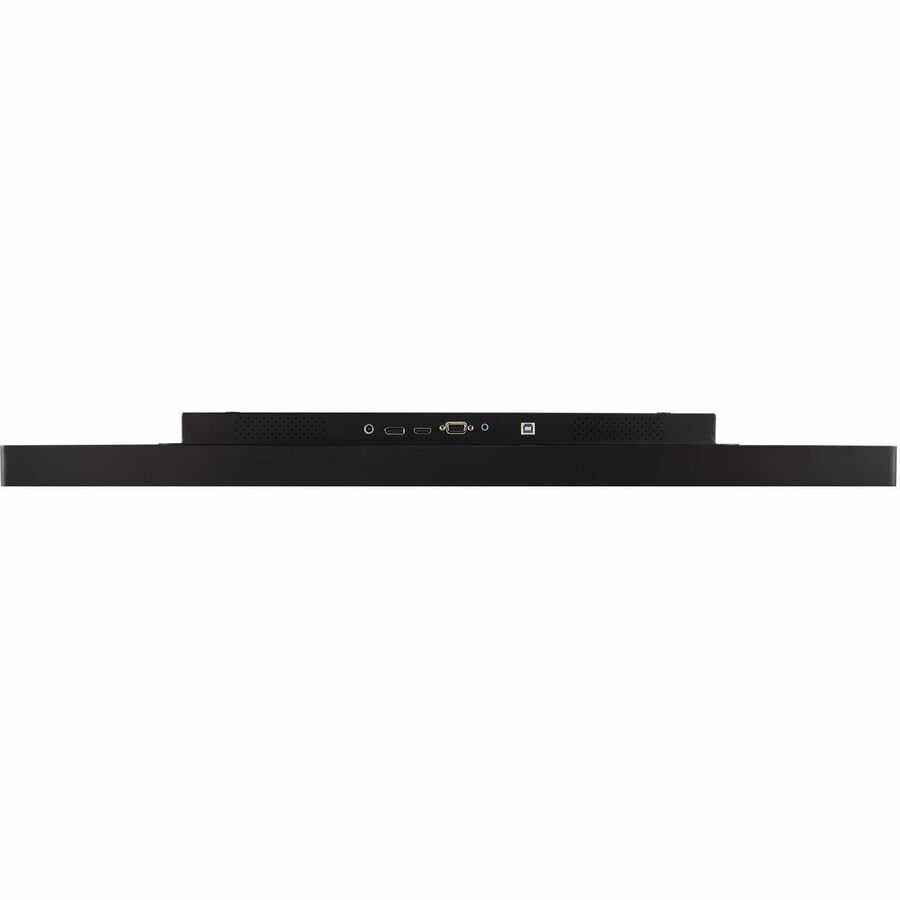

Interfaces/Ports
- HDMI: Yes
- USB: Yes
- DisplayPort: Yes
- Number of HDMI Inputs: 1
- Total Number of HDMI Ports: 1
- Number of DisplayPorts: 1
- Number of USB Ports: 1
- Number of USB Type-B Ports: 1
Environmental Conditions
- Operating Temperature Range: 32°F (0°C) to 104°F (40°C)
- Operating Humidity Range: 20% to 90% (Non-condensing)
Power Description
- Operating Power Consumption: 50 W
- Maximum Power Consumption: 50 W
Physical Characteristics
- Color Family: Black
- Product Color: Black

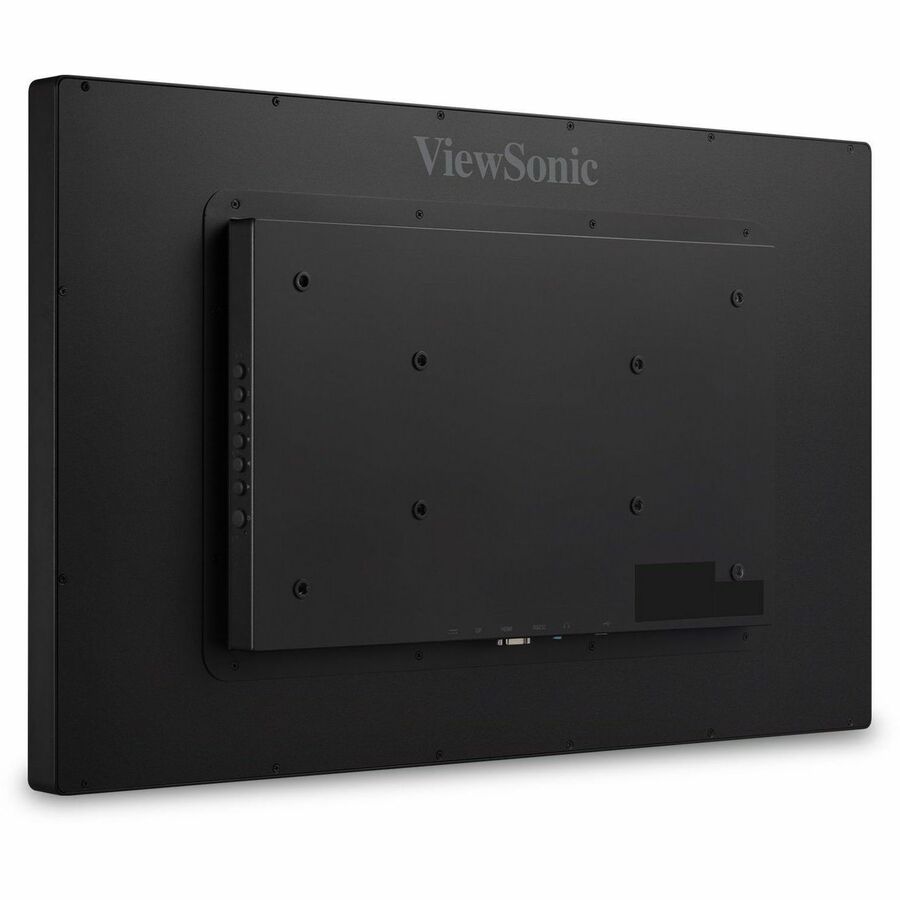

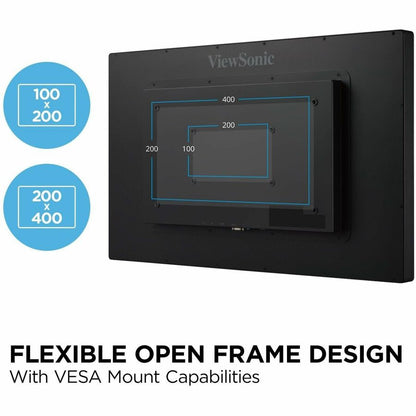

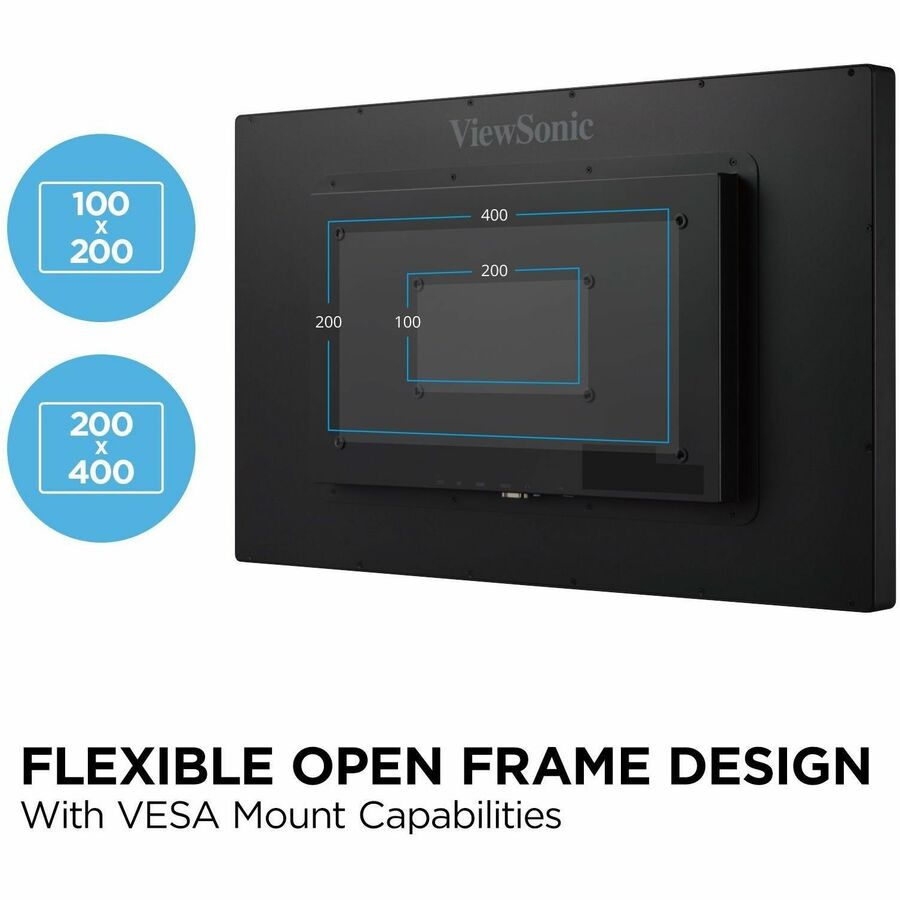

- VESA Mount Compatible: Yes
- VESA Mount Standard: 400 x 200
- Height with Stand: 17.76"
- Width with Stand: 29.41"
- Depth with Stand: 2.52"
- Weight with Stand (Approximate): 28.22 lb
Miscellaneous
- Package Contents:
- 32" 1080p Open Frame 10-Point Touch Monitor with 24/7 Operation and HDMI, DisplayPort and RS232
- Power Cable
- HDMI to HDMI Cable
- USB A to USB B Cable
- Quick Start Guide
- Energy Star: Yes
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
