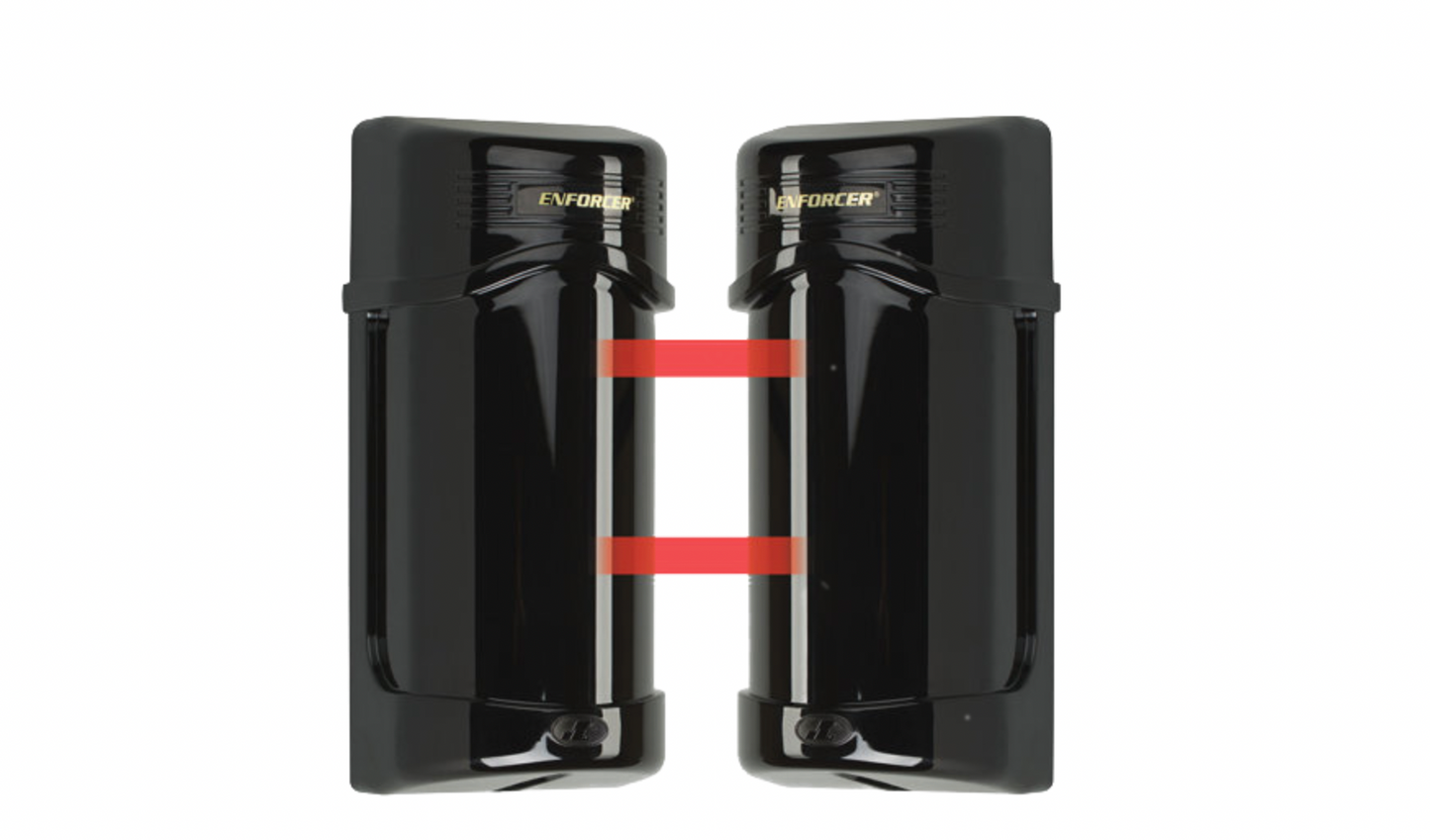

Type: Twin Photobeam Detectors with Laser Beam Alignment
Current Draw: 70mA
Sensing Range: Outdoor – 190′ (60 m), Indoor – 390′ (120 m)
Operating Voltage: 10~30 VAC/VDC (Non-polarized)
IP Rating: IP55 Weatherproof
Interrupt Speed: 50 msec ~ 700 msec (variable)
LED Indicators
Red: Alarm LED (Receiver) ON when alarm is initiated
Yellow: ON when receiver’s signal is weak or beam is broken
Green: Operation LED (Transmitter & Receiver) ON when power is applied
Detection System: Simultaneous break of 2 beams
Alarm Output: NO/NC relay, 1A @ 120VAC, minimum 1 second
Tamper Output: NC switch, 1A @ 120VAC
Case Material: PC Resin
Laser Wavelength: 650nm
Laser Output Power: <5mW
Alignment Angle: Horizontal: ±90°, Vertical: ±5°
Operating Temperature: –13º to 131ºF (–25º to +55ºC)
Weight: 2.5 lb (1.1 kg)
