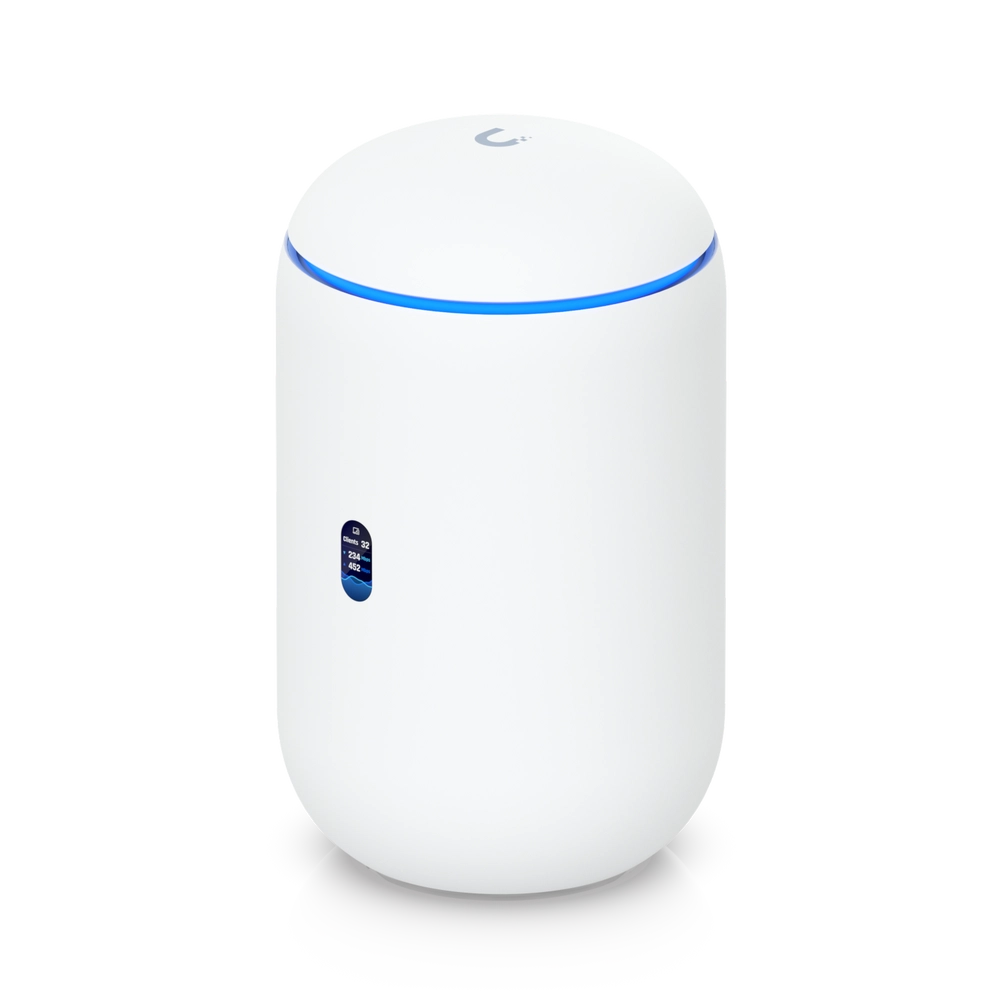

Ubiquiti Dream Router 7

Ubiquiti Dream Router 7

$314.99 USD
$369.99 USD $314.99 USD
Sale Sold out
Login to view business pricing

 20 in stock
View full details
  • Description
  • Specifications

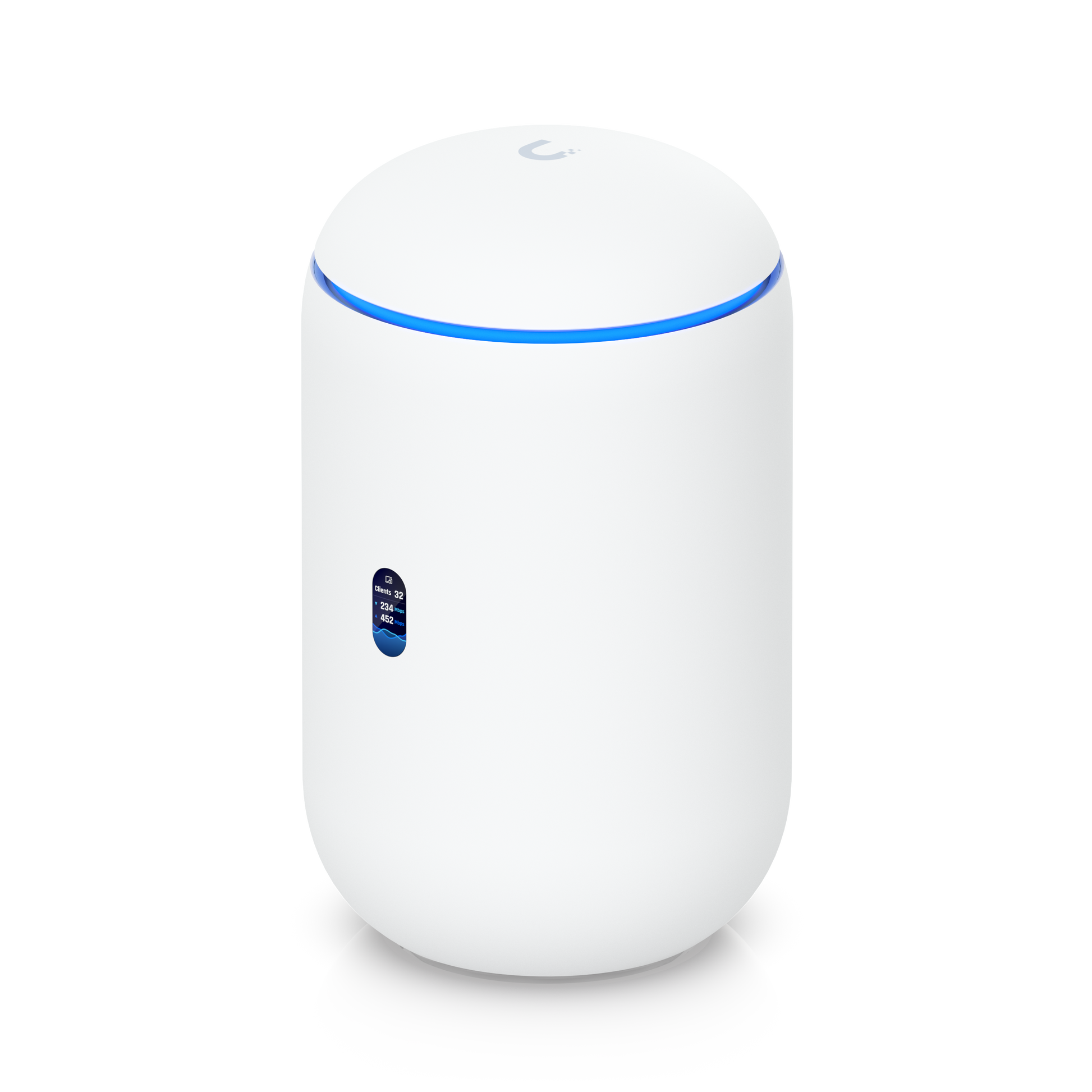

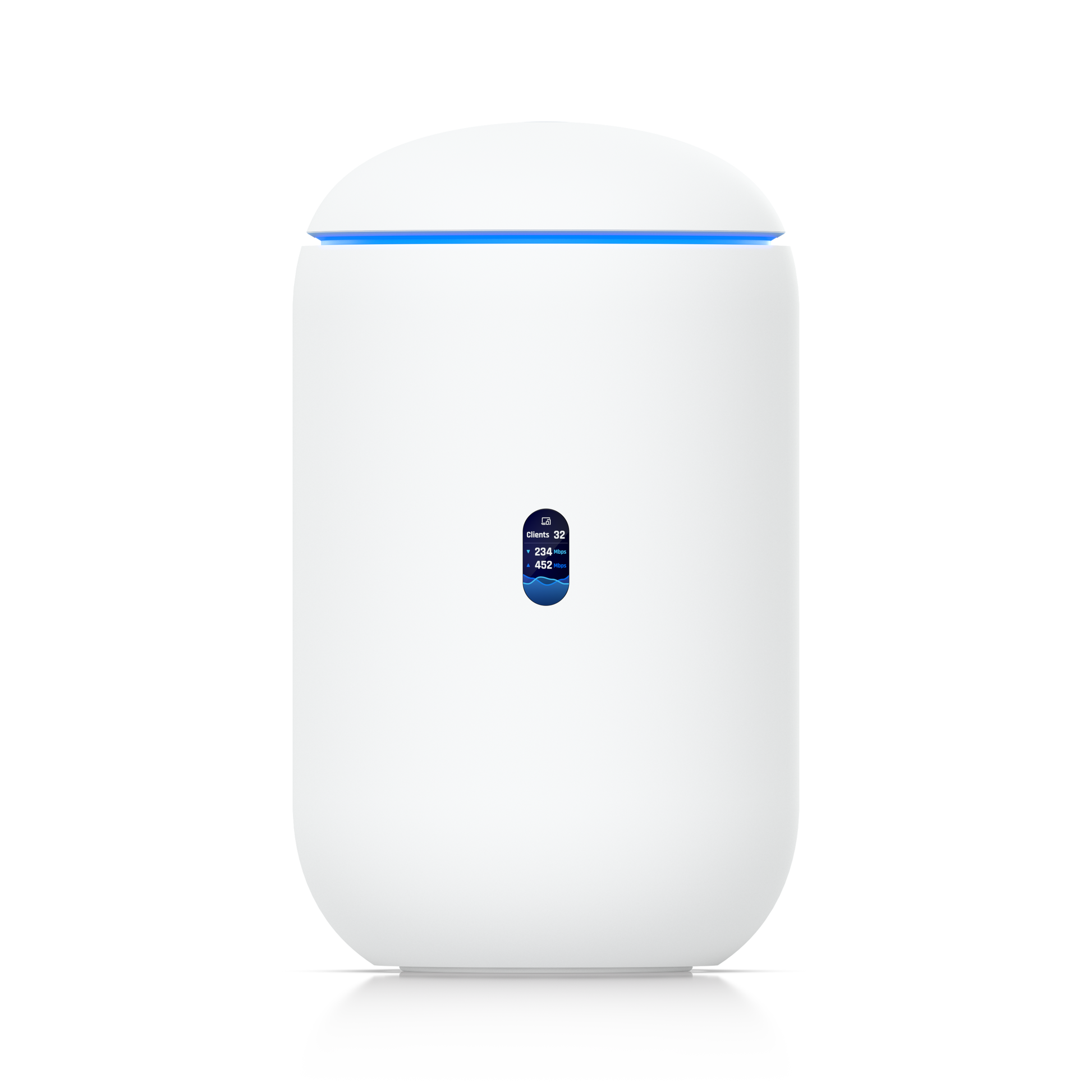

Ubiquiti UniFi Dream Router 7 (UDR7)

Elevate Your Network with Next-Gen Performance

Experience high-speed connectivity, advanced security, and seamless device management with the UniFi Dream Router 7. Designed for homes and small businesses, this all-in-one device supports the latest Wi-Fi 7 technology and the complete UniFi application suite.

Key Features:

• Ultra-Fast Wi-Fi 7: Up to 5.7 Gbps (6 GHz), 4.3 Gbps (5 GHz), and 688 Mbps (2.4 GHz)
• UniFi Application Suite: Built-in support for Network, Protect, Access, Talk, and Connect
• Device Scalability: Manage 30+ UniFi devices and 300+ concurrent clients
• Enterprise Security: Layer 7 firewall, IDS/IPS, ad blocker, and content filtering
• High-Speed Ports: 1x 10G SFP+, 1x 2.5 GbE WAN, 3x 2.5 GbE LAN (1 with PoE)
• VPN Support: Teleport, IPsec, OpenVPN, WireGuard, and L2TP
• Simple Setup: 0.96" screen and Bluetooth/Ethernet configuration

Perfect For:
Home owners wanting reliable, fast internet and built-in security
Small businesses managing multiple devices and remote access
Tech enthusiasts using UniFi’s full ecosystem

Why Choose the UDR7?
Future-proof your network with top-tier wireless speed, advanced security tools, and seamless integration into the UniFi platform — all in one powerful device.

Overview

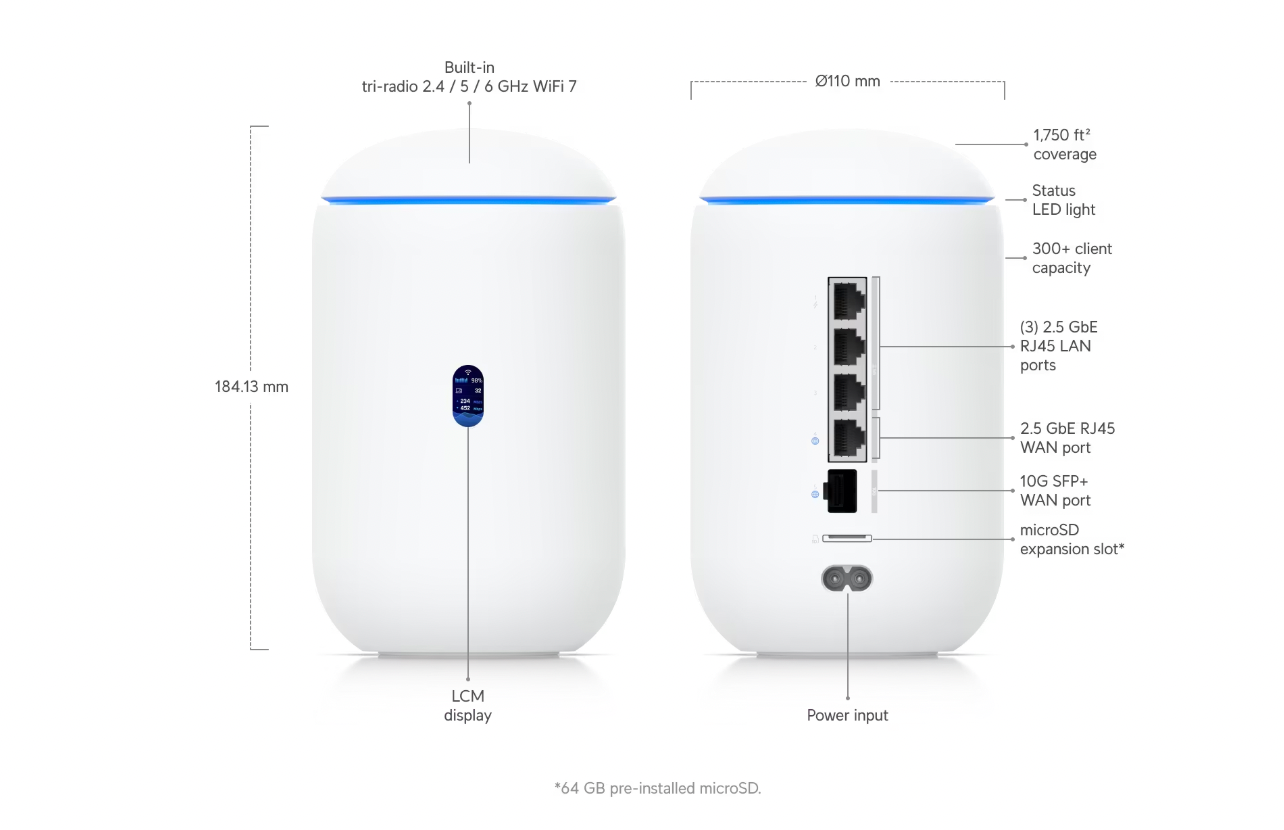

Dimensions: Ø110 x 184.1 mm (Ø4.3 x 7.3")

Form Factor: Compact desktop

Coverage Area: 160 m² (1,750 ft²)

UniFi Application Suite

Network: Yes

Protect: Yes

Access: Yes

Talk: Yes

Connect: Yes

Device Management

Managed UniFi Devices: 30+

Managed Cameras: (5) HD, (2) 2K, (1) 4K

Simultaneous Users Connected: 300+

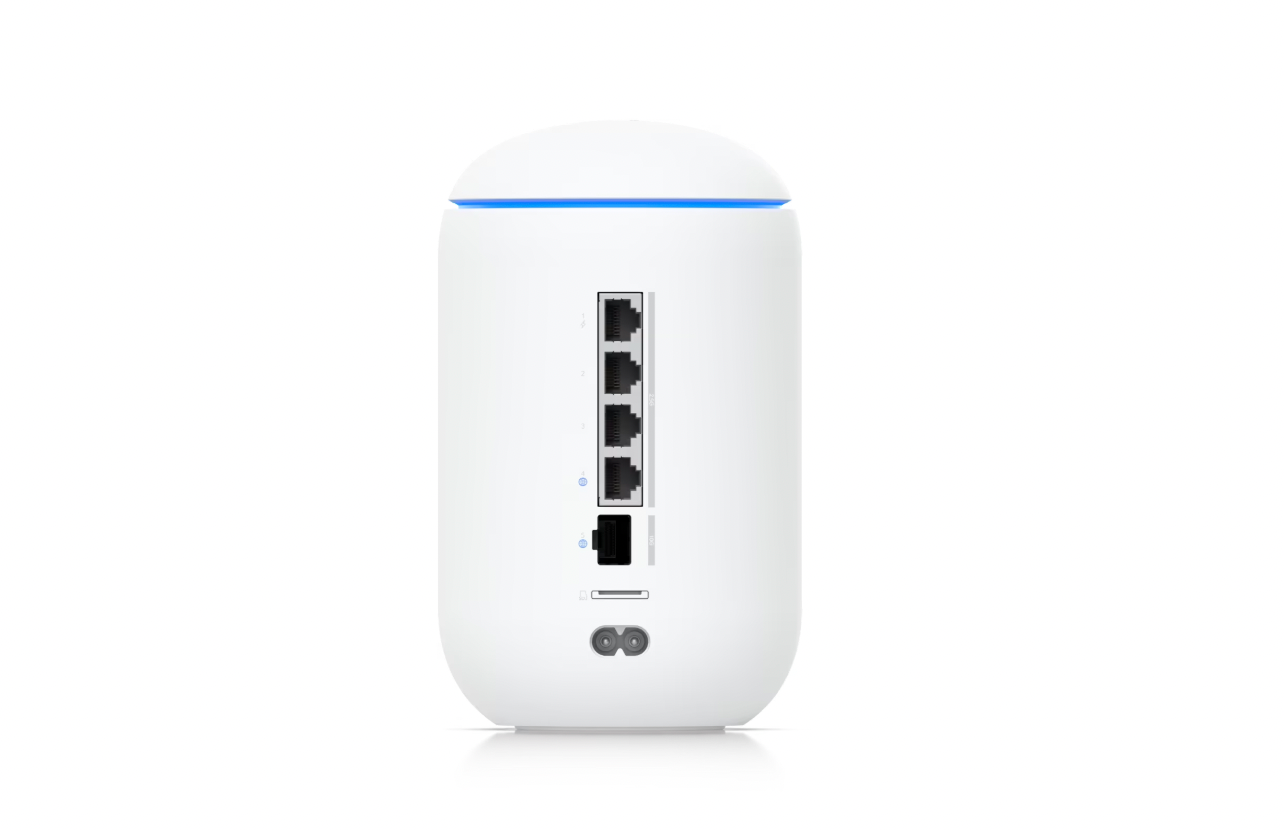

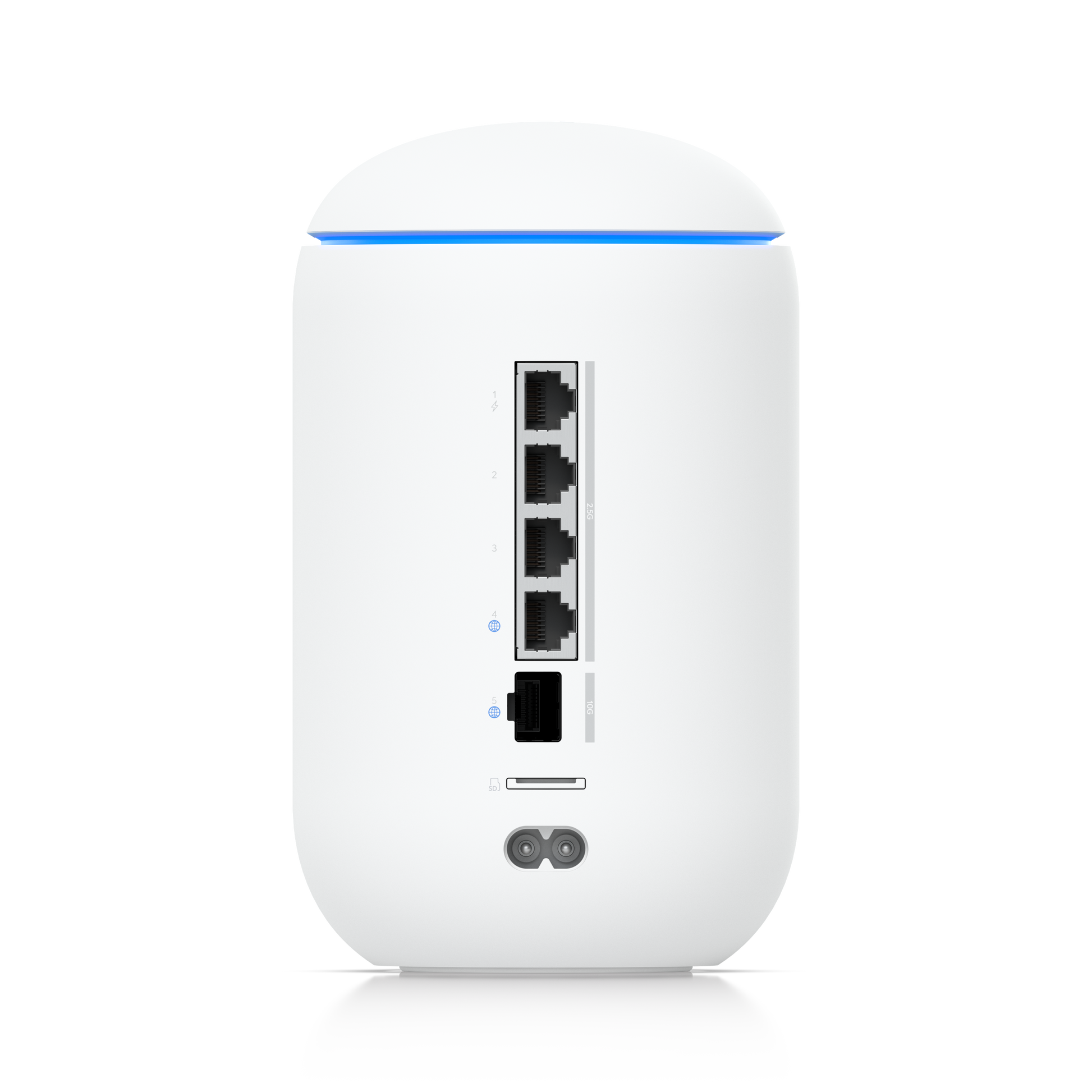

Network Ports

WAN Ports: (1) 10G SFP+, (1) 2.5 GbE RJ45

LAN Ports: (3) 2.5 GbE RJ45 including (1) PoE

Firewall & Security

Stateful Firewall: Yes

Layer 7 Firewall: Yes

DPI & Traffic Identification: Yes

Zone-Based Firewall: Yes

Content Filtering: Yes

Ad Blocking: Yes

Intrusion Prevention (IDS/IPS): Yes (20,000+ Signatures w/ CyberSecure)

VPN & SD-WAN

License-Free SD-WAN: Yes

Site-to-Site VPN (Site Magic): Yes

Supported Protocols: IPsec, OpenVPN, WireGuard, L2TP

VPN Client & Server: Yes

Advanced Networking Features

Multi-WAN Load Balancing: Yes

Dynamic Routing (OSPF): Yes

QoS: Advanced QoS Supported

mDNS, NAT, RADIUS: Supported

IPv6 ISP Support: Yes

MAC Address Table Size: 2,000

WiFi Specifications

Standards: 802.11a/b/g/n/ac/ax/be (WiFi 6/6E/7)

Max Throughput: 6 GHz – 5.7 Gbps, 5 GHz – 4.3 Gbps, 2.4 GHz – 688 Mbps

MIMO: 2 x 2 (DL/UL MU-MIMO on all bands)

Antenna Gain: 6 GHz – 6 dBi, 5 GHz – 7 dBi, 2.4 GHz – 5 dBi

Max TX Power: 6 GHz – 24 dBm, 5 GHz – 26 dBm, 2.4 GHz – 23 dBm

Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

Max BSSIDs: 4 per Radio

Data Rates

Supported across various WiFi standards

802.11a/g: 6–54 Mbps

802.11b: 1–11 Mbps

802.11n: up to 600 Mbps

802.11ac: up to 1.7 Gbps

802.11ax: up to 2.4 Gbps

802.11be (WiFi 7): up to 5.7 Gbps

Hardware Specs

Processor: Quad-core ARM Cortex-A53 @ 1.5 GHz

Memory: 3 GB

Storage: 64GB microSD (pre-installed), Expansion via microSD slot

Power: 15.4W PoE Budget, 50W Internal PSU

PoE Input Voltage Range: 44–57V

Max Power Consumption: 26W (excluding PoE output)

Enclosure: Polycarbonate

Weight: 1.1 kg (2.4 lb)

Display & Controls

LCM Display: 0.96" status display

LED Indicators: Yes

Button: (1) Factory Reset

Bluetooth / Ethernet Management: Yes

Environmental & Safety

Operating Temperature: -10 to 40° C (14 to 104° F)

Humidity: 5–95% (non-condensing)

Certifications: CE, FCC, IC

ESD/EMP Protection: Air: ± 8kV, Contact: ± 4kV

NDAA Compliant: Yes

Software Features

VLAN Support: 802.1Q

Guest Traffic Isolation: Yes

UniFi Network Compatibility: Version 9.0.108 and later
