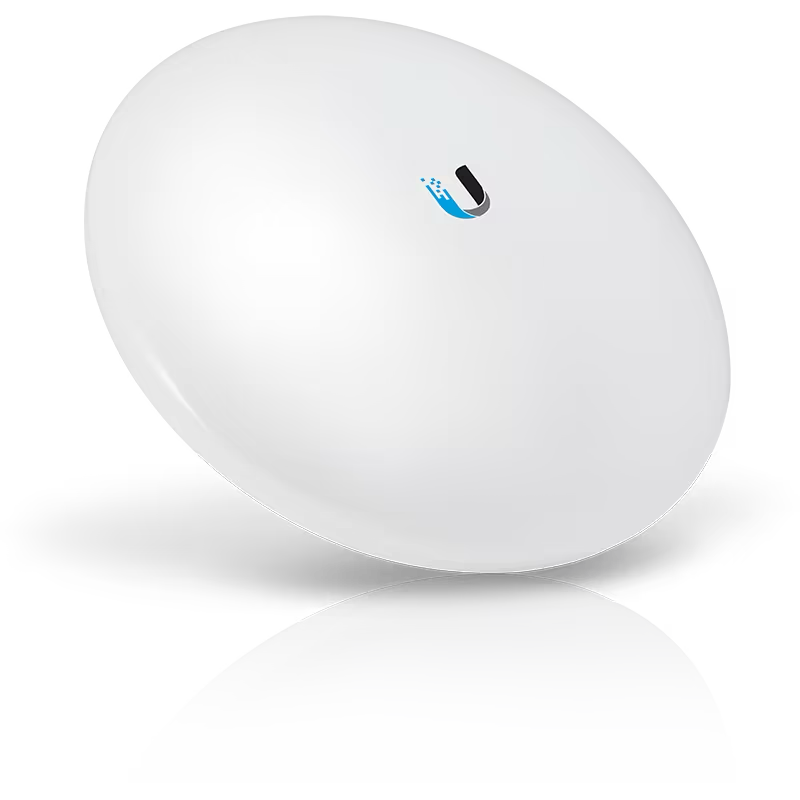

Efficiently connect your devices with the UBIQUITI NBE-5AC-GEN2. With a compact design, UISP readiness and enhanced surge protection, this 5 GHz WiFi bridge offers optimized radio and antenna for maximum performance. Experience reliable and secure connectivity like never before.
Mechanical

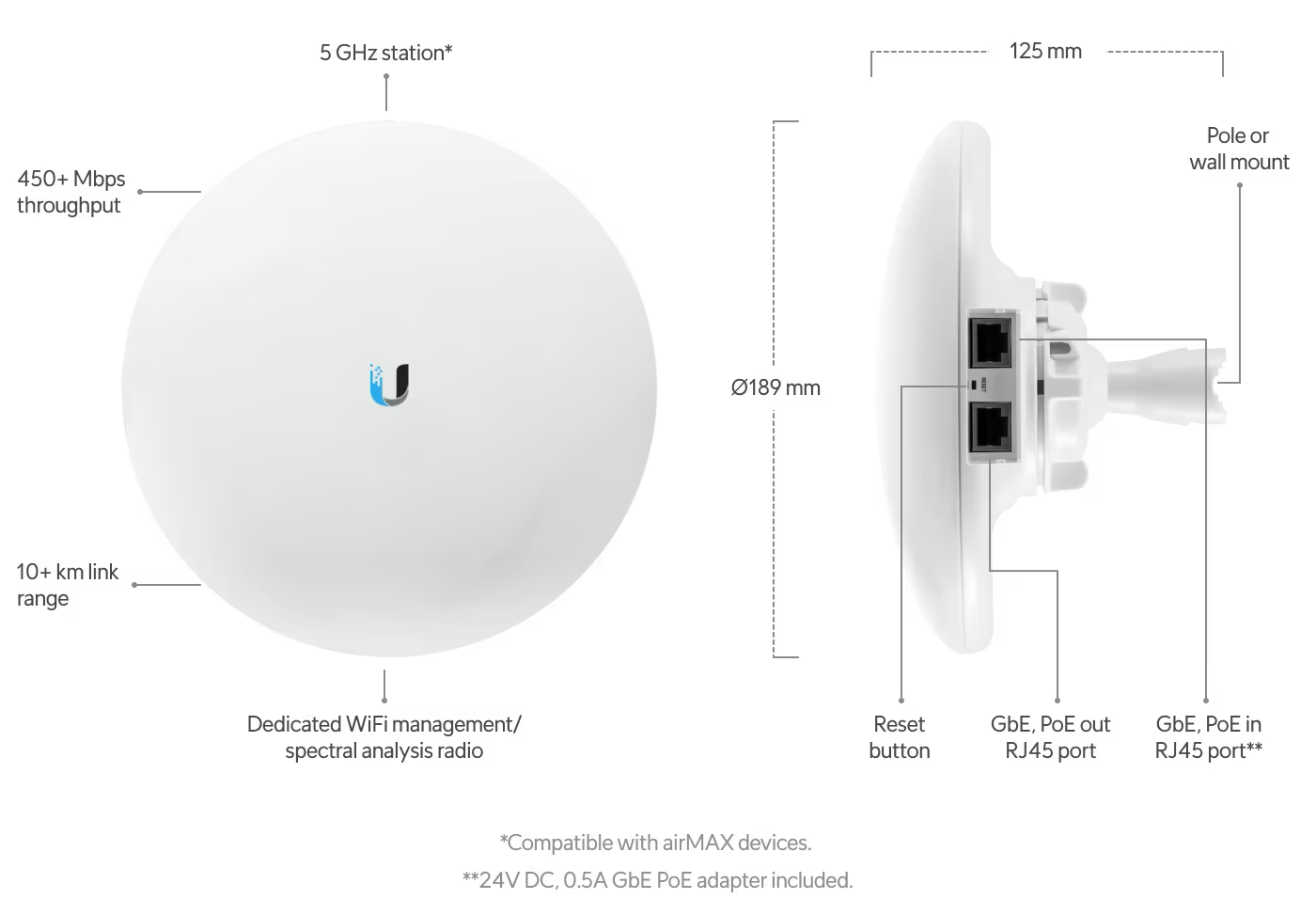

Dimensions: 189 x 189 x 125 mm (7.44 x 7.44 x 4.92")
Weight: 530 g (1.17 lb)
Enclosure Material: UV-stabilized plastic
Mounting: Pole mount kit (Included), Wall mount (Not included)
Wind Loading: 45.4 N at 200 km/h (10.2 lbf at 125 mph)
Wind Survivability: 200 km/h (125 mph)
Hardware
Networking Interface: (2) GbE RJ45 ports
Power Method: Passive PoE 2-pair (4, 5+; 7, 8 return)
Power Supply: 24V, 0.5A gigabit PoE adapter (Included)
Supported Voltage Range: 20–27V DC
Max. Power Consumption: 8.5W
ESD/EMP Protection: Air/contact: ±24kV
LEDs: Power, Ethernet, (4) Signal strength
Salt Fog Test: IEC 68-2-11 (ASTM B117), equivalent to MIL-STD-810 G method 509.5
Vibration Test: IEC 68-2-6
Temperature Shock Test: IEC 68-2-14
UV Test: IEC 68-2-5 at 40°C (104°F), equivalent to ETS 300 019-1-4
Wind-Driven Rain Test: ETS 300 019-1-4, equivalent to MIL-STD-810 G method 506.5
Ambient Operating Temperature: –40 to 80°C (–40 to 176°F)
Ambient Operating Humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC
NDAA Compliant: Yes
System
Gain: 19 dBi
Channel Sizes:
PtP Mode: 10/20/30/40/50/60/80 MHz
PtPM Mode: 10/20/30/40 MHz
Max. VSWR: 1.5:1
Polarization: Dual linear
Operating Frequency (MHz):
Worldwide: 5150–5875 MHz
USA U-NII-1: 5150–5250 MHz
USA U-NII-2A: 5250–5350 MHz
USA U-NII-2C: 5240–5725 MHz
USA U-NII-3: 5725–5850 MHz
