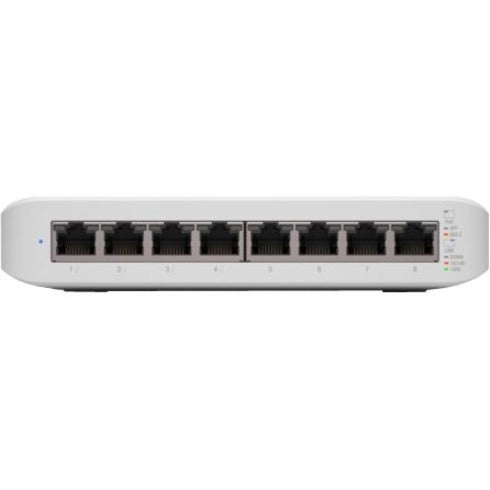

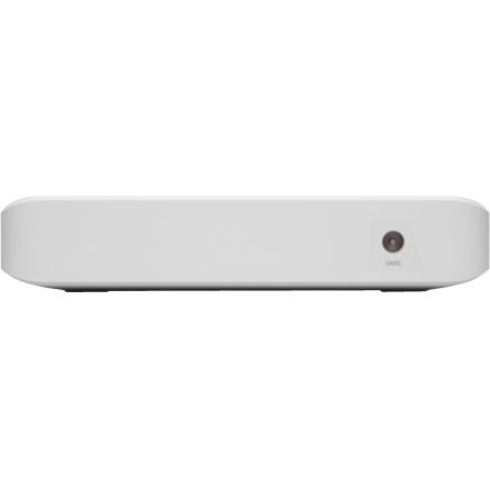

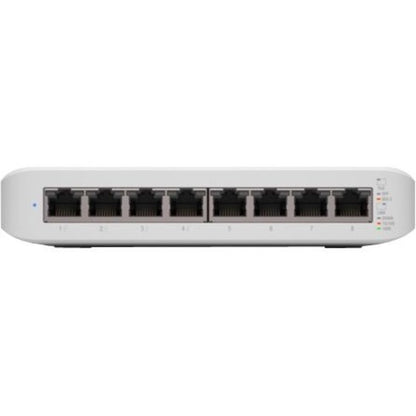

Ubiquiti UniFi Switch Lite 8 PoE USW-Lite-8-PoE Ethernet Switch - USW-LITE-8-POE
Key Features
- Effectively reduces downtime with improved network performance
- Gigabit Ethernet port for ultra-fast network speeds
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- Quickly and easily set up a wired network with 8 networking ports
- Twisted Pair media support ensures maximum convenience and great usability
- With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organized
Product Overview
The USW-Lite-8-PoE is a fully managed Layer 2 switch with eight Gigabit Ethernet ports for your RJ45 Ethernet devices. Four ports also offer auto-sensing 802.3at PoE+ that provide up to a total PoE wattage of 52W for UniFi Access Points or other PoE devices.
Managed and configured by the UniFi Network Application with UniFi mobile app support, the USW-Lite-8-PoE offers Layer 2 switching protocols and features. The UniFi Network Application and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
Features
- (8) Gigabit RJ45 ports including (4) 802.3af/at PoE+ ports
- Managed by UniFi Network Application (5.13.10 or later)
- External 60W power adapter

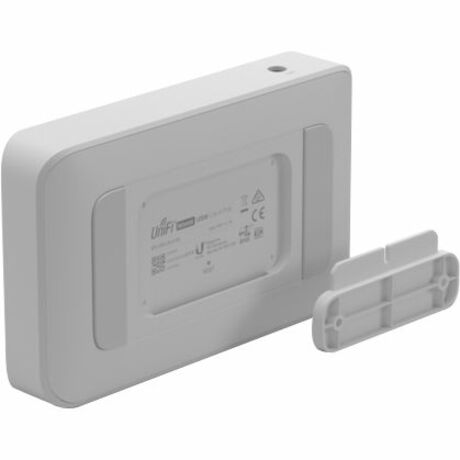

- Wall-mountable (Kit included)
General Information
- Manufacturer: Ubiquiti Inc.
- Manufacturer Part Number: USW-LITE-8-POE
- Brand Name: Ubiquiti
- Product Line: UniFi Switch Lite 8 PoE
- Product Model: USW-Lite-8-PoE
- Product Name: UniFi Switch Lite 8 PoE USW-Lite-8-PoE Ethernet Switch
- Product Type: Ethernet Switch
Interfaces/Ports
- Total Number of Network Ports: 8
- Port/Expansion Slot Details:
- 4 x Gigabit Ethernet PoE+
- 4 x Gigabit Ethernet Network
Media & Performance
- Media Type Supported: Twisted Pair
- Ethernet Technology: Gigabit Ethernet
- Network Technology: 10/100/1000Base-T
Network & Communication
- Layer Supported: 2
Management & Protocols
- Manageable: Yes
Power Description
- PoE (RJ-45) Port: Yes
- PoE Budget: 52 W
- Power Source: Power Adapter
- Power Consumption: 8 W
Physical Characteristics
- Form Factor: Wall Mountable
- Height: 1.3"
- Width: 6.4"
- Depth: 3.9"
- Weight (Approximate): 15.87 oz
Miscellaneous
- Package Contents:
- UniFi Switch Lite 8 PoE USW-Lite-8-PoE Ethernet Switch
- Mounting Kit
- Environmentally Friendly: Yes
- Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
- Limited Warranty: 2 Year
