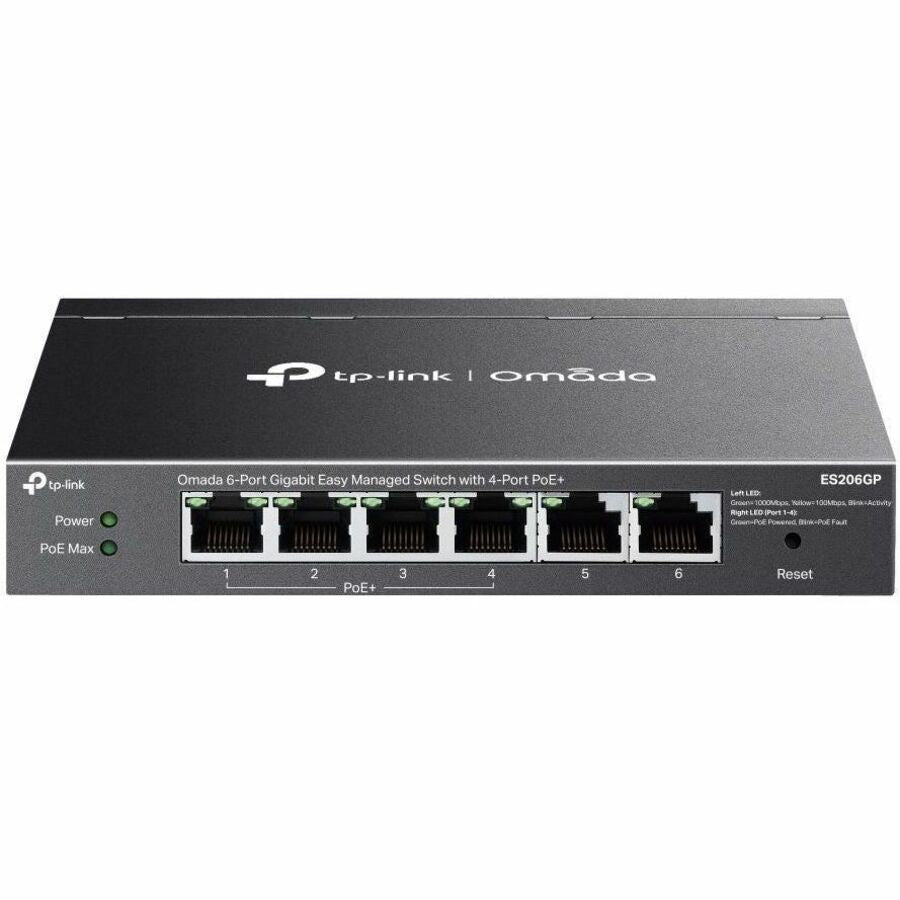

TP-Link Omada 6-Port Gigabit Easy Managed Switch with 4-Port PoE+ - ES206GP
Key Features
- 65W Power Budget, with up to 30W for each PoE port
- 6× 10/100/1000Mbps RJ45 ports (4× 802.3af/at-compliant PoE+)
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Centralized Cloud Management via the web or the Omada app
- Durable metal casing and desktop/wall mounting design
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Fanless design for silent operation
- Up to 250m PoE, QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
Product Overview
Omada 6-Port Gigabit Easy Managed Switch with 4-Port PoE+
- 6× Gigabit Ports (4× PoE+, 2× RJ45)
- 65W Total PoE Budget
- Fanless Design for Silent Operation
- Easy Centralized Management
- Up to 250m PoE Transmission
- PoE Auto Recovery
- Traffic Separation
- Traffic Prioritization
Omada Cloud Essentials - A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
- Lifetime Free Cloud without Any Additional Fees
- Exists Entirely in the Cloud. No Hardware or Software Controller Needed
- Cloud Centralized Management for Multiple Sites
- Access Anytime via Omada App or Web
- Easy Setup, Use, and Maintenance
- Unlimited Management Scale
- Zero-Touch Provisioning (ZTP) without Unboxing
- Seamlessly Upgrade to Omada Cloud Standard with a Subscription
Abundant Functions for Reliable Surveillance Networking
- Transmission Distance up to250 m
- Priority Video Quality Guaranteed
- Secure Traffic Separation via Port Isolation
- PoE Auto Recovery
Multiple Application Scenarios | Surveillance
Works with IP Cameras
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers

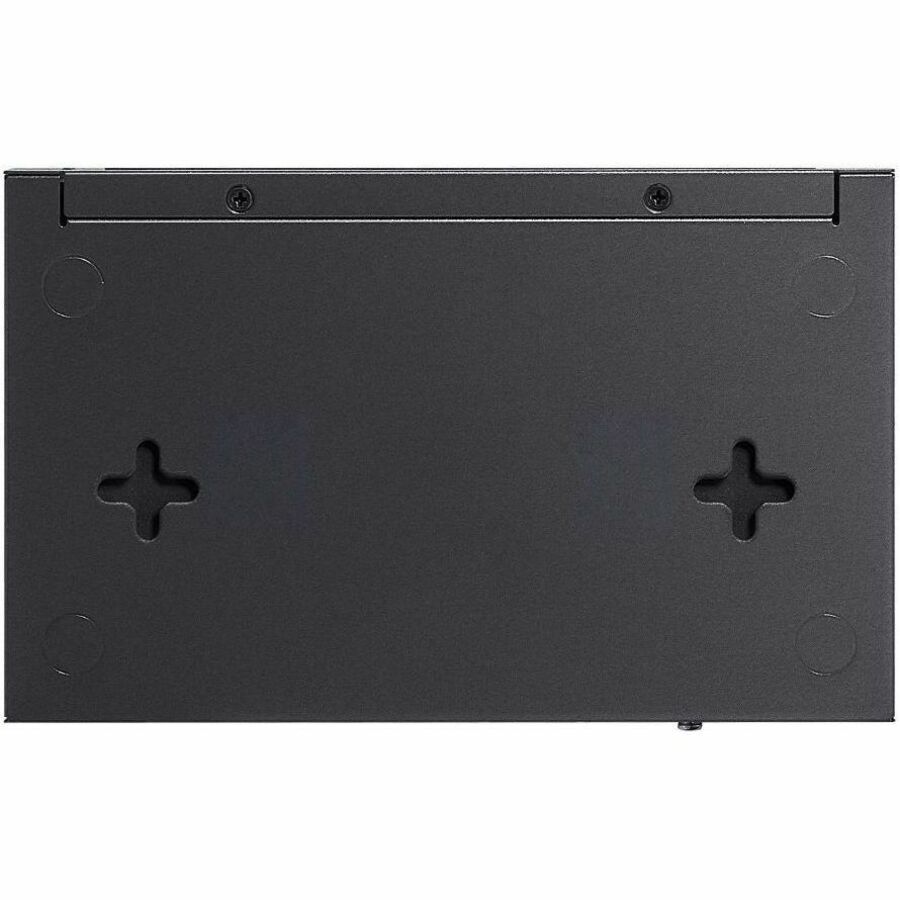

Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design
General Information
- Manufacturer: TP-LINK Technologies Co., Ltd
- Manufacturer Part Number: ES206GP
- Brand Name: TP-Link
- Product Line: Omada
- Product Model: ES206GP
- Product Name: Omada 6-Port Gigabit Easy Managed Switch with 4-Port PoE+
- Product Type: Ethernet Switch
Technical Information
- Features:
- Plug and Play
- Fanless
- Reset Button
- Zero-Touch Provisioning (ZTP)
- Intelligent monitoring
Interfaces/Ports
- Total Number of Network Ports: 6
- Network (RJ-45): Yes
- Port/Expansion Slot Details:
- 4 × Gigabit Ethernet PoE+
- 2 × Gigabit Ethernet Network
Media & Performance
- Media Type Supported: Twisted Pair
- Ethernet Technology: Gigabit Ethernet
- Network Technology: 10/100/1000Base-T
- Maximum Data Transfer Rate: 128 MB/s
Network & Communication
- Layer Supported: 2
- Networking Standards:
- IEEE 802.3i
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3x
- IEEE 802.1p
- IEEE 802.1Q
- IEEE 802.3af
- IEEE 802.3at
Management & Protocols
- Manageable: Yes
- Switch Management Type: Easy Managed
Power Description
- PoE (RJ-45) Port: Yes
- PoE Budget: 65 W
- Input Voltage: 53.5 V DC
- Power Source:
- DC
- Power Adapter
- Power Supply
Physical Characteristics
- Product Color: Black
- Product Material: Metal
- Form Factor:
- Desktop
- Wall Mountable
- Table Top
- Compact
- Height: 1"
- Width: 6.2"
- Depth: 4"
Miscellaneous
- Package Contents:
- Omada 6-Port Gigabit Easy Managed Switch with 4-Port PoE+
- Power Adapter
- Power Cord
- Rubber Feet
- Installation Guide
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
