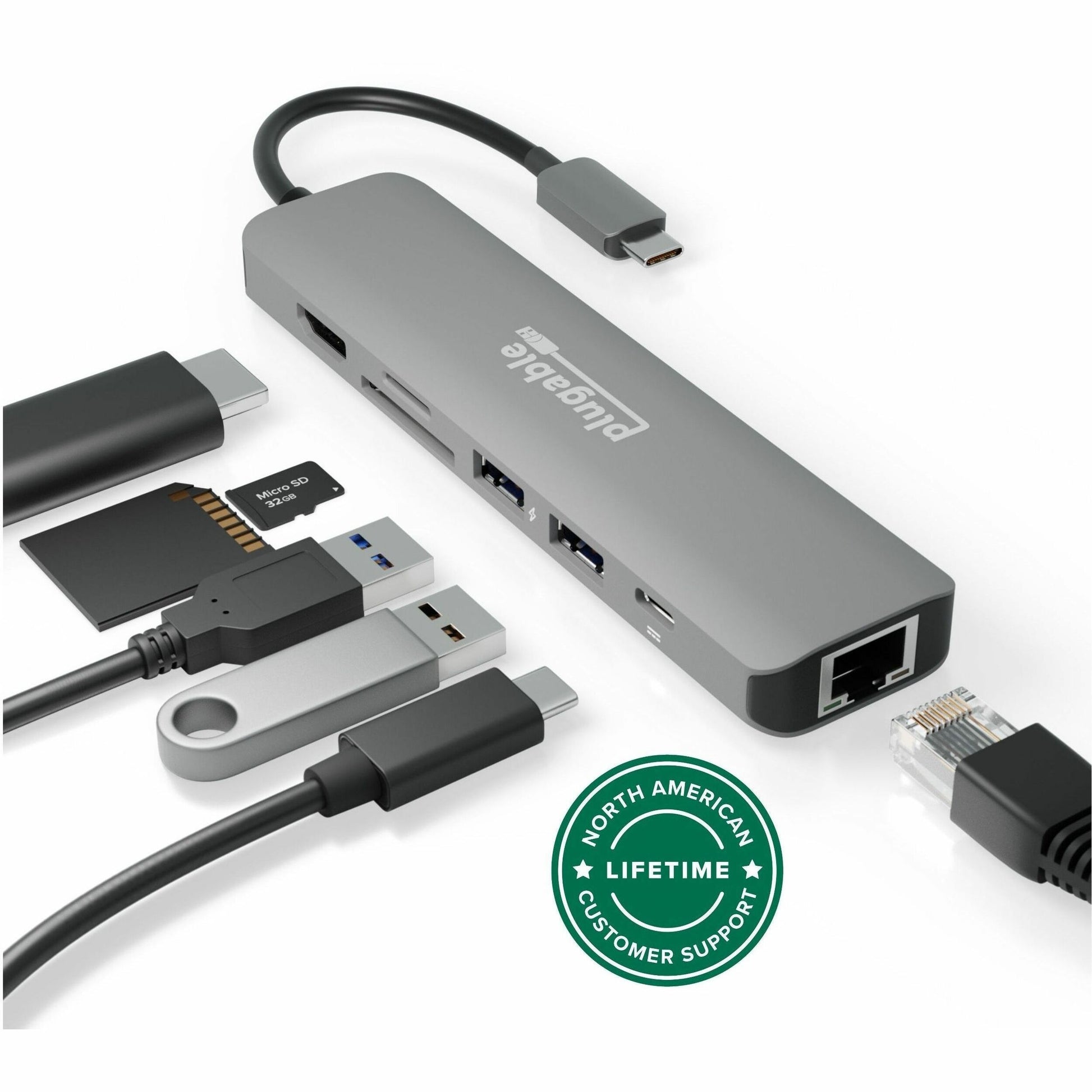

7-in-1 USB C Hub Multiport Adapter with Ethernet - USBC-7IN1E
Key Features
- 4K Hdmi Display - The 4K USB-C to HDMI adapter can push your creativity to the next screen with resolutions up to 4K 60Hz. The sturdy and compact metal construction means the USB Type C hub packs perfectly into a pack

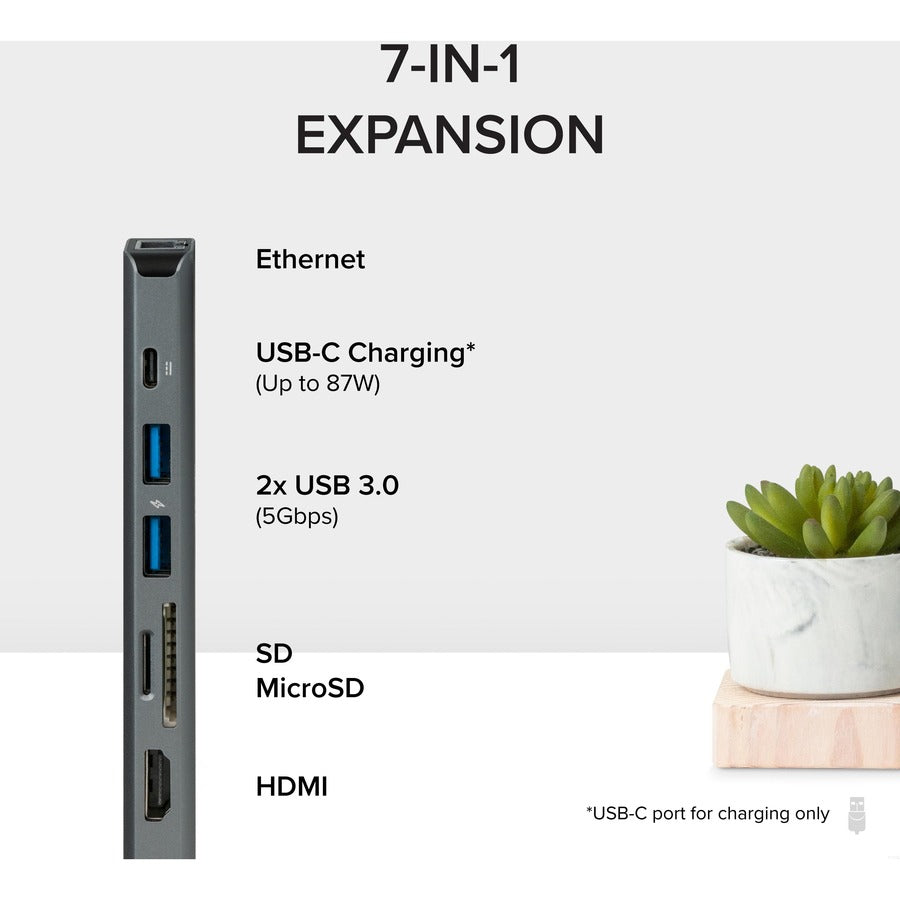

- 7-In-1 Expansion - Transform a single USB C or Thunderbolt port into a 7-in-1 USB-C hub with 2x USB 3.0 ports, 1x 4K HDMI, 1x Gigabit Ethernet port, 1x SD card reader, 1x microSD card slot, and 1x USB-C Power Delivery charging port
- High-Speed Data And Charging - USB 3.0 ports for fast 5Gbps data transfer, SD and Micro SD card slots for versatility, and 92W USB-C pass-through charging means charging at max speed (not all laptops support USB-C PD)
- Plugable is contributing to a more sustainable world with thoughtful transportation and recycling.

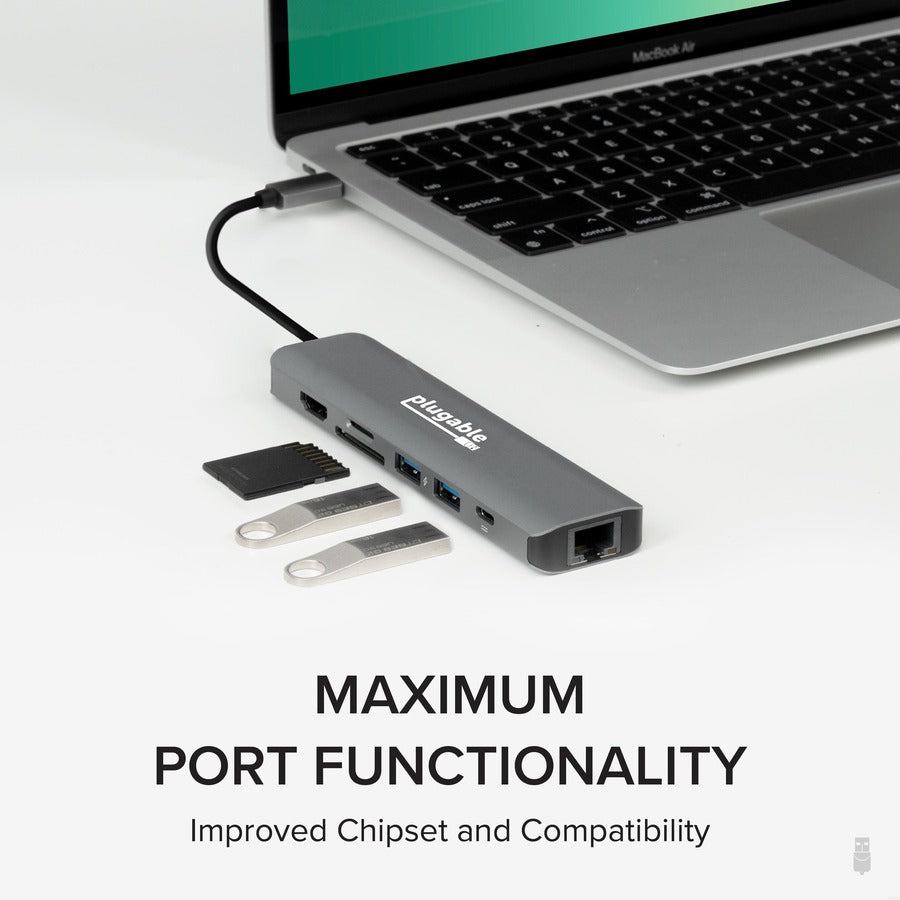

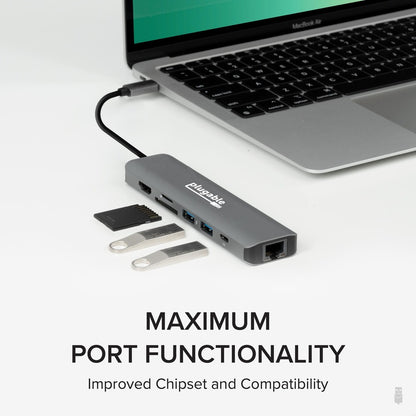

- Reliable Performance - Use all the ports at once or one at a time, this Type-C Thunderbolt hub has simultaneous port functionality and intelligent power handling. So no overdrawing power, screen flicker, or port problems common in other USB hubs
- Warranty and Support - Questions only an expert can answer? When you contact our support team, you're connecting with the engineers who design our devices. Every Plugable product is backed by our Seattle-based support team-even before purchase, and a 2-year limited parts and labor warranty after purchase
Product Overview
Plugable's 7 in 1 USB C adapter hub (USBC-7IN1E) enables you to connect an external HDMI monitor, 2x USB peripherals, Gigabit Ethernet, SD or microSD cards, and a USB-C power adapter to a USB Type-C or Thunderbolt supported system - all with one connection. The compact size allows for ultra portability and removes the need to carry multiple dongles that could occupy other valuable ports.The USB multiport adapter leverages the USB-C DisplayPort Alt Mode and USB Power Delivery technologies to support an external monitor and Power Delivery functions. It offers two USB 3.0 Type-A ports that support data transfer speeds up to 5Gbps. The USB-C digital AV multiport adapter is entirely USB bus powered and does not require a power supply to work. The HDMI 2.0 port on the USB C charging hub can support resolutions up to 3840x2160@60Hz and 1080p resolutions at 60Hz. For computers which support DisplayPort 1.4 (DP 1.4), such as the Microsoft Surface Laptop 3, the Surface Book 3, or the Surface Pro 7, this USB C multiport adapter supports 4K 60Hz. Please consult with your system manufacturer to check if your USB-C port supports DP 1.4.
General Information
- Manufacturer: Plugable Technologies
- Manufacturer Part Number: USBC-7IN1E
- Brand Name: Plugable
- Product Model: USBC-7IN1E
- Product Name: USB-C 7-in-1 Hub with Ethernet
- Packaged Quantity: 1
- Product Type: Docking Station
Technical Information
- Connectivity Technology: Wired
- Number of Displays Supported: 1
- Supported Resolutions:
- 3840 x 2160
- 3840 x 1600
- 3440 x 1440
- 2560 x 1440
- 2560 x 1080
- 1920 x 1080
- 1600 x 900
- 1280 x 1024
- 1280 x 720
- 1280 x 800
- 1152 x 864
- 1024 x 768
- 800 x 600
- 640 x 480
- Screen Mode Supported: 4K
- Device Supported:
- Monitor
- Notebook
Network & Communication
- Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
- Host Interface: USB 3.0 Type C
- Number of USB 3.0 Ports: 2
- USB Type-C: Yes
- USB Type-C Detail: 1 x USB-C Power Delivery charging port
- Number of USB Type-A Ports: 2
- USB Type-A: Yes
- Network (RJ-45): Yes
- Number of HDMI Outputs: 1
- HDMI: Yes
Software
- Operating System Supported:
- Windows
- macOS
- ChromeOS
- Linux
Physical Characteristics
- Height: 0.50"
- Width: 1.50"
- Weight (Approximate): 3.20 oz
Miscellaneous

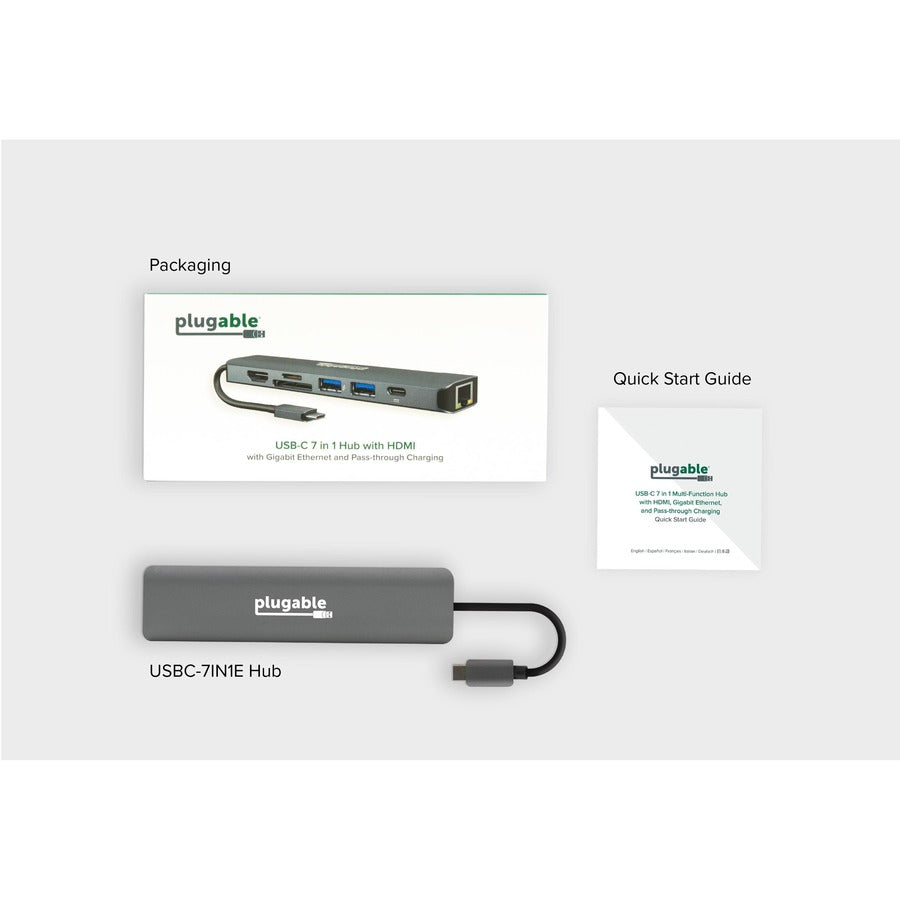

- Package Contents:
- USB-C 7-in-1 Hub with Ethernet
- 1 x Quick Start Guide
- Compatibility:
- Google Chromebook
- Dell XPS 13 Notebook
- Dell XPS 515Notebook
- Google Pixelbook
- Lenovo Thinkpad
- HP Spectre x36
- Samsung DeX
- Laptop 3
- Surface Book 3
- Surface Pro 7
- Surface Go
- 2018+ iPad Pro (mirroring only)
- MacBook Air
- iMac
- iMac Pro
- MacBook
- MacBook Pro
- Country of Origin: China
Warranty
- Limited Warranty: 2 Year
