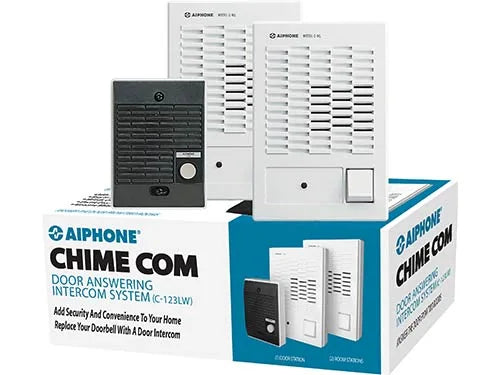

Aiphone C-123LW – ChimeCom Dual Master Intercom Kit
Simple and reliable audio communication system with door release functionality, ideal for small offices and residences.
The Aiphone C-123LW ChimeCom Set is a basic but effective intercom system that includes one door station and two master stations. It allows push-to-talk communication from either indoor station and includes a built-in door release relay. With wall-mountable design and minimal wiring requirements, this system offers a cost-effective solution for internal communication and secure visitor entry.
Key Features:
• Set Includes: (2) C-ML/A master stations, (1) C-D door station, and (1) DAK-2S adapter
• Communication: Push-to-talk (simplex)
• Door Release: Built-in N/O dry contact, 30V AC/DC 1A
• Power Consumption: 85mA (6V DC max)
• Output: 100mW
• Mounting: Wall-mount design
Ideal For:
• Small offices or businesses
• Residential entry points
• Low-traffic indoor intercom systems
Why You Should Use This:
• Simple and affordable two-station system
• Includes door chime and strike relay for added convenience
• Easy installation with shielded 2-conductor wire
Key Highlights:
- ✅ Two indoor master stations with shared access to one door station
- ✅ Push-to-talk voice communication with chime
- ✅ Integrated door release contact
- ✅ Reliable wall-mounted analog design
Frequently Asked Questions:
Q: Can both master stations communicate with the door station?
A: Yes, both indoor stations can receive the door chime and initiate communication.
Q: Is power included in the set?
A: No, the power supply must be purchased separately.
Q: What wiring is required?
A: Uses 2-conductor shielded wire such as Aiphone #822202 or #821802.
