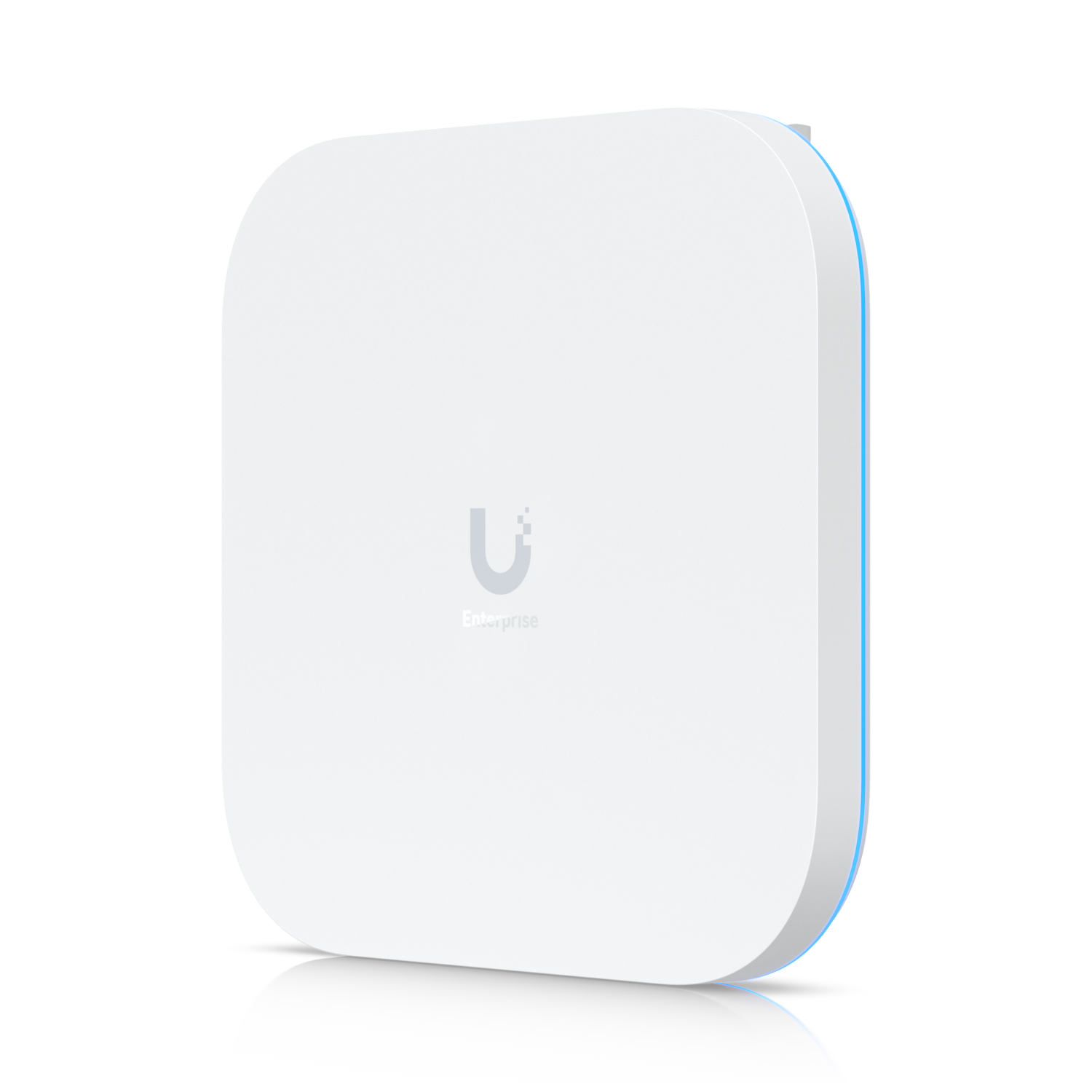

E7-Campus | Enterprise WiFi 7 Access Point with 10 GbE Uplink
The Ubiquiti E7-Campus is a tri-band, 10-stream WiFi 7 access point engineered for indoor and outdoor enterprise deployments. With integrated directional antennas, PRISM™ RF filtering, and dual uplink ports (10 GbE + 1 GbE), the E7-Campus delivers ultra-high performance, broad coverage, and high client capacity with robust network isolation and authentication features.
Ideal For:
Campus-wide enterprise WiFi deployments
High-density environments requiring WiFi 7 speeds and coverage
Outdoor installations with secure mounting and weatherproof design
Why You Should Use This:
✓ Tri-band WiFi 7 with up to 11.5 Gbps on 6 GHz
✓ 10 spatial streams and 1000+ max client count
✓ Directional antennas with up to 12 dBi gain
✓ IP67-rated with included waterproof door kit
Key Highlights:
✓ 10 GbE uplink with redundant 1 GbE port
✓ PRISM™ RF filtering for optimized performance
✓ Extensive enterprise security and management features
Frequently Asked Questions:
Q: What UniFi version is required for management?
A: UniFi Network version 9.0.114 or later is required.

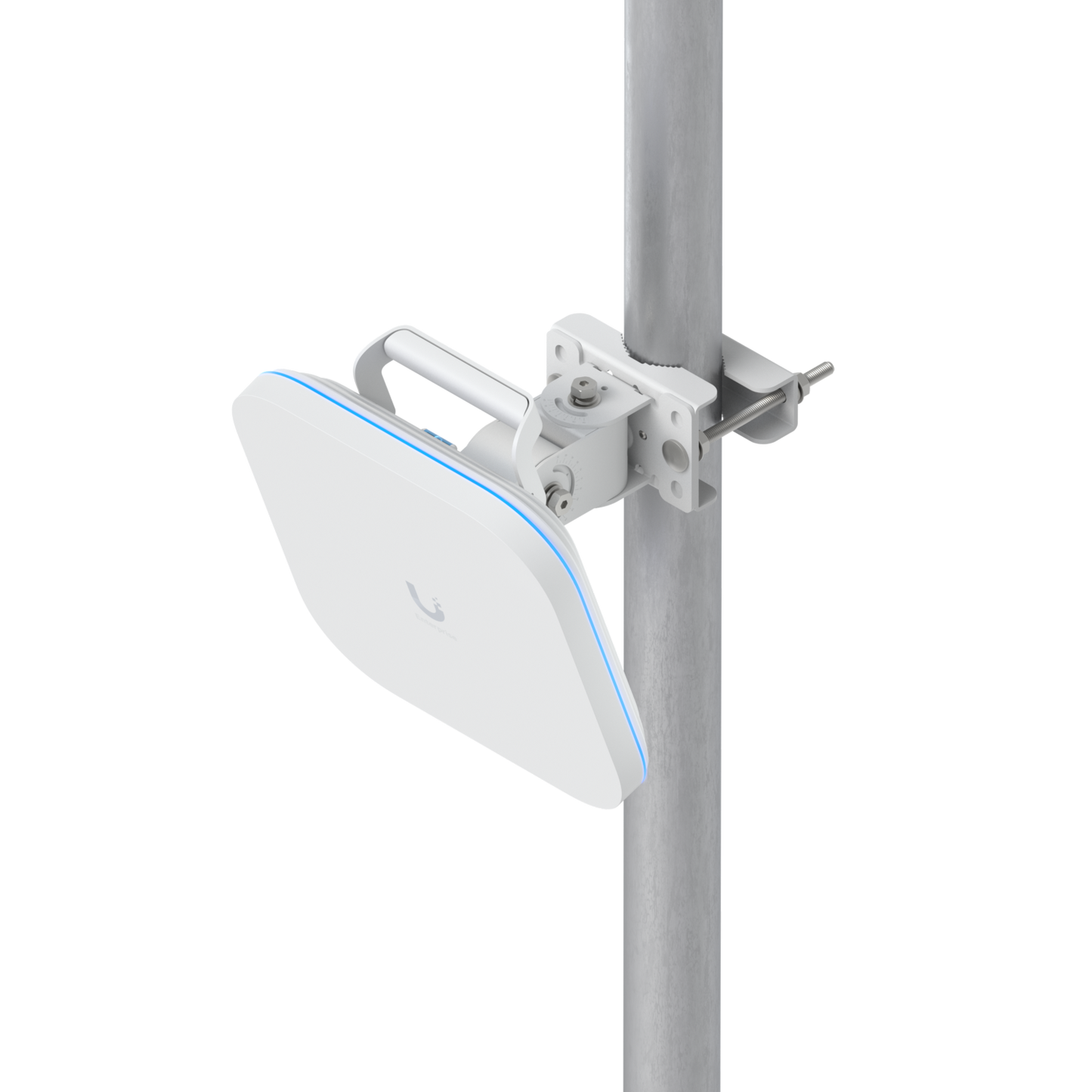

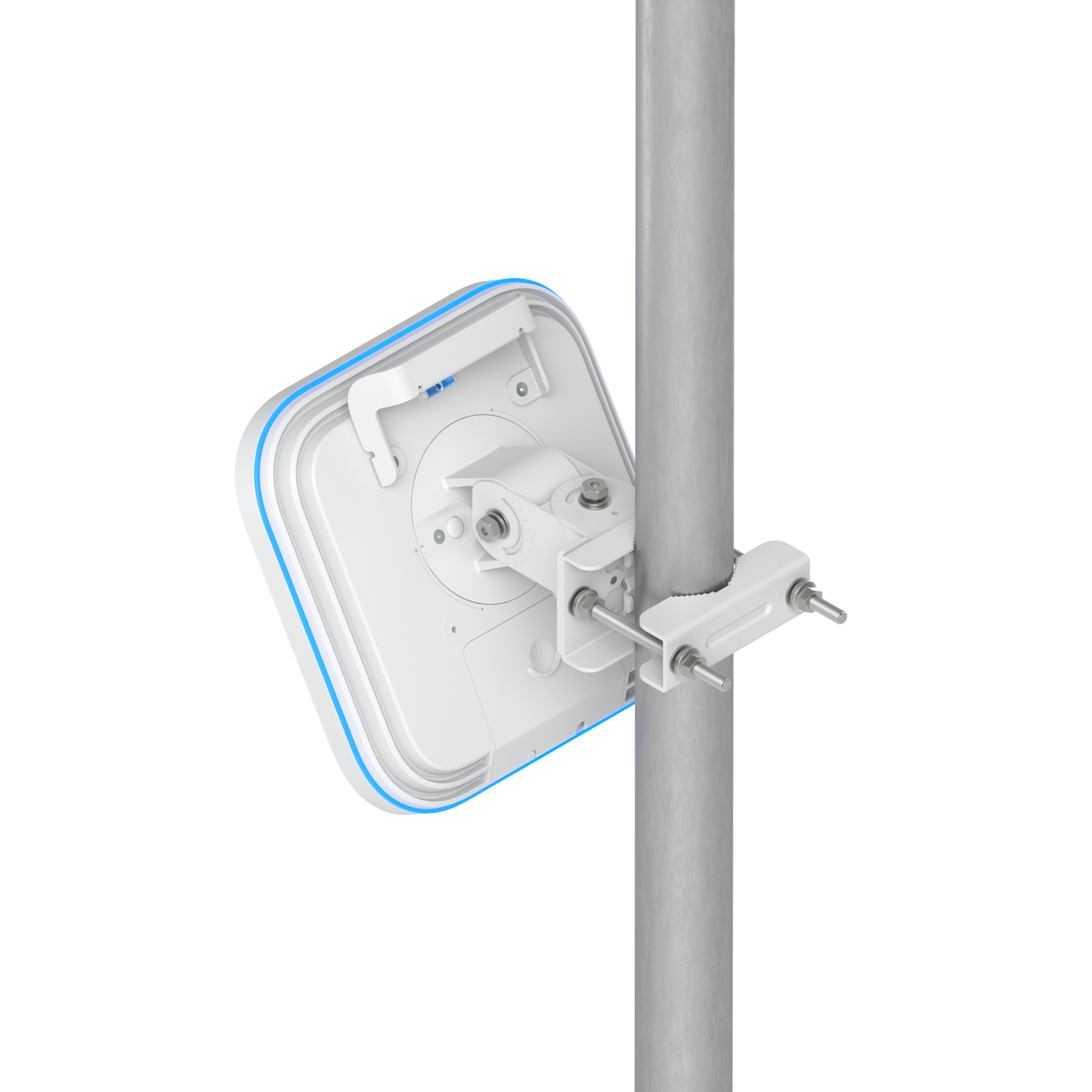

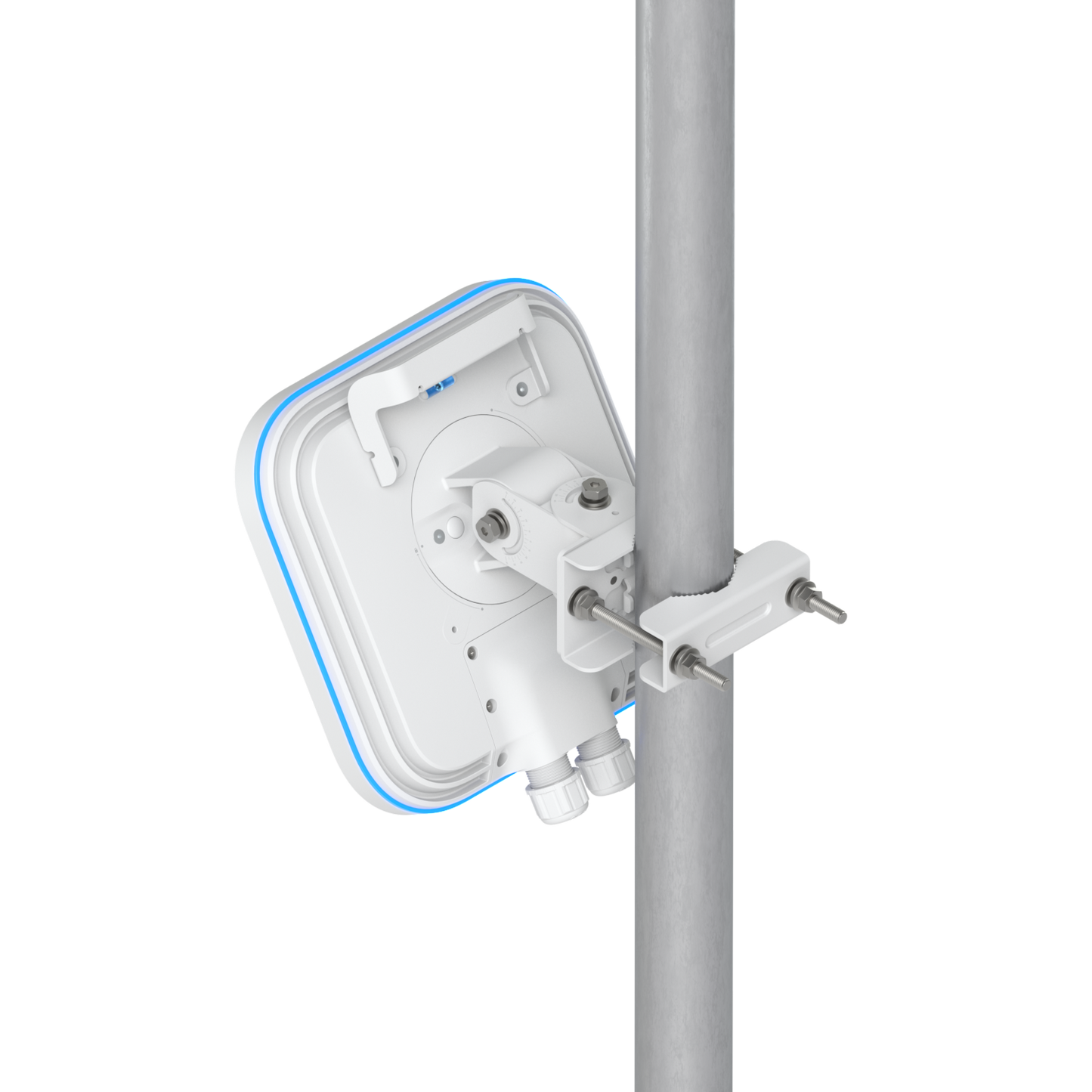

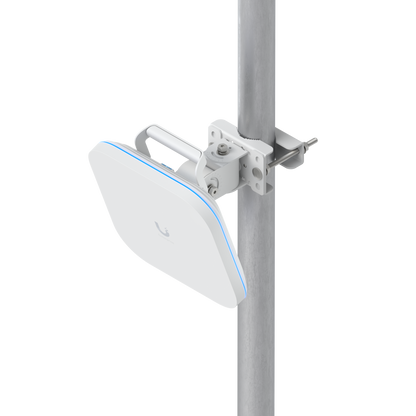

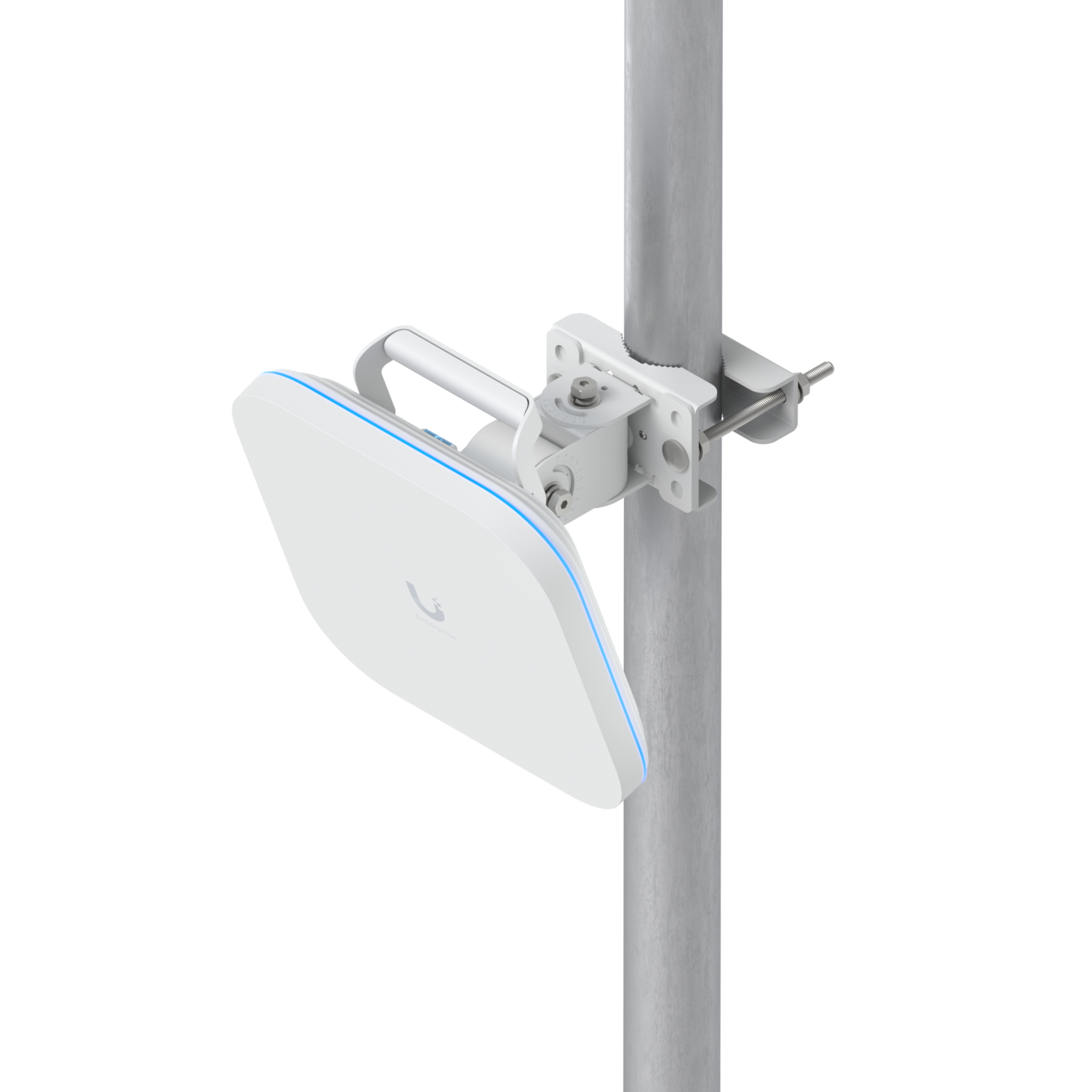

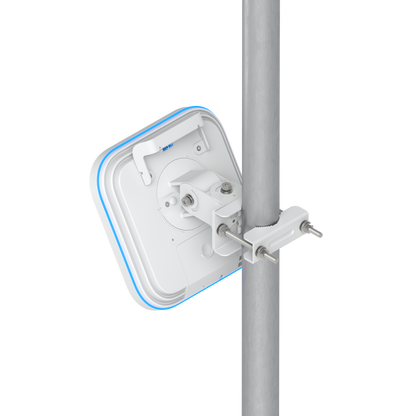

Q: Can it be pole-mounted outdoors?
A: Yes, wall and pole mounts are included. The enclosure is IP67-rated when using the waterproof door kit.
**Please note this is a final sale item and not returnable**
Dimensions:

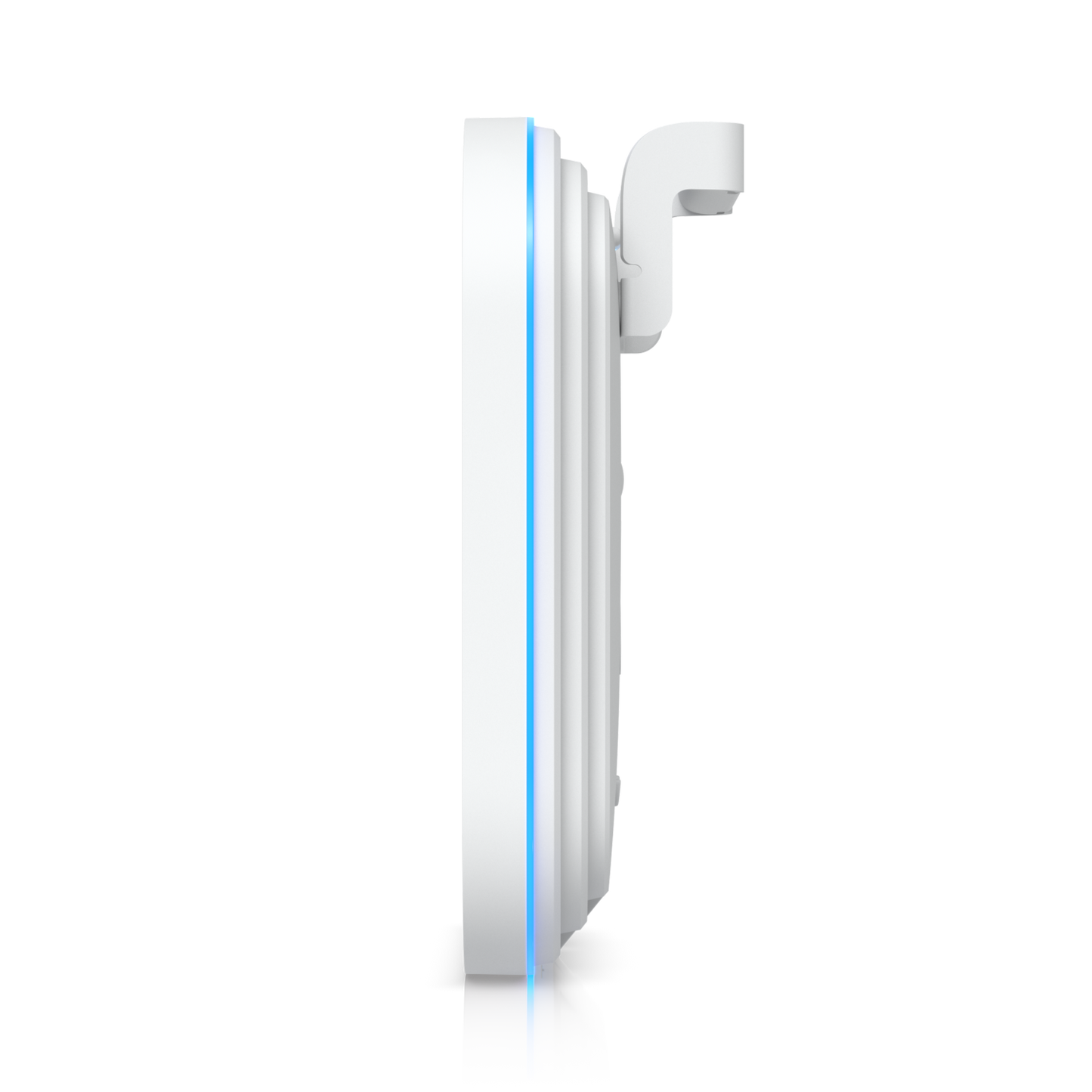

Device: 250 x 250 x 45.5 mm (9.8 x 9.8 x 1.8")

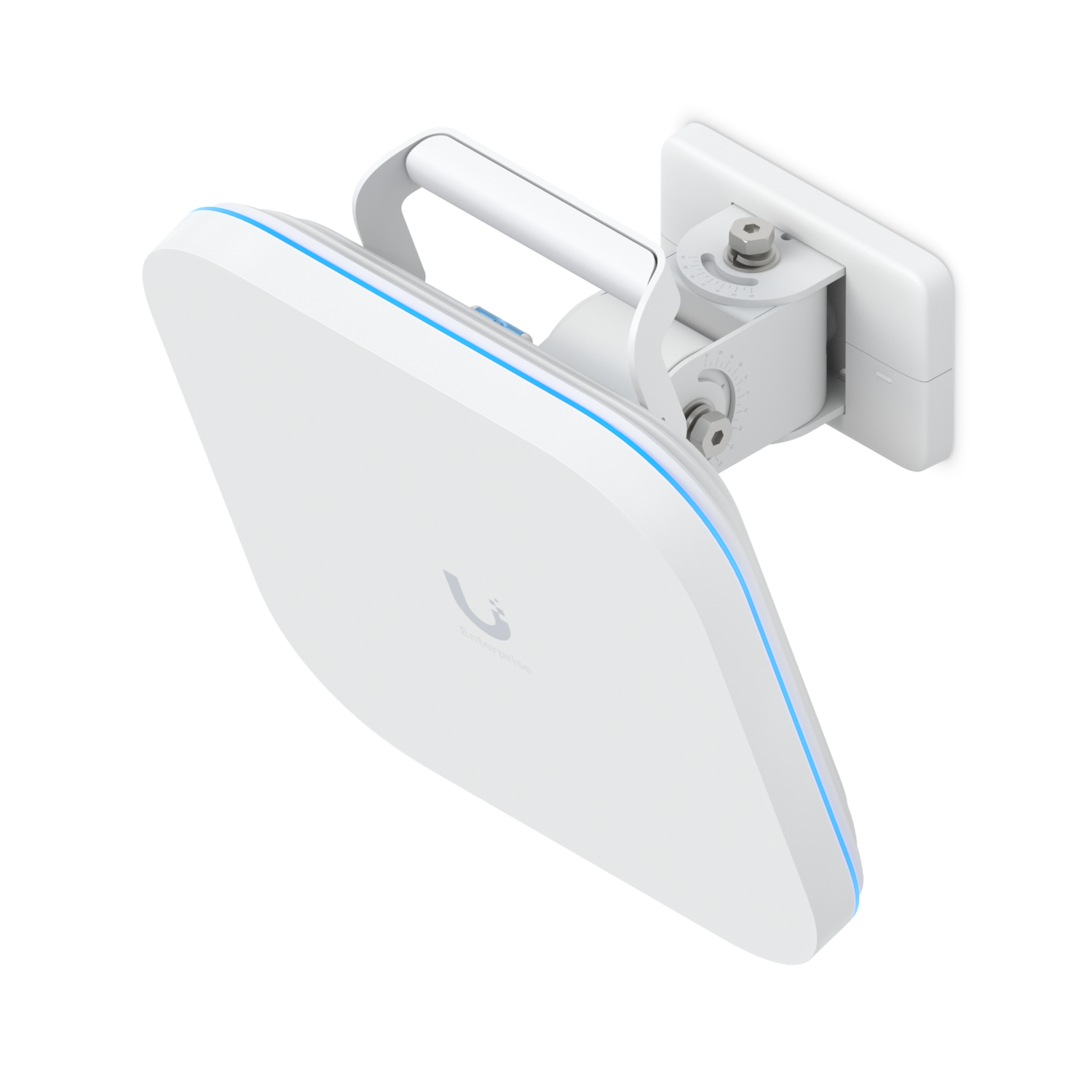

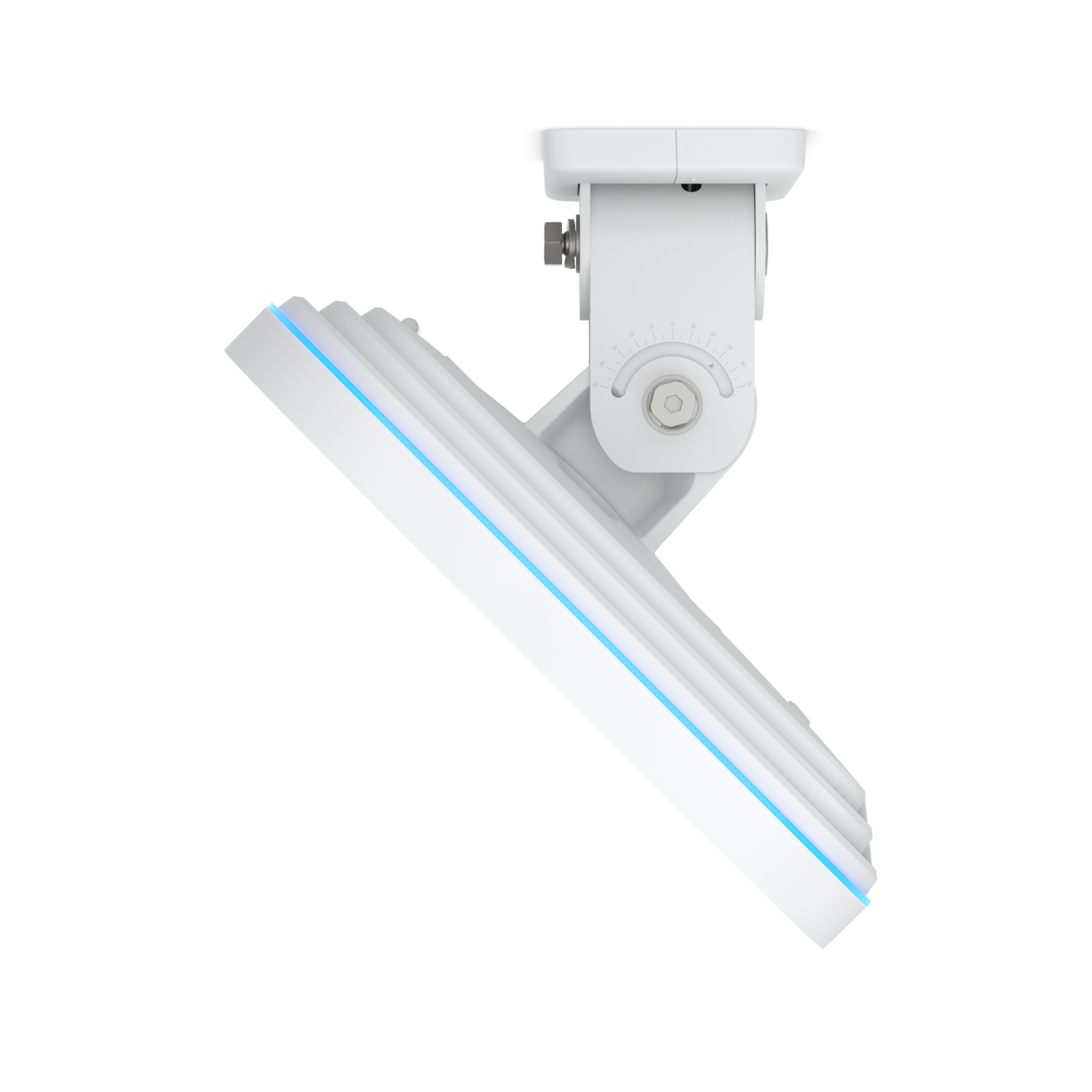

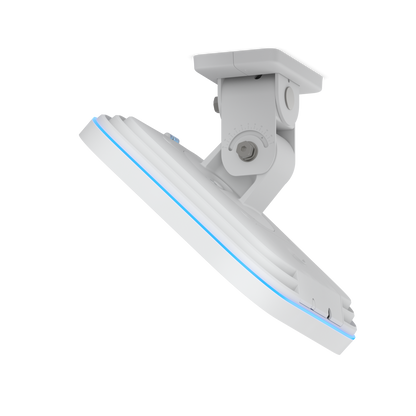

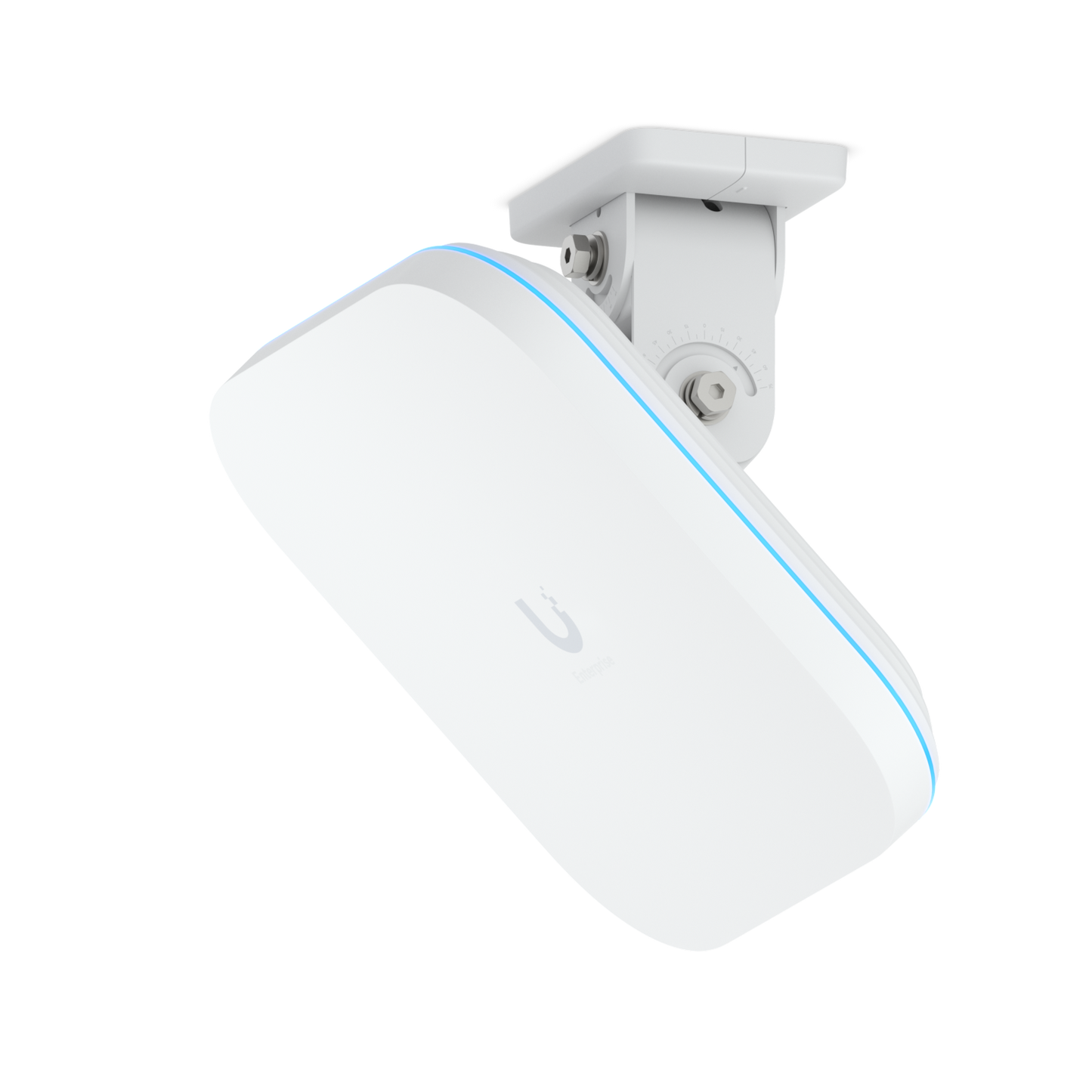

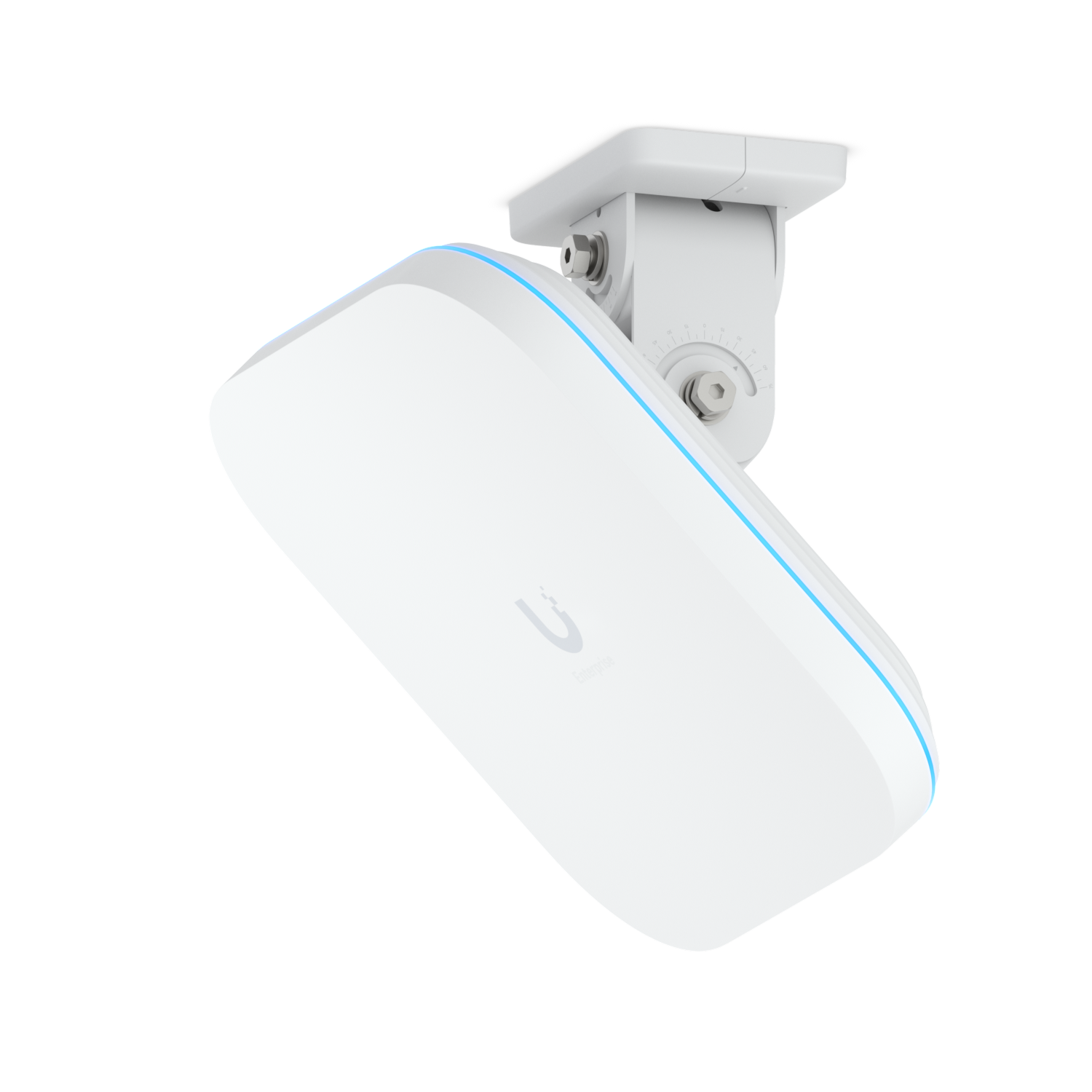

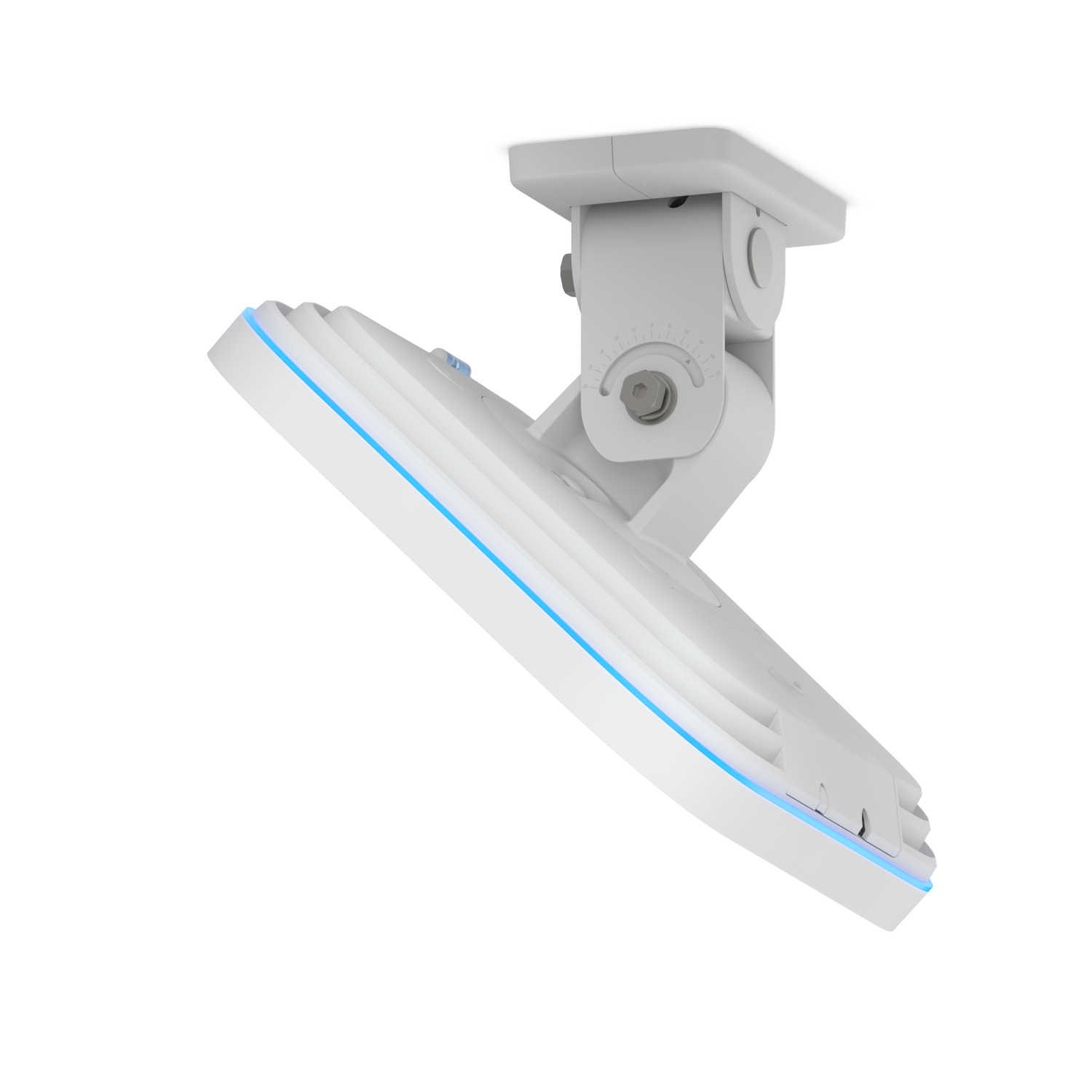

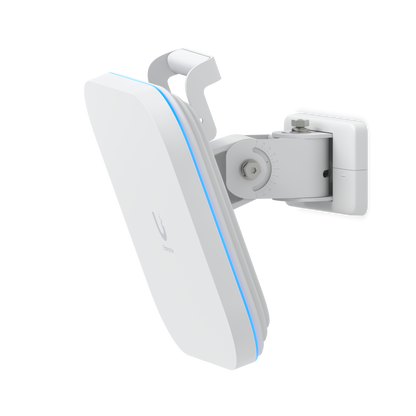

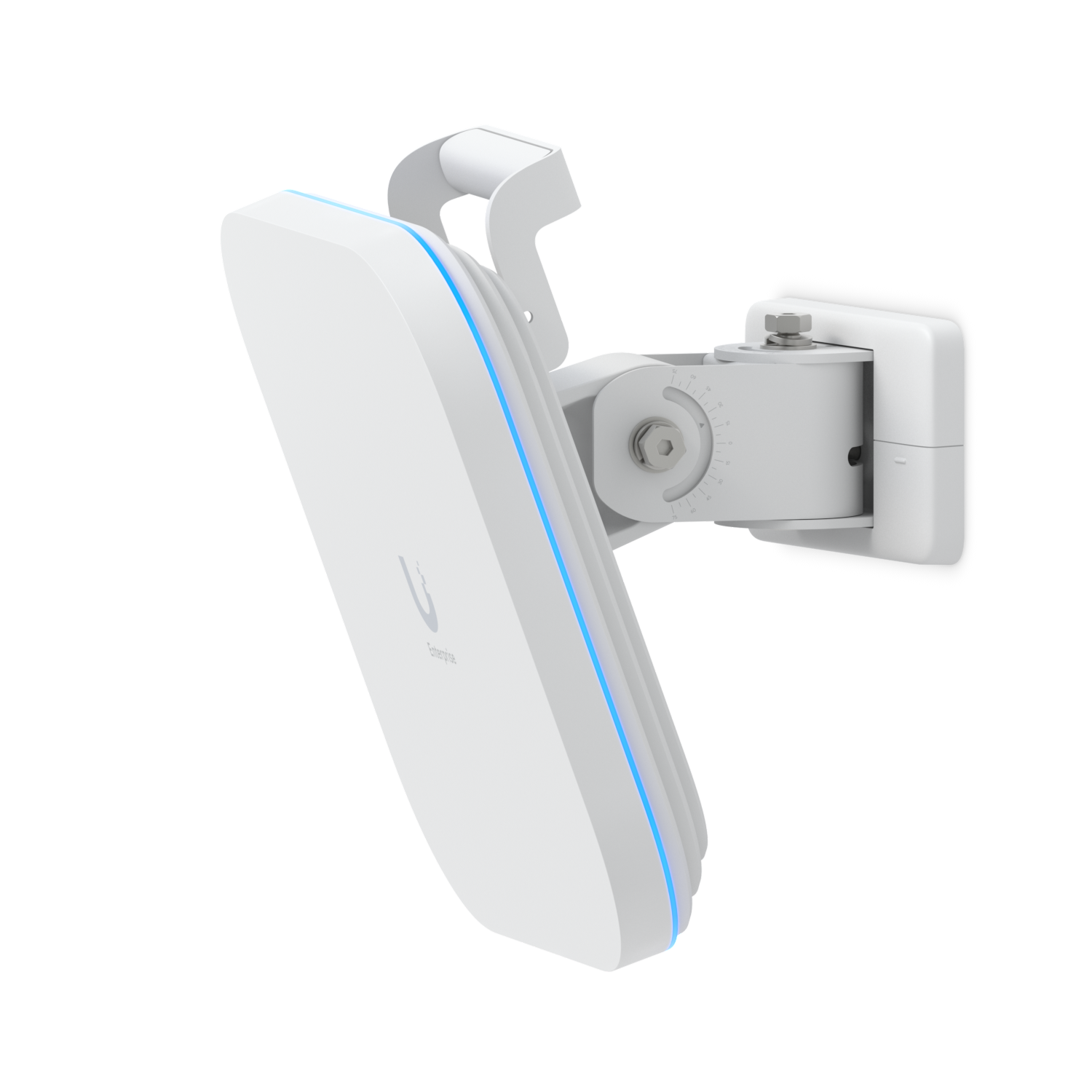

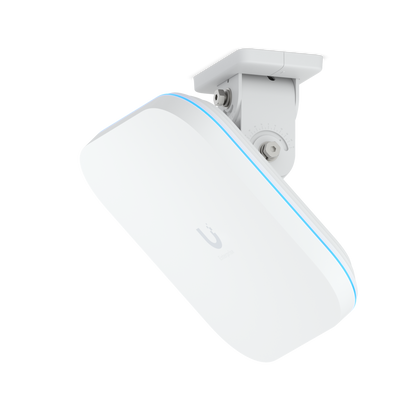

Articulating Mount: Ø104 x 149.4 mm (Ø4.1 x 5.9")
WiFi Standard: WiFi 7
Spatial Streams: 10
Coverage Area: 465 m² (5,000 ft²)
Max. Client Count: 1000+

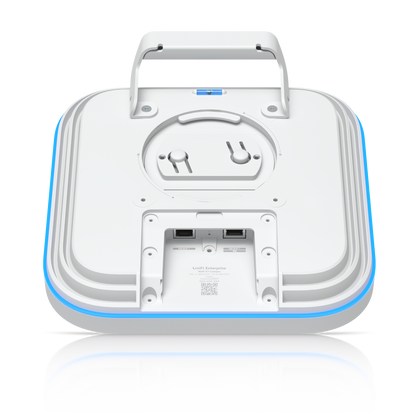

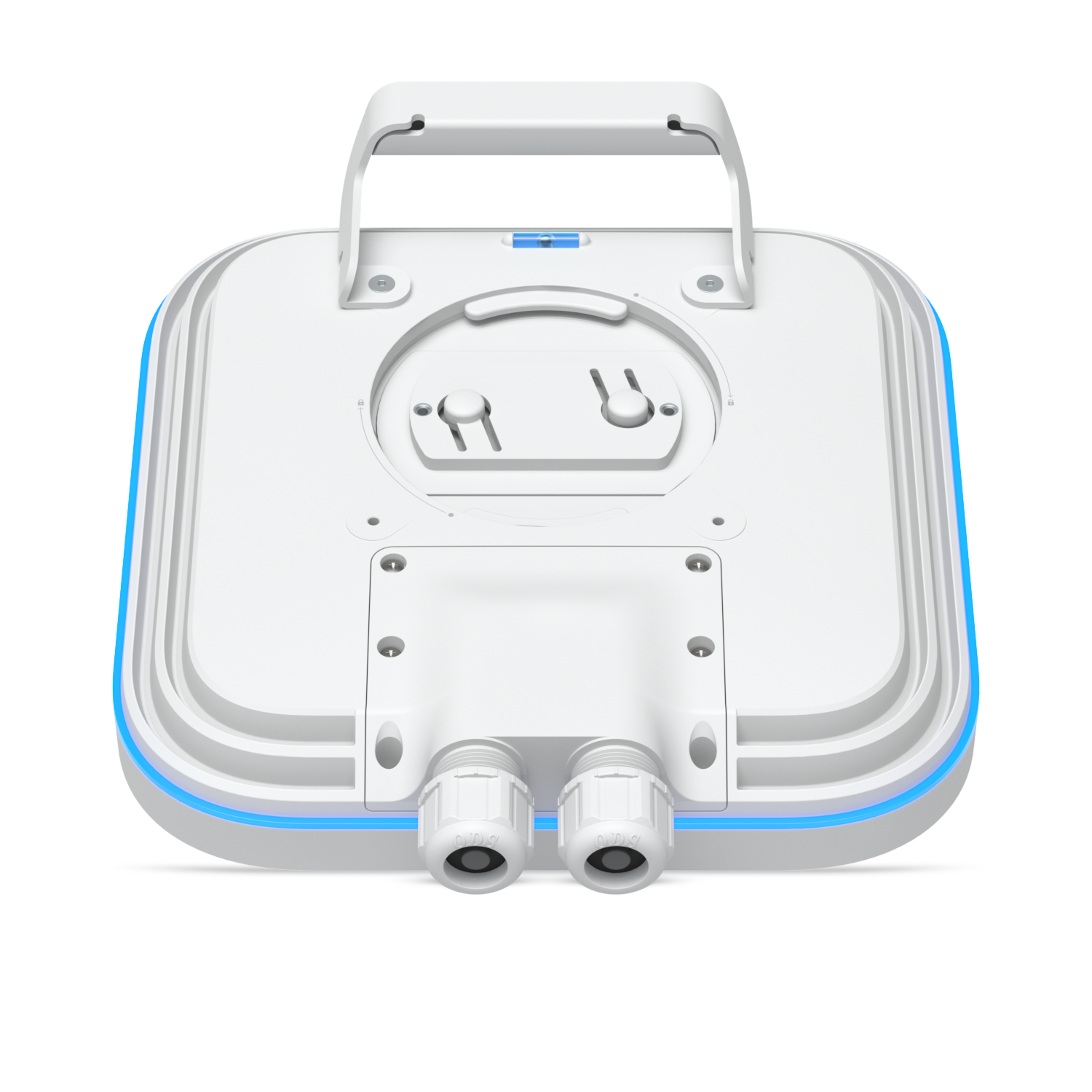

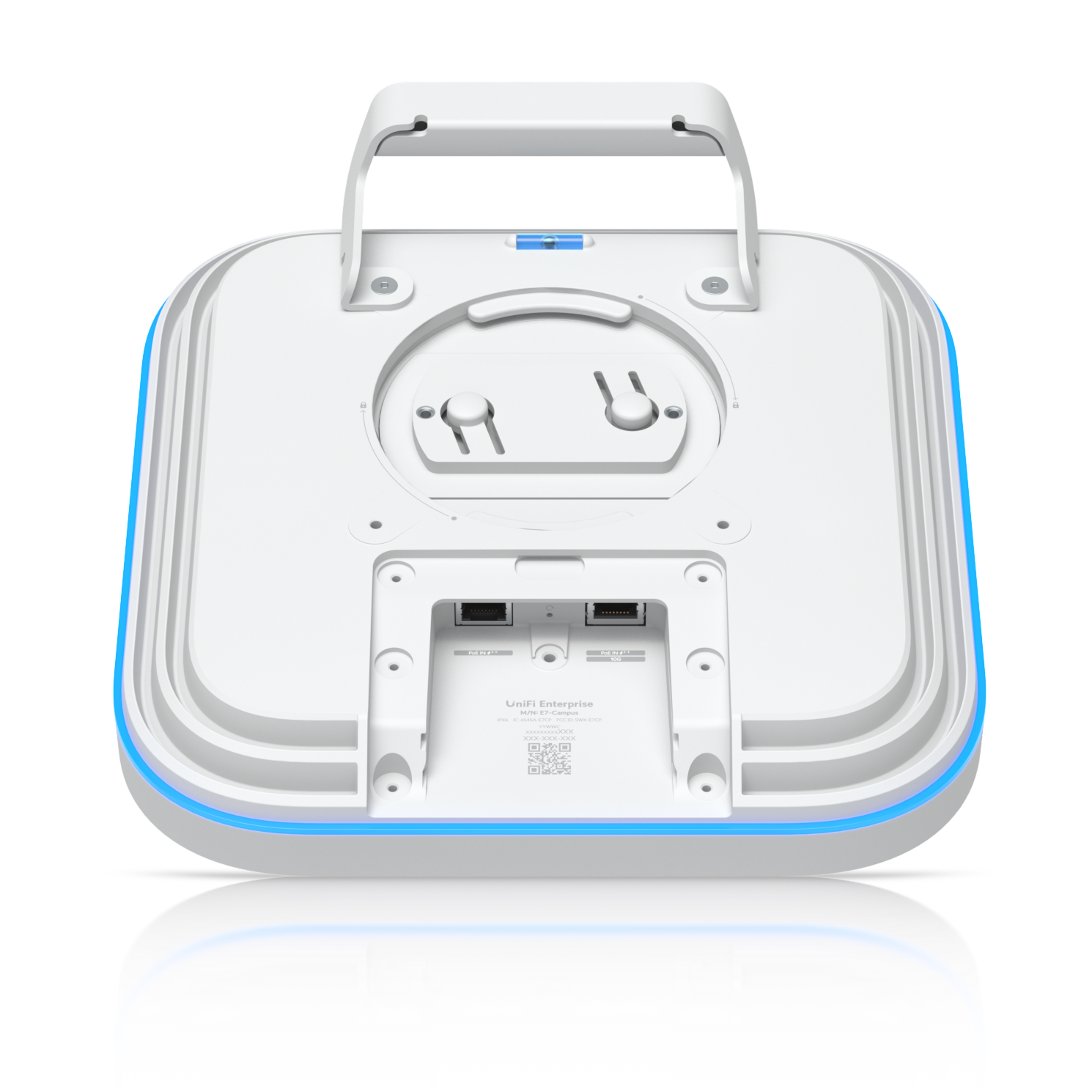

Uplink: (1) 10 GbE RJ45, (1) 1 GbE RJ45

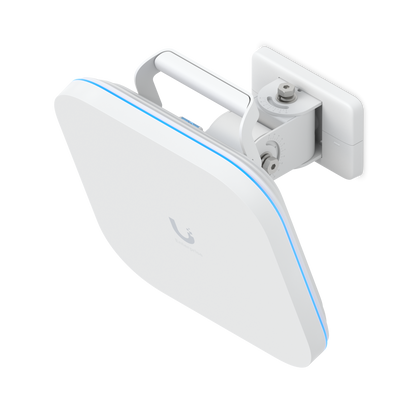

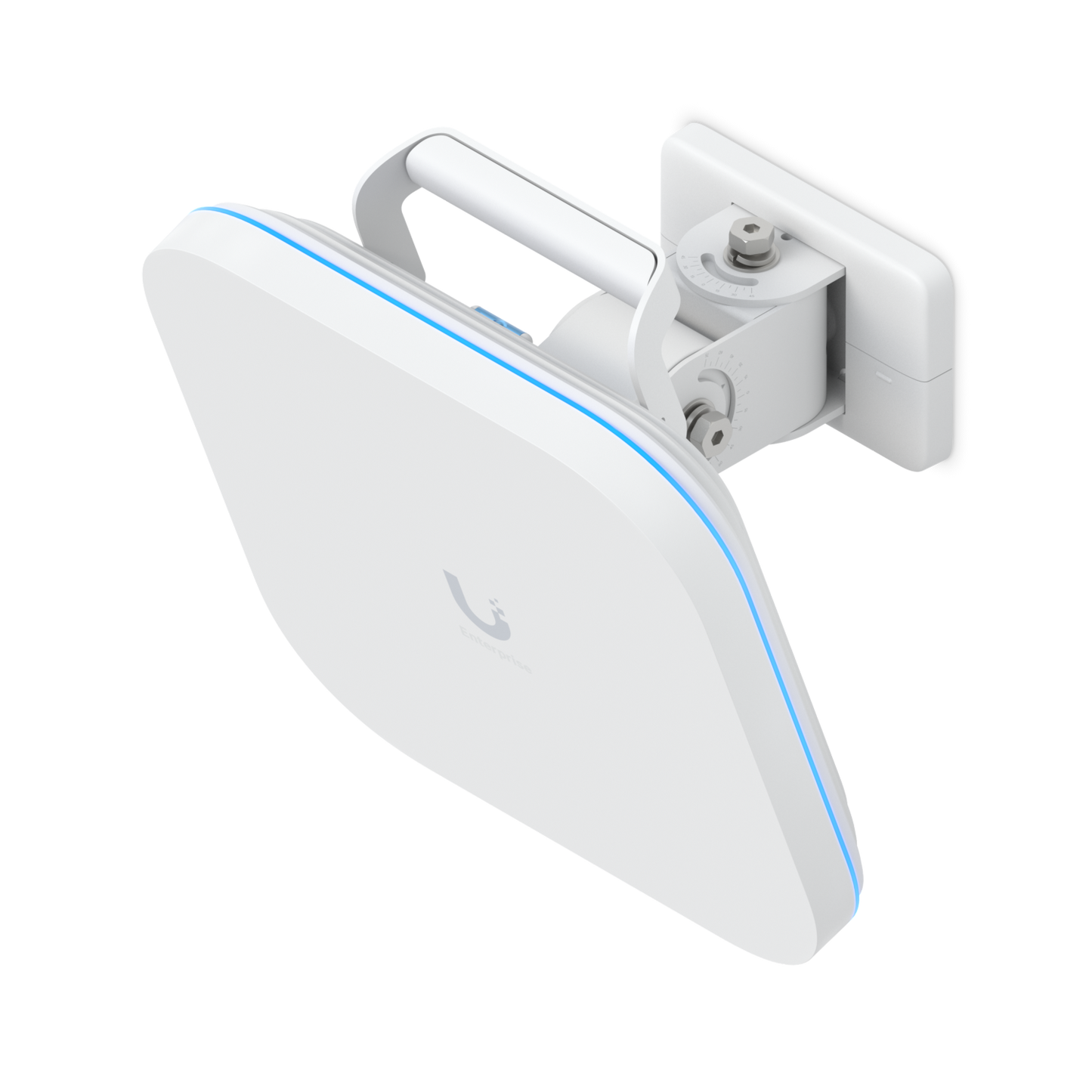

Mounting: Wall, Pole (Included), VESA (Optional)
Weatherproofing: IPX6 / IP67 with Waterproof Door Kit
Power Method: PoE++
MIMO:
6 GHz: 4x4 DL/UL MU-MIMO
5 GHz: 4x4 DL/UL MU-MIMO
2.4 GHz: 2x2 DL/UL MU-MIMO
Max. Data Rate:
6 GHz: 11.5 Gbps (BW320)
5 GHz: 8.6 Gbps (BW240)
2.4 GHz: 688 Mbps (BW40)
Antenna Gain:
6 GHz: 12 dBi, 90° x 50°
5 GHz: 12 dBi, 100° x 55°
2.4 GHz: 9 dBi, 90° x 80°
Max. TX Power:
6 GHz: 30 dBm (36 dBm EIRP)
5 GHz: 30 dBm
2.4 GHz: 23 dBm
Max. BSSIDs: 8 per Radio
Supported Data Rates:
WiFi 7 (802.11be): 7.3 Mbps – 11.4 Gbps
WiFi 6 (802.11ax): 7.3 Mbps – 4.8 Gbps
WiFi 5 (802.11ac): 6.5 Mbps – 3.4 Gbps
WiFi 4 (802.11n): 6.5 Mbps – 600 Mbps
Features:
Wireless Meshing ✓
Band Steering ✓
802.11v/k/r ✓
Zero-Wait DFS ✓
Advanced Radio Management ✓
Real-Time Spectral Analysis ✓
Passpoint / Hotspot 2.0 ✓
Custom Captive Portal ✓
Voucher/Payment/Password Auth ✓
Guest Network & Device Isolation ✓
Private Pre-Shared Key (PPSK) ✓
WiFi Speed Limits & Schedules ✓
RADIUS over TLS (RadSec) ✓
Dynamic VLAN Assignment ✓
Max. Power Consumption: 44W
Voltage Range: 42.5–57V DC
PRISM™ RF Filtering: ✓
Weight:
Device: 2.2 kg (4.9 lb)
With Mount: 3.1 kg (6.8 lb)
Wind Loading: 164.75 N at 200 km/h (37 lbf at 125 mph)
Pole Mount Diameter: 1–2.5" (25–63.5 mm)
Enclosure Material: UV-stabilized polycarbonate, aluminum
Mount Material: Stainless steel, aluminum
LEDs: System (R/G/B)
NDAA Compliant: ✓
Certifications: FCC, IC
Operating Frequencies:
US/CA: 2400–2472 MHz, U-NII bands 1–3, 5, 7
WW: 2400–2483.5 MHz, 5150–5725 MHz, 5925–7125 MHz
Ambient Operating Temperature: -30 to 60°C (-22 to 140°F)
Ambient Operating Humidity: 5 to 95% noncondensing
Software Requirements:
UniFi Network Version 9.0.114+
iOS App: Version 10.20.0+
Android App: Version 10.21.3+
