Dimensions:
442.4 x 43.7 x 496 mm
(17.4 x 1.7 x 19.5")

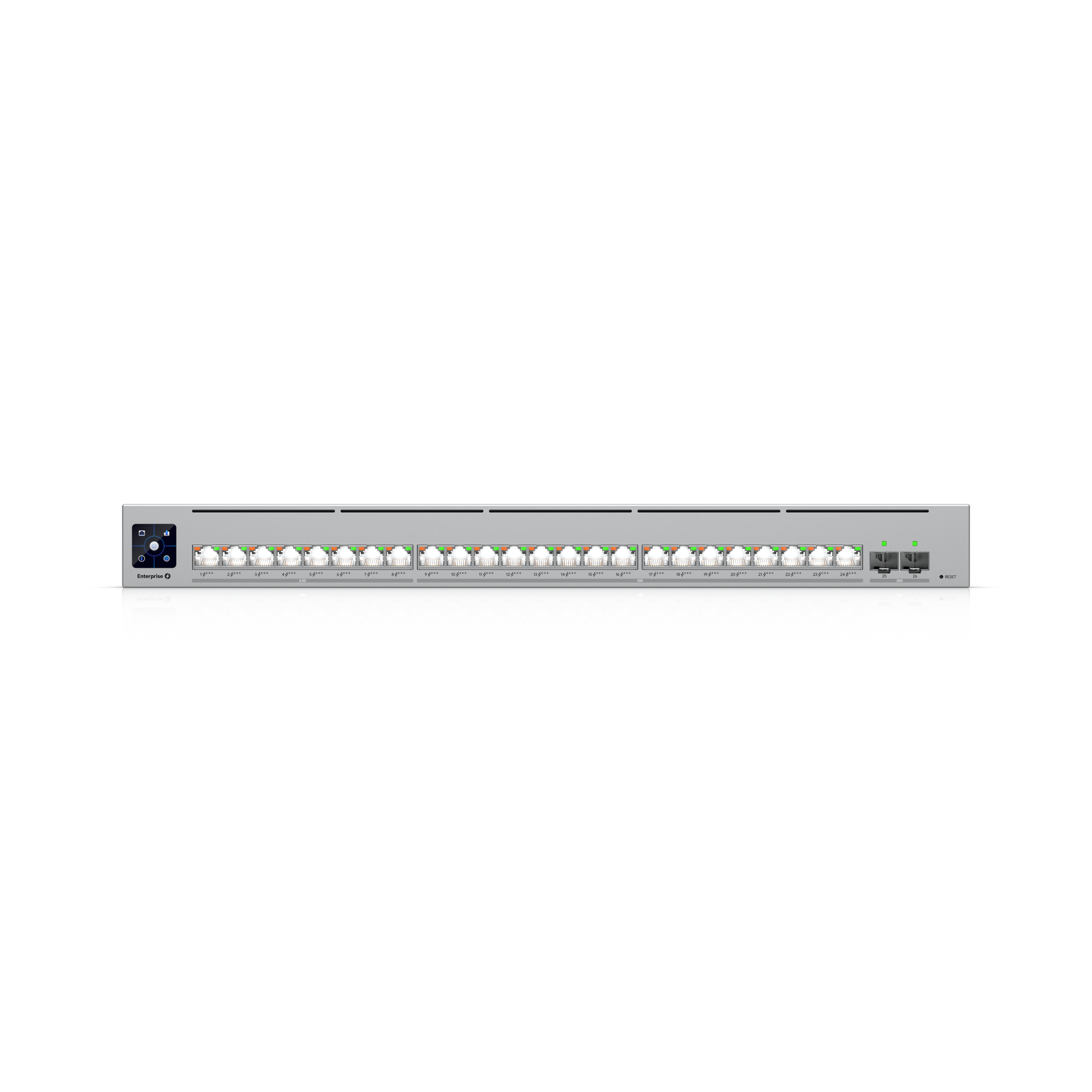

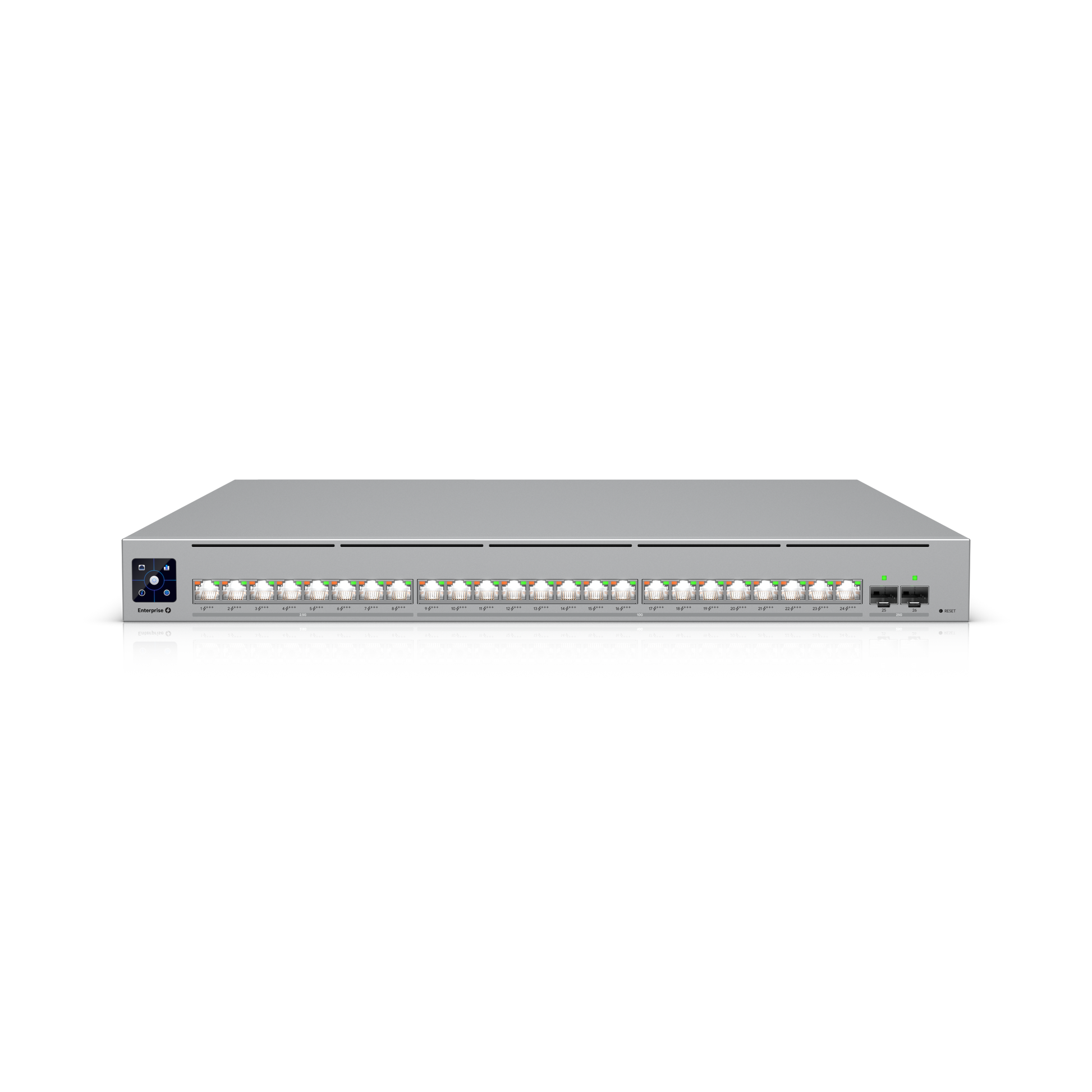

Port Layout:
2.5 GbE RJ45: 8 (All PoE+++) (2.5G/1G/100M/10M)
10 GbE RJ45: 16 (All PoE+++) (10G/5G/2.5G/1G/100M/10M)
25G SFP28: 2 (25G/10G/1G)
Max. PoE Output:
Up to PoE+++
Total PoE Availability:
100–240V AC Shared Mode: 1,050W with (2) 600W modules
100–240V AC Redundant Mode: 450W with (2) 600W modules
200–240V AC Shared Mode: 2,250W with (2) 1,200W modules
100–120V AC Shared Mode: 1,850W with (2) 1,200W modules
200–240V AC Redundant Mode: 1,050W with (2) 1,200W modules
100–120V AC Redundant Mode: 850W with (2) 1,200W modules

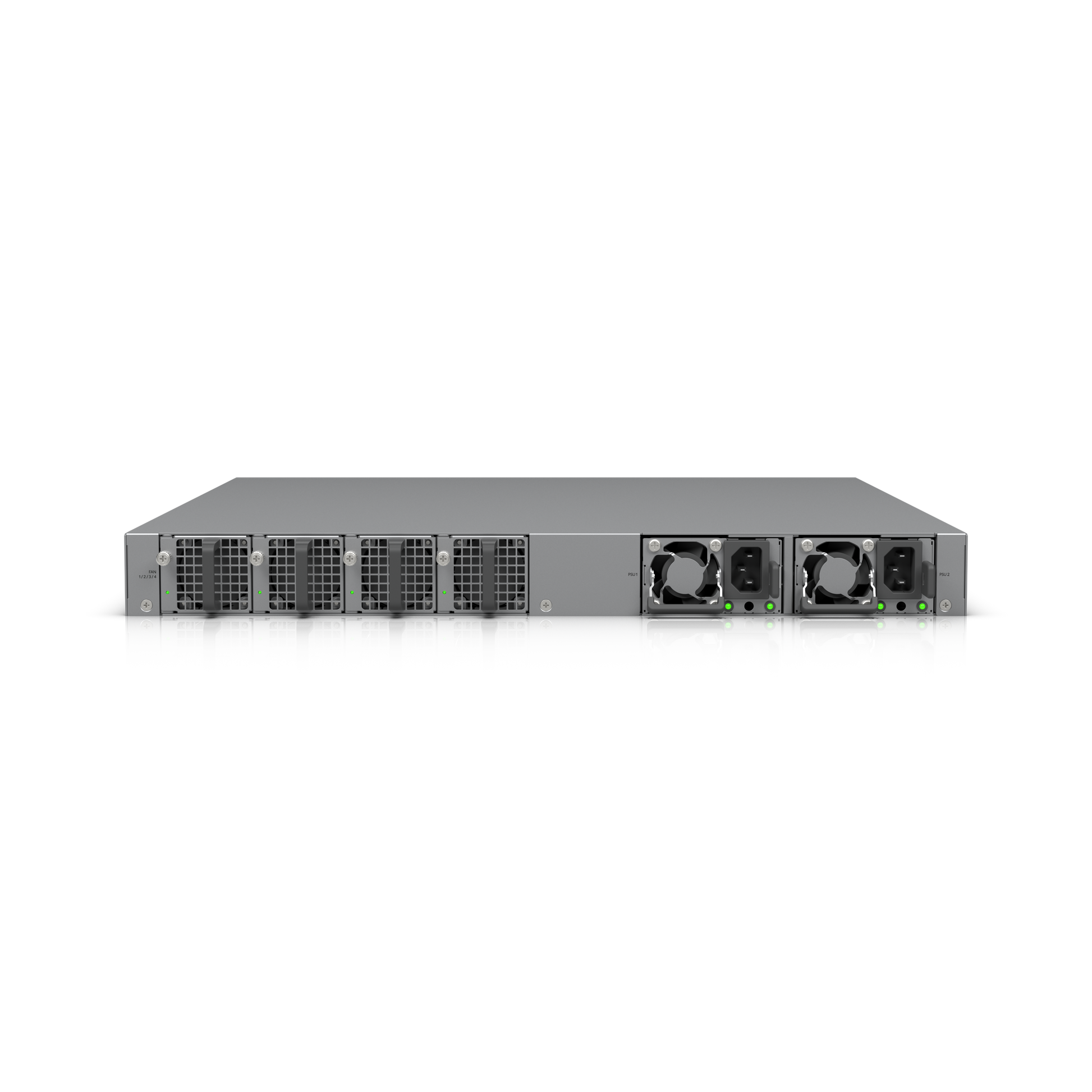

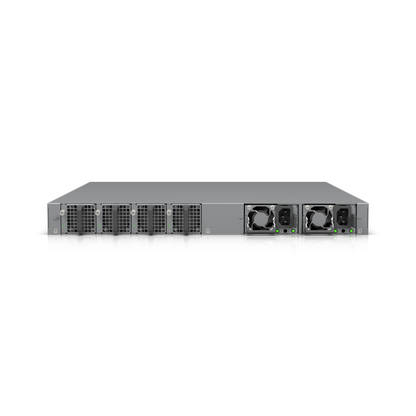

Redundancy:
(2) Hot-Swappable PSUs
(4) Hot-Swappable Fans
Layer 3:
✓
Form Factor:
Rack Mount (1U, Full-Depth)
Etherlighting™:
✓
Performance
Switching Capacity:
460 Gbps
Total Non-Blocking Throughput:
230 Gbps
Forwarding Rate:
342 Mpps
Supported VLANs:
1,000
MAC Address Table Size:
128,000
L3 Table Size:
ARP Entries: 128,000
IPv4 Routes: 256,000
Packet Buffer Size:
8 MB
Access Lists:
IPv4: 256
MAC: 256
Layer 3 Features:
DHCP Server (Local Networks): ✓
DHCP Relay: ✓
Inter-VLAN Routing (Local Networks): ✓
Static Routing (Local Networks): ✓
Layer 2 Features:
LACP Port Aggregation: ✓
STP & RSTP: ✓
QoS (DSCP): ✓
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron): ✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port): ✓
IGMP Snooping: ✓
802.1X Control: ✓
MAC-Based ACLs & Device Isolation: ✓
DHCP Snooping & Guarding: ✓
Egress Rate Limit: ✓
Flow Control: ✓
Storm Control: ✓
Multicast & Broadcast Rate Limiting: ✓
MAC Address Blocking: ✓
IP-Based ACLs & Network Isolation: ✓
MAC-Based Port Restriction: ✓
Port Isolation: ✓
Port Mirroring: ✓
Jumbo Frames: ✓
LLDP-MED: ✓
Voice VLAN: ✓
Loop Protection: ✓
Hardware
PoE Ports:
PoE+++: 24
Max. PoE Wattage per Port by PSE:
PoE: 15.4W
PoE+: 30W
PoE++: 60W
PoE+++: 90W
Max. Power Consumption:
150W (Excluding PoE Output)
2400W (Including PoE Output)
Power Method:
(2) Universal input, 100—240V AC, 50/60 Hz, 50/60 Hz
Power Input Method:
(2) AC input, Hot-swappable power modules
Power Supply:
(2) Hot-swappable AC/DC 600W power modules
Supported Voltage Range:
100—240V AC
Management:
Ethernet
AR
Weight:
Without mounting brackets: 9.46 kg (20.9 lb)
With mounting brackets: 9.56 kg (21.1 lb)
Enclosure Material:
SGCC steel

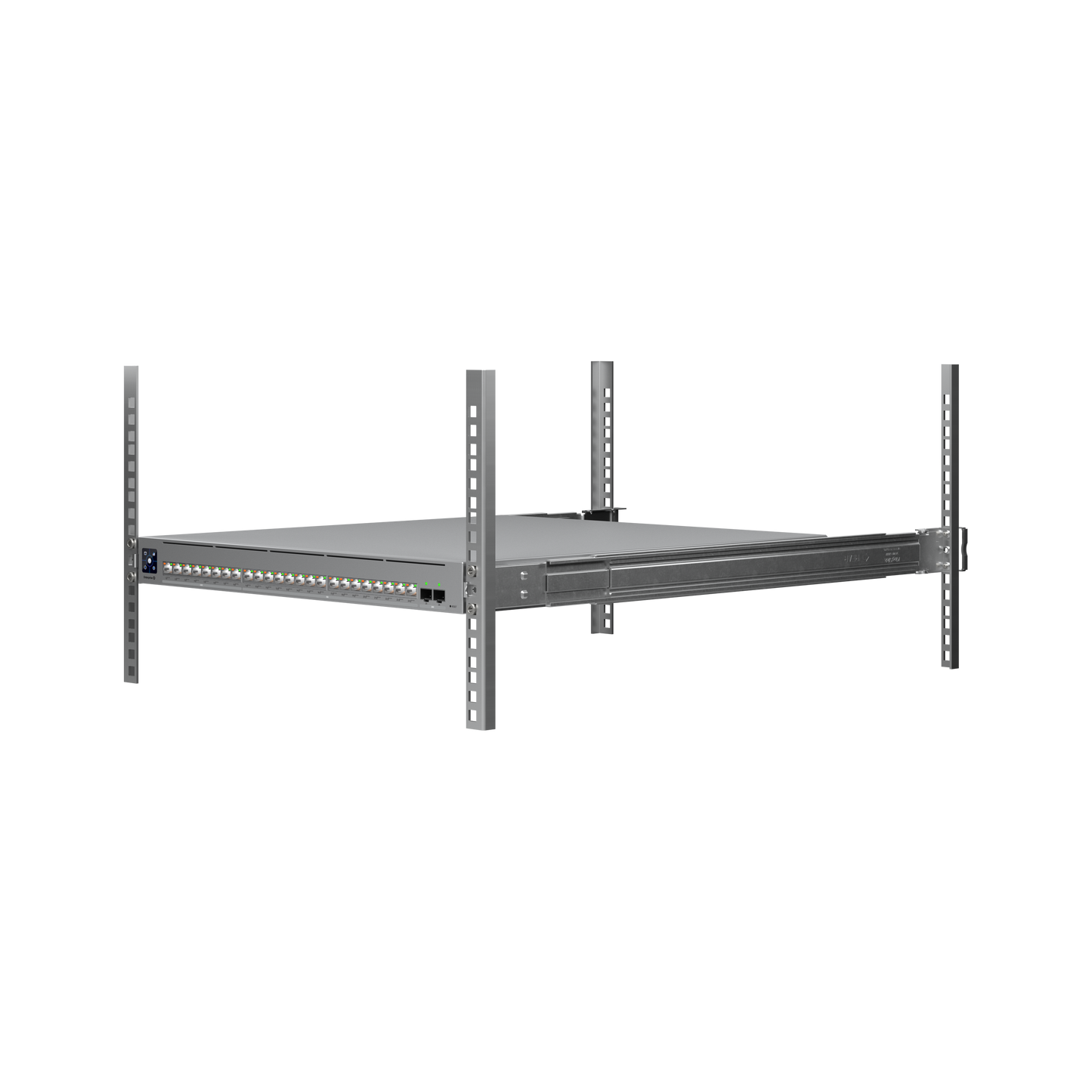

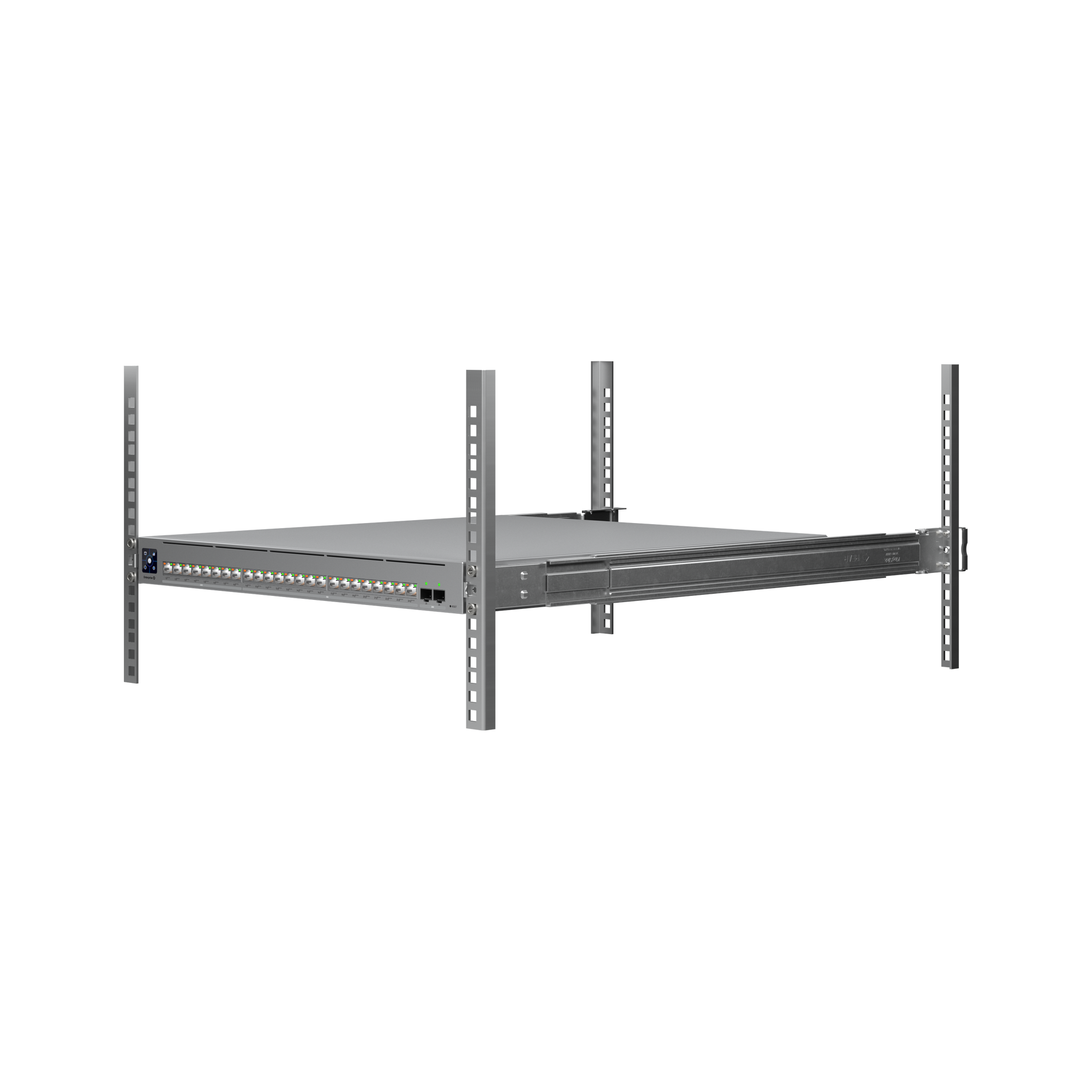

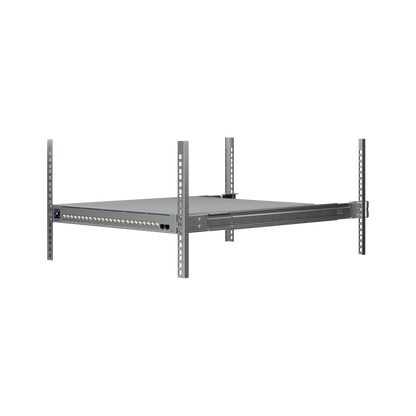

Supported Rack Depth:
482.6 mm (19") four-post racks
Posts depths ranging from 650 to 1,000 mm (25.6–39.4”)
LCM Display:
1.3" touchscreen
Fan Method:
(4) hot-swappable fan modules
ESD Protection:
Air: ± 30kV, contact: ± 30kV
Ambient Operating Temperature:
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity:
10 to 90% noncondensing
Etherlighting™:
Ethernet: ✓
SFP28: ✓
LEDs:
Ethernet: ✓
System: ✓
NDAA Compliant:
✓
Certifications:
CE, FCC, IC
Software
Application Requirements:
UniFi Network — Version 9.0.114 and later
