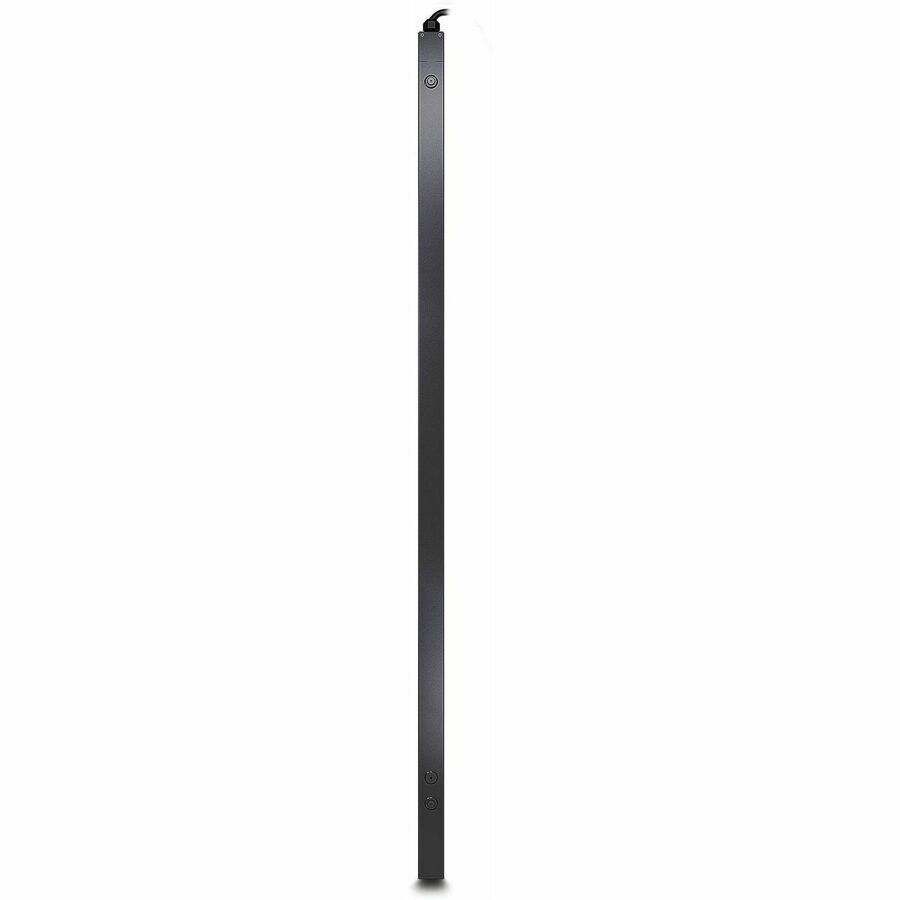

APC NetShelter Metered Rack PDU, 0U, 5.0kW, 200V and 208V, 30A, 36 C13 and 6 C19 outlets - AP8841
Key Features
- 1-Year Secure Network Management Card subscription included
- 9.84' power cord, 2-year APC warranty
- Active power measurements (volts, amps, kW, kWh)
- Embedded log memory
- Ideal for colocation, large data centers or distributed IT sites
- Interactive LCD display
- Plan capacity and balance loads with +/- 3% metering accuracy (amps, volts, kW, kWh)
- Real-time remote monitoring of connected load through EcoStruxureTM IT and other platforms
- Stay on top by defining alarm thresholds in order to avoid overloaded circuits
- Zero U toolless installation
Product Overview
The APC Metered Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles The AP8841 offers real-time remote monitoring of connected loads and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment The PDU can operate in a maximum ambient air temperature of up to 60°C (140°F) at full load The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy The rack PDU integrates with EcoStruxure IT through a Network Management Card and can be accessed and configured via Web, SNMP, and Command Line Interface. User-interactive LCD interface details current, real power, voltage, and energy measurements for local user access. Embedded log memory with historical reporting enables users to meter power usage, optimize energy usage, and plan for capacity The PDU's locking IEC outlets, when used with locking power cords reduce the probability of accidentally disconnecting cords and dropping loads The rack PDU supports daisy-chaining of up to 4 PDUs on a single IP address An environmental monitoring port is available for external temperature/humidity monitoring (sensor sold separately, model AP9335T or AP9335TH) The rack PDU comes with a standard two-year warranty Enables a quick recovery from overload events and breakers are ultra low profile. Packaging Includes PDU, Installation guide, Rack mounting brackets, Safety guide, Serial configuration cable
General Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: AP8841
- Brand Name: APC by Schneider Electric
- Product Line: Metered Rack
- Product Model: AP8841
- Product Name: Metered Rack AP8841 42-Outlets PDU
- Product Type: PDU
Technical Information
- PDU Type: Metered
- Plug/Connector Type: NEMA L6-30P
- Protection Type: Overload Protection
Power Description
- Input Voltage:
- 200 V
- 208 V
- Output Voltage:
- 200 V AC
- 208 V AC
Management
- Management:
Protocols:
- SNMP
- Telnet
Physical Characteristics
- Mounting Orientation: Vertical
- Mount Type: Rack-mountable
- Placement: Side
- Rack Height: 0U
- Cord Length: 9.51 ft
- Height: 70.5"
- Width: 2.2"
- Depth: 1.7"
- Weight (Approximate): 15.08 lb
Miscellaneous
- Package Contents:
- Metered Rack AP8841 42-Outlets PDU
- Installation guide
- Rack mounting brackets
- Safety guide
- Serial configuration cable
- Country of Origin: India
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 2 Year
