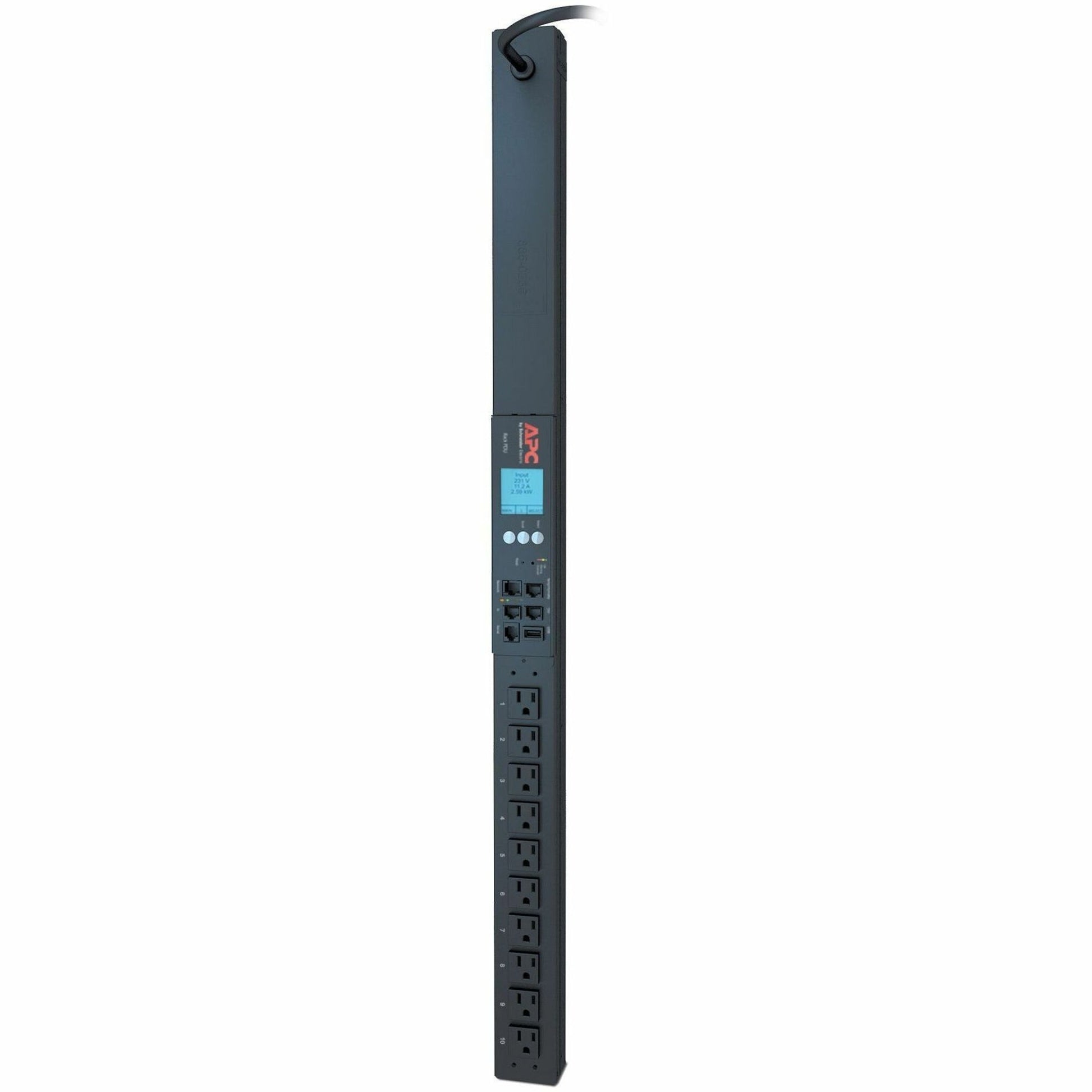

APC NetShelter Metered Rack PDU, 2G, 0U, 15A, 100-120V, 10 NEMA 5-15R outlets - AP8831
Key Features
- Enables improved energy efficiency and scope 1 and 3 emissions tracking
- Ideal for Colocation, large data centers or distributed IT sites
- Plan capacity and balance loads with +/- 3% metering accuracy (amps, volts, kW, kWh)
- Real-time remote monitoring and management through EcoStruxure IT & Secure NMC3
- Stay on top of potential circuit overloads with user-defined alarms
Product Overview
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency
General Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: AP8831
- Brand Name: APC by Schneider Electric
- Product Name: Metered Rack PDU
- Packaged Quantity: 1 Each
- Product Type: PDU
Technical Information
- PDU Type: Metered
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R
- Receptacle Detail: 10 x NEMA 5-15R
- Protection Type: Circuit Protection
Power Description
- Input Voltage:
- 100 V
- 120 V
- Output Voltage:
- 100 V AC
- 120 V AC
- Power Rating (VA): 1440 VA
- Input Current: 15 A
Management
- Management:
- Web
- SNMP
- Telnet
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Mounting Orientation: Vertical
- Mount Type: Rack-mountable
- Placement: Side
- Rack Height: 0U
- Cord Length: 9.51 ft
- Height: 35.5"
- Width: 2.2"
- Depth: 1.7"
- Weight (Approximate): 8.99 lb
Miscellaneous
- Package Contents:
- Metered Rack PDU
- Installation guide
- Rack mounting brackets
- Safety guide
- Serial configuration cable
- Country of Origin: India
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 2 Year
