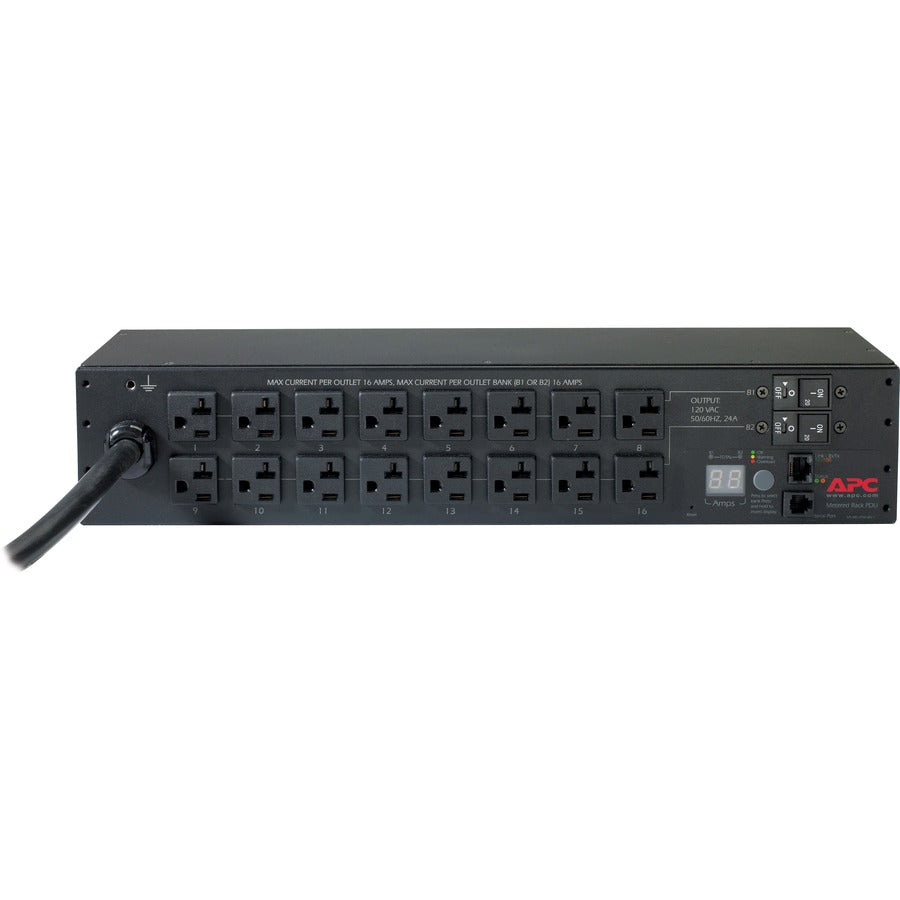

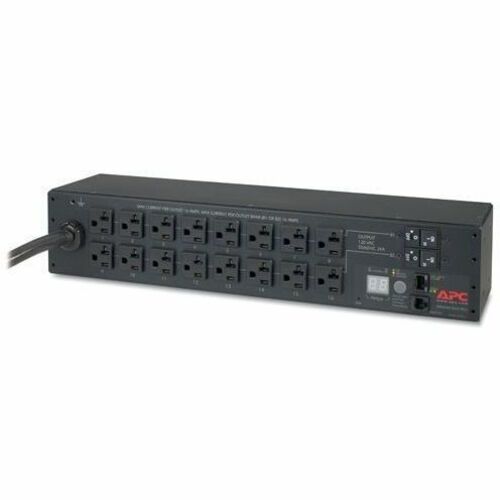

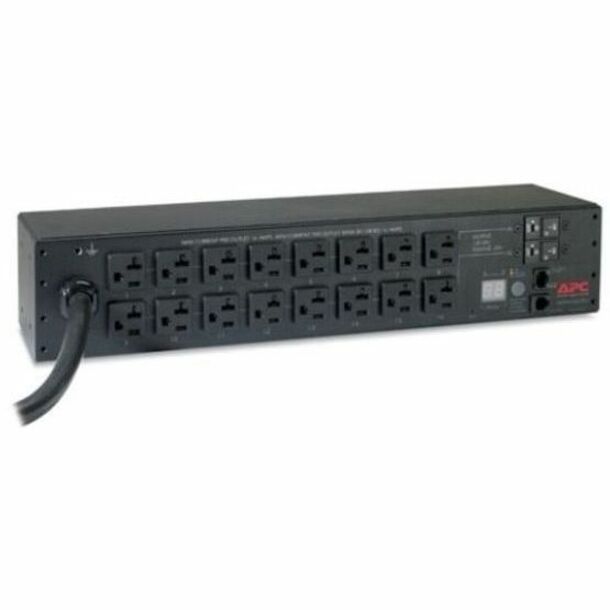

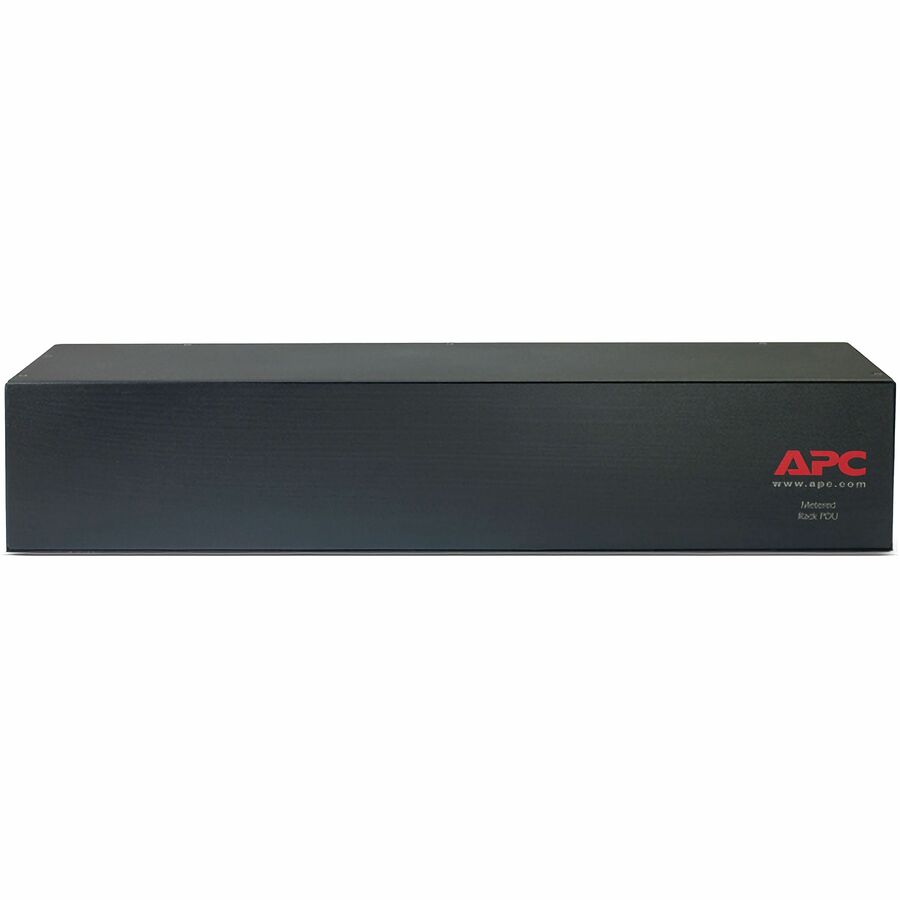

APC NetShelter Metered Rack PDU, 2U, 30A, 120V, 16 NEMA 5-20 outlet - AP7802B
Key Features
- Features 16 NEMA 5-20R outlets for extensive power distribution
- Horizontal mounting to fit various rack configurations, saving space
- Includes a cord retention bracket and toolless mounting kit for quick setup
- Supports up to 30A, 120V power distribution, ensuring reliable power delivery
Product Overview
It is a metered rack PDU designed for 2U horizontal mounting. It supports a maximum current of 30A and operates at 120V. The PDU features 16 NEMA 5-20R outlets and a 12-foot power cord with a NEMA L5-30P input plug. It has a load capacity of 2880 VA and includes a cord retention bracket, installation guide, and rack mounting brackets.
General Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: AP7802B
- Brand Name: APC by Schneider Electric
- Product Line: Metered Rack
- Product Name: Rack PDU, Metered, 2U, 30A, 120V, (16) 5-20
- Product Type: PDU
Technical Information
- PDU Type: Metered
- Plug/Connector Type: NEMA L5-30P
- Receptacle Type: NEMA 5-20R
- Receptacle Detail: 16 x NEMA 5-20R
- Protection Type: Overload Protection
Power Description
- Input Voltage:
- 100 V
- 120 V
- Output Voltage: 120 V AC
- Input Current: 30 A
Physical Characteristics
- Mounting Orientation: Horizontal
- Mount Type: Rack-mountable
- Placement:
- Front
- Rear
- Rack Height: 2U
- Cord Length: 11.98 ft
- Height: 3.5"
- Width: 17.5"
- Depth: 4.4"
- Weight (Approximate): 7.41 lb
Miscellaneous
- Package Contents:
- Rack PDU, Metered, 2U, 30A, 120V, (16) 5-20
- Cord retention bracket(s)
- Installation guide
- Rack mounting brackets
- User manual
- Country of Origin: India
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 2 Year
