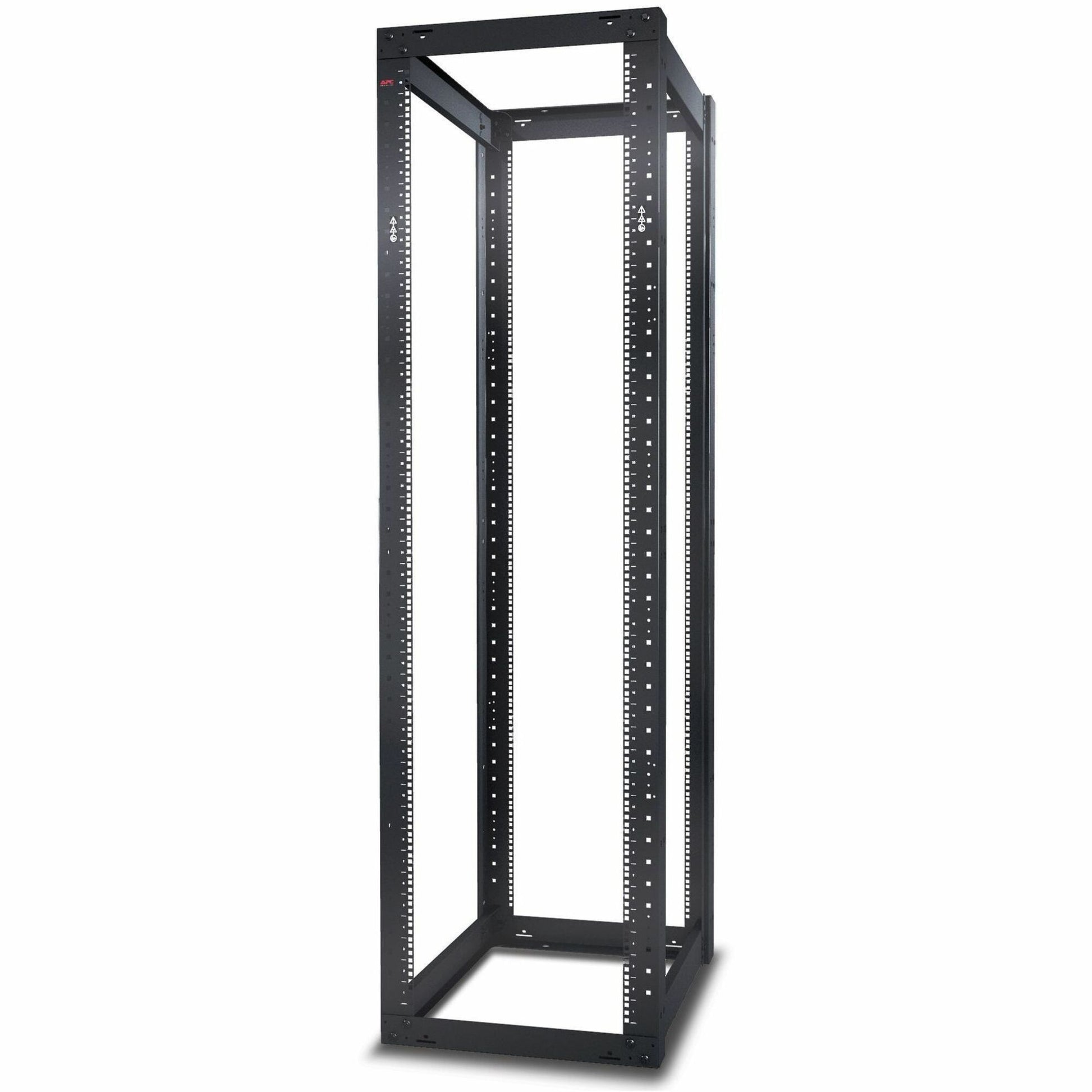

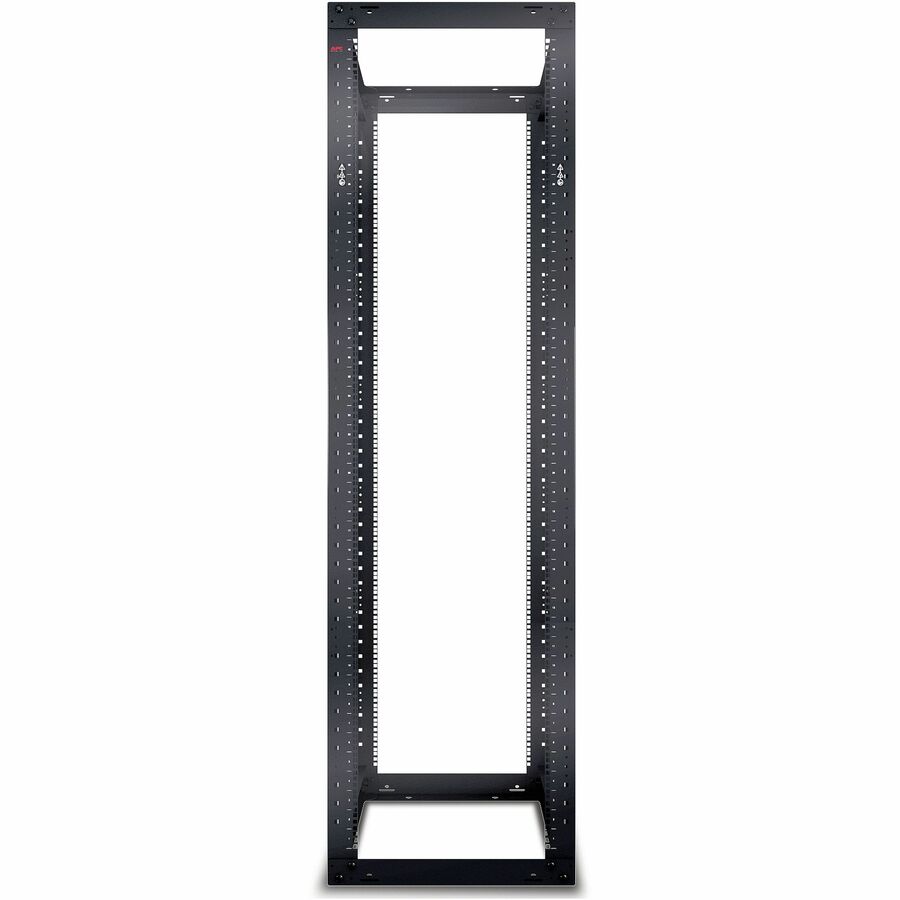

APC NetShelter Open Frame Rack, 4 Post, 44U, Square Holes - AR203A
Key Features
- 44U design for more organization space
- Four-post open frame rack for straightforward access to equipment
- High load capacity up to 2000 lb (907 kg)
- Industry standard (EIA-310) 19-in mounting
Product Overview
APC NetShelter Open Frame offers a high-quality four-post rack for storage of industry-standard (EIA-310). Mount 19-in rack-mount hardware, which includes servers and voice, data, networking, internetworking, and APC power-protection equipment. Rack has a static load of 907 kb (2000lb) and a max equipment depth of 747 mm. The 4 post design includes square 9.5 mm holes.
General Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: AR203A
- Brand Name: APC by Schneider Electric
- Product Line: NetShelter
- Product Name: NetShelter 4 Post Open Frame Rack 44U Square Holes
- Packaged Quantity: 1
- Product Type: Rack Frame
Technical Information
- Rack Type: Open Frame
- Application/Usage: Networking
- Rack Post Quantity: 4
- Mounting Location: Rear
- Mounting Preference: No Preference
Power Description
- Plug/Connector Type: IEC 60320 C13
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Static/Stationary Weight Capacity: 1999.99 lb
- Height: 83.9"
- Width: 23.6"
- Depth: 29.4"
- Rack Height: 44U
- Rack Width: 19"
- Weight (Approximate): 89.09 lb
Miscellaneous
- Package Contents:
- NetShelter 4 Post Open Frame Rack 44U Square Holes
- Installation Guide
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 5 Year
