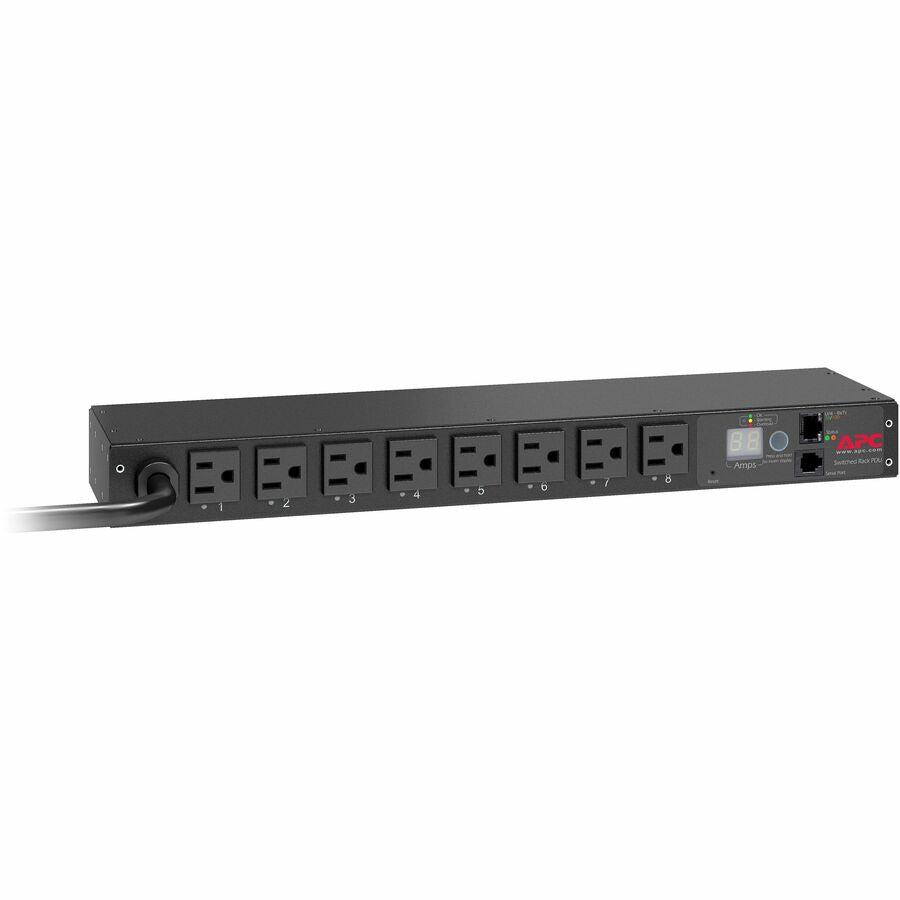

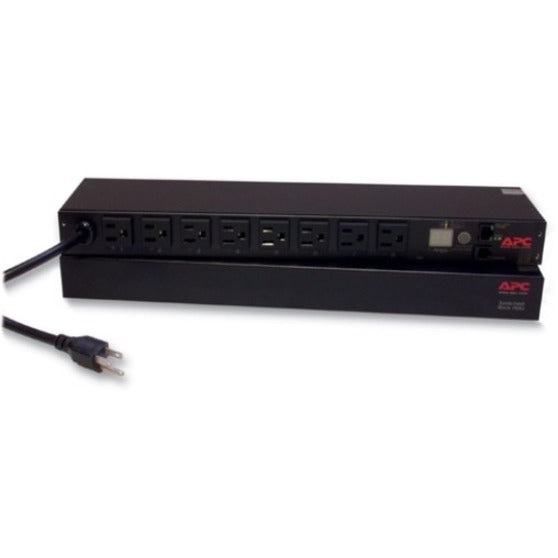

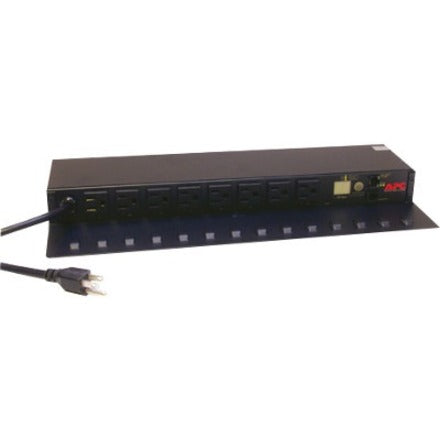

APC NetShelter Switched Rack PDU, 1U, 1.4kW, 120V, 15A, 8 NEMA 5-15R outlet - AP7900B
Key Features
- Easily monitor, control and manage through EcoStruxure IT & other platforms
- Enables improved energy efficiency and scope 1 and 3 emissions tracking
- Ideal for colocation, large data center, or remote edge computing
- On/off outlet switching enable users to reboot connected equipment remotely
- Plan capacity & balance loads with +/- 5% metering accuracy (amps)
Product Overview

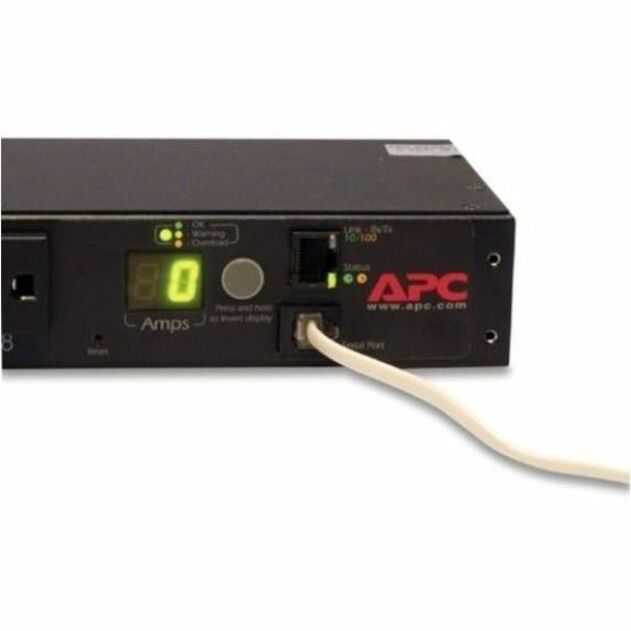

This APC Switched Rack PDU power distribution unit has a wide range of standardized PDU features that increase network efficiency, manageability and functionality. The output and input connections are (8)5-15. Network management capabilities allow you to configure and manage rack PDUs from remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides real-time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install.
General Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: AP7900B
- Brand Name: APC by Schneider Electric
- Product Name: Rack PDU, Switched, 1U, 15A, 100/120V, (8)5-15
- Product Type: PDU
Technical Information
- PDU Type: Switched
- Plug/Connector Type: NEMA 5-15P
- Plug/Connector Detail: 1 x NEMA 5-15P
- Receptacle Type: NEMA 5-15R
- Receptacle Detail: 8 x NEMA 5-15R
Power Description
- Input Voltage:
- 100 V
- 120 V
- Output Voltage: 120 V AC
- Power Rating (VA): 1440 VA
- Input Current: 15 A
Physical Characteristics
- Mounting Orientation: Horizontal
- Mount Type: Rack-mountable
- Placement:
- Front
- Rear
- Rack Height: 1U
- Cord Length: 11.98 ft
- Height: 1.7"
- Width: 17.5"
- Depth: 4.3"
- Weight (Approximate): 5 lb
Miscellaneous
- Package Contents:
- Rack PDU, Switched, 1U, 15A, 100/120V, (8)5-15
- Cord retention bracket(s)
- Horizontal mounting brackets
- Installation guide
- User manual
- Country of Origin: Philippines
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 2 Year
