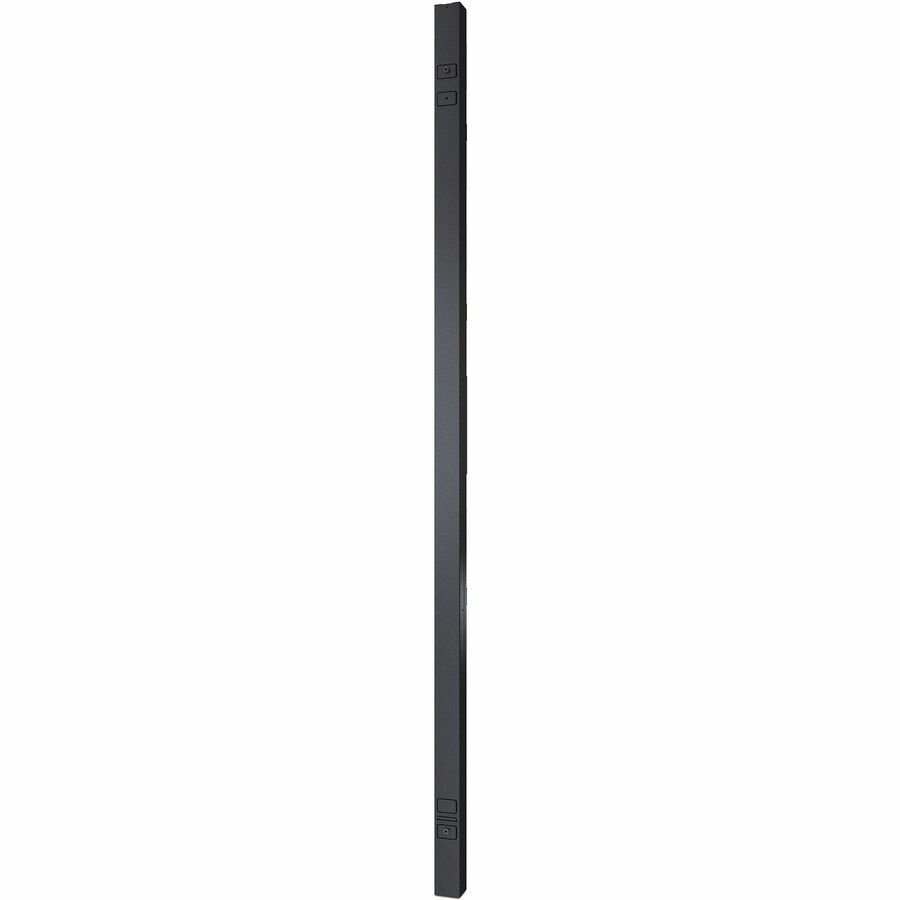

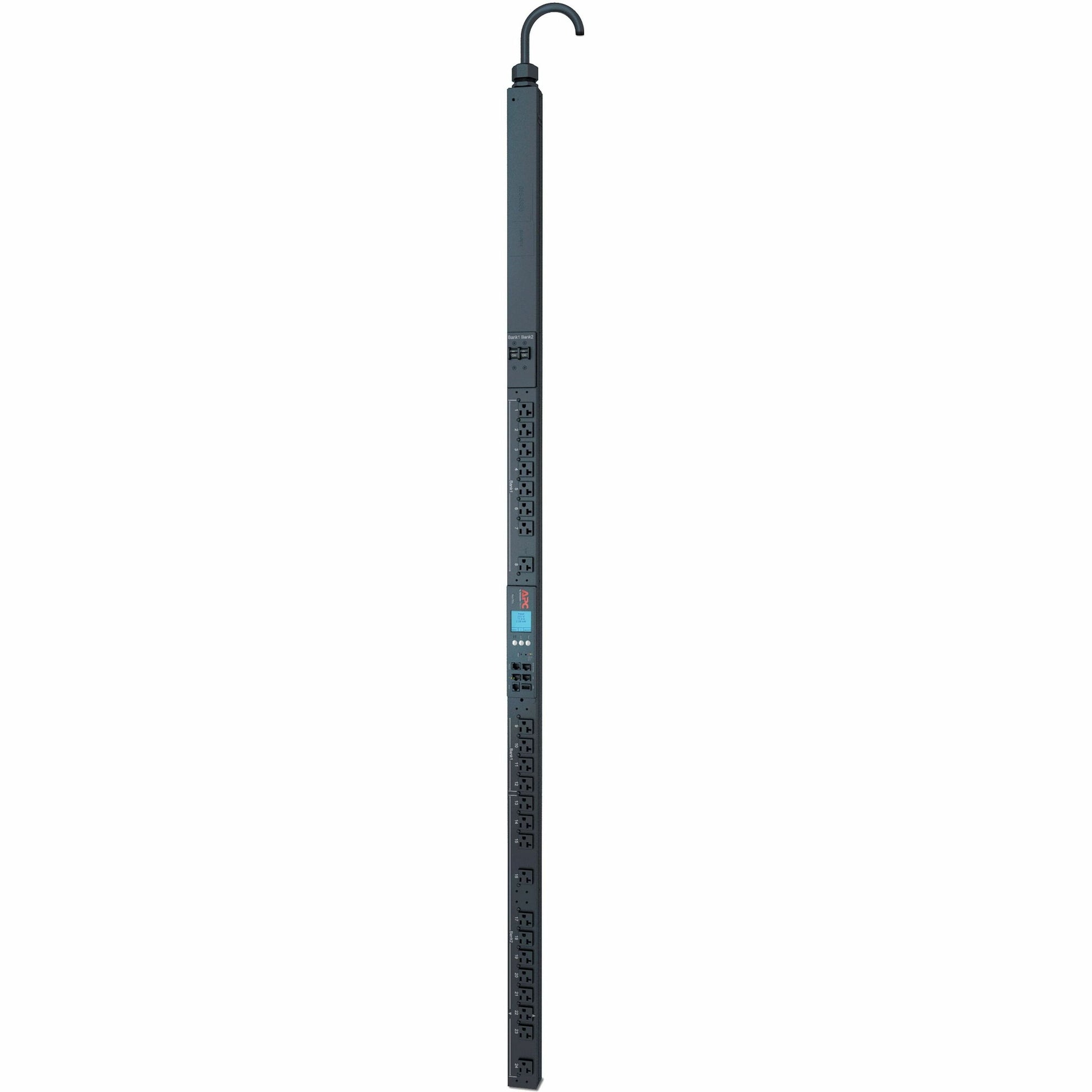

APC Rack PDU, 2G, metered by outlet, with switching, 0U, 30A, 100V to 120V, 24 NEMA 5-20R sockets - AP8632
Key Features
- Extensive list of compatible products and accessories
- Ideal for high density server and networking applications
- Real-time remote monitoring of connected load through EcoStruxure IT and other platforms
- Stay on top by defining alarm thresholds in order to avoid overloaded circuits
- Zero U toolless installation
Product Overview
APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by Struxureware for Data Centers using Data Center Expert and Data Center Operations with Capacity and Change modules
General Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: AP8632
- Brand Name: APC by Schneider Electric
- Product Name: Metered-by-Outlet with Switching Rack PDU
- Packaged Quantity: 1 Each
- Product Type: PDU
Technical Information
- PDU Type: Metered-by-Outlet
- Plug/Connector Type: NEMA L5-30P
- Receptacle Type: NEMA 5-20R
- Receptacle Detail: 24 x NEMA 5-20R
- Protection Type: Overload Protection
Power Description
- Input Voltage:
- 100 V
- 120 V
- Output Voltage:
- 100 V AC
- 120 V AC
- Power Rating (VA): 2880 VA
- Input Current: 30 A
Management
- Management:
- Web
- SNMP
- Telnet
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Mounting Orientation: Vertical
- Mount Type: Rack-mountable
- Form Factor: Tower
- Placement: Side
- Rack Height: 0U
- Cord Length: 9.51 ft
- Height: 72"
- Width: 2.2"
- Depth: 2"
- Weight (Approximate): 17.75 lb
Miscellaneous
- Package Contents:
- Metered-by-Outlet with Switching Rack PDU
- Installation guide
- Rack mounting brackets
- Safety guide
- Serial configuration cable
- Country of Origin: India
- Environmentally Friendly: Yes
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
- Limited Warranty: 2 Year
