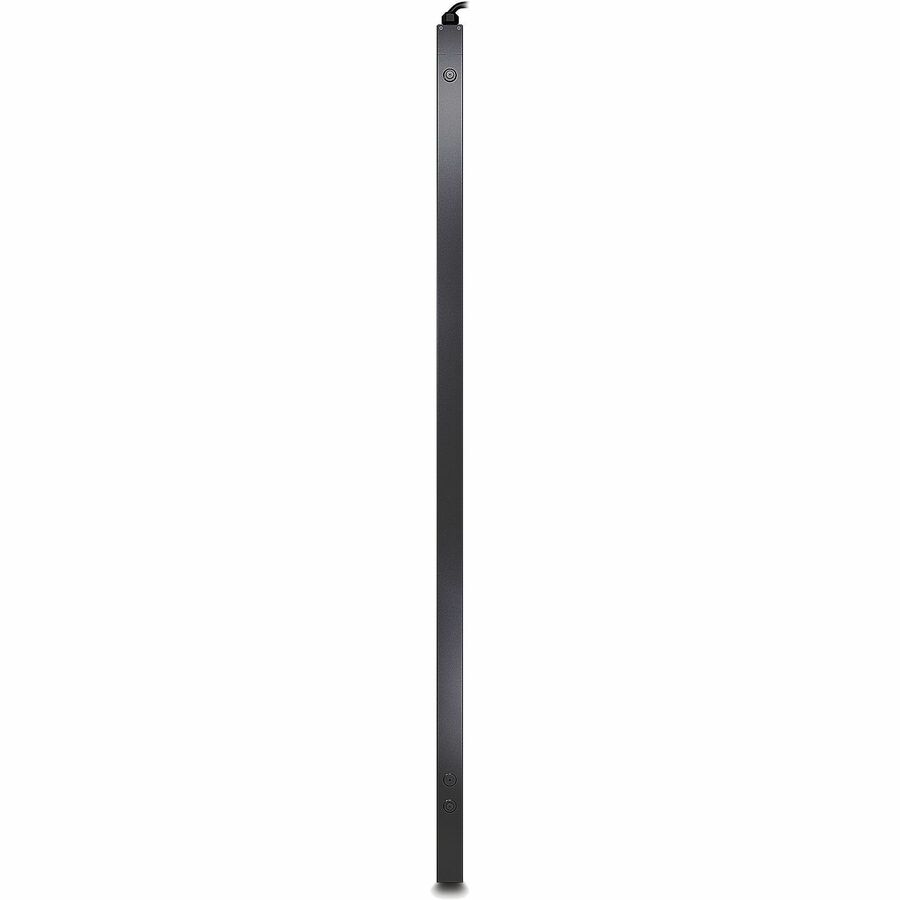

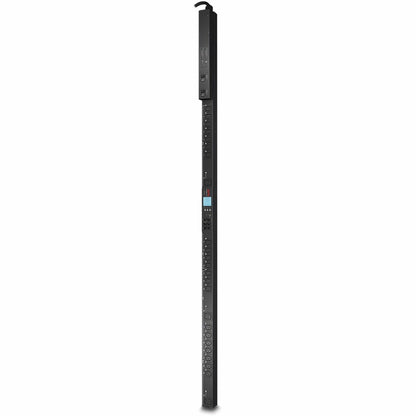

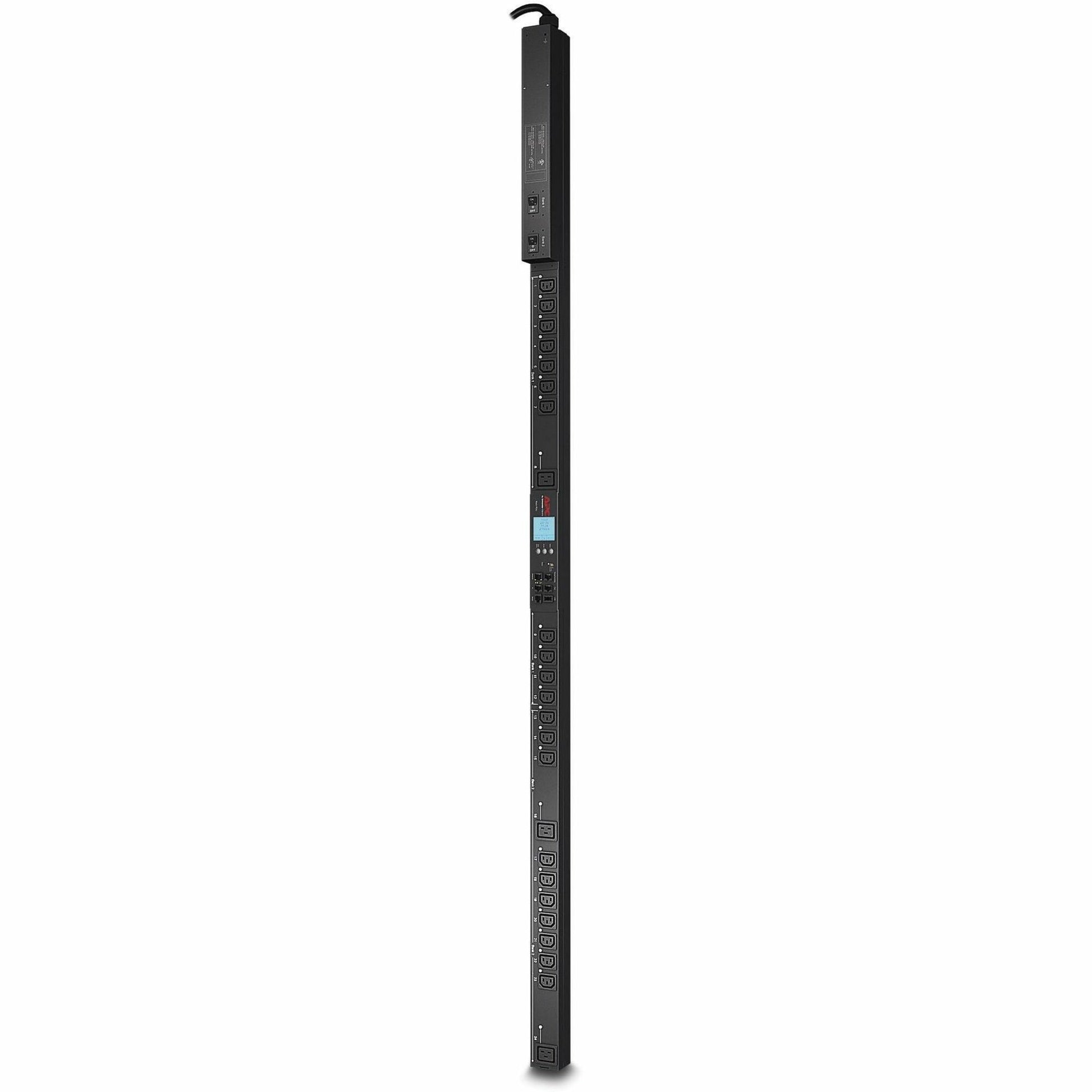

APC Rack PDU, 2G, metered by outlet, with switching, 0U, 30A, 200V and 208V, 21 C13 and 3 C19 sockets - AP8641
Key Features
- Extensive list of compatible products and accessories
- Ideal for high density server and networking applications
- Real-time remote monitoring of connected load through EcoStruxure IT and other platforms
- Stay on top by defining alarm thresholds in order to avoid overloaded circuits
- Zero U toolless installation
Product Overview
APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager
General Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: AP8641
- Brand Name: APC by Schneider Electric
- Product Line: Switched Rack
- Product Series: AP8000
- Product Model: AP8641
- Product Name: Switched Rack AP8000 24-Outlets PDU
- Product Type: PDU
Technical Information
- PDU Type: Switched

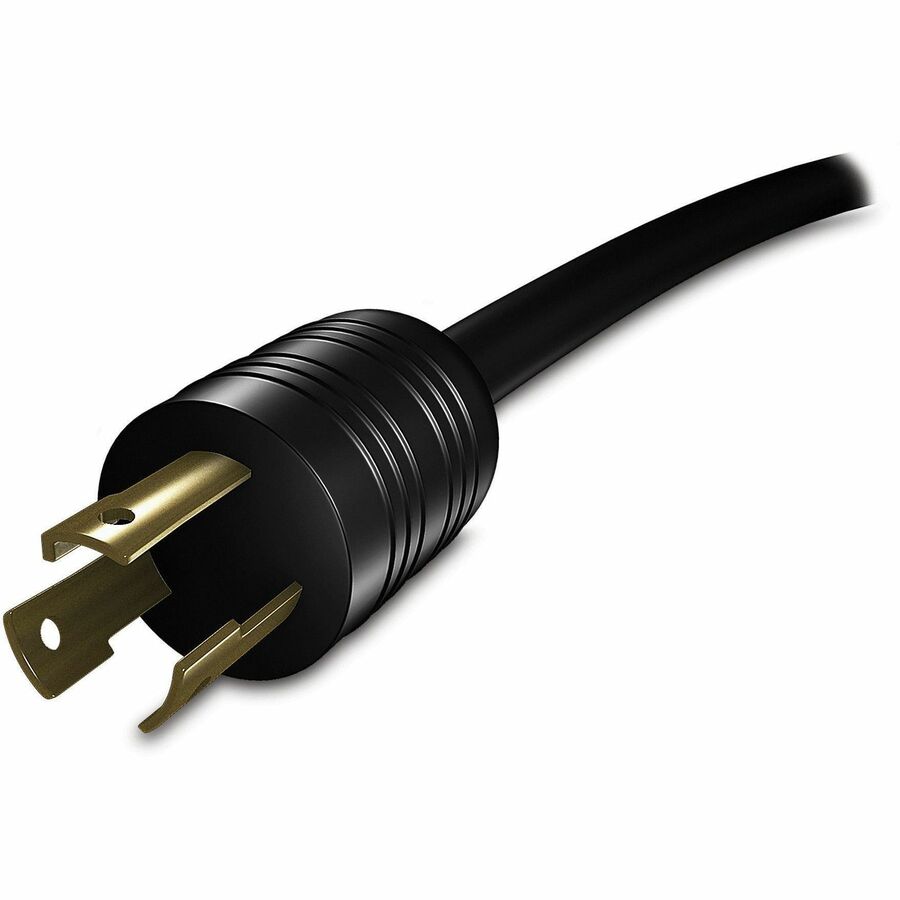

- Plug/Connector Type: NEMA L6-30P
- Receptacle Type:
- IEC 60320 C19
- IEC 60320 C13
- Receptacle Detail:
- 21 x IEC 60320 C13
- 3 x IEC 60320 C19
- Protection Type: Overload Protection
Power Description
- Input Voltage:
- 200 V
- 208 V
- 230 V
- Input Voltage Range: 200 V AC - 230 V AC
- Output Voltage:
- 200 V AC
- 208 V AC
Management
- Management:
Protocols:
- Web
- SNMP
- Telnet
Physical Characteristics
- Mounting Orientation: Vertical
- Mount Type: Rack-mountable
- Placement: Side
- Rack Height: 0U
- Cord Length: 9.51 ft
- Height: 72"
- Width: 2.2"
- Depth: 2"
- Weight (Approximate): 18.14 lb
Miscellaneous
- Package Contents:
- Switched Rack AP8000 24-Outlets PDU
- CAN port terminator
- Installation guide
- Rack mounting brackets
- Safety guide
- Serial configuration cable
- Country of Origin: India
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 2 Year
