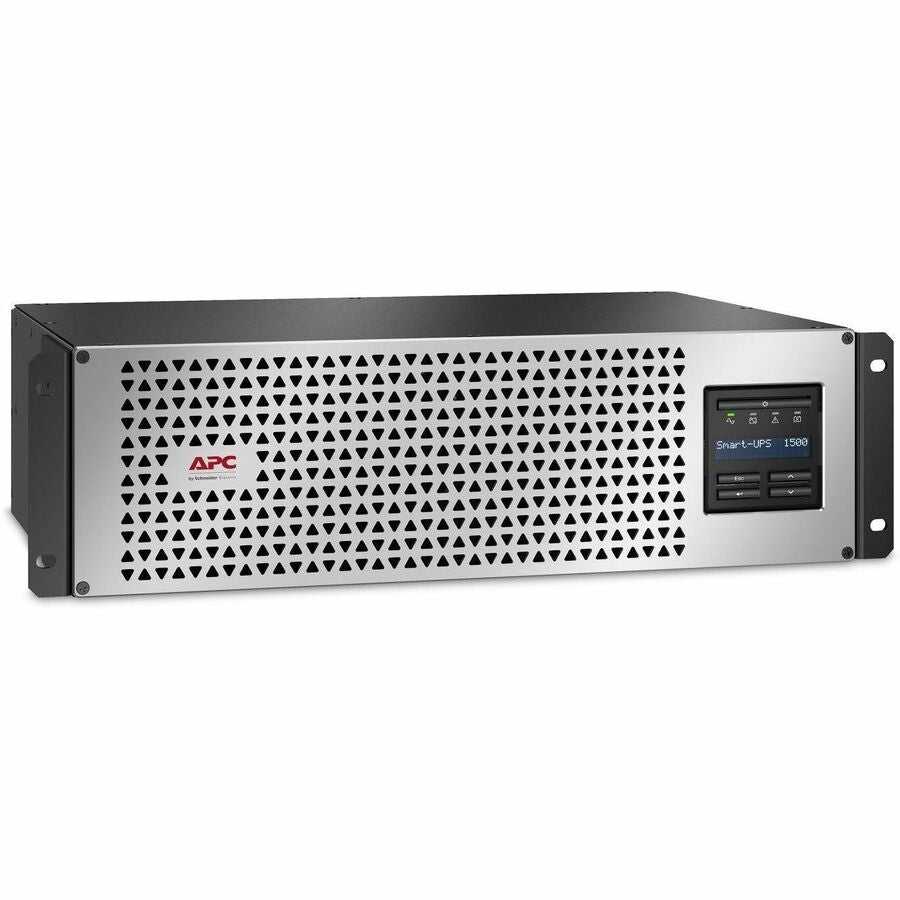

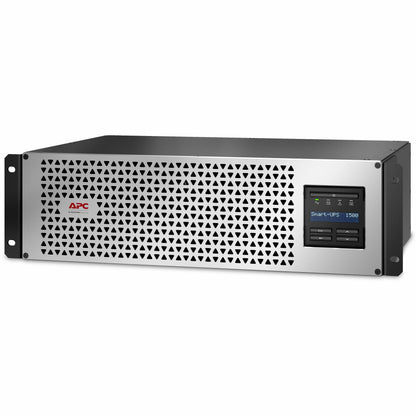

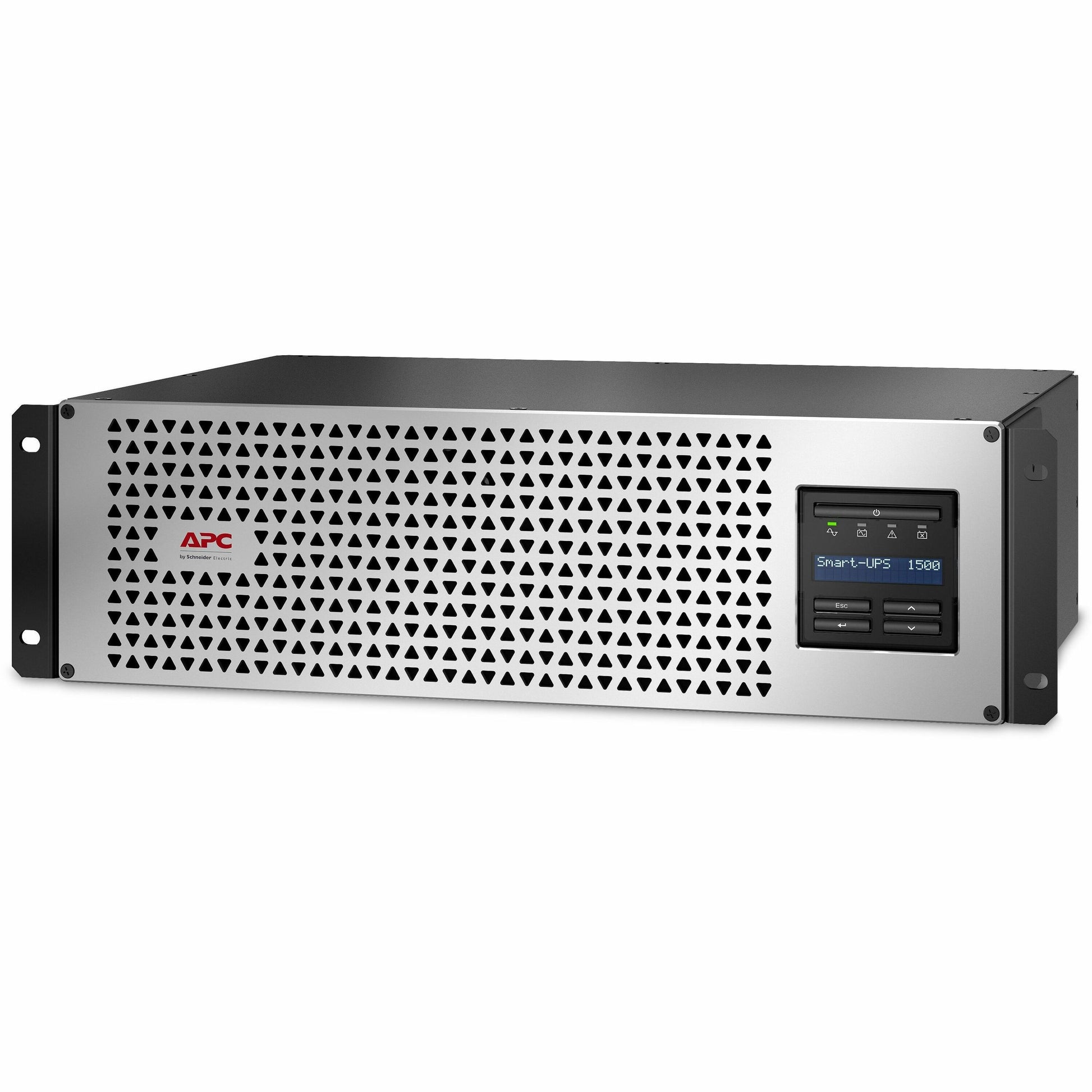

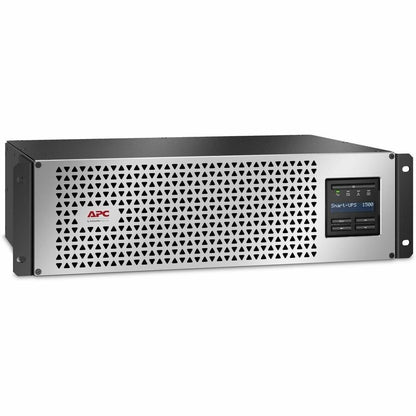

APC Smart-UPS, Line Interactive, 1500VA, Lithium-ion, Rackmount 3U, 120V, 6x NEMA 5-15R outlets, SmartConnect Port+Network Card, Short Depth, AVR, LCD - SMTL1500RM3UCNC
Key Features
- 1-Year Secure Network Management Card subscription included

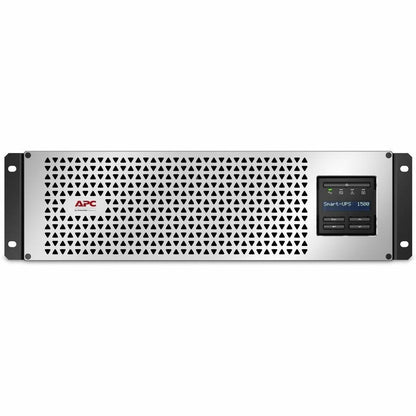

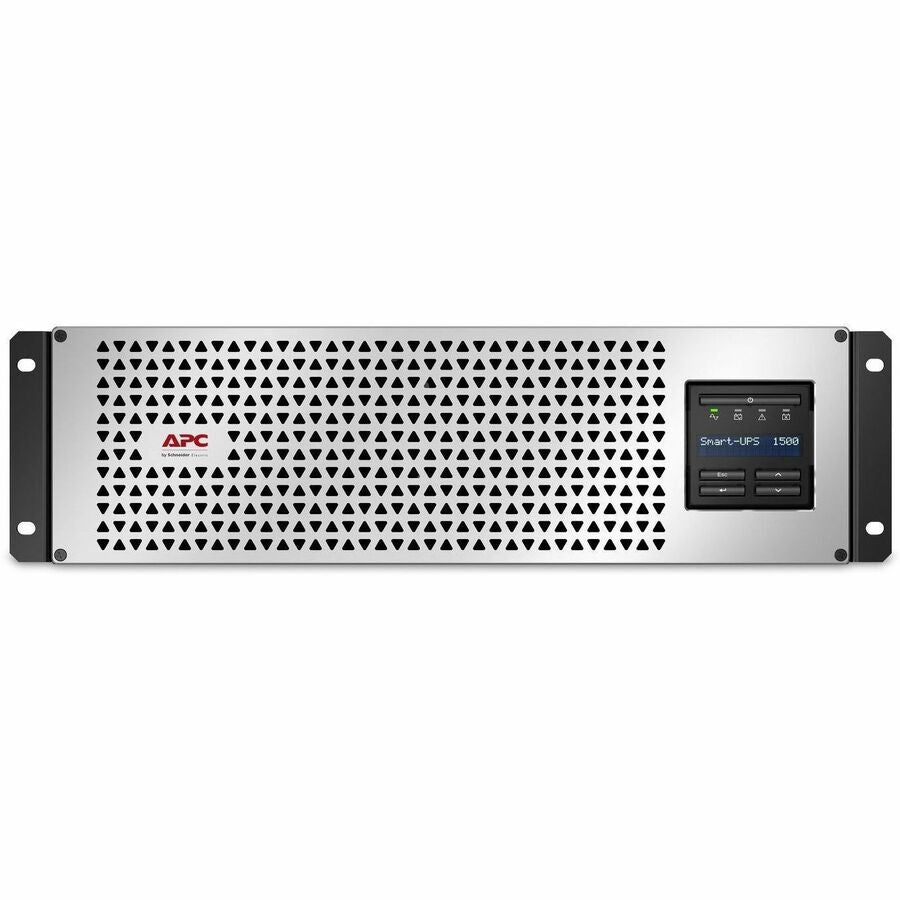

- 1500VA/1350W line interactive pure sine wave 3U rackmount UPS
- Cloud-based remote power monitoring via SmartConnect Ethernet Port
- Graceful shutdown of physical servers, virtual machines and HCI Clusters
- Ideal for small edge environment, back office, network infrastructure and IDF/MDF closets
- Lithium-ion battery minimizes the need to replace battery during the lifetime of UPS
- Peace of mind with a 5-year warranty on UPS and battery

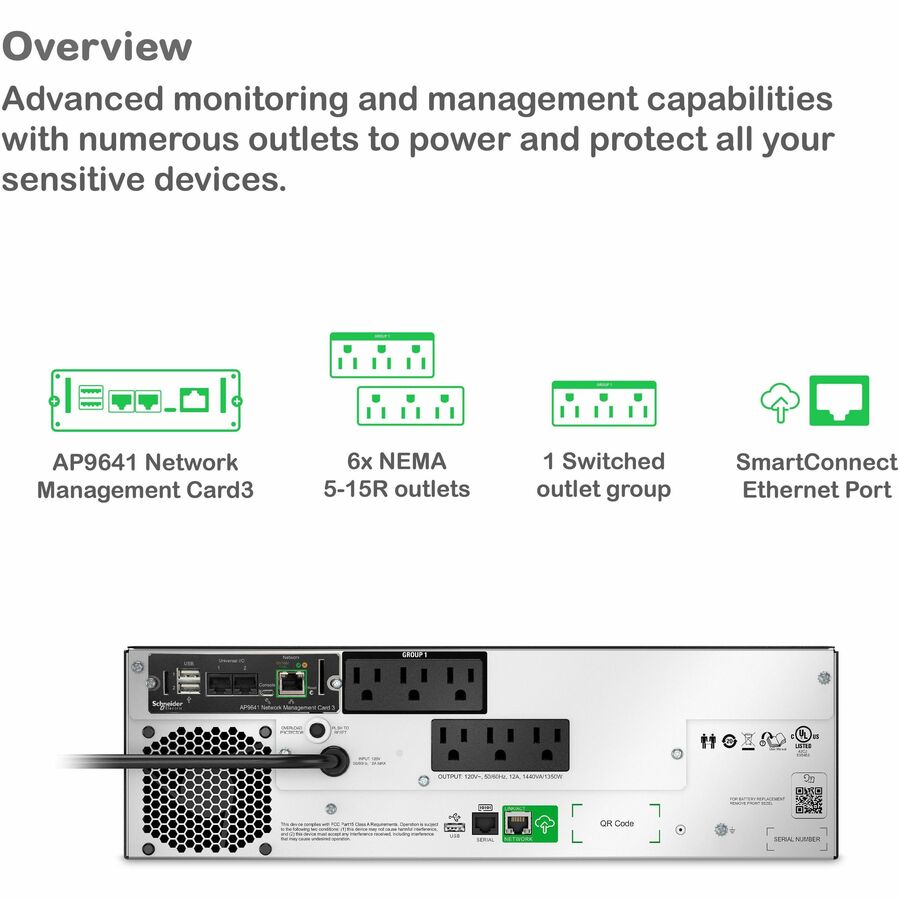

- Preinstalled Network Management Card for network-based UPS monitoring & management
- Short depth UPS provides extra space for cable management
Product Overview

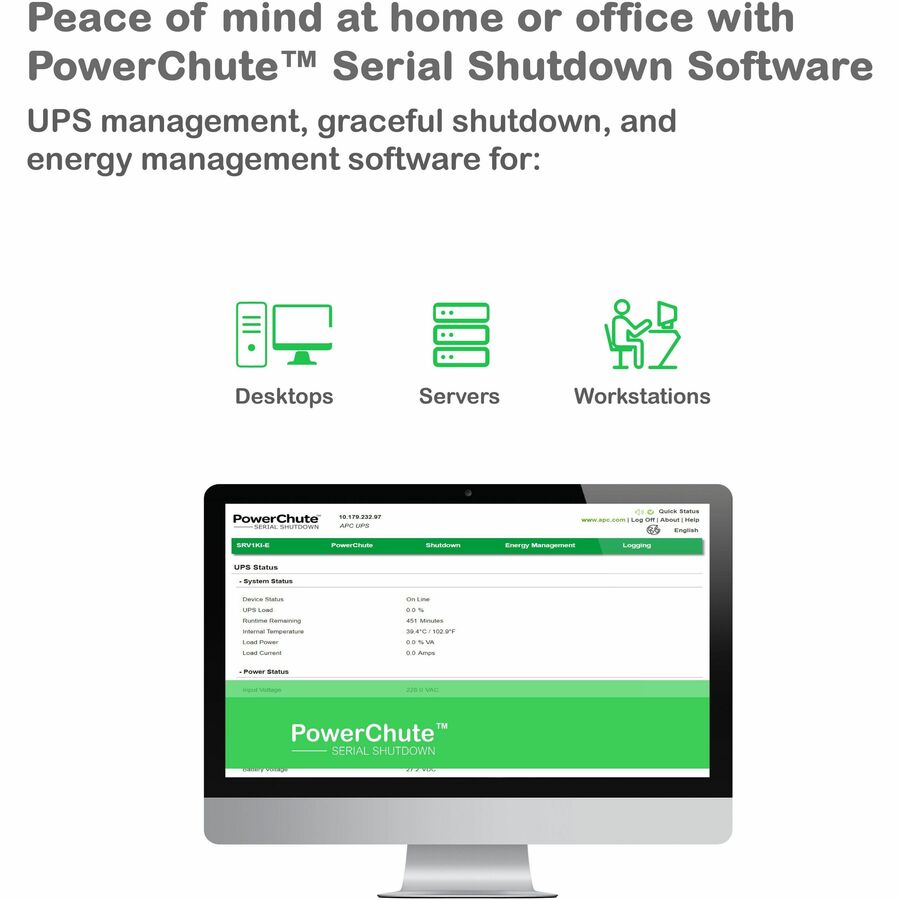

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1500VA line interactive 3U short depth rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6 NEMA 5-15R outlets. It has a preinstalled Network Management Card for UPS network-based monitoring and management. It comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
General Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: SMTL1500RM3UCNC
- Brand Name: APC
- Product Line: Smart-UPS
- Product Name: Smart-UPS 1500VA Rack-mountable UPS
- Product Type: Line-interactive UPS
Technical Information
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15P

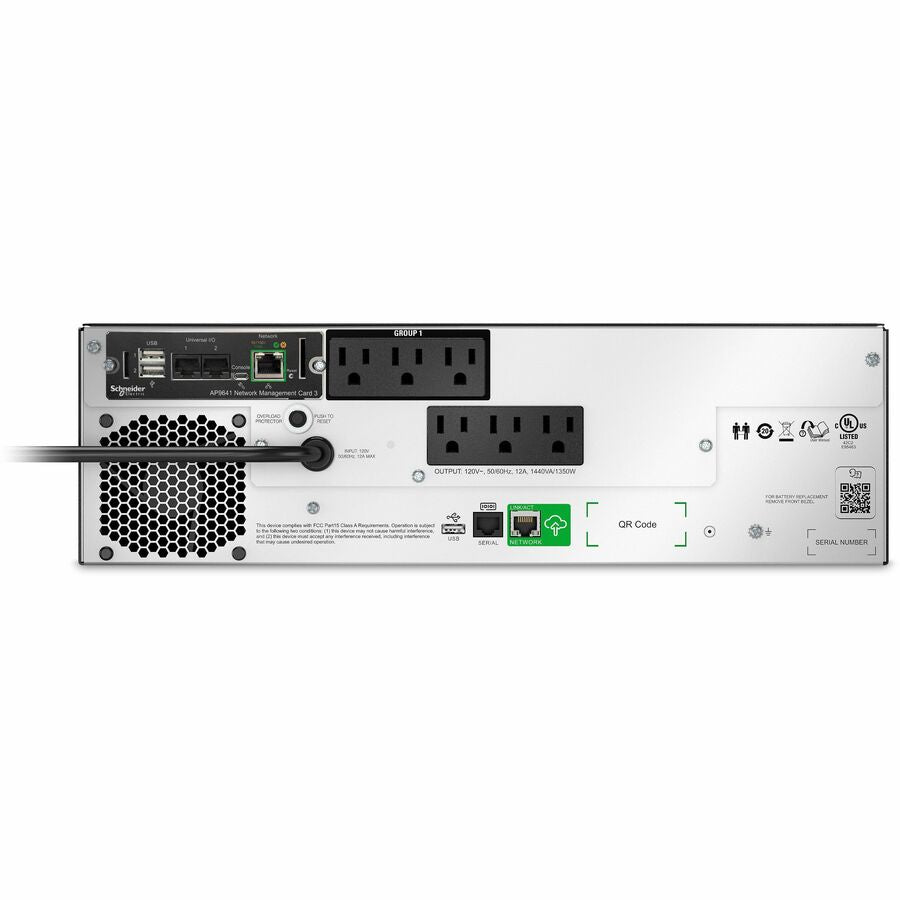

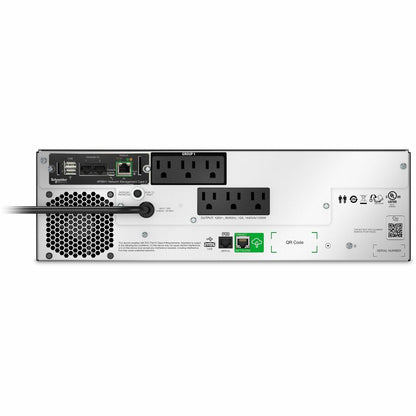

- Receptacle Detail: 6 x NEMA 5-15R
- Number of Battery & Surge Outlets: 6
- Dataline Protection: RJ-45
- Overload Protection: Yes
- Cord Length: 8 ft
- Transfer Time: 6 ms
- Phase: Single Phase
Power Description
- Load Capacity (VA): 1440 VA
- Load Capacity (Watt): 1350 W
- Input Voltage: 120 V AC
- Input Voltage Range:
- 75 V AC -154 V AC
- 82 V AC - 144 V AC
- Output Voltage: 120 V AC
- Input Frequency: 60 Hz
- Waveform Type: Sine Wave
- Surge Energy Rating: 680 J
Management
- Alarm:
- Low Battery
- On Battery
- Configurable Delay
Controls/Indicators

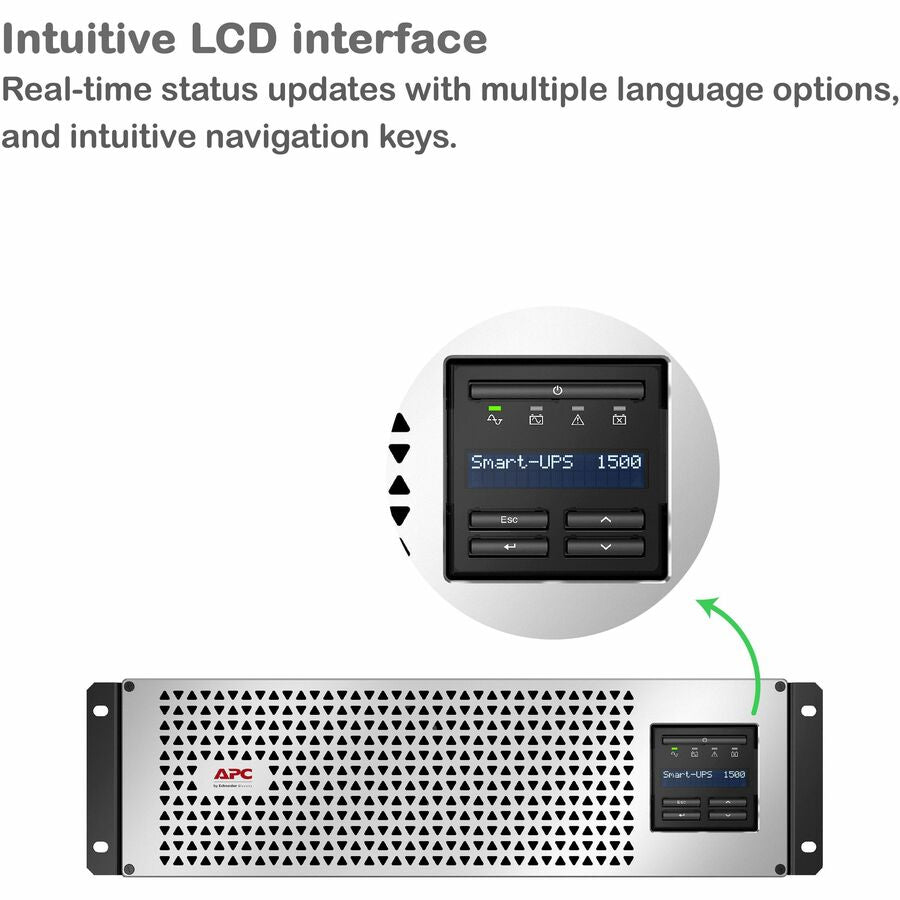

- Status Indicators: Multifunction LCD Status and Control Console
Interfaces/Ports
- Serial Port: Yes
- Network (RJ-45): Yes
- USB (HID Compliant) Port: Yes
Battery Information
- DC System Voltage: 36 V DC
- Battery Chemistry: Lithium Ion (Li-Ion)
- Battery Energy: 864 kJ

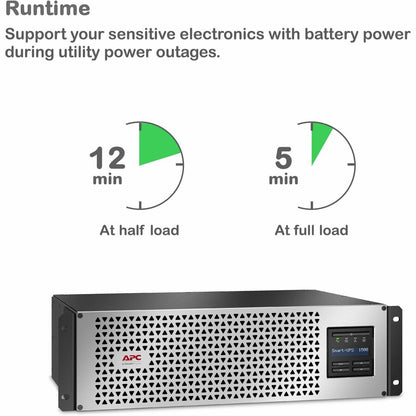

- Backup/Run Time (Full Load): 3.03 Minute
- Backup/Run Time (Half Load): 8.87 Minute
- Typical Battery Recharge Time: 3 Hour
Environmental Conditions
- Maximum Operating Elevation: 10000 ft
- Maximum Storage Elevation: 25000 ft
- Storage Temperature: -40°F (-40°C) - 95°F (35°C)
- Storage Relative Humidity: 0% - 95%
- Maximum Operating Temperature: 104°F (40°C)
- Sound Emission (A-Weighted): 45 dB(A)
- Thermal Dissipation: 39.56 W
Physical Characteristics
- Product Color:
- Black
- Silver
- Height: 5.16"
- Width: 17.24"
- Depth: 11.89"
- Rack Height: 3U
- Form Factor: Rack-mountable
- Weight (Approximate): 42.99 lb
Miscellaneous
- Package Contents:
- Smart-UPS 1500VA Rack-mountable UPS
- Installation Guide
- Rack Mounting Support Rails
- USB Cable
- Country of Origin: Philippines
- Environmentally Friendly: Yes
- Environmental Compliance:
- Waste Electrical and Electronic Equipment Directive (WEEE)
- China Restriction of Hazardous Substances (China RoHS)
Warranty
- Limited Warranty: 5 Year
