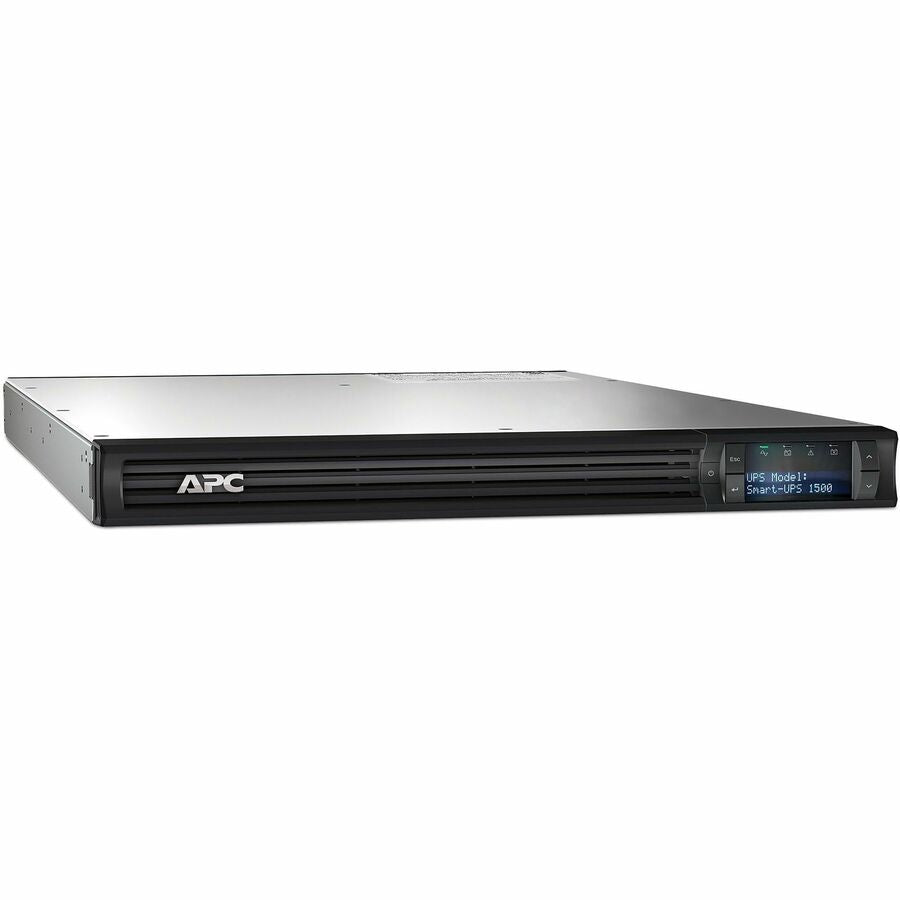

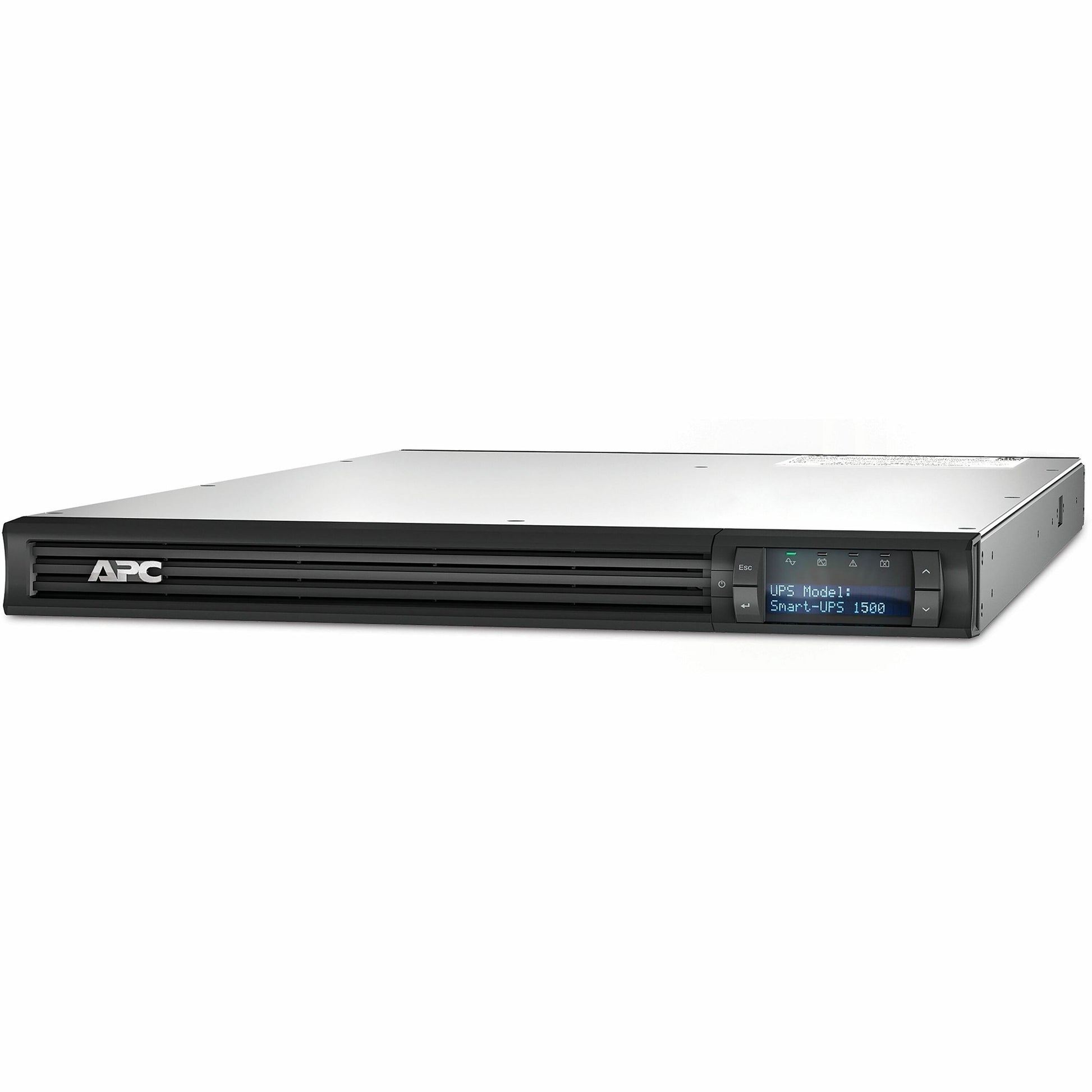

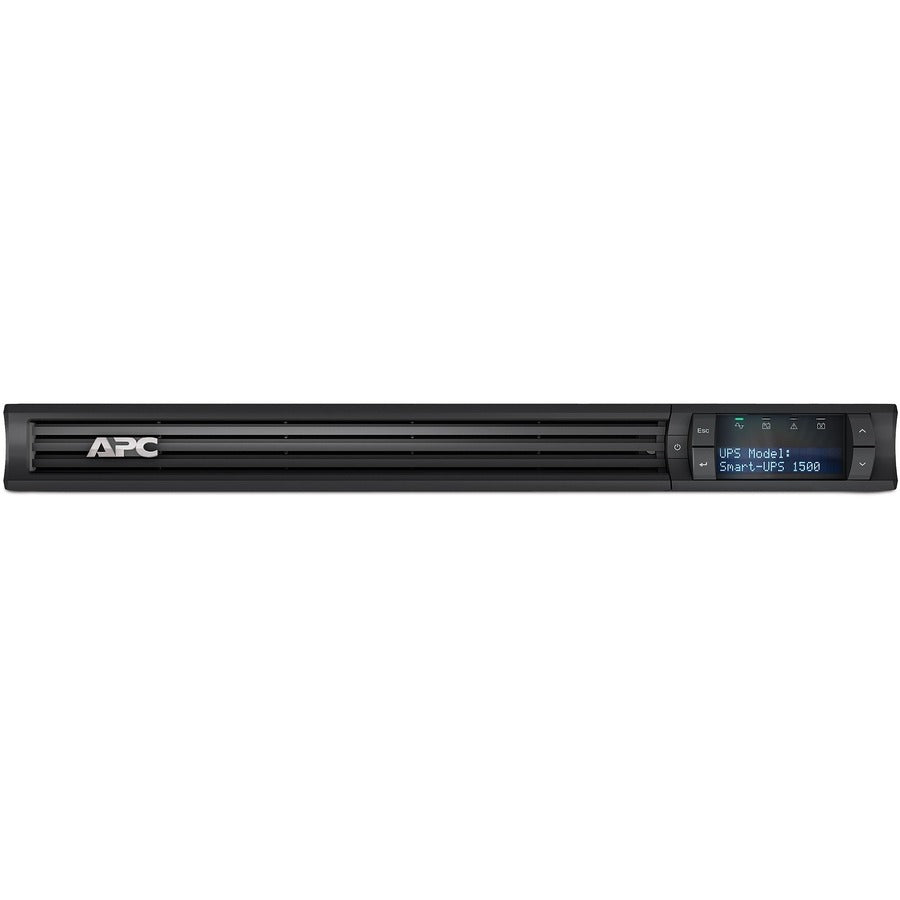

APC Smart-UPS, Line Interactive, 1500VA, Rackmount 1U, 120V, 4x NEMA 5-15R outlets, SmartConnect Port+SmartSlot, AVR, LCD - SMT1500RM1UC
Key Features
- 1440VA/1000W line interactive pure sine wave 1U rackmount UPS
- Automatic Voltage Regulation helps correct utility voltage
- Cloud-based remote power monitoring via SmartConnect Ethernet Port
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
- Ideal for servers, storage, network closets, business VoIP and retail POS
Product Overview
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1440VA line interactive 1U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with 4 NEMA 5-15R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional NMC purchase that enables network-based UPS monitoring & management via PowerChute Network Shutdown and the ability to connect to EcoStruxure IT or third-party management platform. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
General Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: SMT1500RM1UC
- Brand Name: APC by Schneider Electric
- Product Line: Smart-UPS
- Product Series: SMT
- Product Name: Smart-UPS SMT 1500VA Rack-mountable UPS
- Packaged Quantity: 1
- Product Type: Line-interactive UPS
Technical Information
- AVR: Yes
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15P

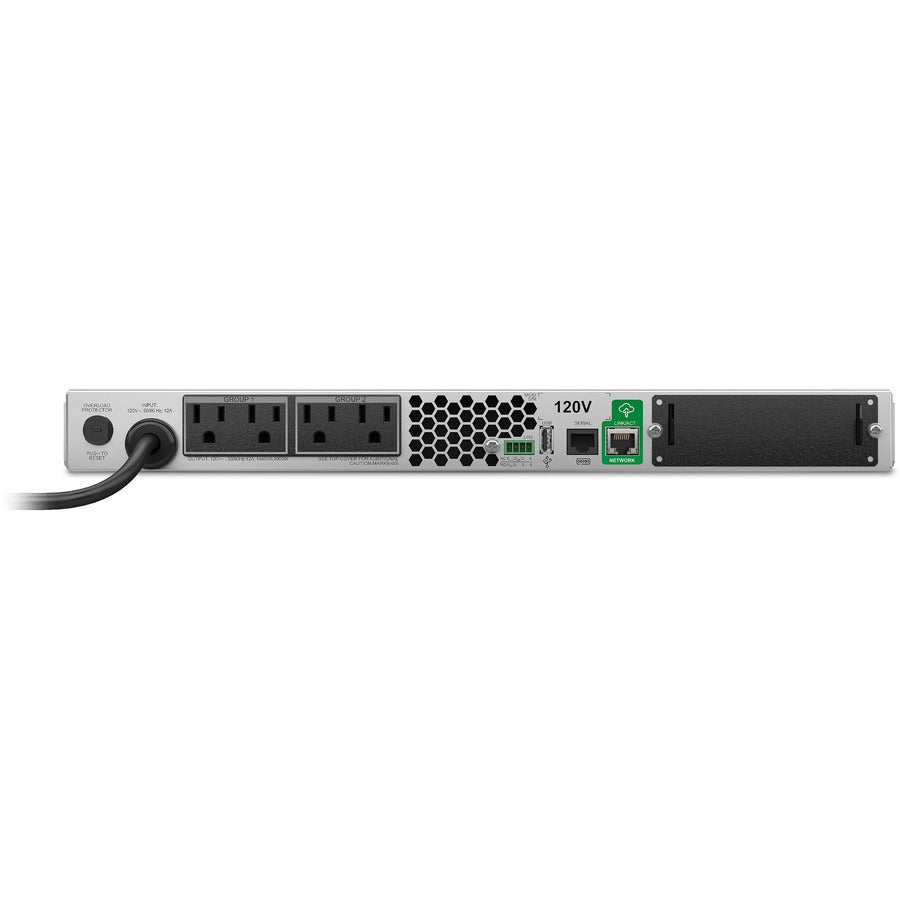

- Receptacle Detail: 4 x NEMA 5-15R
- Cord Length: 7.87 ft
- Transfer Time: 4 ms
- Phase: Single Phase
- Application/Usage:
- IT
- Network Device
- Business
- Critical System
- Electronic
- Server
- POS
- Router
- Switch
- Hub
- VoIP
- Network Closet
- Storage
- Edge Computing
- Healthcare
- Education
- Retail
Power Description
- Load Capacity (VA): 1440 VA
- Load Capacity (Watt): 1000 W
- Input Voltage: 120 V AC
- Input Voltage Range:
- 93.5 V AC - 143 V AC
- 85 V AC - 155 V AC
- Input Current: 12 A
- Output Voltage: 120 V AC
- Input Frequency: 60 Hz
- Output Frequency: 60 Hz
- Waveform Type: Sine Wave
- Surge Energy Rating: 645 J
- Input Power Factor: 0.7
Display & Graphics
- Display: LCD
Management
- Network Management: SmartConnect
- Alarm:
- On Battery
- Low Battery
- Configurable Delay
Controls/Indicators
- Status Indicators:
Console d'état et de contrôle LCD multifonction
Interfaces/Ports
- Serial Port: Yes
- USB: Yes
- Network (RJ-45): Yes
- EPO Port: Yes
Battery Information
- Battery Chemistry: Lead Acid
- Battery Size: 36V
- Battery Capacity: 54000 mAh
- Battery Energy: 1054.8 kJ
- Backup/Run Time (Full Load): 4.75 Minute
- Backup/Run Time (Half Load): 16.57 Minute
- Battery Life: 5 Year
- Typical Battery Recharge Time: 4 Hour
- Replaceable Battery: Yes
Environmental Conditions
- Maximum Operating Elevation: 10000 ft
- Maximum Storage Elevation: 50000 ft
- Storage Temperature: 5°F (-15°C) - 113°F (45°C)
- Storage Relative Humidity: 0% - 95%
- Maximum Operating Temperature: 104°F (40°C)
- Sound Emission: 46 dB
- Thermal Dissipation: 34 W
Physical Characteristics
- Product Color: Black
- Height: 1.7"
- Width: 17"
- Depth: 26.2"
- Rack Height: 1U
- Form Factor: Rack-mountable
- Weight (Approximate): 54.01 lb
Miscellaneous
- Package Contents:
- Smart-UPS SMT 1500VA Rack-mountable UPS
- Installation Guide
- Rack Mounting Support Rails
- Smart UPS Signalling RS-232 Cable
- USB Cable
- Safety Guide
- 2 x IEC Jumper Cable
- Software Included: Powerchute Serial Edition
- Energy Star: Yes
- Country of Origin: Philippines
- Environmentally Friendly: Yes
- Energy Efficiency Certification: ENERGY STAR 2.0
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information: UPS: 36 month(s)|Battery: 24 month(s)
