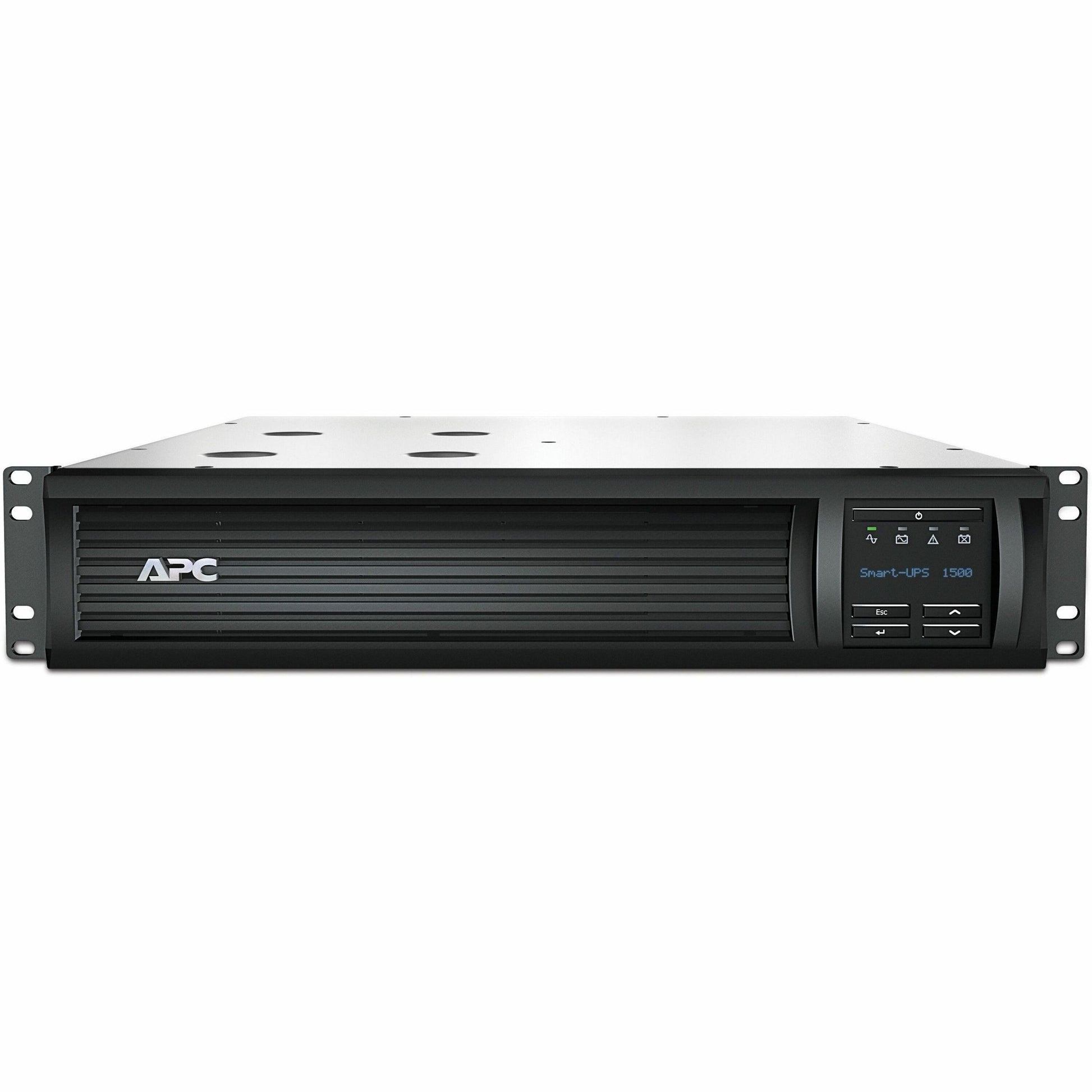

APC Smart-UPS, Line Interactive, 1500VA, Rackmount 2U, 120V, 6x NEMA 5-15R outlets, SmartConnect Port+SmartSlot, AVR, LCD - SMT1500RM2UC
Key Features
- 1440VA/1000W line interactive pure sine wave 2U rackmount UPS
- Automatic Voltage Regulation helps correct utility voltage
- Cloud-based remote power monitoring via SmartConnect Ethernet Port
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
- Ideal for servers, storage, network closets, business VoIP and retail POS
Product Overview
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1440VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6 NEMA 5-15R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
General Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: SMT1500RM2UC
- Brand Name: APC by Schneider Electric
- Product Line: Smart-UPS
- Product Name: Smart-UPS 1500VA LCD RM 2U 120V with SmartConnect
- Packaged Quantity: 1 Each
- Product Type: Line-interactive UPS
Technical Information
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15P
- Receptacle Detail: 6 x NEMA 5-15R
- Number of Battery & Surge Outlets: 6
- Cord Length: 8 ft
- Transfer Time: 10 ms
- Phase: Single Phase
Power Description
- Load Capacity (VA): 1440 VA
- Load Capacity (Watt): 1000 W
- Input Voltage: 120 V AC
- Input Voltage Range: 82 V AC - 144 V AC
- Output Voltage: 120 V AC
- Input Frequency: 60 Hz
- Output Frequency: 60 Hz
- Waveform Type: Sine Wave
- Surge Energy Rating: 680 J
Management
- Network Management: SmartConnect
- Alarm:
- Low Battery
- Configurable Delay
Controls/Indicators
- Status Indicators: LCD Status
Interfaces/Ports
- Serial Port: Yes
- Network (RJ-45): Yes
- USB (HID Compliant) Port: Yes
Battery Information
- Number of Batteries: 1
- Battery Chemistry: Lead Acid
- Battery Energy: 1555.2 kJ
- Battery Life: 6 Year
- Typical Battery Recharge Time: 3 Hour
Environmental Conditions
- Maximum Operating Elevation: 10000 ft
- Maximum Storage Elevation: 50000 ft
- Storage Temperature: 41°F (5°C) - 235.4°F (113°C)
- Operating Humidity: 0% - 95%
- Storage Relative Humidity: 0% - 95%
- Maximum Operating Temperature: 104°F (40°C)
- Sound Emission (A-Weighted): 45 dB(A)
- Thermal Dissipation: 65.94 W
Physical Characteristics
- Product Color: Black
- Height: 3.4"
- Width: 17"
- Depth: 18.8"
- Rack Height: 2U
- Form Factor: Rack-mountable
- Weight (Approximate): 58.42 lb
Miscellaneous
- Package Contents:
- Smart-UPS 1500VA LCD RM 2U 120V with SmartConnect
- Installation guide
- Rack mounting support rails
- USB cable
- Software Included: Powerchute Serial Edition
- Energy Star: Yes
- Country of Origin: Vietnam
- Environmentally Friendly: Yes
- Energy Efficiency Certification: ENERGY STAR 2.0
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information: UPS: 36 month(s)|Battery: 24 month(s)
