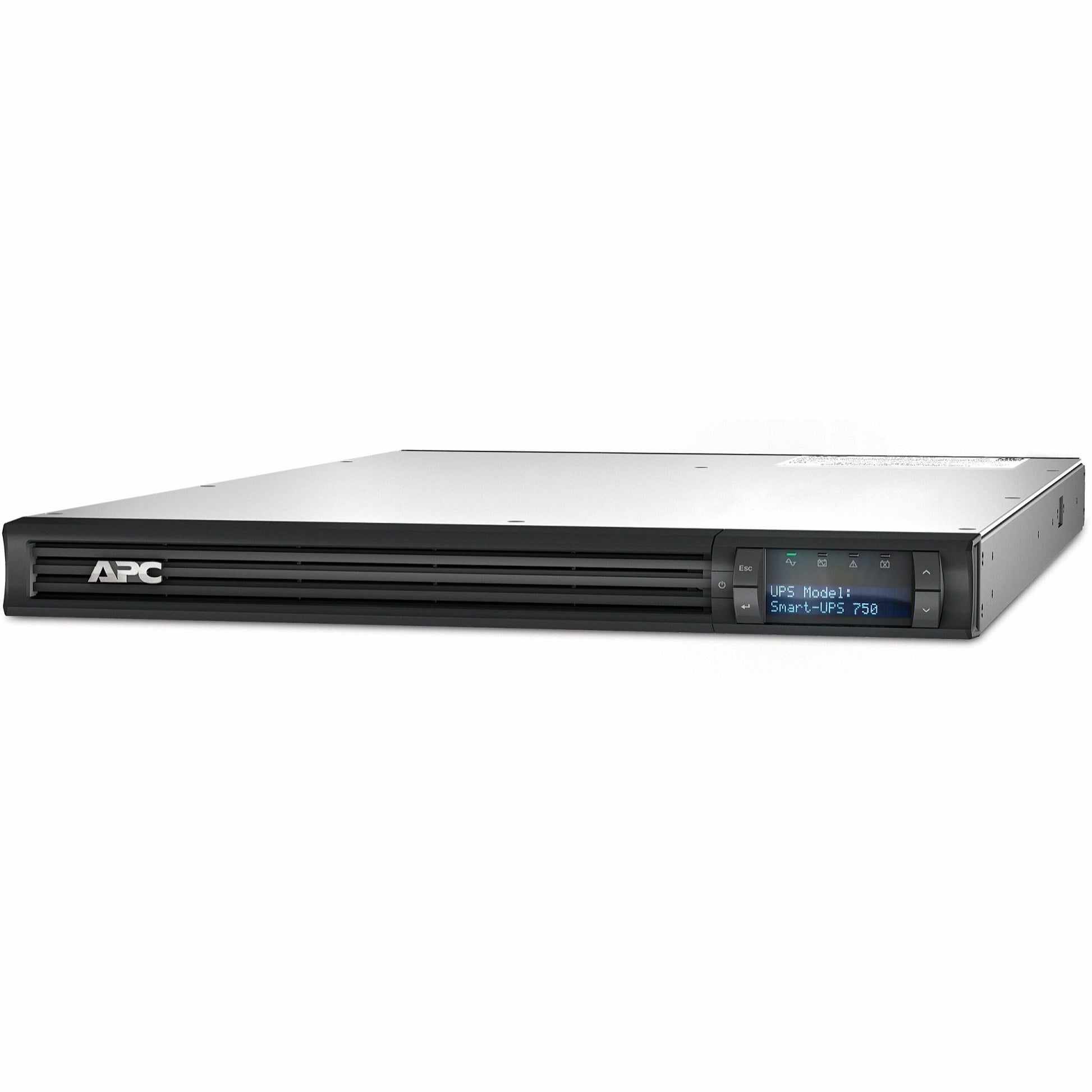

APC Smart-UPS, Line Interactive, 750 VA, LCD, Rackmount 1U, 120V, 4x NEMA 5-15R outlet, USB, AVR, Short Depth - SMT750RM1U
Key Features
- 1U short depth, rack-mountable design
- AVR double boost and trim
- LCD status display
- Up to 25% more power (higher PF) & 23% depth reduction (20 in.)
- USB port for communication
Product Overview
This APC Smart-UPS is designed for small and medium businesses to maintain business uptime and continuity. The 750VA line interactive 1U rackmount provides pure sine wave power with a higher power factor to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 4x NEMA 5-15R outlets. It comes with PowerChute Software, which provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It provides surge protection against lightning strikes, power sags, brownouts, and surges. The SMT UPS has a 3-year warranty, and the built-in lead acid battery has a 2-year warranty. This UPS includes intelligent battery management with replacement suggestions, temperature-adjusted charging, self-tests, and battery disconnect notifications.
General Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: SMT750RM1U
- Brand Name: APC by Schneider Electric
- Product Line: Smart-UPS
- Product Series: SMT
- Product Name: Smart-UPS SMT 750VA Rack-mountable UPS
- Packaged Quantity: 1
- Product Type: Line-interactive UPS
Technical Information
- AVR: Yes
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15P

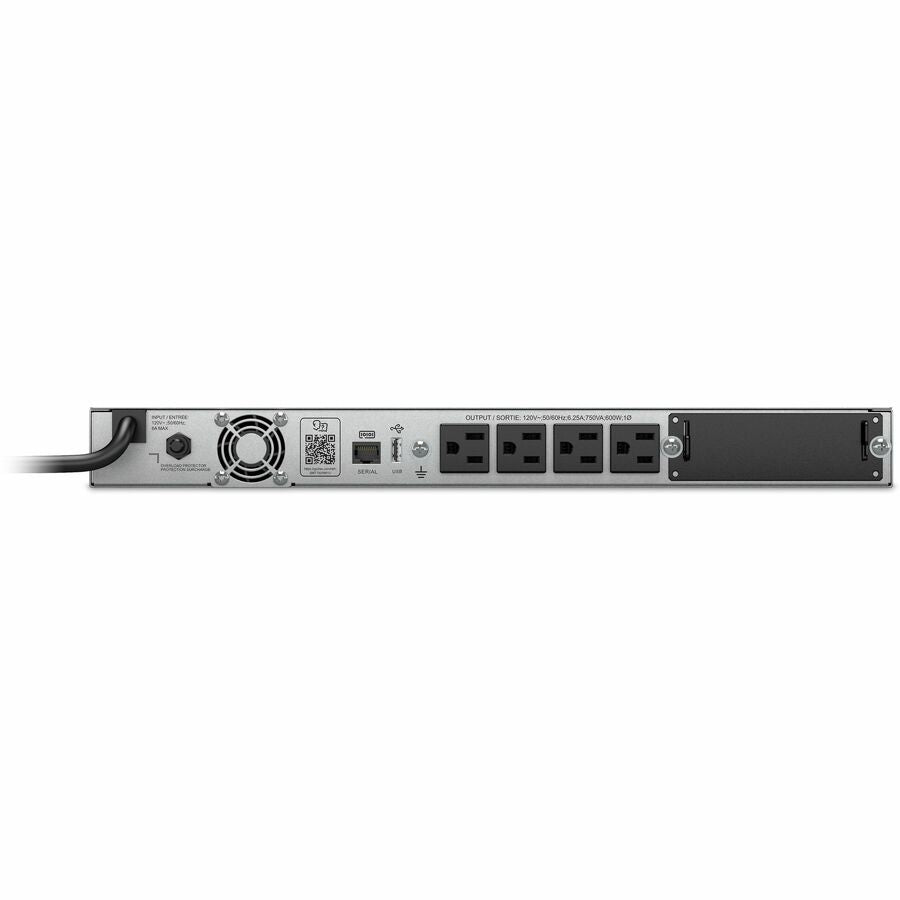

- Receptacle Detail: 4 x NEMA 5-15R
- Cord Length: 8 ft
- Transfer Time: 8 ms
- Phase: Single Phase
- Application/Usage:
- Business
- Server
- Virtual Machine
- Hyperconverged Infrastructure (HCI)
Power Description
- Load Capacity (VA): 750 VA
- Load Capacity (Watt): 600 W
- Input Voltage: 120 V AC
- Input Current: 6.25 A
- Output Voltage: 120 V AC
- Input Frequency: 60 Hz
- Output Frequency: 60 Hz
- Waveform Type: Sine Wave
- Surge Energy Rating: 540 J
Display & Graphics
- Display: LCD
Management
- Alarm:
- On Battery
- Low Battery
- Configurable Delay
Interfaces/Ports
- USB: No
Battery Information
- Battery Chemistry: Lead Acid
- Battery Energy: 604.8 kJ
- Backup/Run Time (Full Load): 4.11 Minute
- Backup/Run Time (Half Load): 14.93 Minute
- Battery Life: 5 Year
- Typical Battery Recharge Time: 5 Hour
- Replaceable Battery: Yes
Environmental Conditions
- Maximum Operating Elevation: 10000 ft
- Maximum Storage Elevation: 50000 ft
- Storage Temperature: 5°F (-15°C) - 113°F (45°C)
- Storage Relative Humidity: 95%
- Maximum Operating Temperature: 104°F (40°C)
- Sound Emission (A-Weighted): 46 dB(A)
- Thermal Dissipation: 25.79 W

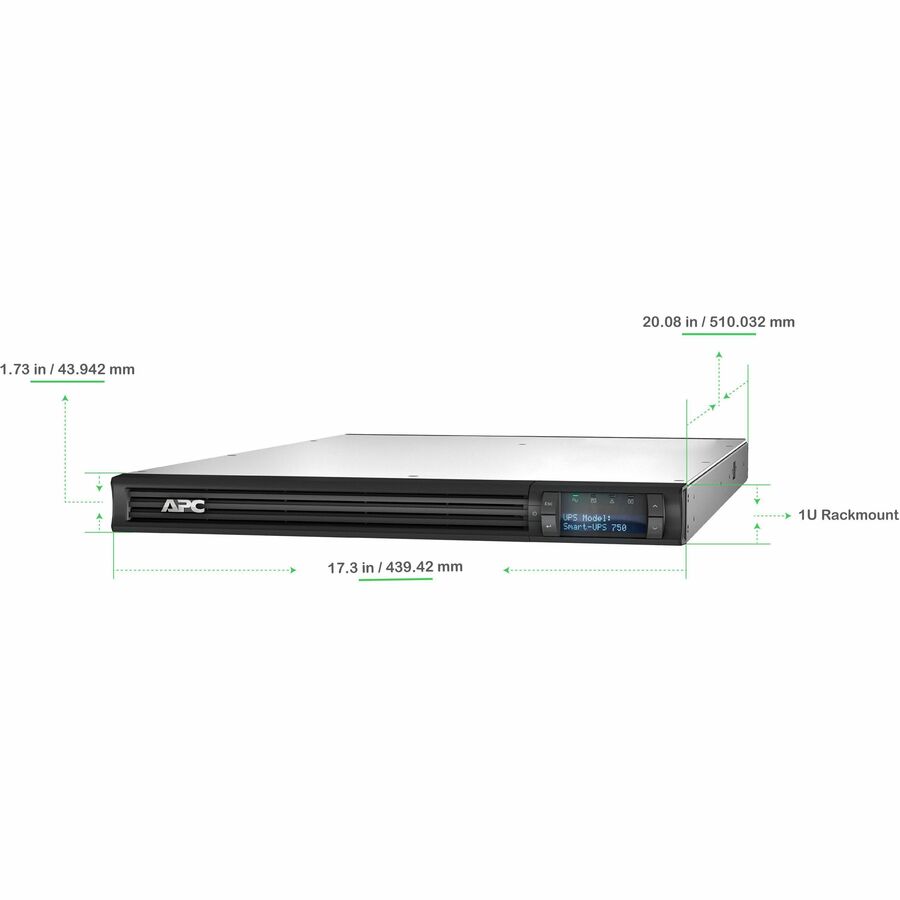

Physical Characteristics
- Product Color: Black
- Height: 1.7"
- Width: 17"
- Depth: 19.8"
- Rack Height: 1U
- Form Factor: Rack-mountable
- Weight (Approximate): 34.83 lb
Miscellaneous
- Package Contents:
- Smart-UPS SMT 750VA Rack-mountable UPS
- User Manual
- Country of Origin: India
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information: Battery: 24 month(s)|UPS: 36 month(s)
