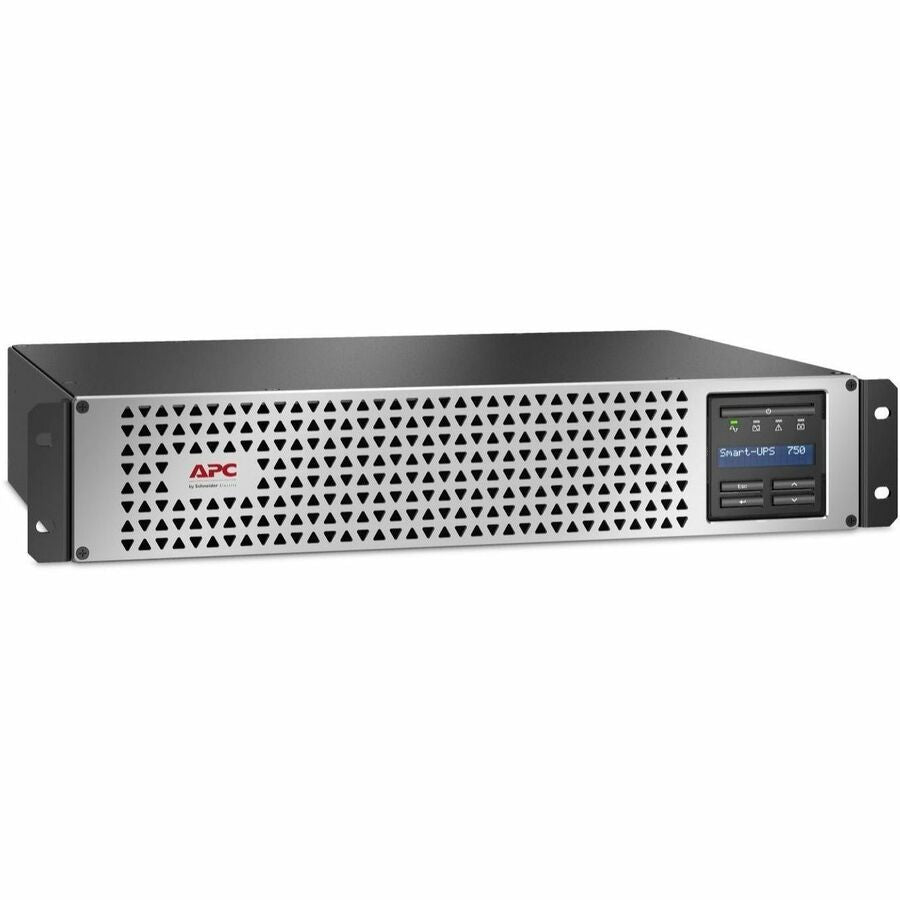

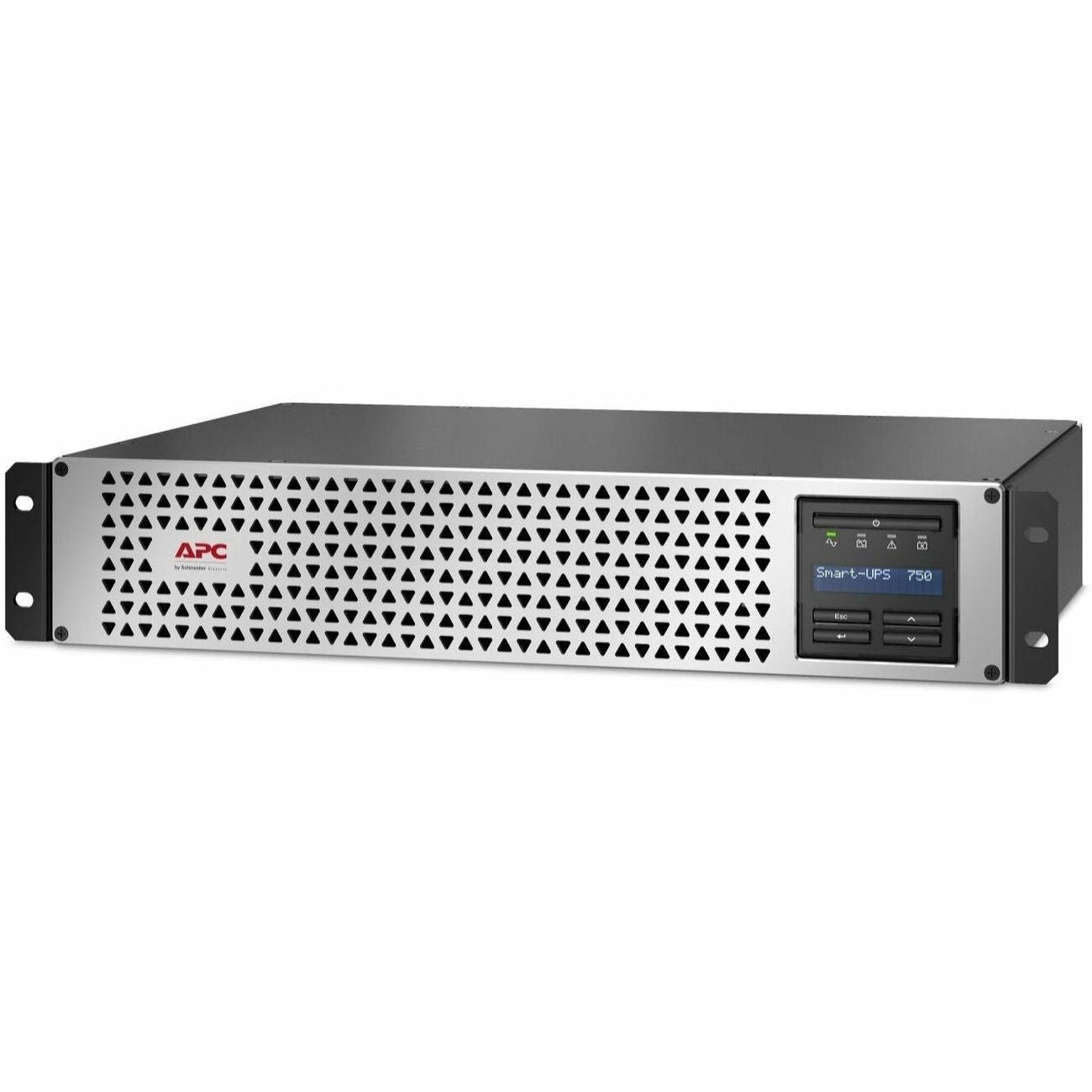

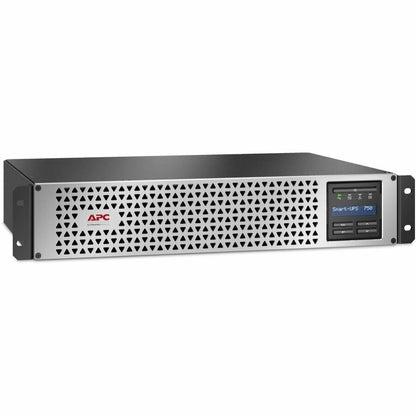

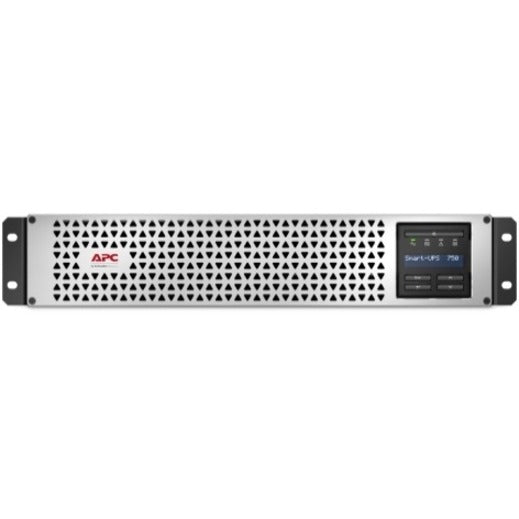

APC Smart-UPS, Line Interactive, 750VA, Lithium-ion, Rackmount 2U, 120V, 6x NEMA 5-15R outlets, SmartConnect Port+SmartSlot, Short Depth, AVR, LCD - SMTL750RM2UC
Key Features
- 750VA/600W line interactive pure sine wave 2U rackmount UPS
- Cloud-based remote power monitoring via SmartConnect Ethernet Port
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
- Ideal for small edge environment, back office, network infrastructure and IDF/MDF closets
- Lithium-ion battery minimizes the need to replace battery during the lifetime of UPS
- Peace of mind with a 5-year warranty on UPS and battery
- Short depth UPS provides extra space for cable management
- Tower convertible with stabilizing feet (sold separately)
Product Overview
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 750VA line interactive 2U short depth rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6 NEMA5-15R outlets. This rackmount UPS is tower convertible with the mounting stabilizing feet (SMTL2USF sold separately). It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.General Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: SMTL750RM2UC
- Brand Name: APC
- Product Line: Smart-UPS
- Product Model: SMTL750RM2UC
- Product Name: Smart-UPS SMTL750RM2UC Rack-mountable 750VA UPS
- Packaged Quantity: 1 Each
- Product Type: Line-interactive UPS
Technical Information
- AVR: Yes
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15P

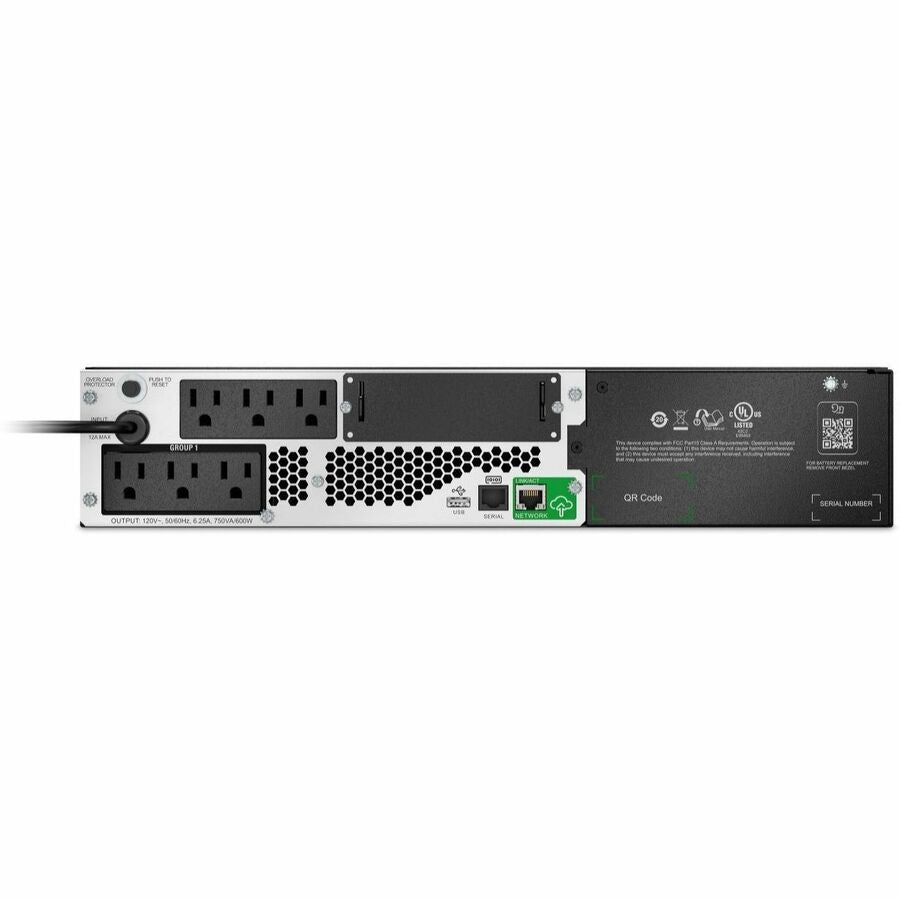

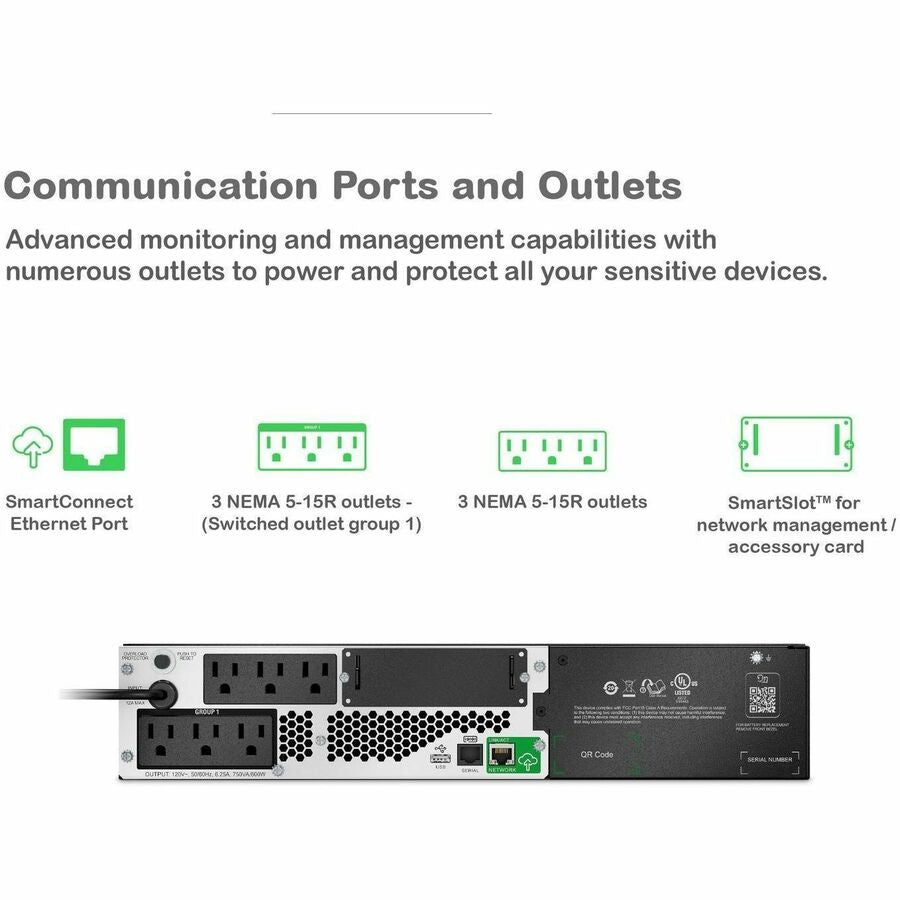

- Receptacle Detail: 6 x NEMA 5-15R
- Number of Battery & Surge Outlets: 6
- Overload Protection: Yes
- Cord Length: 8 ft
- Transfer Time: 10 ms
- Phase: Single Phase
- Application/Usage:
- Server
- POS Terminal
- Network Device
- Switch
- Router
- Network Hub
- Security System
- Communication System
Power Description
- Load Capacity (VA): 750 VA
- Load Capacity (Watt): 600 W
- Input Voltage: 120 V AC
- Input Voltage Range: 82 V AC - 144 V AC
- Output Voltage: 120 V AC
- Input Frequency: 60 Hz
- Output Frequency: 60 Hz
- Waveform Type: Sine Wave
- Surge Energy Rating: 680 J
Management
- Alarm:
- On Battery
- Low Battery
- Configurable Delay
Controls/Indicators
- Status Indicators:
LED status indicators: Quickly understand unit and power status with visual indicators.

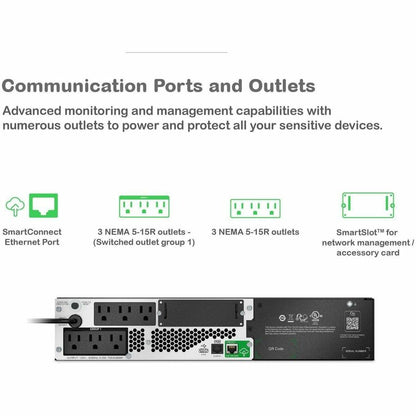

Interfaces/Ports
- Serial Port: Yes
- Network (RJ-45): Yes
- USB (HID Compliant) Port: Yes
Battery Information
- Battery Chemistry: Lithium Ion (Li-Ion)

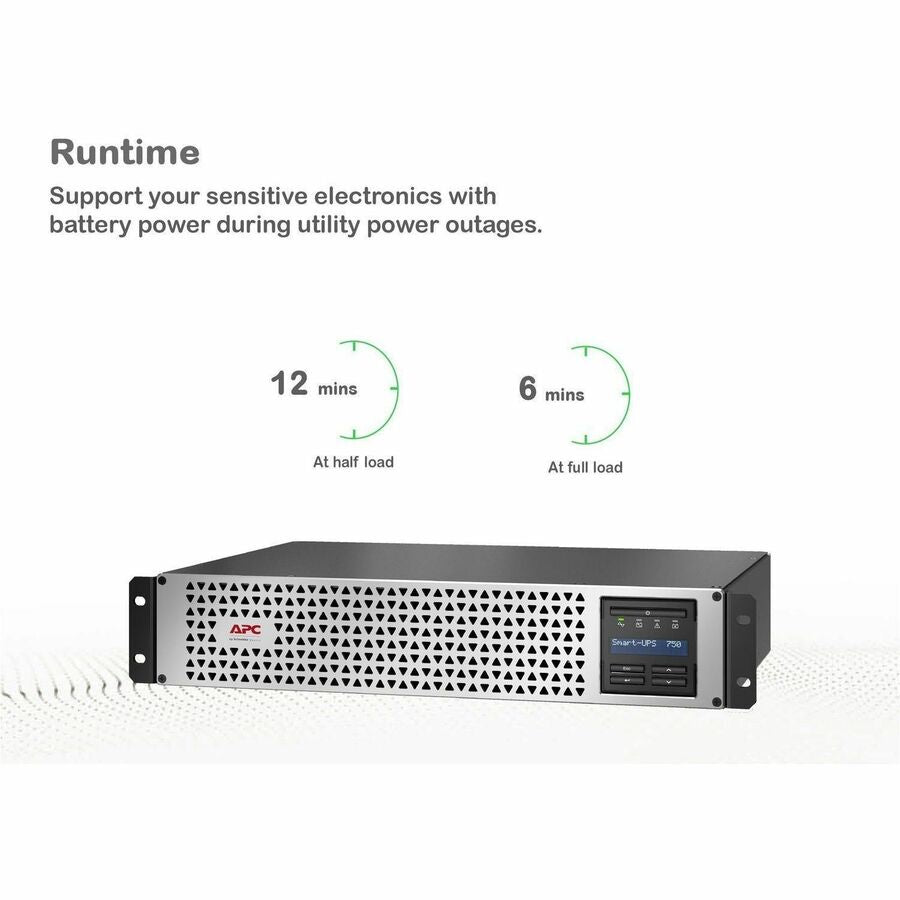

- Backup/Run Time (Full Load): 5.70 Minute
- Backup/Run Time (Half Load): 13.80 Minute
- Hot Swappable: Yes
- Typical Battery Recharge Time: 3 Hour
- Replaceable Battery: Yes
Environmental Conditions
- Maximum Operating Elevation: 10000 ft
- Maximum Storage Elevation: 25000 ft
- Storage Temperature: -40°F (-40°C) - 95°F (35°C)
- Operating Humidity: 0% - 95%
- Storage Relative Humidity: 0% - 95%
- Maximum Operating Temperature: 104°F (40°C)
- Sound Emission (A-Weighted): 41 dB(A)
- Thermal Dissipation: 20.51 W
Physical Characteristics
- Product Color:
- Black
- Silver

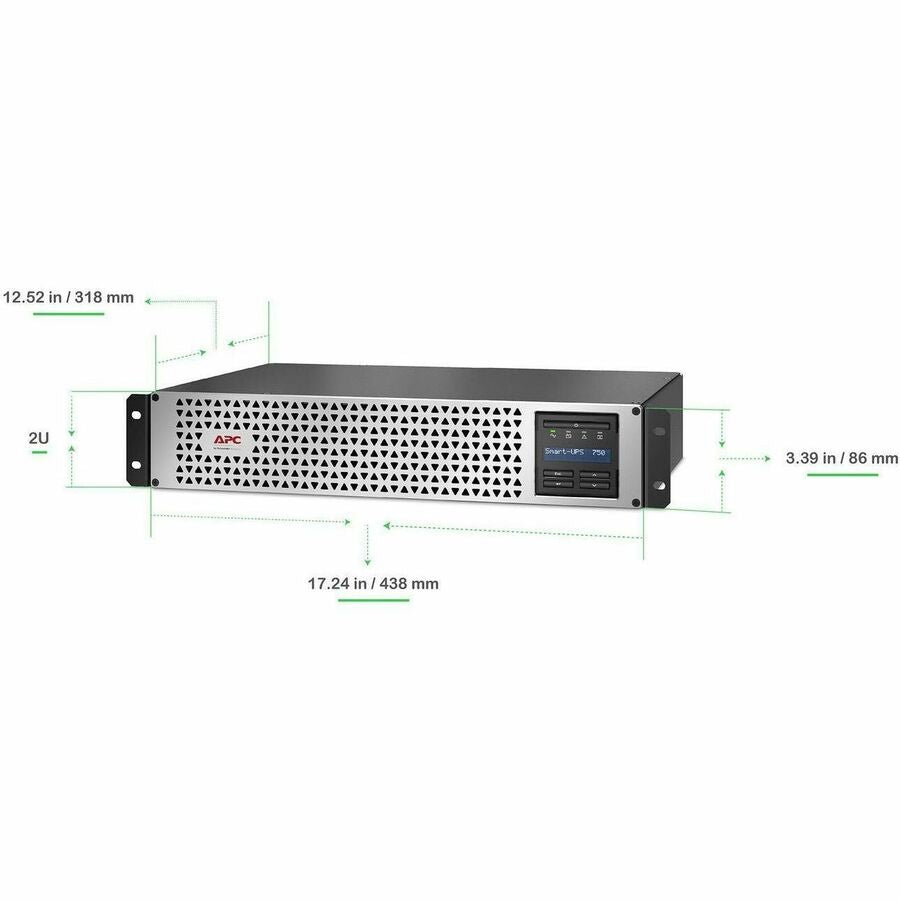

- Height: 3.39"
- Width: 17.24"
- Depth: 12.52"
- Rack Height: 2U
- Form Factor: Rack-mountable
- Weight (Approximate): 34 lb
Miscellaneous
- Package Contents:
- Smart-UPS SMTL750RM2UC Rack-mountable 750VA UPS
- CD with software
- Documentation CD
- Installation guide
- Rack mounting support rails
- Smart UPS signalling RS-232 cable
- USB cable
- Software Included: Powerchute Serial Edition
- Country of Origin: Philippines
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 5 Year
