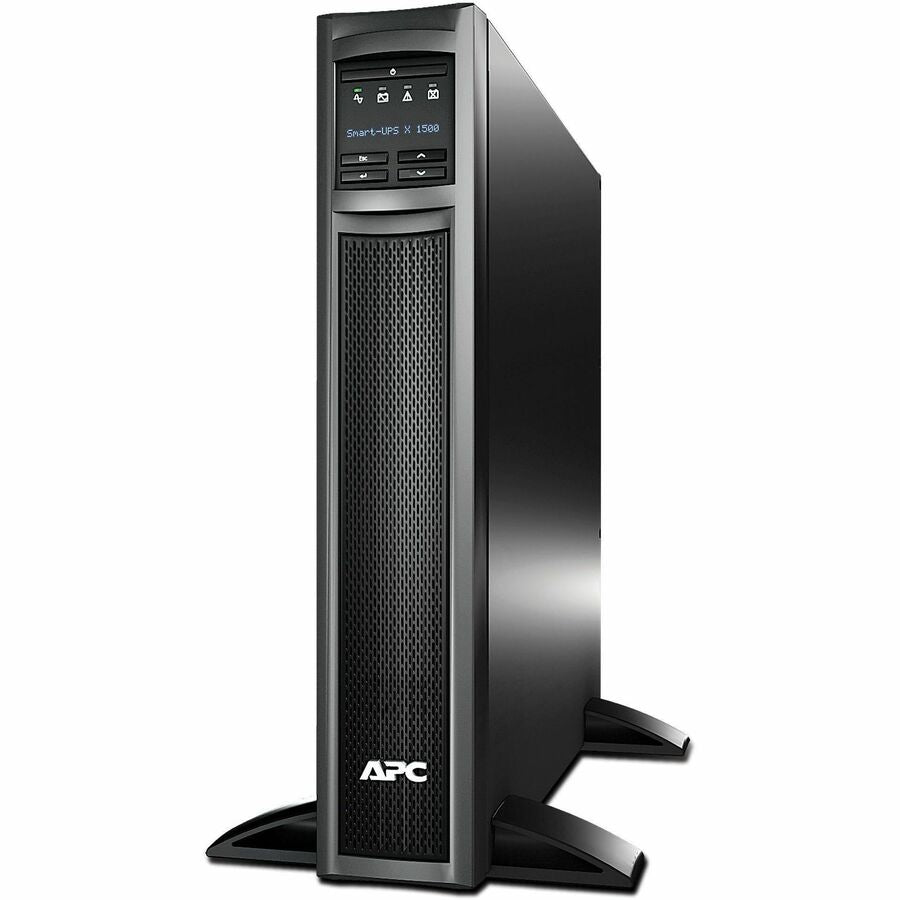

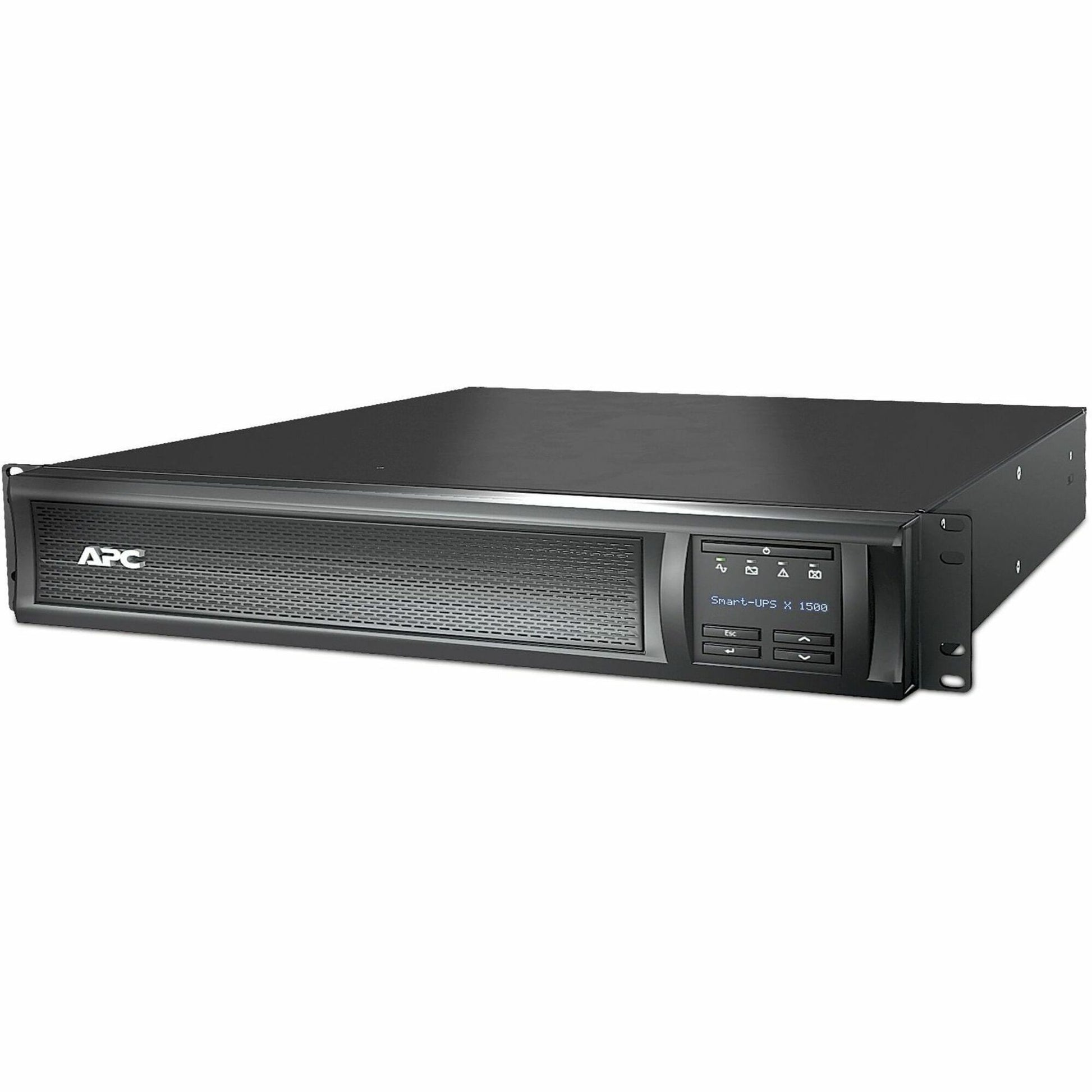

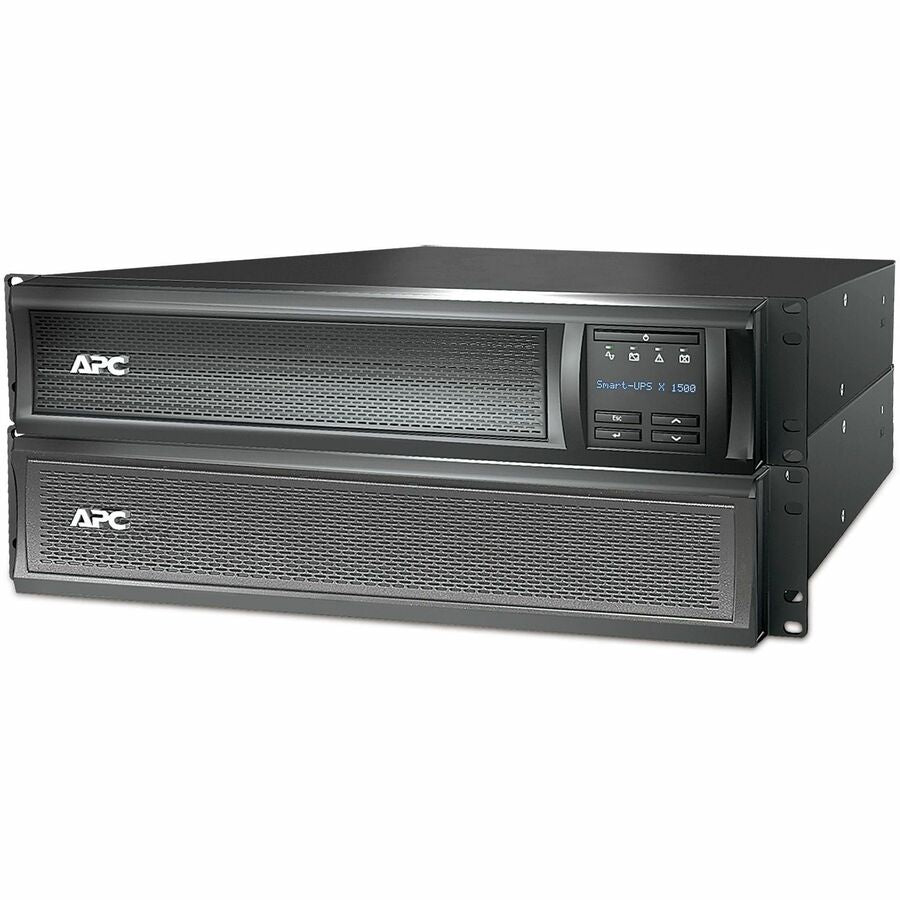

APC Smart-UPS X, Line Interactive, 1500VA, Rack/tower convertible 2U, 120V, 8x 5-15R NEMA, SmartConnect port+NMC, Extended runtime - SMX1500RM2UCNC
Key Features
- 1-Year Secure Network Management Card subscription included
- 1440VA/1350W line interactive pure sine wave 2U rack/tower UPS (rail kit included)

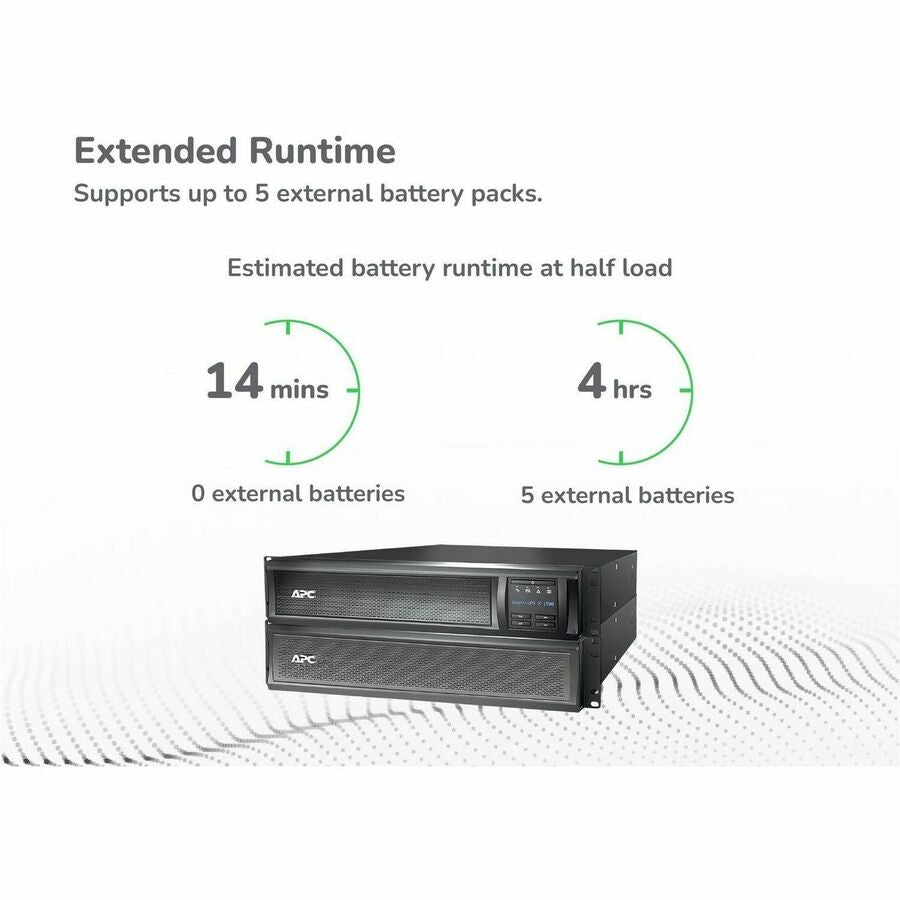

- Add up to 5 external battery packs (SMX48RMBP2U)
- Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
- Cloud-based remote power monitoring via SmartConnect Ethernet Port
- Graceful shutdown of physical servers, virtual machines and HCI Clusters
- Ideal for servers, storage, networking & commercial applications

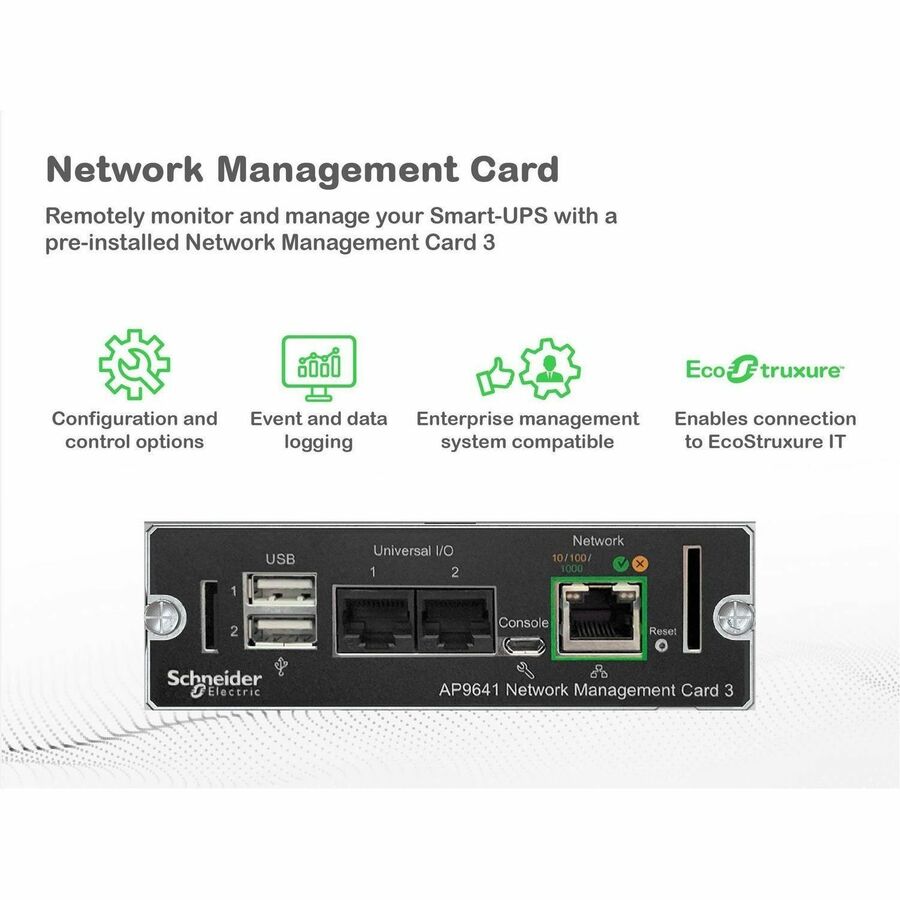

- Preinstalled NMC for network-based UPS monitoring & management
Product Overview

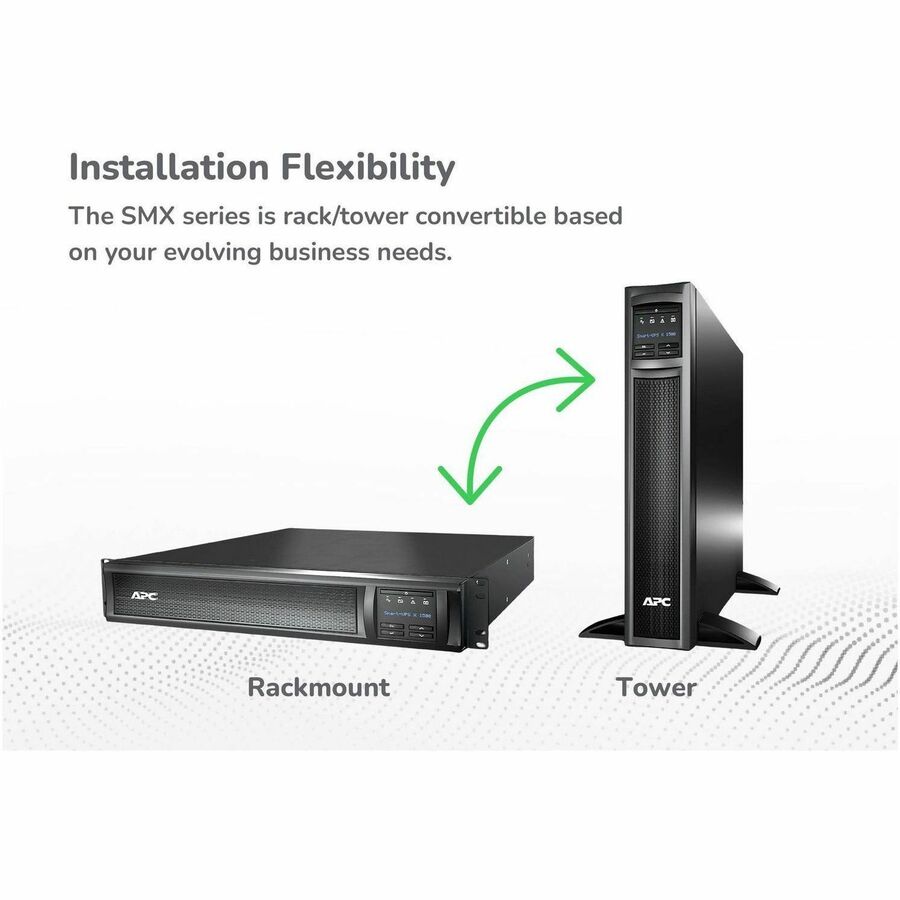

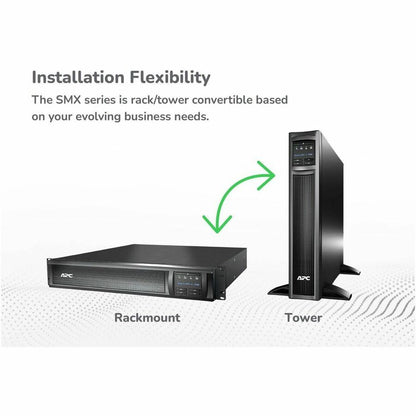

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 1440VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-15P input and 8x NEMA 5-15R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
General Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: SMX1500RM2UCNC
- Brand Name: APC by Schneider Electric
- Product Line: Smart-UPS
- Product Series: SMX
- Product Name: Smart-UPS SMX 1500VA Tower/Rack Convertible UPS
- Product Type: Line-interactive UPS
Technical Information
- AVR: Yes
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15P

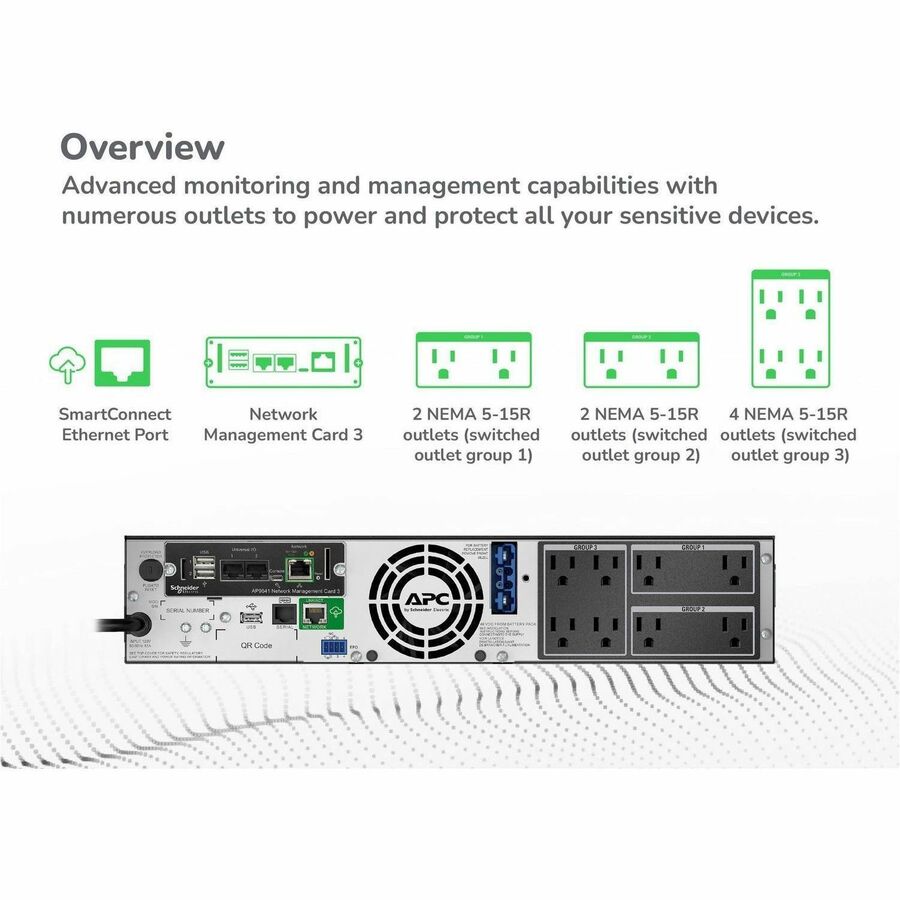

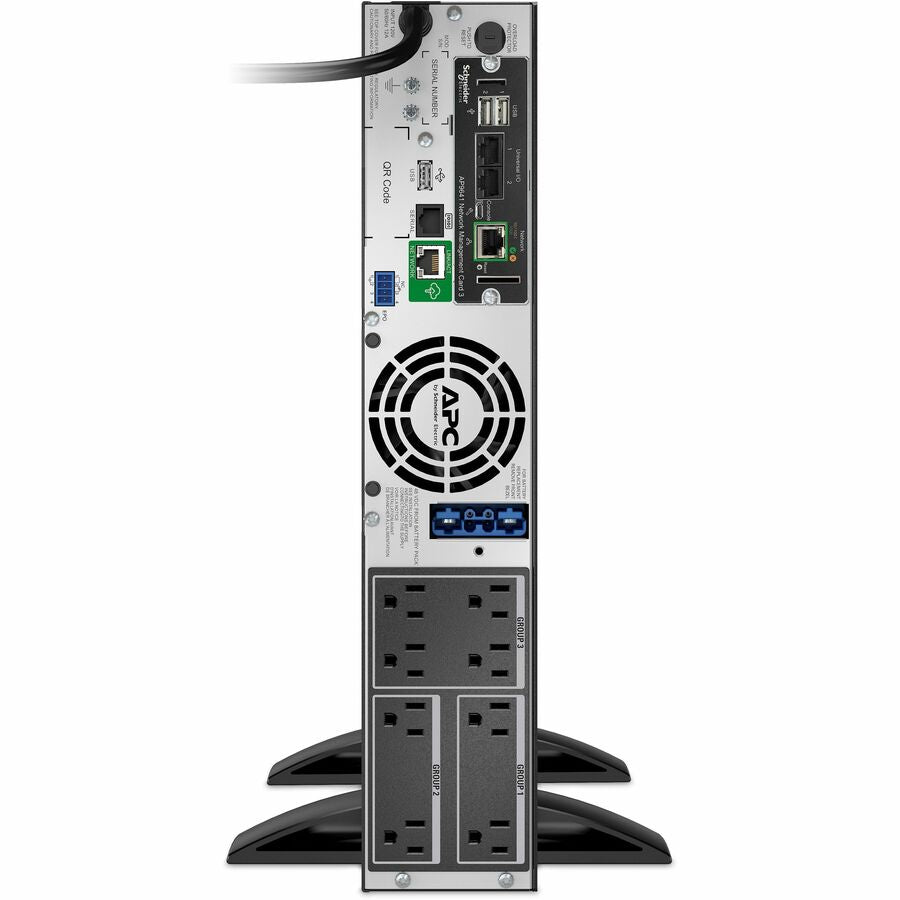

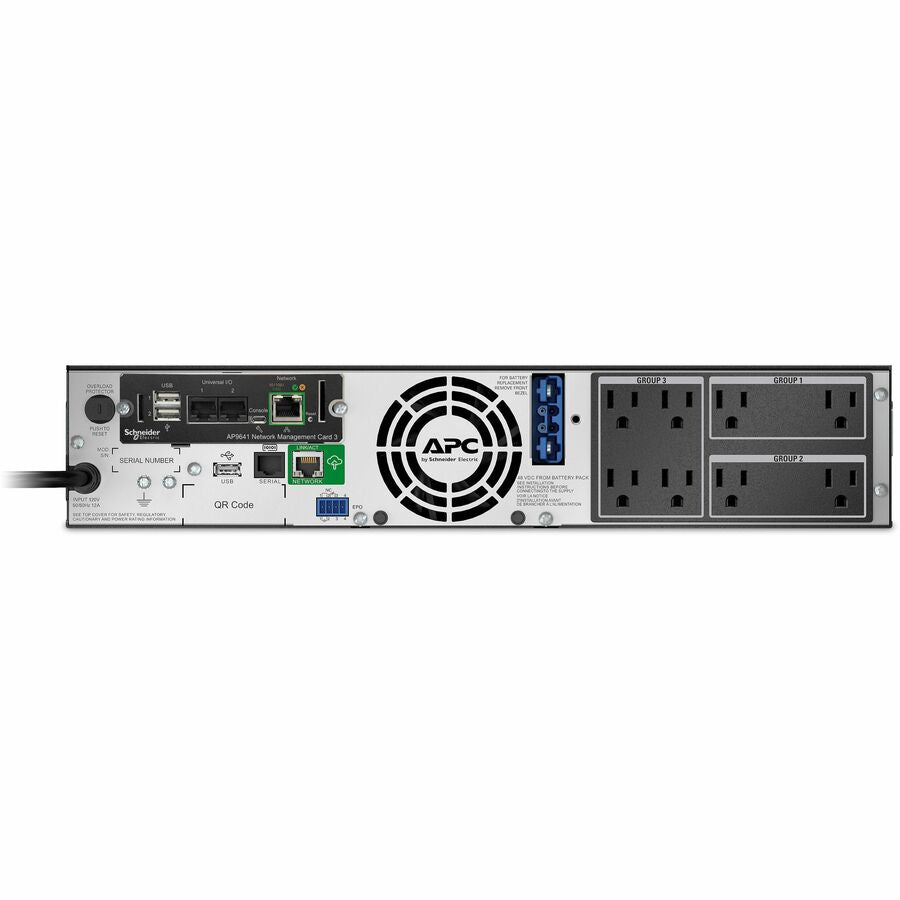

- Receptacle Detail: 8 x NEMA 5-15R
- Number of Battery & Surge Outlets: 8
- Cord Length: 8 ft
- Transfer Time: 0 ns
- Phase: Single Phase
- Application/Usage:
- Mission Critical Equipment
- Server Room
- Business
- IT Infrastructure
- Security System
- Communication System
- Electronic
- VoIP
- Telecommunication
- Workstation
- Network Device
- POS Terminal
- Edge Computing
- Data Storage
- Mobile Device
- Tablet
- Computer
Power Description
- Load Capacity (VA): 1440 VA
- Load Capacity (Watt): 1350 W
- Input Voltage: 120 V AC
- Input Voltage Range: 82 V AC - 144 V AC
- Output Voltage: 120 V AC
- Input Frequency: 63 Hz
- Waveform Type: Sine Wave
- Surge Energy Rating: 600 J
Management
- Network Management: SmartConnect
- Alarm:
- On Battery
- Low Battery
- Overload
Controls/Indicators
- Status Indicators:
Control Panel:
- Multi-function LCD Status
- Control Console
Interfaces/Ports
- Serial Port: Yes
- Network (RJ-45): Yes
- EPO Port: Yes
- USB (HID Compliant) Port: Yes
Battery Information
- Number of Batteries: 1
- Battery Chemistry: Lead Acid
- Backup/Run Time (Full Load): 5 Minute
- Backup/Run Time (Half Load): 14.80 Minute
- Typical Battery Recharge Time: 3 Hour
Physical Characteristics
- Product Color: Black
- Height: 3.5"
- Width: 17"
- Depth: 19.3"
- Rack Height: 2U
- Form Factor: Rack-mountable
- Weight (Approximate): 54.72 lb
Miscellaneous
- Package Contents:
- Smart-UPS SMX 1500VA Tower/Rack Convertible UPS
- Cat 5 Ethernet cable
- Installation guide
- Rack mounting hardware
- Rack mounting support rails
- Removable support feet
- Smart UPS signalling RS-232 cable
- USB cable
- Energy Star: Yes
- Country of Origin: Vietnam
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information: UPS: 36 month(s)|Battery: 24 month(s)
