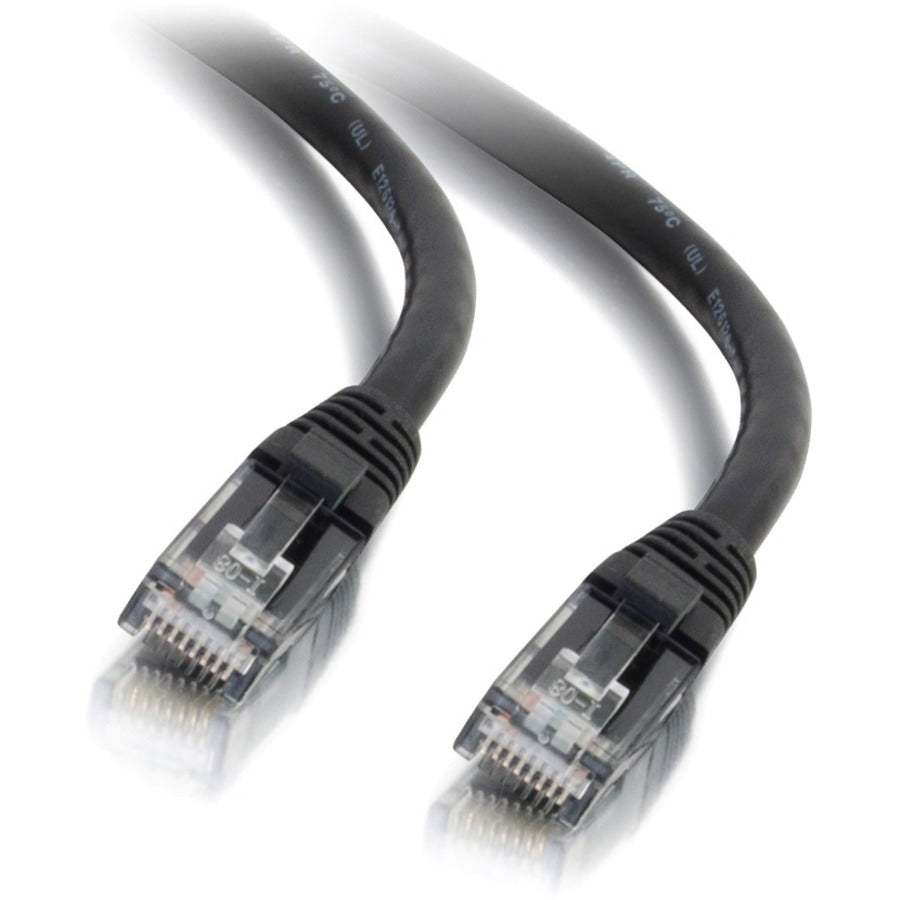

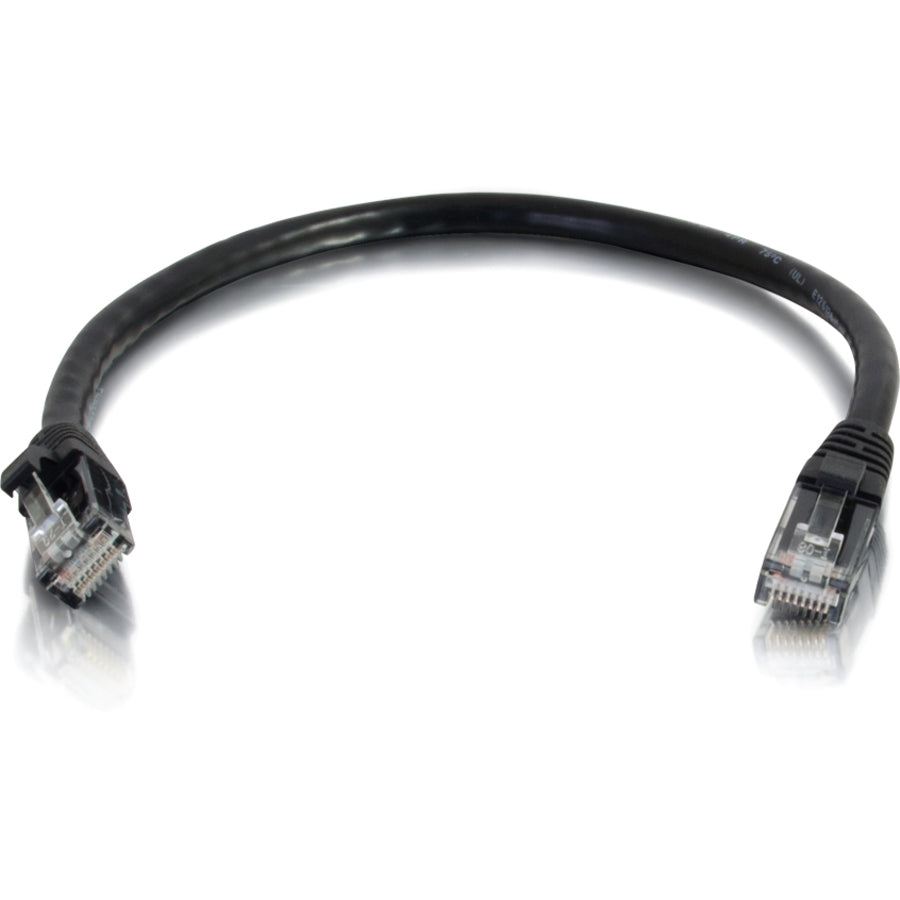

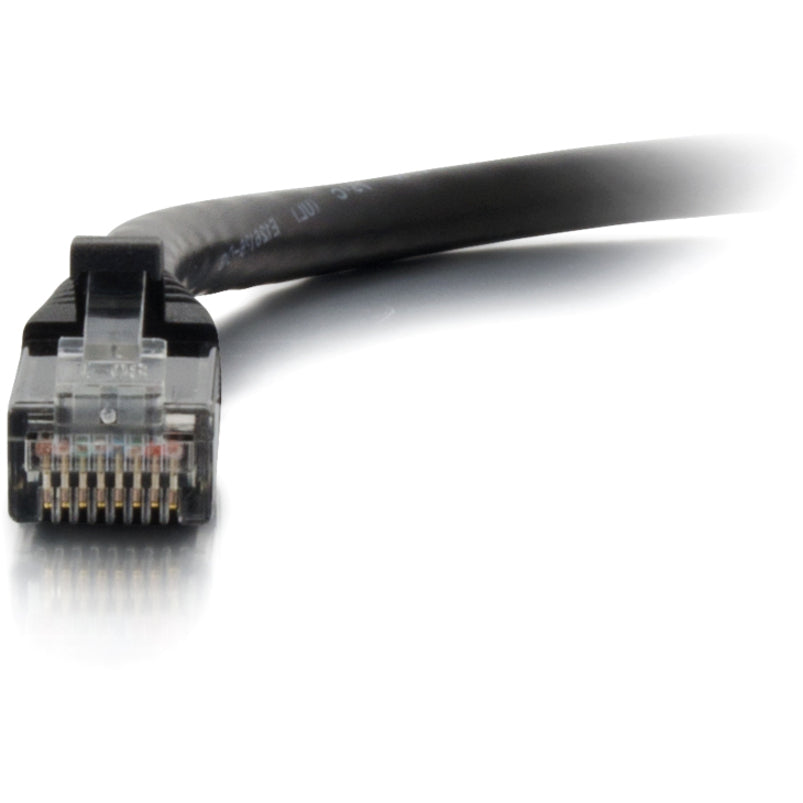

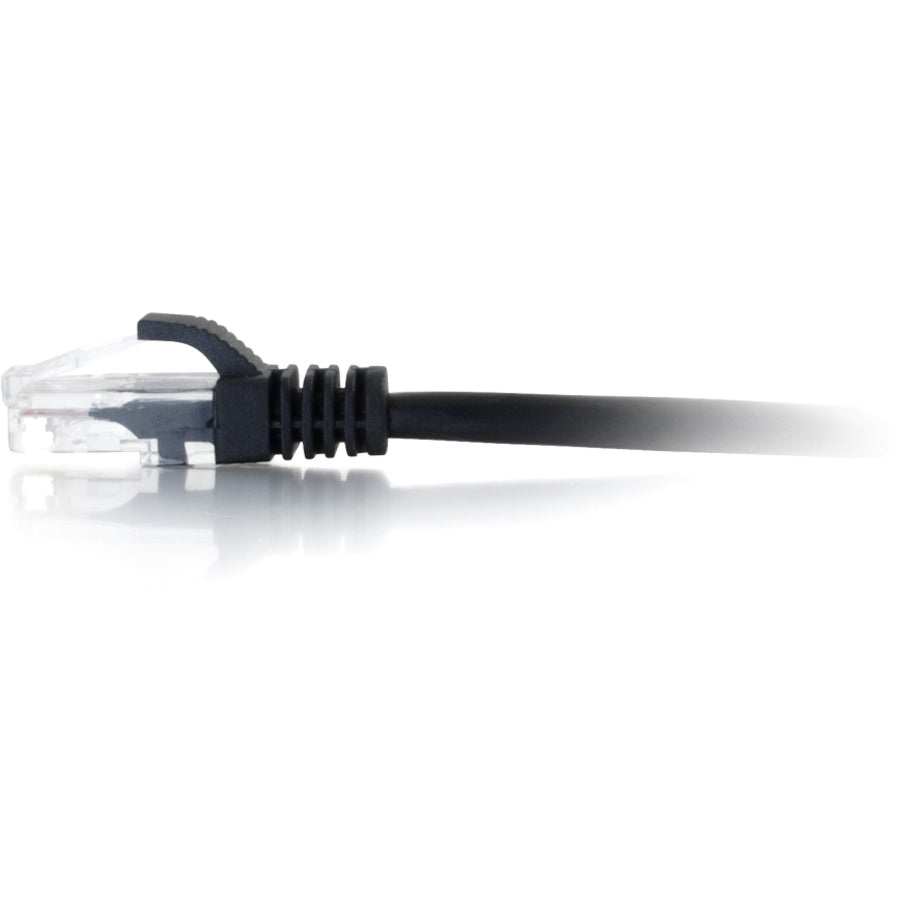

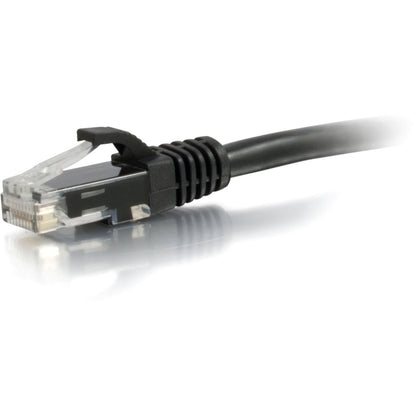

C2G 1ft Cat6 Ethernet Cable - Snaglass Unshielded (UTP) - Black - 27150
Key Features
- Allows you to access all of the networked data, swiftly and securely
- Features Category 6 cable type to better accommodate your precise requirements with maximum productivity
- Fully compatible with network devices
- Molded feature for better usability and increased efficiency
Product Overview
Electrical Characteristics
Conductor DC Resistance - 9.38
100m (maximum)
Impedance - 100
Capacitance - 5600pf/100m
Propagation Delay - 545ns/100m (maximum)
Delay Skew - 45ns/100m (maximum)
Physical Characteristics
Wiring Scheme - T568B
Standard: Category 6 TIA/EIA-568-B-2.1, draft 9
Connector: 50 micron gold-plated RJ45
Temperature Rating - 60°C
Voltage Rating - 30V
Approvals - RoHS Compliant
Warranty - Lifetime
Package Type - Polybag
Conductor (Qty. 4 twisted pair)
Conductor Type - 24AWG (7/0.20), Stranded Bare Copper
Insulation - H-D PE
Diameter - 0.98 ± 0.05mm
Colors - Blue, Blue-White, Orange, Orange-White, Green, Green-White, Brown, Brown-White
Connector Type (Qty. 2)
Connector Type - 8P8C (RJ45)
Gender - Male
Connector Material - Polycarbonate
Contact Material - Copper Alloy, Gold Plating - 50µm
Hood Material - Molded PVC
Overall Cable
Jacket - PVC
Minimum Average Thickness - 0.60mm
Outer Diameter - 6.20 ± 0.30mm
General Information
- Manufacturer: Legrand Group
- Manufacturer Part Number: 27150
- Brand Name: C2G
- Product Name: 1ft Cat6 Snagless Unshielded (UTP) Ethernet Network Patch Cable - Black
- Product Type: Network Cable
Technical Information
- Cable Type: Category 6
- Cable Characteristic: Patch Cable
- Cable Length: 1 ft
- Cable Shielding Type: Unshielded Twisted Pair (UTP)
- Connector Type on First End: RJ-45 Network - Male
- Connector Gender on First End: Male
- Connector on First End Details: 1 x RJ-45 Network - Male
- Connector Type on Second End: RJ-45 Network - Male
- Connector Gender on Second End: Male
- Connector on Second End Details: 1 x RJ-45 Network - Male
- Connector Plating: Gold
- Contact Plating: Gold
- Shielding: No
- Device Supported:
- Network Device
- Network Adapter
- Hub
- Switch
- Router
- DSL Modem
- Patch Panel
- American Wire Gauge: 24 AWG
- Number of Pairs: 4
- Number of Conductors: 8
- Features:
- Molded
- Stranded
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Connector Material: Polycarbonate
- Contact Material: Copper Alloy
- Insulation Material: High-density Polyethylene (HDPE)
- Jacket Material: Polyvinyl Chloride (PVC)
- Weight (Approximate): 0.03 lb
Miscellaneous
- Compatibility:
- Network Adapters
- Hubs
- Switches
- Routers
- DSL/Cable Modems
- Patch Panels and other twisted-pair applications
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- Country of Origin: China
Warranty
- Limited Warranty: Lifetime
