CyberPower CP1000AVRLCD Intelligent LCD UPS Systems - CP1000AVRLCD
Key Features
- $350,000
- 1000 VA / 600 W
- 120 VAC ± 5%
- 3 year
- 9 × NEMA 5-15R
- Capacity:
- Communication:
- Connected Equipment Guarantee:
- Data line protection:
- ENERGY STAR® certified:
- Ethernet, Coaxial
- Line Interactive
- Management software:
- NEMA 5-15P, 6 ft. cord
- Outlet types:
- Output:
- Plug type & cord:
- PowerPanel® Personal
- Simulated Sine Wave
- Topology:
- USB, Serial
- Warranty:
- Waveform:
- Yes
Product Overview

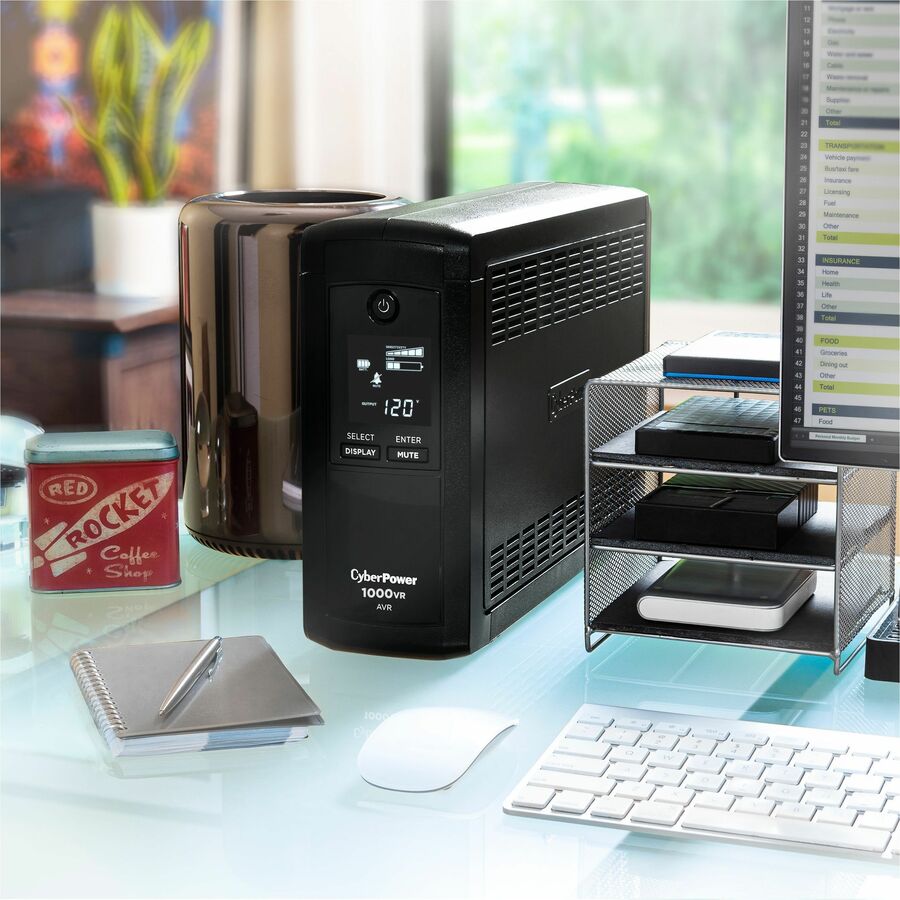

A mini-tower UPS with line interactive topology, the CyberPower Intelligent LCD CP1000AVRLCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The CP1000AVRLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1000AVRLCD comes with a three-year warranty (including coverage of batteries) and a ,350,000 Connected Equipment Guarantee.
General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: CP1000AVRLCD
- Brand Name: CyberPower
- Product Series: Intelligent LCD UPS
- Product Model: CP1000AVRLCD
- Product Name: CP1000AVRLCD Intelligent LCD UPS Systems
- Product Type: Line-interactive UPS
Technical Information
- AVR: Yes
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R
- Receptacle Detail: 9 x NEMA 5-15R
- Number of Battery & Surge Outlets: 5
- Number of Surge-only Outlets: 4
- Dataline Protection:
- RJ-45
- RG-6
- Overload Protection: Yes
- Cord Length: 6 ft
- Transfer Time: 4 ms
- EMI/RFI Noise Filter: Yes
- Energy Saving: GreenPower UPS™ Bypass Technology
Power Description
- Load Capacity (VA): 1000 VA
- Load Capacity (Watt): 600 W
- Input Voltage: 120 V AC
- Input Voltage Range: 90 V AC - 142 V AC
- Output Voltage: 120 V AC
- Input Frequency:
- 50 Hz
- 60 Hz
- Output Frequency: 60 Hz
- Waveform Type:
- Sine Wave
- Simulated Sine Wave
- Surge Energy Rating: 1080 J
- Circuit Breaker: Yes
- Output Power Factor: 0.6
Display & Graphics
- Display: LCD
Management
- Alarm: Battery Mode
Controls/Indicators
- Status Indicators: Power on
Interfaces/Ports
- Serial Port: Yes
- USB (HID Compliant) Port: Yes
Battery Information
- Number of Batteries: 1
- Battery Characteristics: Sealed
- Battery Chemistry: Lead Acid
- Battery Size: 12V
- Battery Capacity: 9000 mAh
- Backup/Run Time (Full Load): 2 Minute
- Backup/Run Time (Half Load): 9 Minute
- Typical Battery Recharge Time: 8 Hour
- Replaceable Battery: Yes
Environmental Conditions
- Maximum Operating Elevation: 10000 ft
- Maximum Storage Elevation: 50000 ft
- Storage Temperature: 5°F (-15°C) - 113°F (45°C)
- Storage Relative Humidity: 0% - 95%
- Minimum Operating Temperature: 32°F (0°C)
- Maximum Operating Temperature: 104°F (40°C)
Physical Characteristics
- Product Color: Black
- Height: 11"
- Width: 3.9"
- Depth: 14"
- Form Factor: Mini-tower
- Weight (Approximate): 15 lb
Miscellaneous
- Package Contents:
- Intelligent LCD CP1000AVRLCD 1000VA Tower UPS
- User's Manual
- USB Cable
- Software Download Card
- Registration Information Card
- Software Included: PowerPanel Personal Edition Software
- Energy Star: Yes
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
