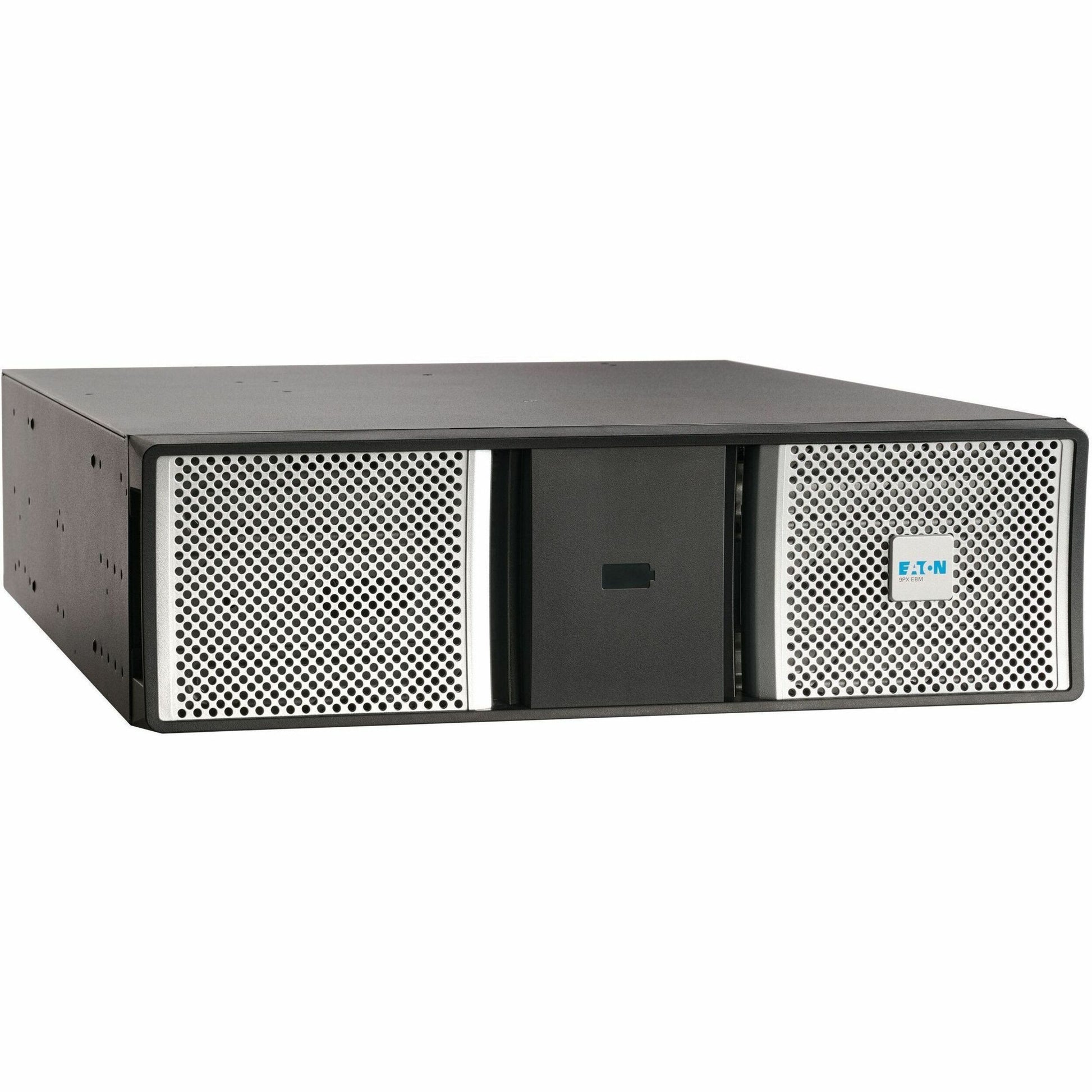

Eaton 180V Extended Battery Module (EBM) for Select Eaton 9PX G2 UPS Systems, 3U Rack/Tower - 9PXEBM180RTG2
Key Features
- Lead Acid battery chemistry delivers the required energy to UPS through an easily controlled reaction
- Offers a reasonable fit to your UPS
- Valve-regulated/User Replaceable battery characteristics provide optimal charging results with added usability
- With 180 V DC battery, never run out of power and keep your UPS operational at all times
Product Overview
Backup Battery Module Gives Your Compatible Eaton UPS System Extended Runtime

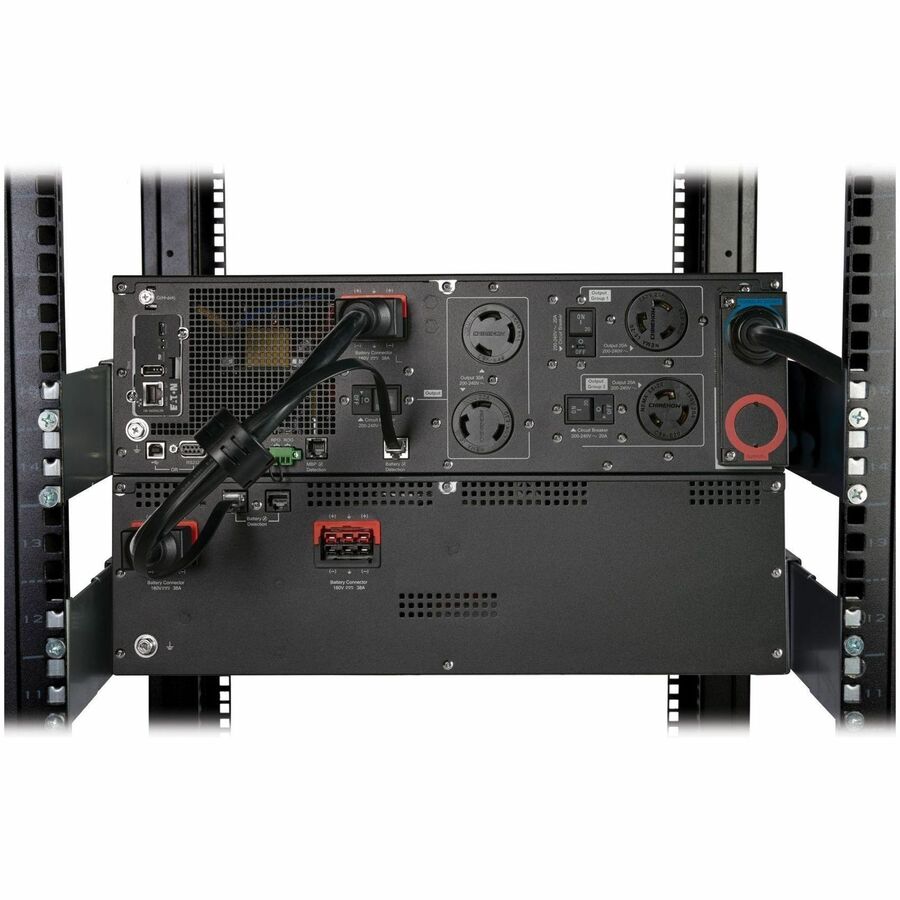

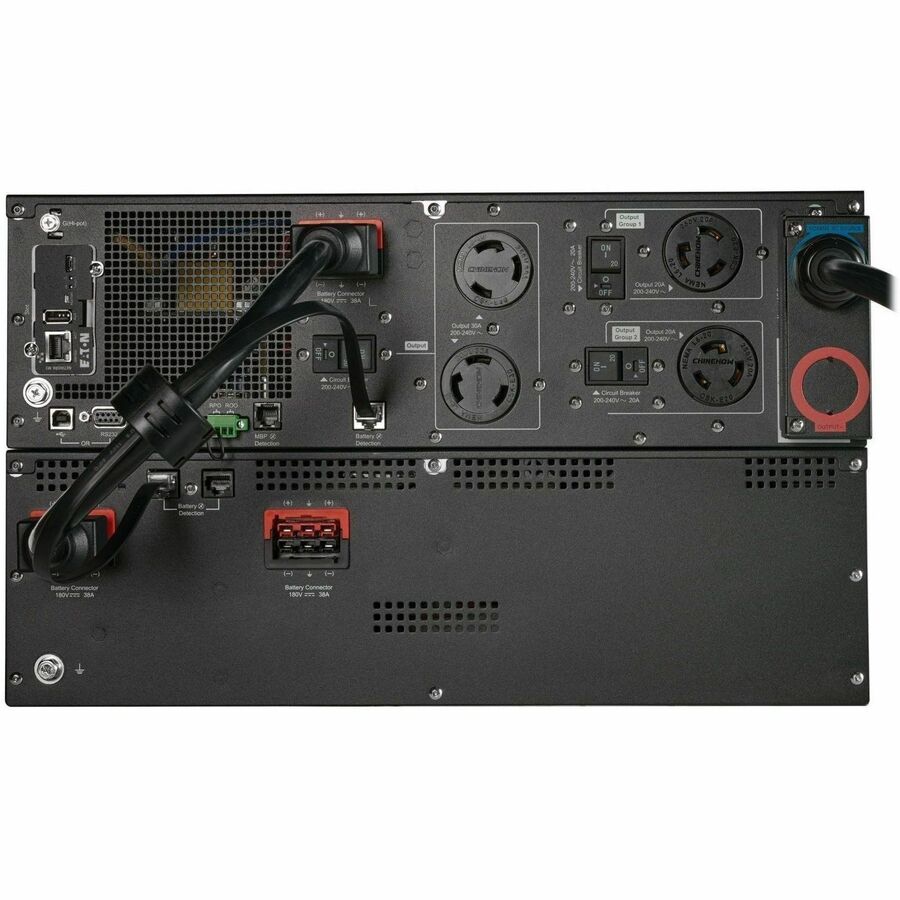

The 9PXEBM180RTG2 offers extended battery runtime when used in conjunction with Eaton's 9PX3K3UG2, 9PX3K3UNP1G2, 9PX3K3UNP2G2, 9PX3K3UNTF5G2, 9PX5KG2, 9PX5KP1G2, 9PX5KP2G2, 9PX5KTF5G2, 9PX6KG2, 9PX6KIECG2, 9PX6KP1G2, 9PX6KP2G2 and 9PX6KTF5G2 UPS systems. It can also be daisy-chained for a maximum of 12 auto-detected battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation.

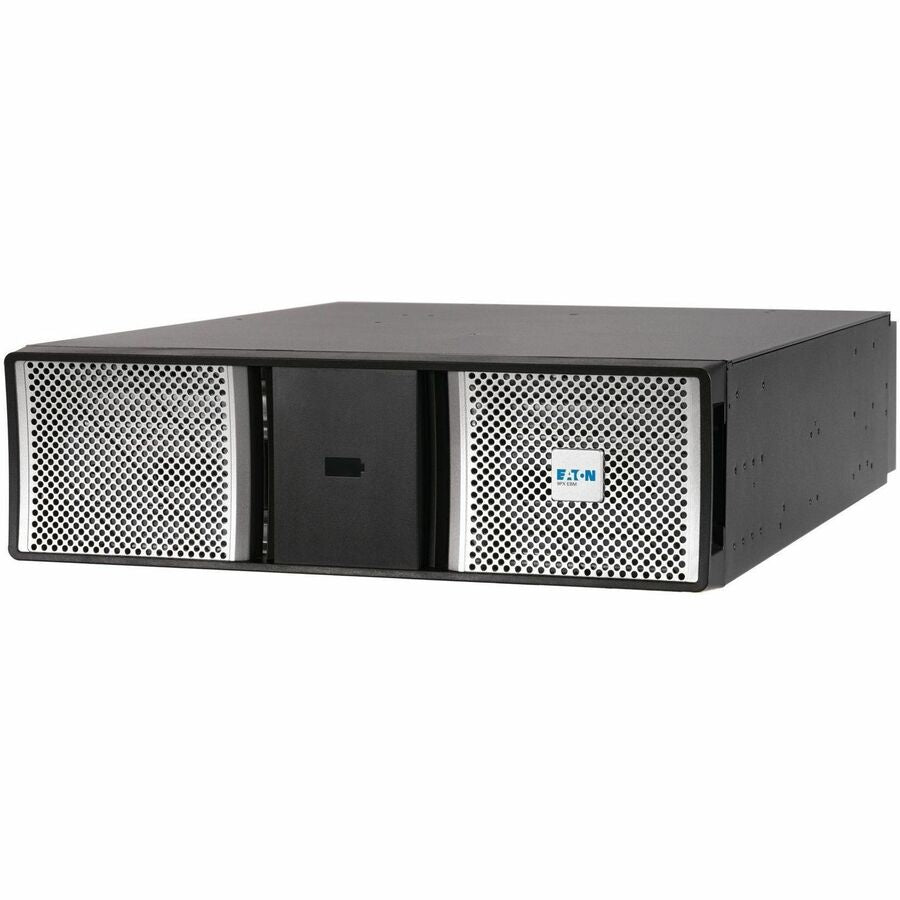

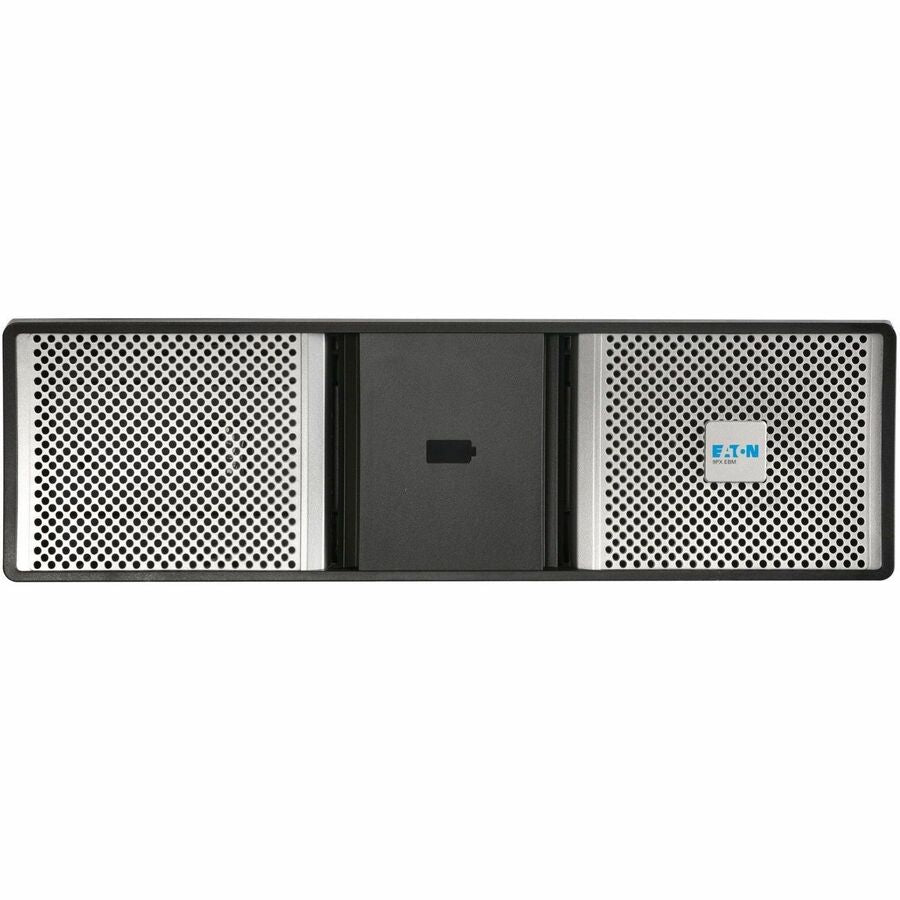

Supports 3U Rack or Tower Installation

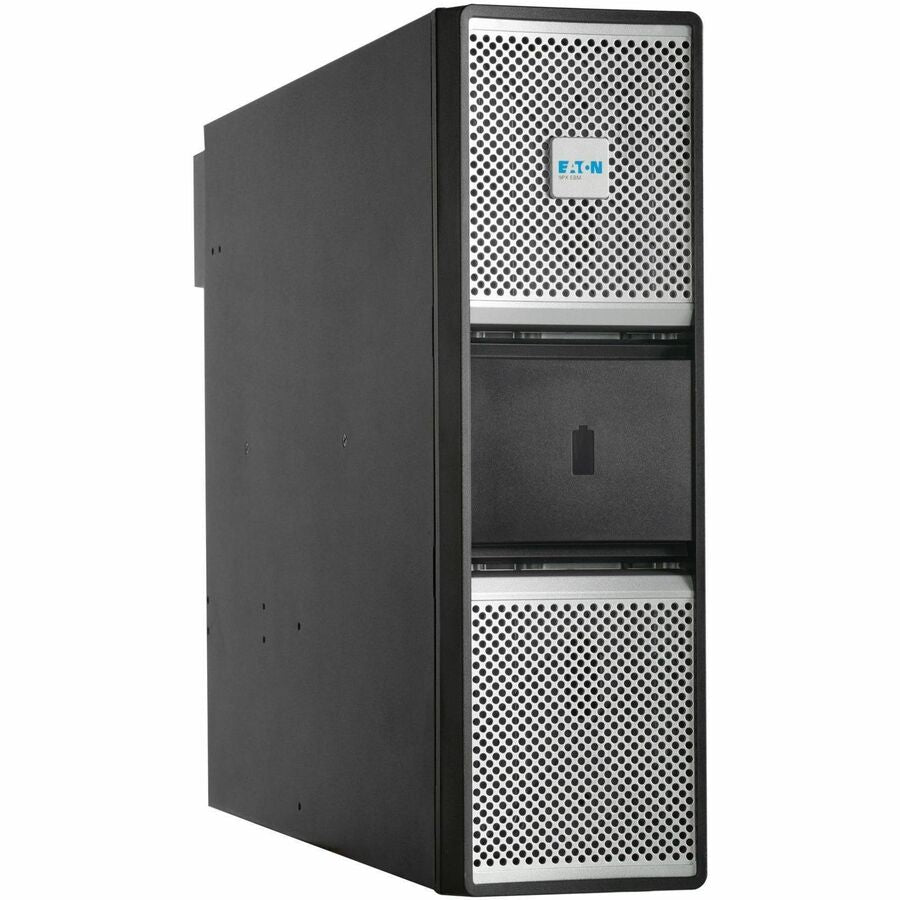

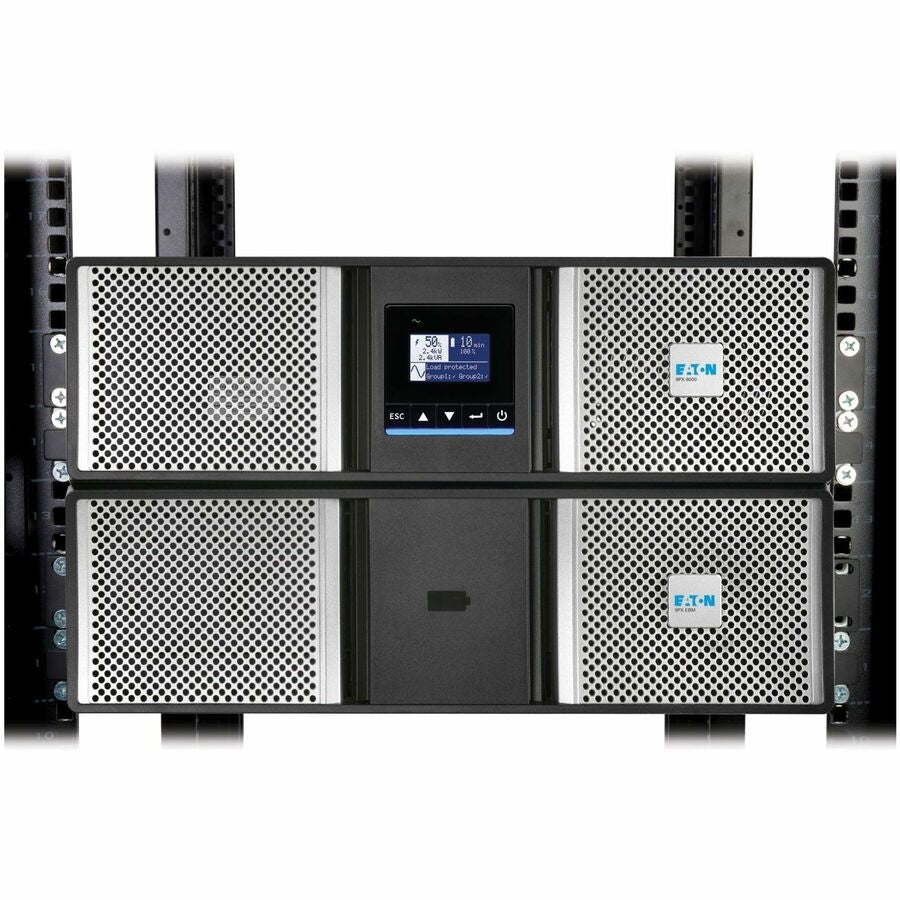

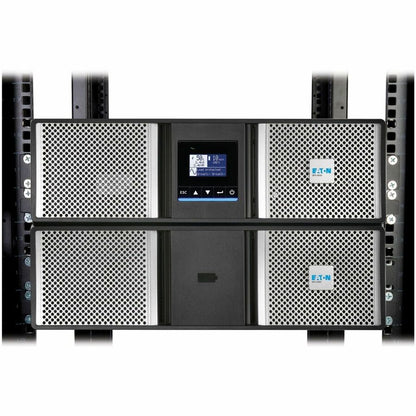

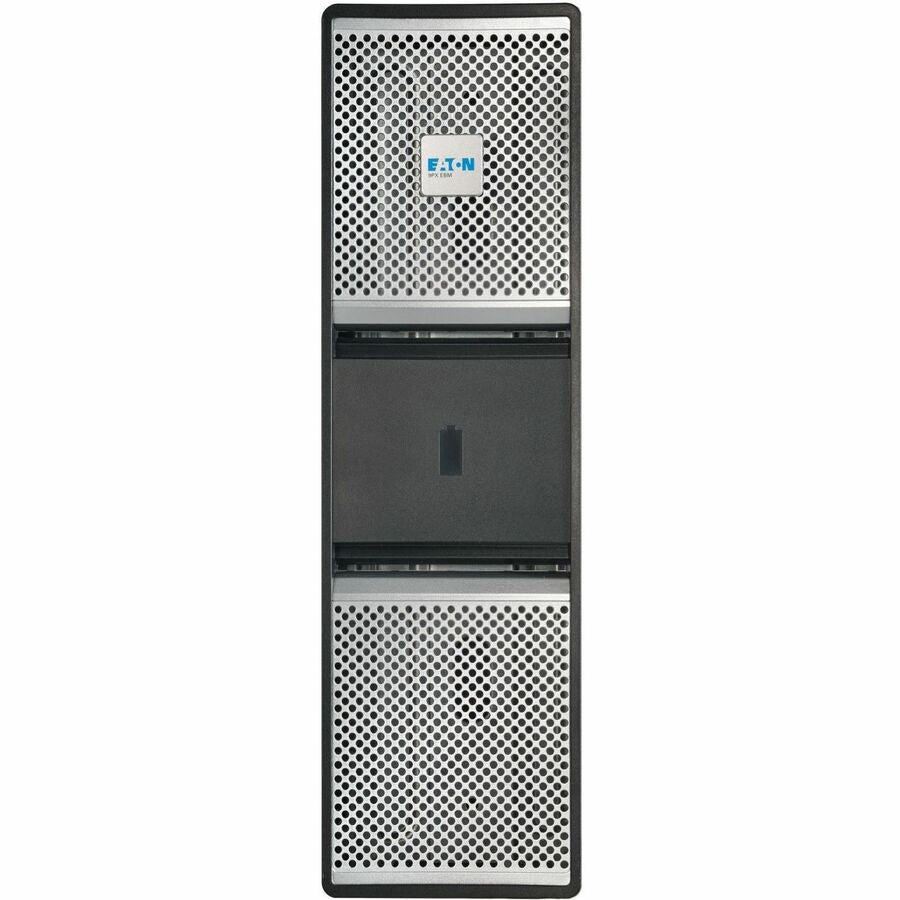

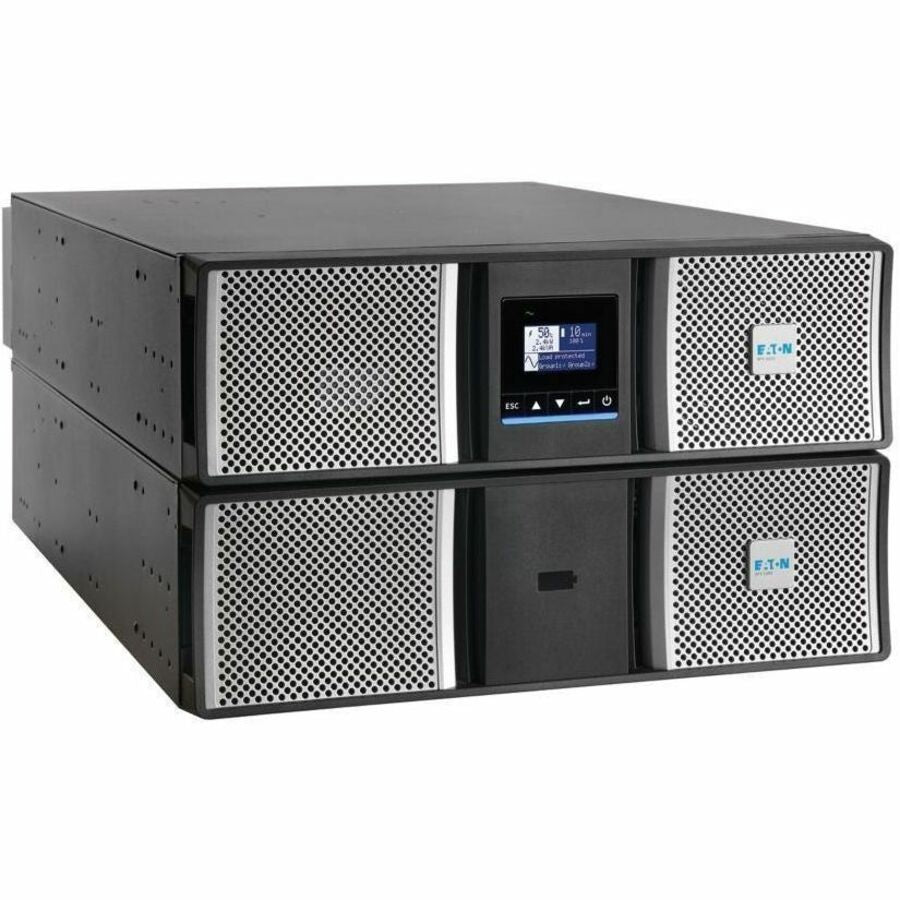

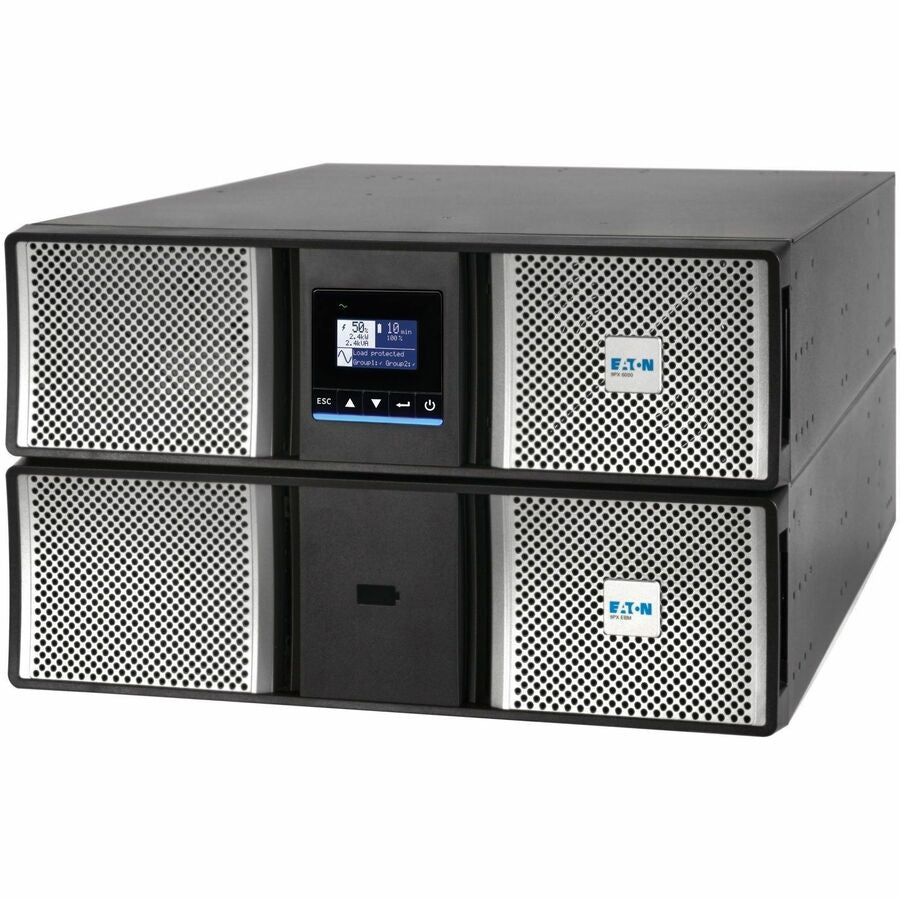

This backup battery pack's multi-use form factor supports mounting in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit. You can also adapt it for tower installation using the included support stands. For installation in 2-post racks, one RK2PC mounting kit (sold separately) is required for each UPS, EBM, PPDM or transformer.
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: 9PXEBM180RTG2
- Brand Name: Eaton
- Product Name: 9PXEBM180RTG2 Battery Unit
- Product Type: Battery Unit
Technical Information
- Battery Characteristics: Valve-regulated/User Replaceable
- Battery Chemistry: Lead Acid
- Hot Swappable: Yes
- Output Voltage: 180 V DC
- Battery Size: Proprietary Battery Size
Environmental Conditions
- Minimum Operating Temperature: 32°F (0°C)
- Maximum Operating Temperature: 104°F (40°C)
Physical Characteristics
- Height: 5.1"
- Width: 17.3"
- Depth: 25"
- Weight (Approximate): 150 lb
Miscellaneous
- Package Contents:
- 9PXEBM180RTG2 Battery Unit
- External Battery Cable, 1 ft. (0.3 m)
- Tower Support Stands
- Rack-mounting Hardware
- Quick Start Guide
- Compatibility:
Eaton's 9PX G2 UPS Systems:
- 9PX3K3UG2
- 9PX3K3UNP1G2
- 9PX3K3UNP2G2
- 9PX3K3UNTF5G2
- 9PX5KG2
- 9PX5KP1G2
- 9PX5KP2G2
- 9PX5KTF5G2
- 9PX6KG2
- 9PX6KIECG2
- 9PX6KP1G2
- 9PX6KP2G2
- 9PX6KTF5G2
- Energy Star: Yes
- Country of Origin: Philippines
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
