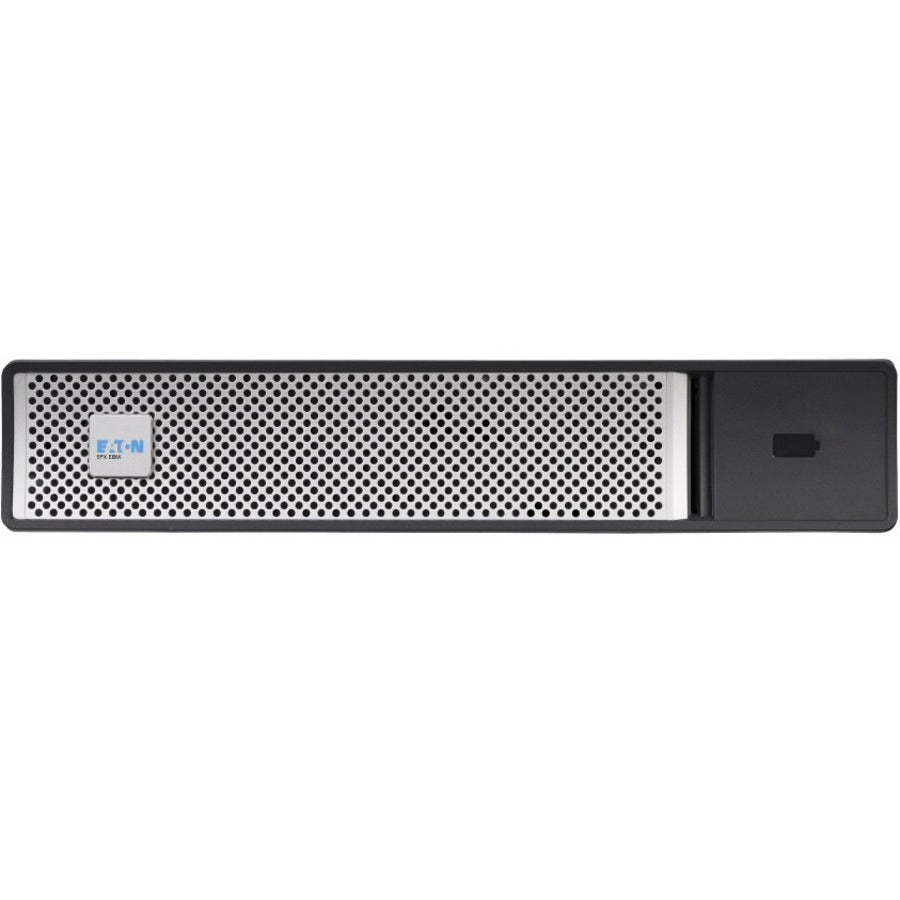

Eaton 48V Extended Battery Module (EBM) for 1000 and 1500 VA 5PX G2 UPS Systems, 2U Rack/Tower - 5PXEBM48RTG2
Key Features
- Connects to select expandable Eaton 5PX G2 UPS systems for extended runtime
- Daisy-chain connector supports additional battery packs for even longer runtime

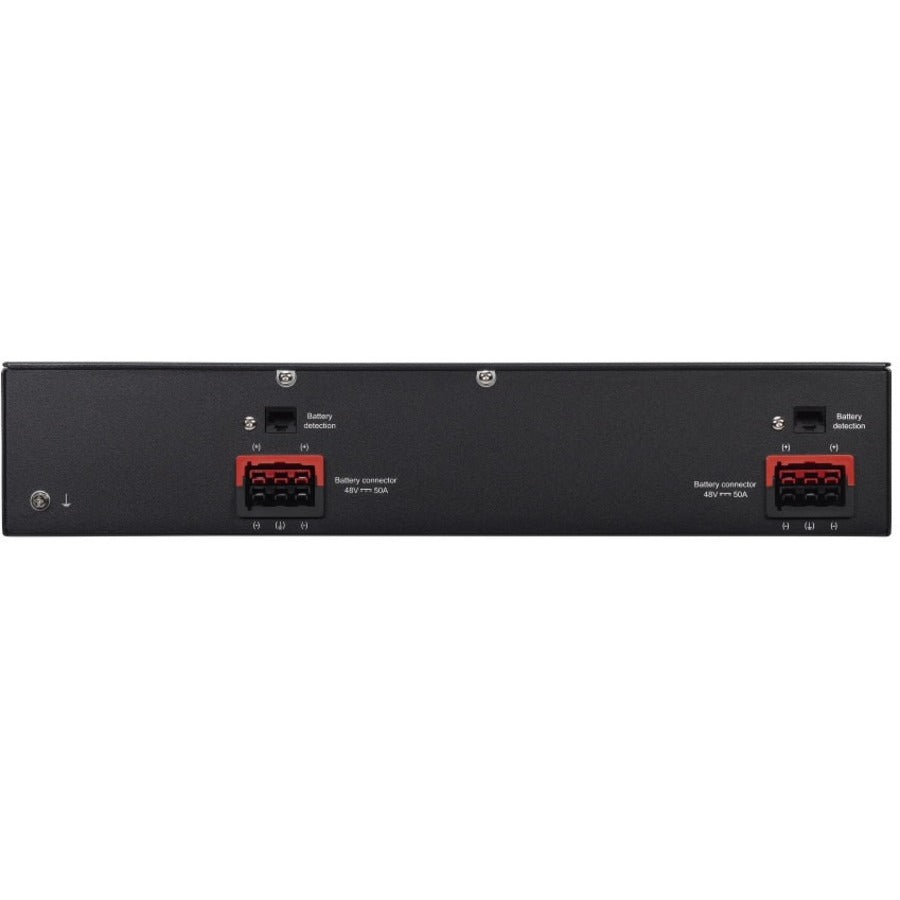

- Includes heavy-gauge cabling with high-current 48V DC connectors
- Supports 2U rack mounting or upright tower installation using included accessories
Product Overview

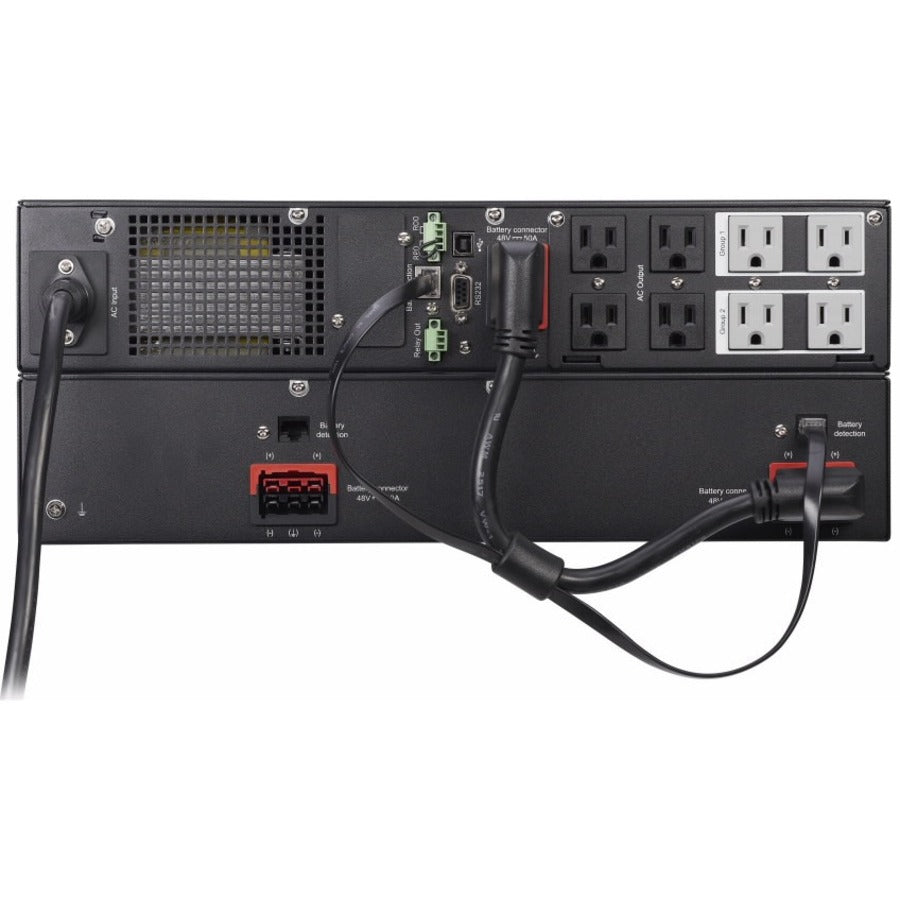

Backup Battery Module Gives Your Compatible Eaton UPS System Extended RuntimeThe 5PXEBM48RTG2 offers extended battery runtime when used in conjunction with Eaton's 5PX1000RTG2, 5PX1000RTNG2, 5PX1500RTG2, 5PX1500RTNG2 and 5PX1500HRTG2 5PX G2 UPS systems. It can also be daisy-chained for a maximum of four matching battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation.
Supports 2U Rack or Tower Installation
This backup battery pack's multi-use form factor supports mounting in 2U of space in EIA-standard 19-inch open frame racks or enclosures using the included 4-post rail kit and mounting brackets. Tower stands are also included for optional upright
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: 5PXEBM48RTG2
- Brand Name: Eaton
- Product Series: 5PX
- Product Name: 5PX G2 Extended Battery Module (EBM)
- Product Type: UPS Battery Pack
Technical Information
- Battery Characteristics: Sealed
- Battery Chemistry: Lead Acid
Physical Characteristics
- Height: 17.3"
- Width: 3.4"
- Depth: 17.6"
- Weight (Approximate): 61.30 lb
Miscellaneous
- Package Contents:
- 5PX G2 Extended Battery Module (EBM)
- 4-post Rail Kit
- Quick Start Guide
- Joining Brackets for Tower Configuration
- EBM Connector Cable
- Compatibility: Eaton UPS:
- 5PX1000RTG2
- 5PX1000RTNG2
- 5PX1500RTG2
- 5PX1500RTNG2
- 5PX1500HRTG2
- Country of Origin: Philippines
- Environmentally Friendly: Yes
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
- Limited Warranty: 3 Year
