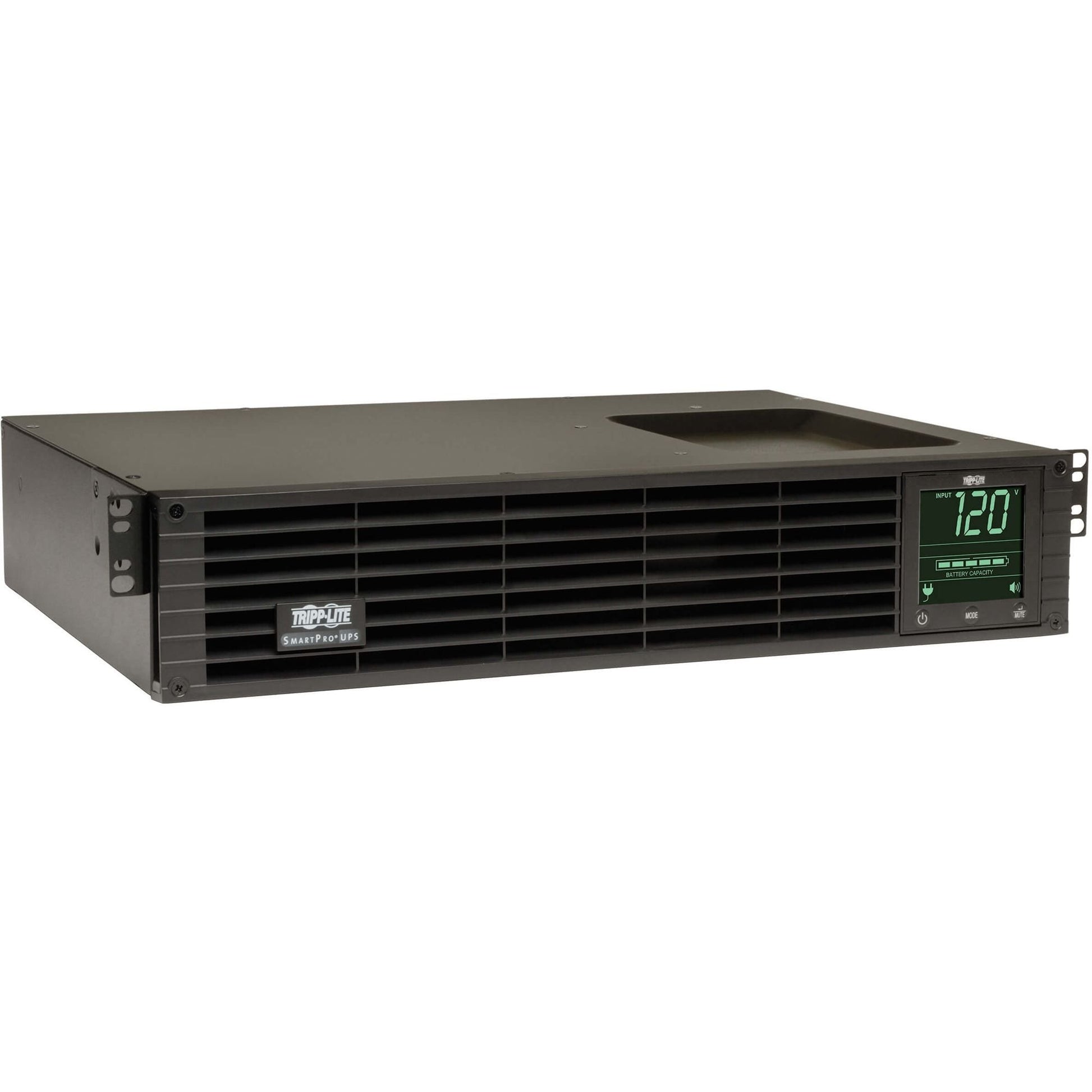

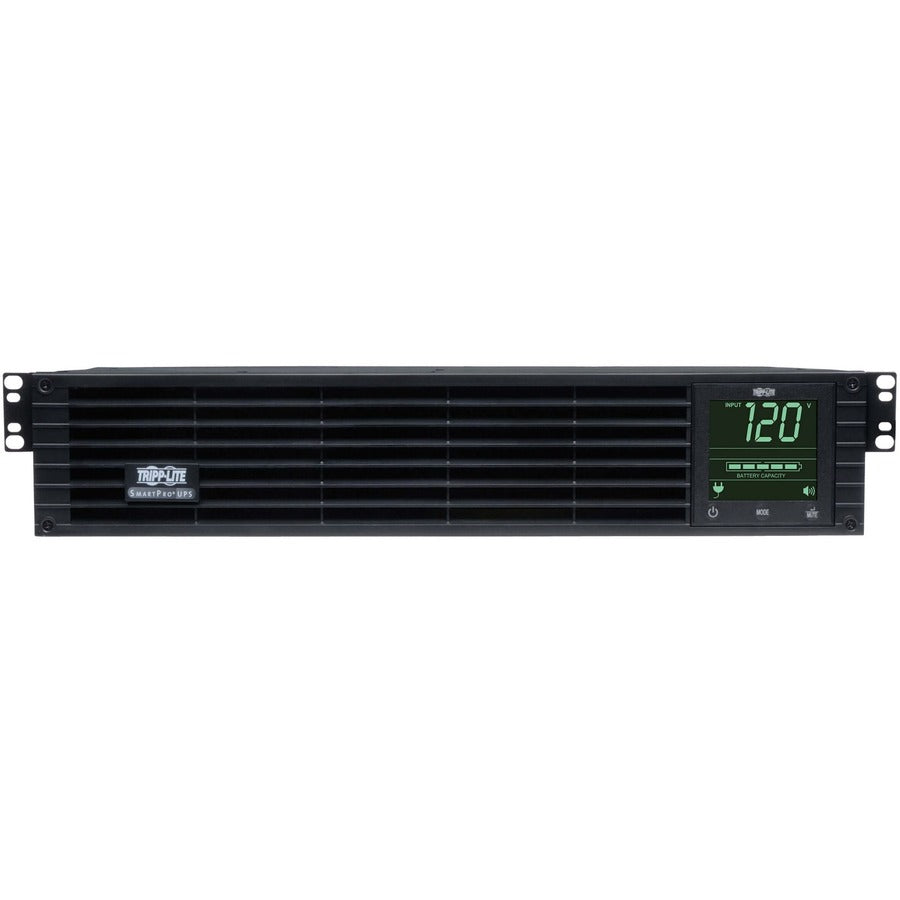

Eaton Tripp Lite Series SmartPro 120V 1.5kVA 1.35kW Line-Interactive Sine Wave UPS, 2U Rack/Tower, WEBCARDLX Network Interface, LCD, USB, 8 Outlets - SMART1500RM2UN
Key Features
- 13 min. runtime at half load; 4.5 min. at full load

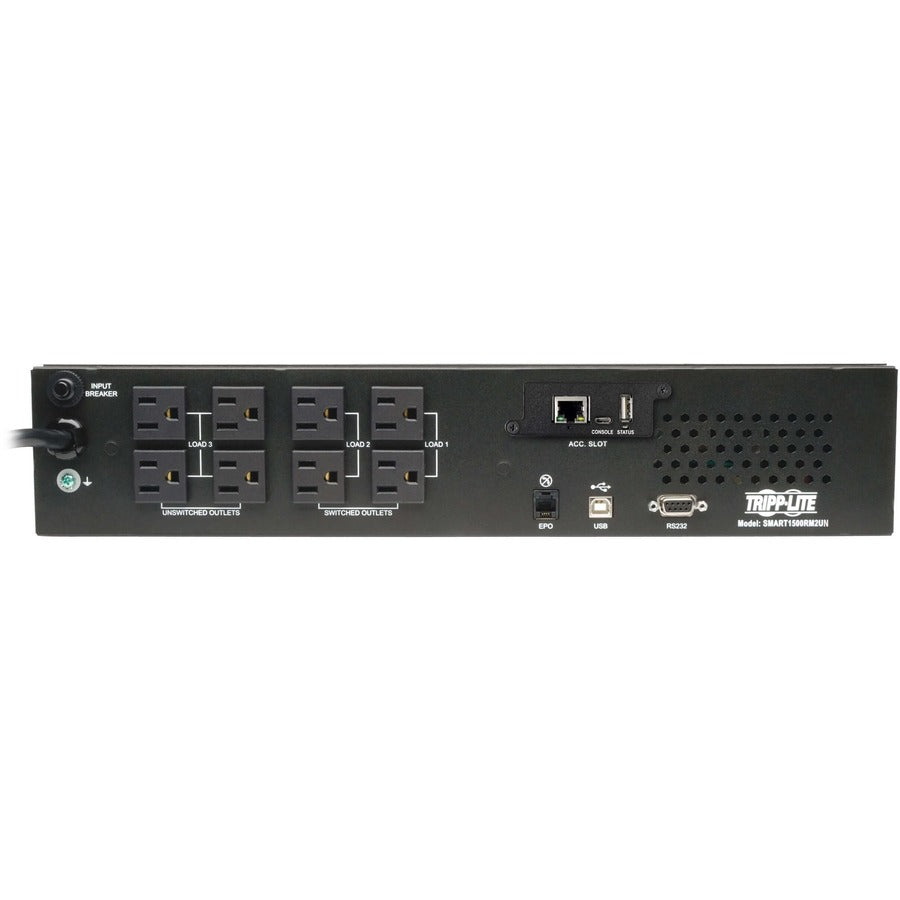

- 8 NEMA 5-15R outlets-4 switchable via network interface
- Corrects under- and overvoltages from 83V to 147V

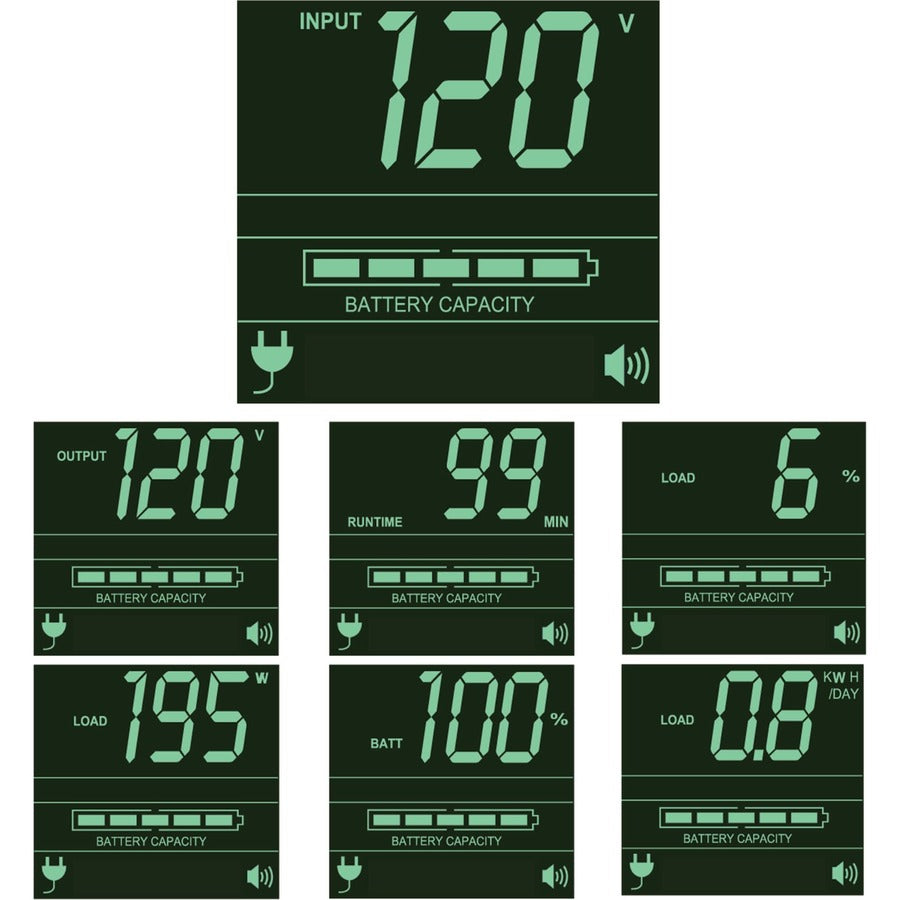

- Interactive LCD monitoring screen
- Pre-installed WEBCARDLX network interface for remote management
Product Overview
The SMART1500RM2UN SmartPro® 120V 1.5kVA 1.35kW Line-Interactive Sine Wave UPS provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up servers and network storage devices, the SMART1500RM2UN switches to battery mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss.

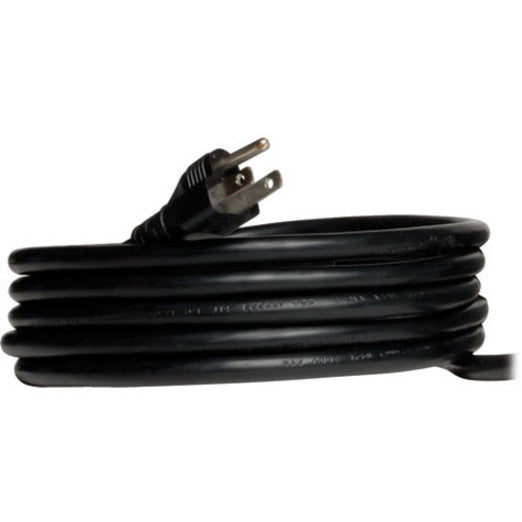

Featuring eight NEMA 5-15R outlets (four switchable) and a 10-ft. (3.05 m) power cord with 120V NEMA 5-15P input, the SMART1500RM2UN has an internal battery that provides 13 minutes of support at half load and 4.5 minutes at full load.
The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
Automatic voltage regulation (AVR) maintains 120V nominal output over an input range of 83V to 147V without using battery power. EMI/RFI noise filtering improves your equipment's performance and prevents damage.
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: SMART1500RM2UN
- Brand Name: Tripp Lite series
- Product Line: SmartPro
- Product Model: SMART1500RM2UN
- Product Name: SMART1500RM2UN UPS System with Pre-installed SNMPWEBCARD
- Product Type: Line-interactive UPS
Technical Information
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R
- Receptacle Detail: 8 x NEMA 5-15R
- Transfer Time: 4 ms
- Phase: Single Phase
- Application/Usage:
- Server
- Storage Device
- Telecommunication
Power Description
- Load Capacity (VA): 1500 VA
- Load Capacity (Watt): 1350 W
- Input Voltage: 120 V AC
- Output Voltage:
- 110 V AC
- 115 V AC
- 120 V AC
- Waveform Type: Pure Sine Wave
Management
- Network Management: SNMP Manageable
Interfaces/Ports
- Serial Port: Yes
- USB: Yes
Battery Information
- Backup/Run Time (Full Load): 4.50 Minute
- Backup/Run Time (Half Load): 13 Minute
- Hot Swappable: Yes
- Typical Battery Recharge Time: 4.50 Hour
Physical Characteristics
- Height: 3.5"
- Width: 17.3"
- Depth: 13.5"
- Rack Height: 2U
- Form Factor: Rack/Tower
- Weight (Approximate): 46.50 lb
Miscellaneous
- Package Contents:
- SMART1500RM2UN UPS System with Pre-installed SNMPWEBCARD
- Pre-installed WEBCARDLX network interface
- USB cable
- DB9 cable
- EPO cable
- Mounting hardware
- Owner's manual
- Software Included: PowerAlert Software
- Country of Origin: Taiwan
- TAA Compliant: Yes
Warranty
- Limited Warranty: 3 Year
