Eaton Tripp Lite Series TAA SmartPro 120V 1.5kVA 1.35kW Line-Interactive Sine Wave UPS, 2U, Extended Run, Network Card Options, LCD, USB, DB9 - SM1500RMXL2UTAA
Key Features
- 14 min. runtime at half load; 4.9 min. at full load
- 8 NEMA 5-15R outlets-4 switchable via network interface
- Corrects under- and overvoltages from 83V to 145V
- Expandable runtime with optional external battery packs
- Network power management and control capability
Product Overview
Protects Mission-Critical Rack-Mounted Equipment
- Provides fully regulated sine wave AC output for servers, network storage devices and telecom hardware
- Audible alarm signals loss of utility power, overload, low battery and more
- 8 NEMA 5-15R outlets
- 10-ft. (3.05 m) power cord with 120V NEMA 5-15P input
- 570-joule surge suppression rating
Reliable Battery Backup with Expandable Runtime
- Supports half load up to 14 min. and full load up to 4.9 min.
- Internal batteries designed for hot-swap field replacement
- Expandable runtime with optional external battery packs, such as Tripp Lite's BP36V15-2U
- 95% line-power efficiency rating saves money in energy costs
Switchable Outlets
- 2 load banks, each with 2 outlets controllable remotely to reboot equipment or shed nonessential loads
Automatic Voltage Regulation (AVR)
- Maintains 120V nominal output over input range of 83V-145V without using battery power
EMI/RFI Line Noise Filtering
- Removes electromagnetic and radio frequency interference that can disrupt or damage equipment's performance

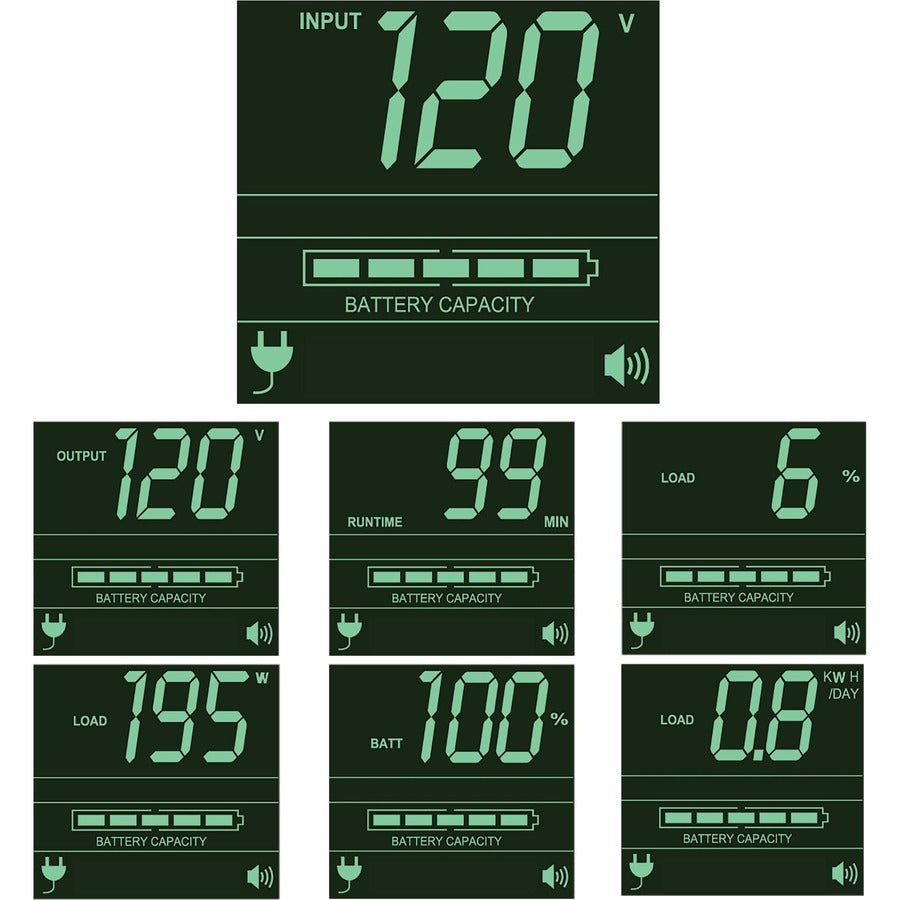

Interactive LCD Screen
- Front-panel LCD monitors power status, operating data, voltage, alarm and other options
- Rotates for easy viewing in rack-mount or tower configurations
Optional Network Management Cards
- Compatible with Tripp Lite UPS management cards, including TLNETCARD, WEBCARDLX and SNMPWEBCARD

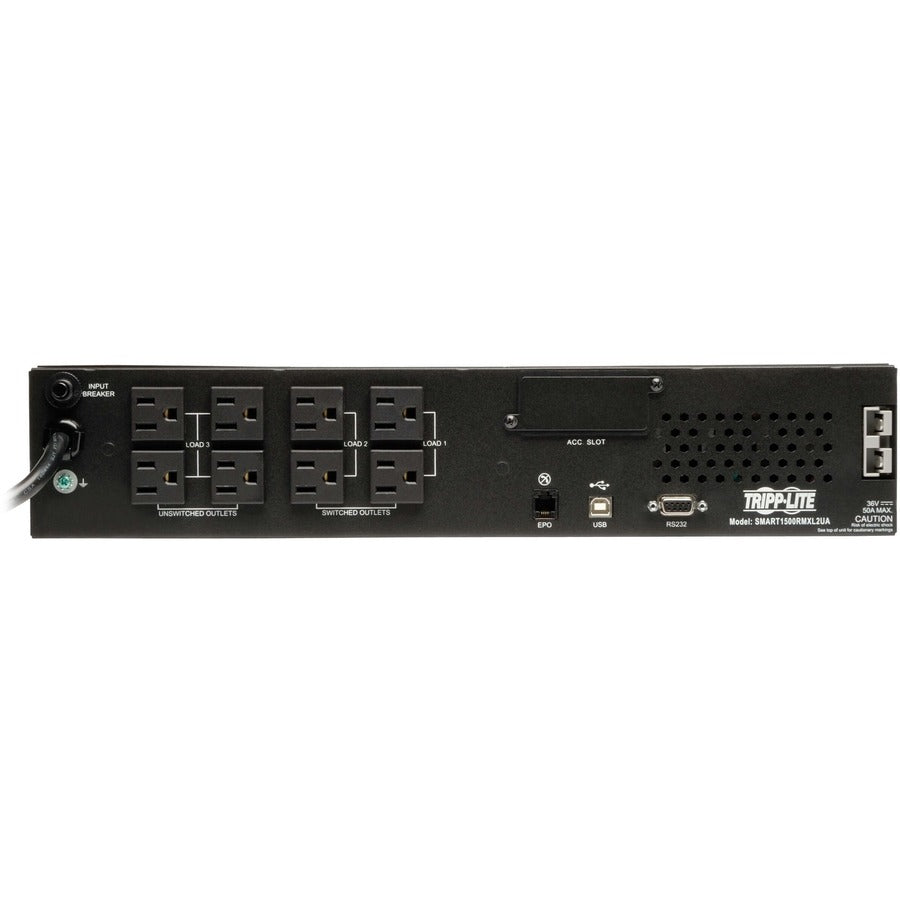

Communications Ports
- USB and DB9 ports enables data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from tripplite.eaton.com/products/power-alert
- EPO port supports emergency shutdown in large facilities
Versatile Installation Options
- Hardware included for 4-post mounting in 2U of EIA-standard 19 in. rack
- Mounts on wall or 2-post rack with optional 2POSTRMKITWM accessory
- Mounts in upright tower position with optional 2-9USTAND accessory
- Mounts to front rails of 2- or 4-post rack with optional UPSHDEARKIT accessory
TAA Compliant
- Complies with Federal Trade Agreements Act (TAA) for GSA Schedule purchases
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: SM1500RMXL2UTAA
- Brand Name: Tripp Lite series
- Product Line: SmartPro
- Product Model: SM1500RMXL2UTAA
- Product Name: SM1500RMXL2UTAA 1500 VA Tower/Rack Line Interactive UPS TAA Compliant
- Product Type: Line-interactive UPS
Technical Information
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R
- Receptacle Detail: 8 x NEMA 5-15R
Power Description
- Load Capacity (VA): 1500 VA
- Load Capacity (Watt): 1350 W
- Input Voltage: 110 V AC
- Input Current: 10.10 A
- Output Voltage: 120 V AC
Management
- Network Management: SNMP Manageable
Interfaces/Ports
- Serial Port: Yes
- USB: Yes
Battery Information
- Backup/Run Time (Full Load): 4.90 Minute
- Backup/Run Time (Half Load): 14 Minute
- Hot Swappable: Yes
- Typical Battery Recharge Time: 4.50 Hour
Physical Characteristics
- Height: 3.5"
- Width: 17.5"
- Depth: 13.5"
- Rack Height: 2U
- Form Factor: Rack/Tower
- Weight (Approximate): 43.50 lb
Miscellaneous
- Package Contents:
- SmartPro SM1500RMXL2UTAA 1500 VA Tower/Rack Mountable UPS
- PowerAlert Software
- USB Cable
- Serial Cable
- Mounting Hardware for 4 Post Rackmount Installation
- Cable for Emergency Power Off Interface
- Instructional Manual with Warranty Information
- Software Included: PowerAlert Software
- Country of Origin: Taiwan
- TAA Compliant: Yes
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 2 Year
