Eaton Tripp Lite Series TAA SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS, 3U, 120/230V input, Network Card Options, USB, DB9 - SM2200RMDVTAA
Key Features
- 2200VA / 2.2kVA / 1920W line interactive 3U rack/tower UPS; 0.9 power factor
- 95% line-mode efficiency, 2 switched load banks
- C20 inlet & 4 international input line cords, 4 5-15R & 4 5-15/20R outlets
- Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
- Maintains 120V output with 120V or 230V input, Sine wave output
- USB port, RS232, EPO and optional SNMP/WEB card slot; Detailed status LEDs
Product Overview
Tripp Lite's dual input voltage SM2200RMDVTAA line interactive UPS system maintains 120V nominal output when powered by North American 120V or International 230V input. 3U rack / tower form factor with an installed depth of only 22.5 inches. Expandable battery runtime with optional BP48V24-2U and BP48V60RT3U external battery packs. Includes C20 power inlet with set of 4 international cordsets and both NEMA 5-15R and 5-15/20R output receptacles. Network-grade AC surge and noise suppression. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Integrated 2-bank programmable PDU switching supports load shedding and remote-reboot of up to 2 individual connected devices. 3-stage metered current monitoring and battery charge status LEDs. 95% efficiency in line power mode.
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: SM2200RMDVTAA
- Brand Name: Tripp Lite series
- Product Line: SmartPro
- Product Model: SM2200RMDVTAA
- Product Name: SmartPro SM2200RMDVTAA 2200 VA Tower/Rack Mountable UPS
- Product Type: Line-interactive UPS
Technical Information
- Receptacle Type:
- NEMA 5-15/20R
- NEMA 5-15R
- Receptacle Detail:
- 4 x NEMA 5-15/20R
- 4 x NEMA 5-15R
- Transfer Time: 4 ms
Power Description
- Load Capacity (VA): 2200 VA
- Load Capacity (Watt): 1920 W
- Input Voltage:
- 110 V AC
- 220 V AC
- Input Current: 16 A
- Output Voltage: 120 V AC
Management
- Network Management: SNMP Manageable
Interfaces/Ports
- Serial Port: Yes
- USB: Yes
Battery Information
- Backup/Run Time (Full Load): 12 Minute
- Backup/Run Time (Half Load): 30 Minute
- Hot Swappable: Yes
- Typical Battery Recharge Time: 4.50 Hour
Physical Characteristics
- Height: 5.3"
- Width: 17.5"
- Depth: 25.3"
- Rack Height: 3U
- Form Factor: Rack/Tower
- Weight (Approximate): 104.25 lb
Miscellaneous

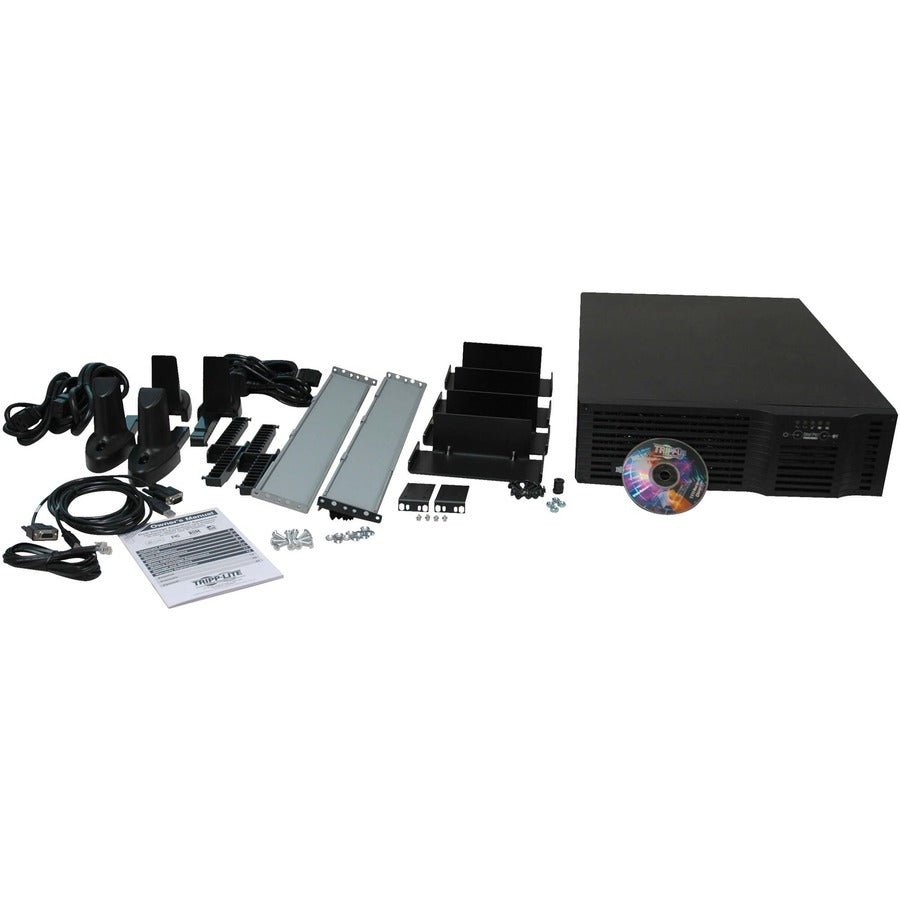

- Package Contents:
- SmartPro SM2200RMDVTAA 2200 VA Tower/Rack Mountable UPS
- 5 x International Input Power Cables
- USB Cable
- Serial Cable
- EPO Cable
- PowerAlert Software CD
- Tower Stand Kit
- 4 Post 19 inch Rackmount Mounting Kit
- 2 Post 19 inch Rackmount Mounting Kit
- User Manual
- Software Included: PowerAlert Software
- Country of Origin: Taiwan
- TAA Compliant: Yes
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 2 Year
