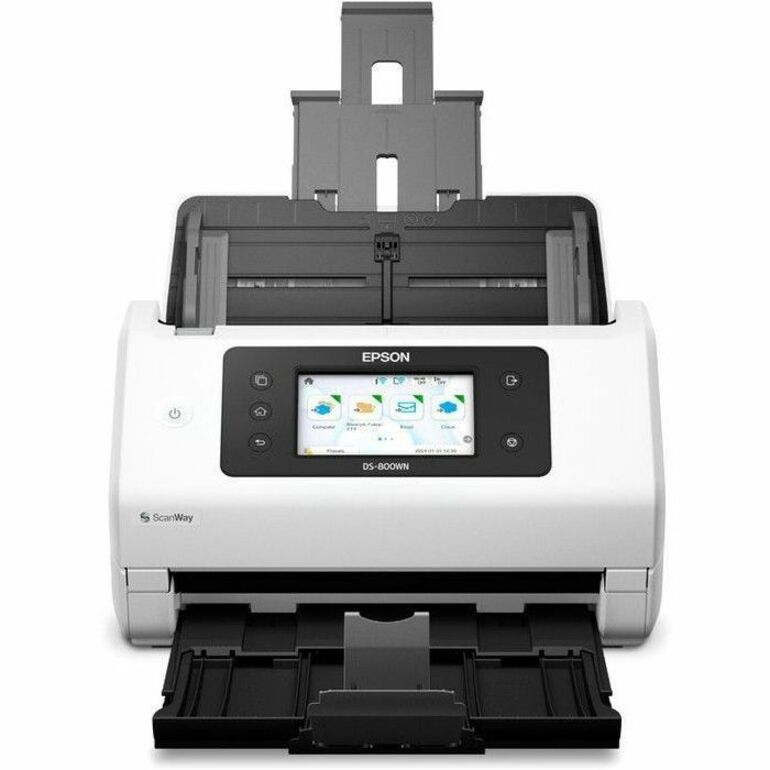

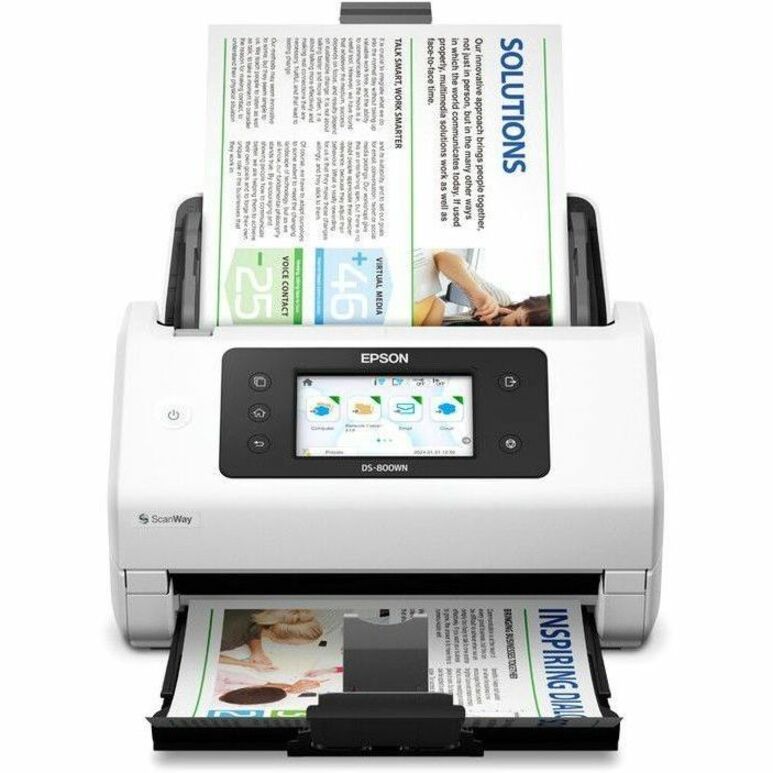

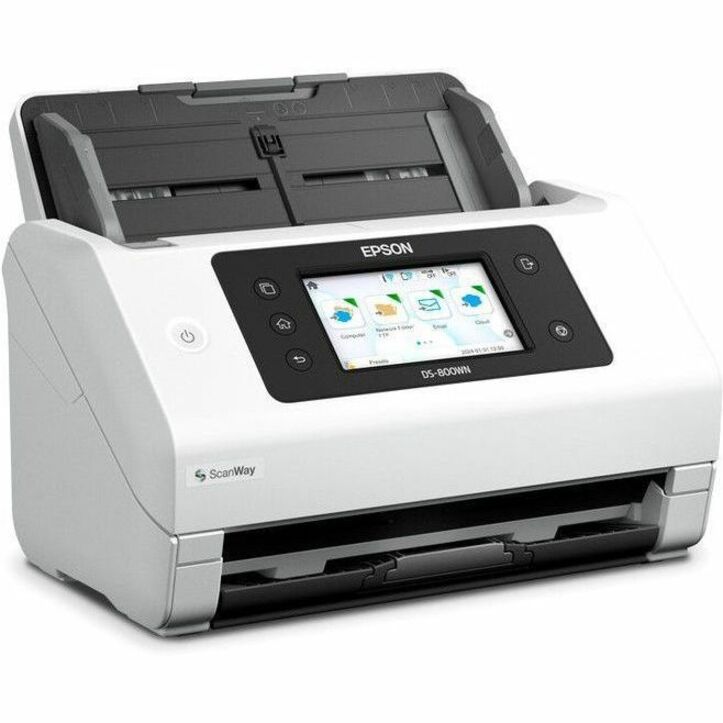

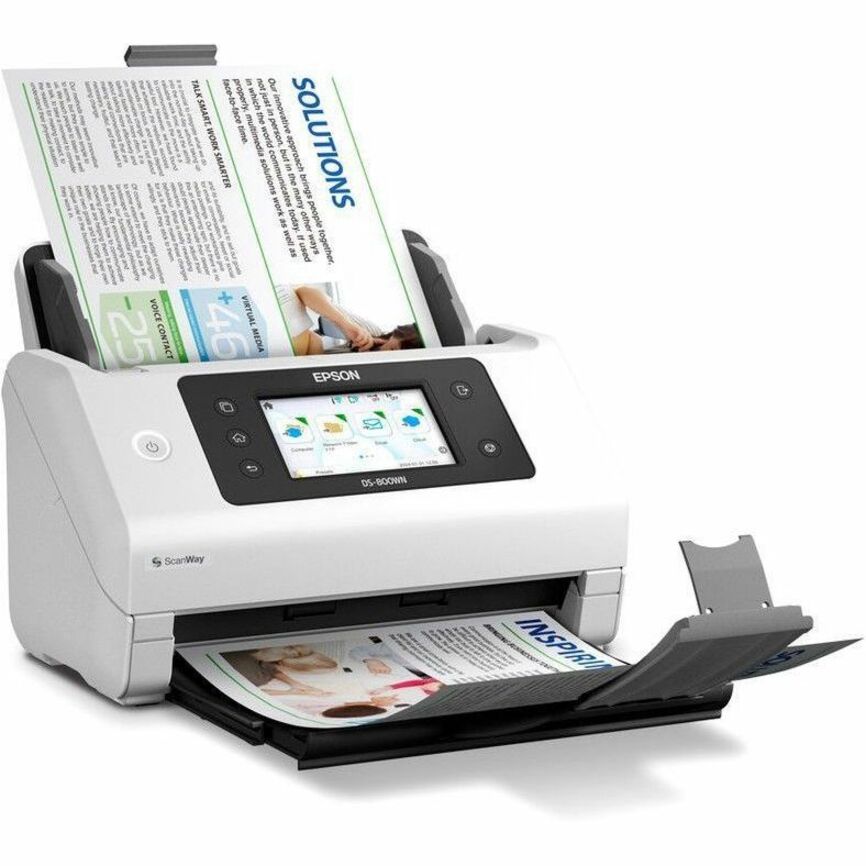

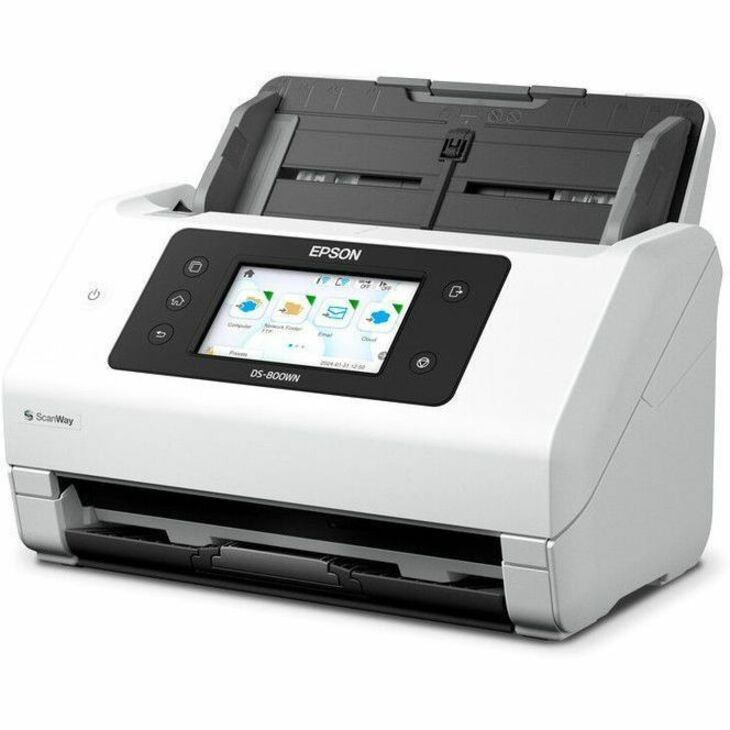

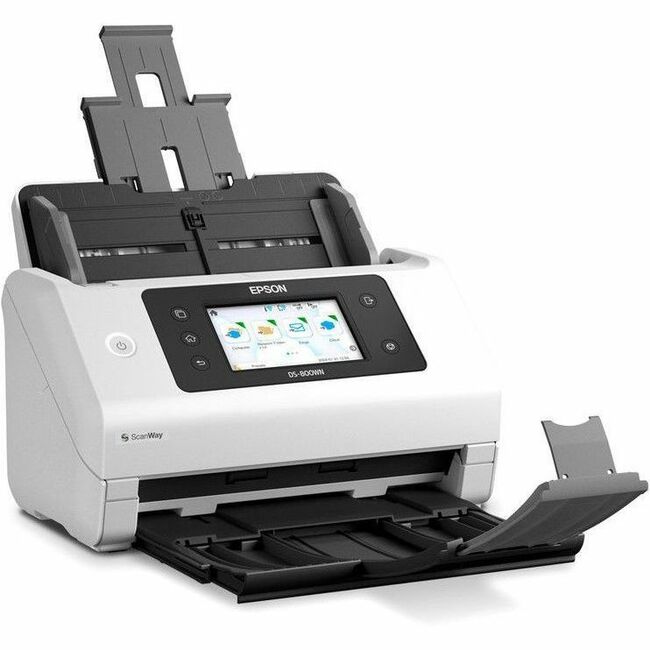

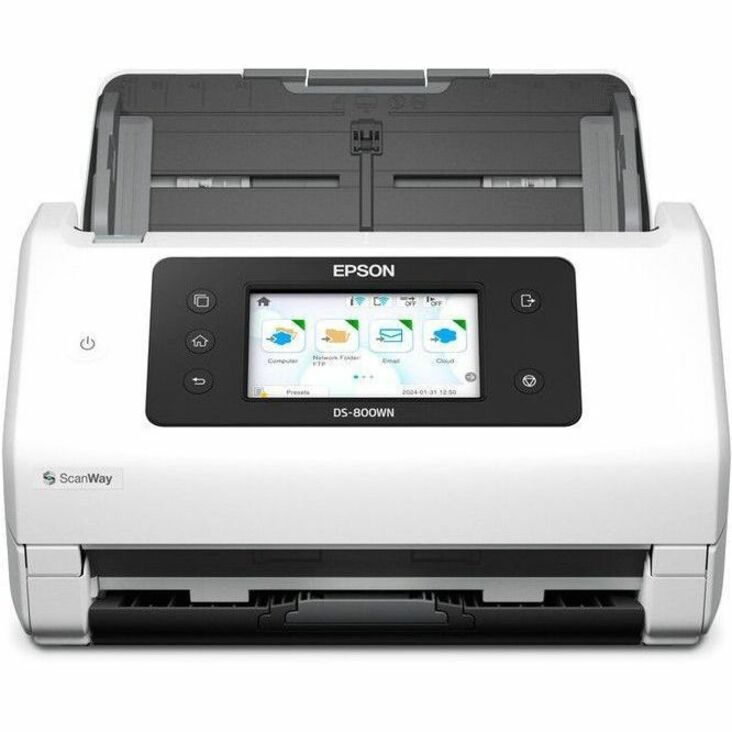

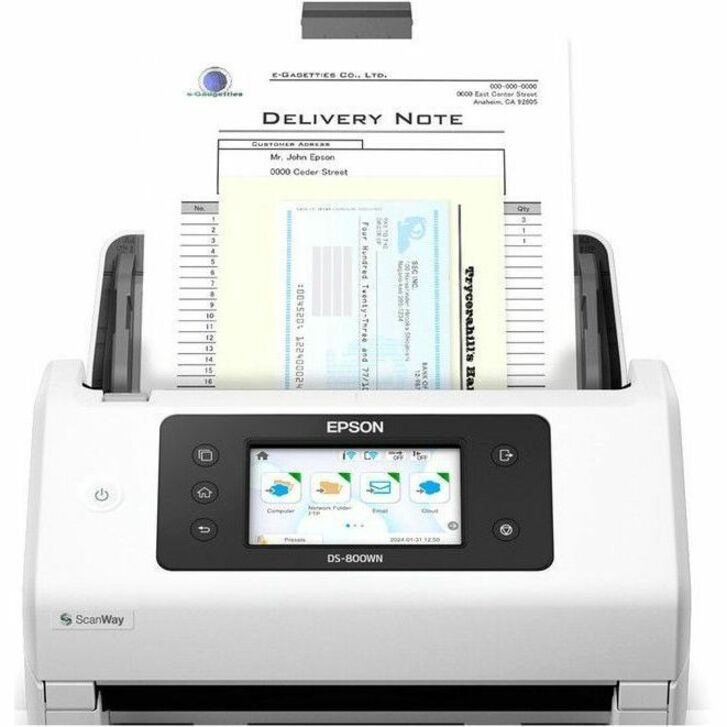

Epson EdgeLink DS-800WN ADF Scanner - 600 dpi Optical - B11B275201
Key Features
- ®
- - centralized fleet management, user authentication and reporting with optional Epson software
- - delivers precise, sharp images and high OCR accuracy while also removing unwanted artifacts
- - for drop-in compatibility with most software applications
- - scan to USB drive, network folders, email or popular cloud storage services4 without a computer
- drivers included
- Easily manage your fleet's workflow
- From a global leader in imaging technology
- ScanWay PC-free scanning for easy sharing and collaboration
- TWAIN and ISIS
Product Overview
High-performance scanning for your document management solution
The DS-800WN is designed to be the perfect edge device for pulling digitized scan data into your document management solutions. EdgeLink™ scanners from Epson have built-in integrations with supported third-party software platforms. This allows end users to access their applications directly through the scanner's large 4.3" color touchscreen. For smaller businesses and organizations, Epson's powerful Document Capture Pro software is included, with features such as scanning to searchable PDF files. With accurate, high-quality scans at speeds up to 50 ppm/100 ipm and a 100-page Auto Document Feeder (ADF), the DS-800WN is engineered to bring speed, reliability and ease of use to your workflows. The scanner also supports ScanWay™ PC-free scanning, allowing you to scan to a USB flash drive, email, network folders or popular cloud services without the need to install any software. For implementations needing advanced administration, Epson offers a robust suite of optional solutions for the scanner that facilitate centralized management, reporting, and server-based capture and authentication (including Active Directory). Make document management work for you with the exceptional DS-800WN.
EdgeLink for supported document management solutions
Built-in direct integrations with supported third-party solutions

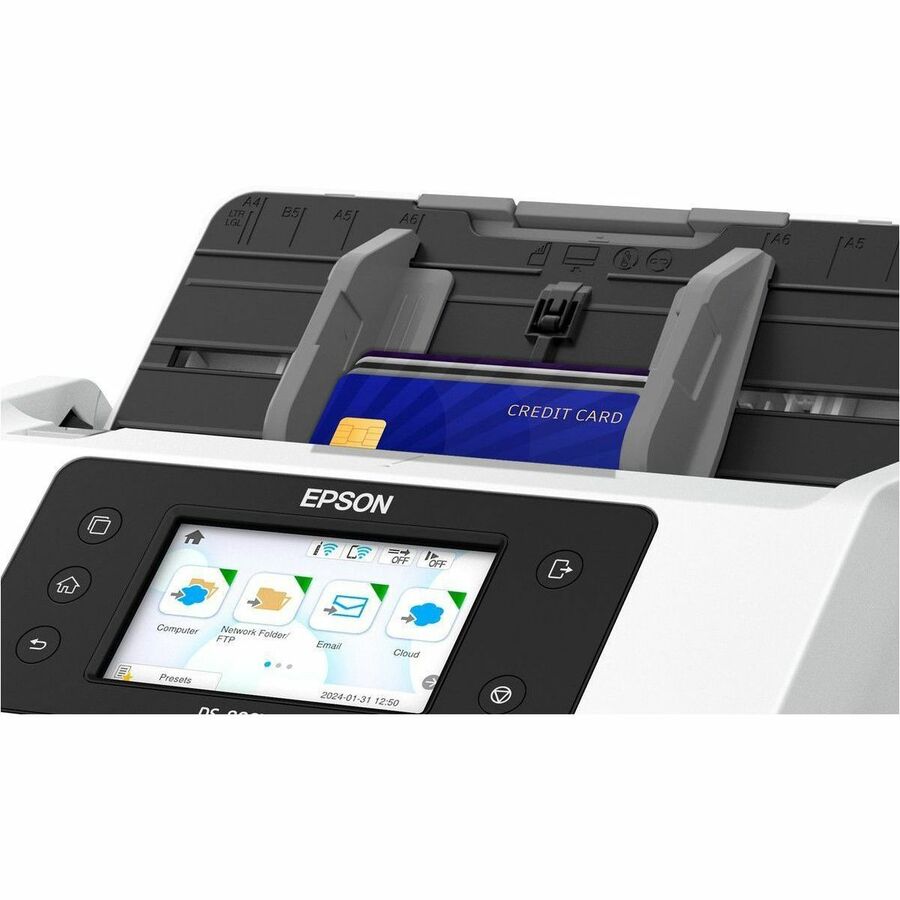

Intuitive touch panel
Easy-to-use, customizable 4.3" color LCD touchscreen for simple, mistake-free operation
Quickly scan two sides at once
One-pass duplex scanning at speeds up to 50 ppm/100 ipm; 100-sheet Auto Document Feeder (ADF)
Built for reliability
Engineered for heavy usage, with a peak daily duty cycle of up to 8,000 pages
Versatile connectivity
Built-in LAN and wireless networking and USB 3.2 Gen 1 connectivity allow for easy workgroup sharing
Document Capture Pro imaging software included
Provides powerful image enhancement and indexing options such as optical character recognition (OCR)
General Information
- Manufacturer: Epson Corporation
- Manufacturer Part Number: B11B275201
- Brand Name: Epson
- Product Line: EdgeLink
- Product Series: DS
- Product Model: DS-800WN
- Product Name: DS-800WN EdgeLink Wireless Network Color Document Scanner
- Product Type: ADF Scanner
Technical Information
- Image Sensor Type: CIS
- Optical Resolution (dpi): 600
- Scan Color: Color
- Color Depth: 24-bit
- Grayscale Depth: 24-bit
- Maximum Mono Scan Speed (ppm): 50
- Maximum Color Scan Speed (ppm): 50
- Maximum Mono Scan Speed (ipm): 100
- Maximum Color Scan Speed (ipm): 100
- Media Type:
- Letter
- Embossed Card
- Business Card
- Plastic Card
- ID Card
- Media Size:
- 2" x 2"
- 8.50" x 20 ft
- 8.50" x 17.92 ft
- ADF Capacity: 100 Sheets
- PC Free Scanning: Yes
- Duplex Scanning: Yes
- Scanning Modes: Duplex
- Duty Cycle: 8000
- Light Source: RGB LED
Network & Communication
- Wireless LAN: Yes
Interfaces/Ports
- USB: Yes
- USB Standard: USB 3.2
Software
- Operating System Supported:
- Windows 10
- Windows 11
- Windows Server 2012 R2
- Windows Server 2012
- Windows Server 2016
- Windows Server 2019
- Windows Server 2022
- macOS 10.14.x
- macOS 14.x
Physical Characteristics
- Height: 6.6"
- Width: 11.7"
- Depth: 6.7"
- Weight (Approximate): 8.20 lb
Miscellaneous
- Package Contents:
- DS-800WN EdgeLink Wireless Network Color Document Scanner
- Start Here Poster
- SuperSpeed USB 3.0 cable
- AC Adapter with Power Cable
- Energy Star: Yes
- Country of Origin: Indonesia
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 1 Year
