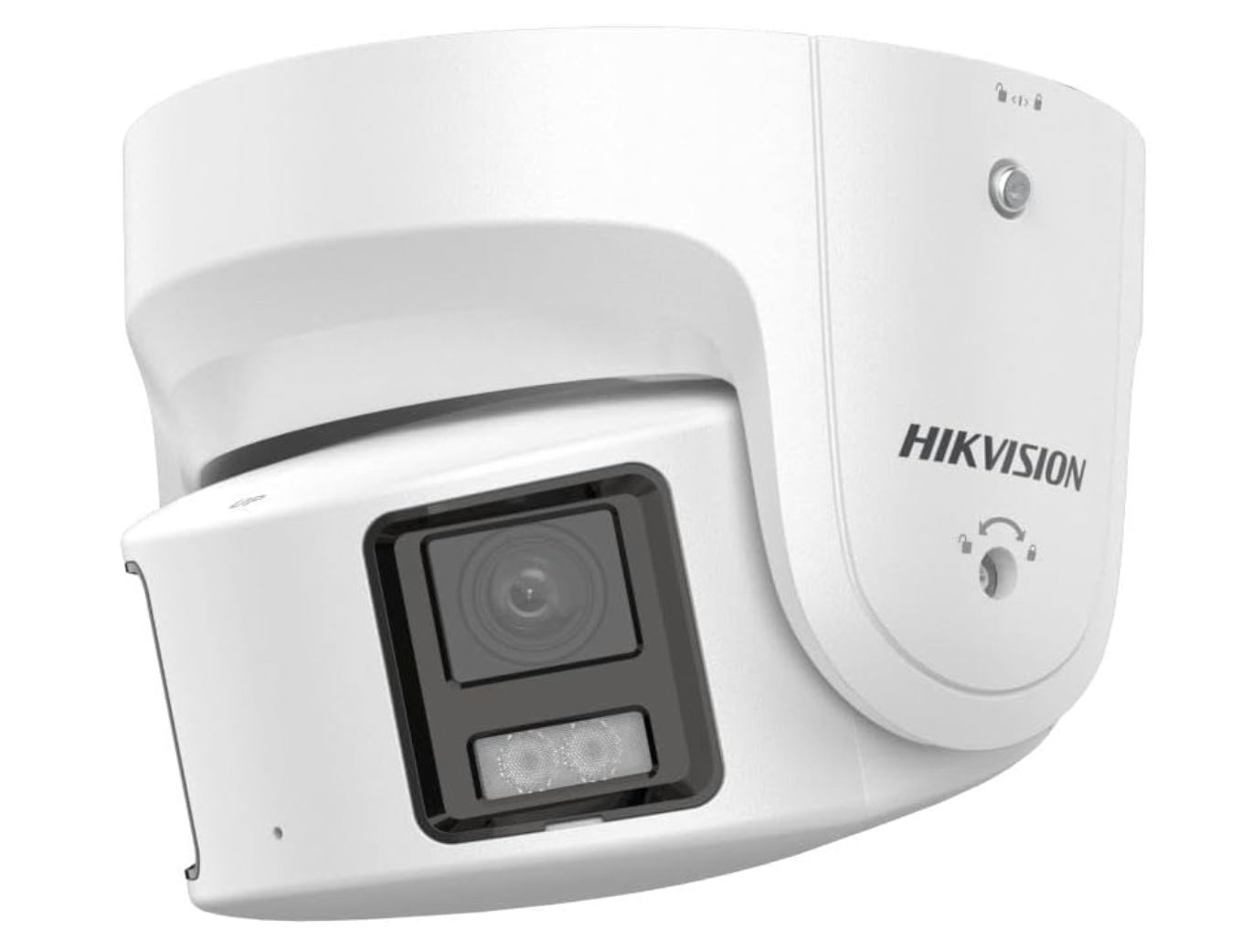

Camera
Image Sensor: 2 × 1/1.8" Progressive Scan CMOS
Max. Resolution: 5120 × 1440
Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with light
Shutter Time: 1/3 s to 1/100,000 s
Angle Adjustment: Pan: 0° to 30°, Tilt: –75° to 75°
Lens

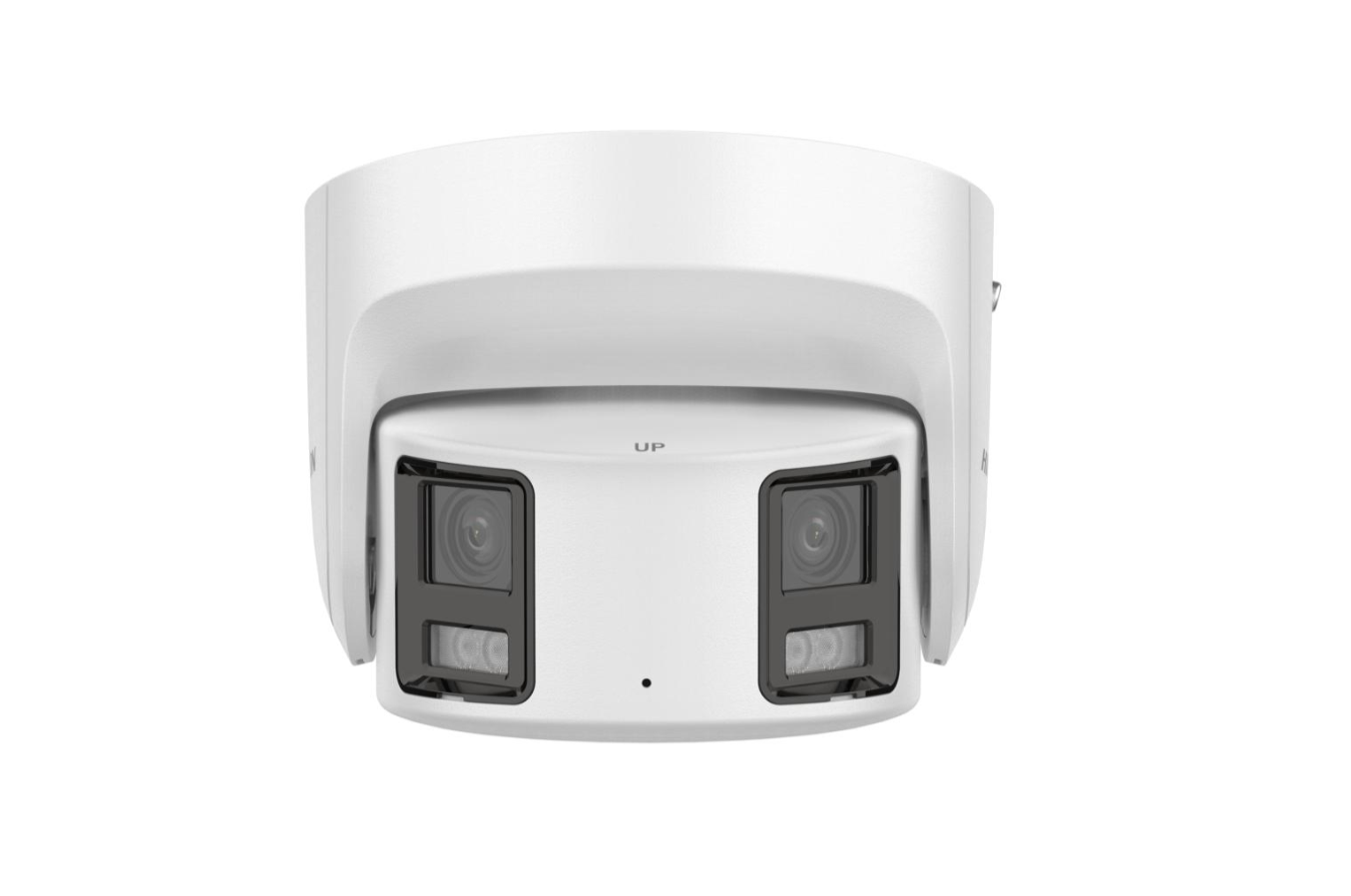

Type: Fixed focal lens, Dual 4 mm
Field of View: Horizontal: 180°, Vertical: 44°
Mount: M16
Iris Type: Fixed
Aperture: F1.0
Depth of Field: 3.6 m to ∞
DORI (Detect, Observe, Recognize, Identify)
4 mm: D: 77 m, O: 30 m, R: 15 m, I: 7 m
Illuminator
Supplement Light: White Light
Range: Up to 30 m
Smart Supplement Light: Yes
Video
Main Stream:
WDR On – 50 Hz: 12.5 fps / 60 Hz: 15 fps (5120 × 1440)
WDR Off – 50/60 Hz: 20 fps (5120 × 1440)
Sub-Stream:
WDR On – 50 Hz: 12.5 fps / 60 Hz: 15 fps (1920 × 536, 960 × 272)
WDR Off – 50/60 Hz: 20 fps (1920 × 536, 960 × 272)
Compression: H.265+/H.265/H.264+/H.264 (main), H.265/H.264/MJPEG (sub)
Bit Rate: 32 Kbps to 16 Mbps
H.264 Type: Baseline/Main/High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR/VBR
SVC: H.264 and H.265
ROI: 1 fixed region (main stream)
Audio
Type: Mono sound
Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
Bit Rate: 64 Kbps (G.711), 16 Kbps (G.722.1/G.726), 32–192 Kbps (MP2L2), 8–320 Kbps (MP3), 16–64 Kbps (AAC-LC)
Sampling Rate: 8/16/32/44.1/48 kHz
Noise Filtering: Yes
Network
Protocols: TCP/IP, HTTPS, RTP, RTSP, NTP, SNMP, QoS, IPv4/IPv6, SSL/TLS, ISUP, WebSocket, and more
Live View: Up to 6 channels
API: ONVIF (S, G, T), ISAPI, SDK
Users: Up to 32 users (Admin, Operator, User)
Security: TLS 1.2, HTTPS, IP filtering, password, 802.1X, WSSE, watermark, MAC host auth
Storage: NAS (NFS/SMB), ANR, NVR
Client Software: iVMS-4200, Hik-Connect, Hik-Central
Browsers: IE10/11 (plug-in), Chrome, Firefox, Edge (plug-in free)
Image Settings: Brightness, Contrast, Saturation, Sharpness, Gain, White Balance
WDR: 130 dB
SNR: ≥ 52 dB
Enhancement: BLC, HLC, 3D DNR
Privacy Mask: 8 rectangular zones
Day/Night Switch: Day, Night, Auto, Schedule
Interfaces
Ethernet: RJ45 10M/100M
On-Board Storage: microSD/SDHC/SDXC, up to 512 GB
Microphone: Built-in
Speaker: Max. 1.2 W, 95 dB SPL @ 10 cm
Audio I/O: 1 input / 1 output, terminal block
Alarm I/O: 1 input / 1 output (24 VDC, 1 A)
Reset Key: Yes
Event Functions
Basic Events: Motion detection, I/O alarm, tamper, light/audio alert
Smart Events: Scene change detection
Linkage: FTP/NAS/email/upload/record/capture/warning/flash light
Deep Learning: Perimeter protection – human/vehicle filtering
General
Power:
12 VDC ±25% (0.88 A, Max. 10.5 W), Ø5.5 mm plug
PoE IEEE 802.3af, 36–57 V (0.35–0.22 A, Max. 12.5 W)
Material: Metal base and cover
Dimensions: Ø155 mm × 155.3 mm (Ø6.1 × 6.1")
Package Dimensions: 230 × 230 × 230 mm (9" × 9" × 9")
Weight: 1110 g (2.4 lb); with package: 1900 g (4.2 lb)
Environmental
Operating Temperature: –30°C to 60°C (–22°F to 140°F)
Storage Conditions: –30°C to 60°C, 95% RH or less (non-condensing)
Protection: IP67 Rated
Language Support: 33 languages including English, Spanish, French, Russian, Chinese, Japanese, Turkish, and more
General Functions: Anti-banding, heartbeat, one-key reset, email reset, flashing light
Certifications
EMC: FCC, CE-EMC, RCM, IC
Safety: UL, CB, CE-LVD
Environment: RoHS, WEEE, REACH
