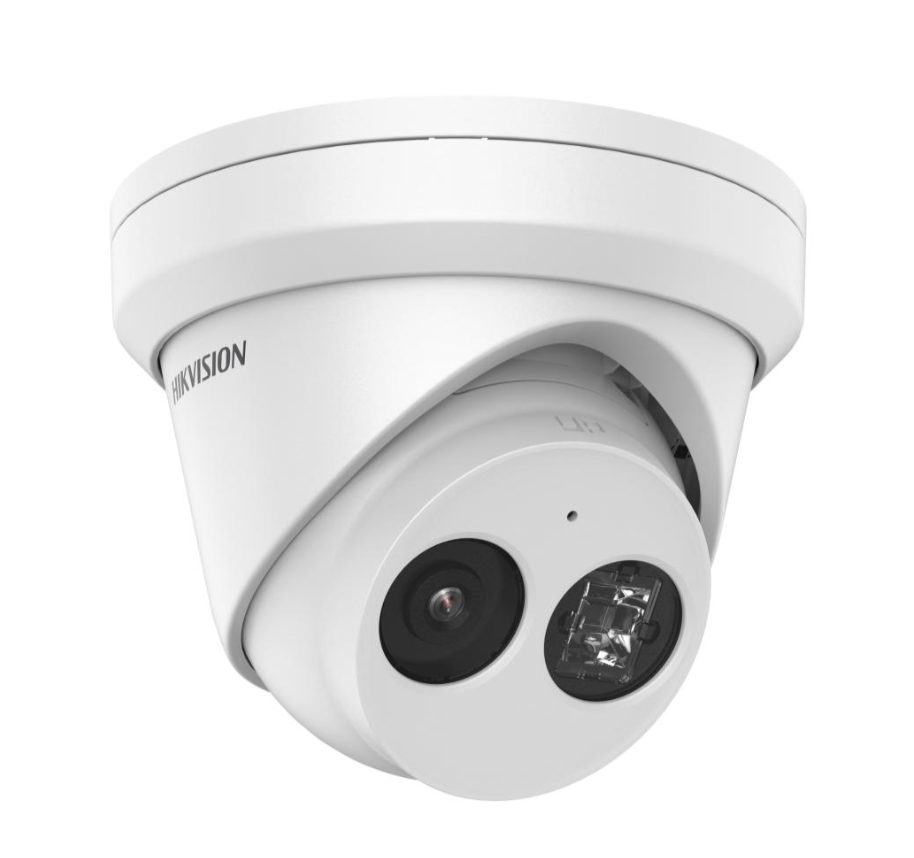

Camera
Image Sensor: 1/3″ Progressive Scan CMOS
Max. Resolution: 2688 × 1520
Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
Lens
Focal Length & FOV:
2.8 mm, Horizontal FOV: 103°, Vertical FOV: 55°, Diagonal FOV: 122°
4 mm, Horizontal FOV: 84°, Vertical FOV: 45°, Diagonal FOV: 100°
Lens Mount: M12
Iris Type: Fixed
Aperture: F1.6
DORI
2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m
4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m
Illuminator
Supplement Light Type: IR
Supplement Light Range: Up to 30 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm
Video
Main Stream:
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream:
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream:
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264
Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline/Main/High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR/VBR
SVC: H.264 and H.265 encoding
ROI: 1 fixed region (Main and Sub-stream)
Audio
Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/16–64 Kbps (AAC-LC)/32–192 Kbps (MP2L2)/8–320 Kbps (MP3)
Sampling Rate: 8/16/32/44.1/48 kHz
Environment Noise Filtering: Yes
Network
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket
Simultaneous Live View: Up to 6 channels
API: ONVIF (Profile S, G), ISAPI, SDK
Users: Up to 32 (Admin, Operator, User)
Security: HTTPS, TLS 1.1/1.2, WSSE, IP filtering, password protection, security audit log
Storage
Onboard: Built-in microSD, up to 512 GB
Network: NAS (NFS, SMB/CIFS), ANR
WDR: 120 dB
SNR: ≥ 52 dB
Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance
Image Enhancement: BLC, HLC, 3D DNR
Image Parameter Switch: Yes
Interface
Ethernet: 1 × RJ45 10/100 Mbps
Built-in Microphone: Yes
Reset Button: Yes
Events
Basic: Motion detection (human/vehicle), video tampering, exception
Smart: Line crossing, intrusion detection (human/vehicle), face detection
Linkage: Upload to FTP/memory card/NAS, notify surveillance center, email, trigger recording/capture
General
Power: 12 VDC ±25%, 0.5 A, max. 6 W, Ø5.5 mm plug (reverse polarity protected)
PoE: 802.3af, Class 3, max. 7 W
Dimensions: Ø127.3 × 95.9 mm (Ø5.01″ × 3.78″)
Package Dimensions: 150 × 150 × 141 mm (5.9″ × 5.9″ × 5.6″)
Weight: 600 g (1.3 lb), With Package: 816 g (1.8 lb)
Operating Temp: –30 °C to 60 °C (–22 °F to 140 °F)
Humidity: ≤ 95% (non-condensing)
Certifications
EMC: FCC, CE-EMC, RCM, IC, KC
Safety: UL, CB, CE-LVD, BIS
Environment: RoHS, WEEE, REACH
Protection: IP67
Languages Supported: English, Spanish, French, German, Russian, Portuguese (Brazil), Chinese, Japanese, Turkish, and 25+ others
