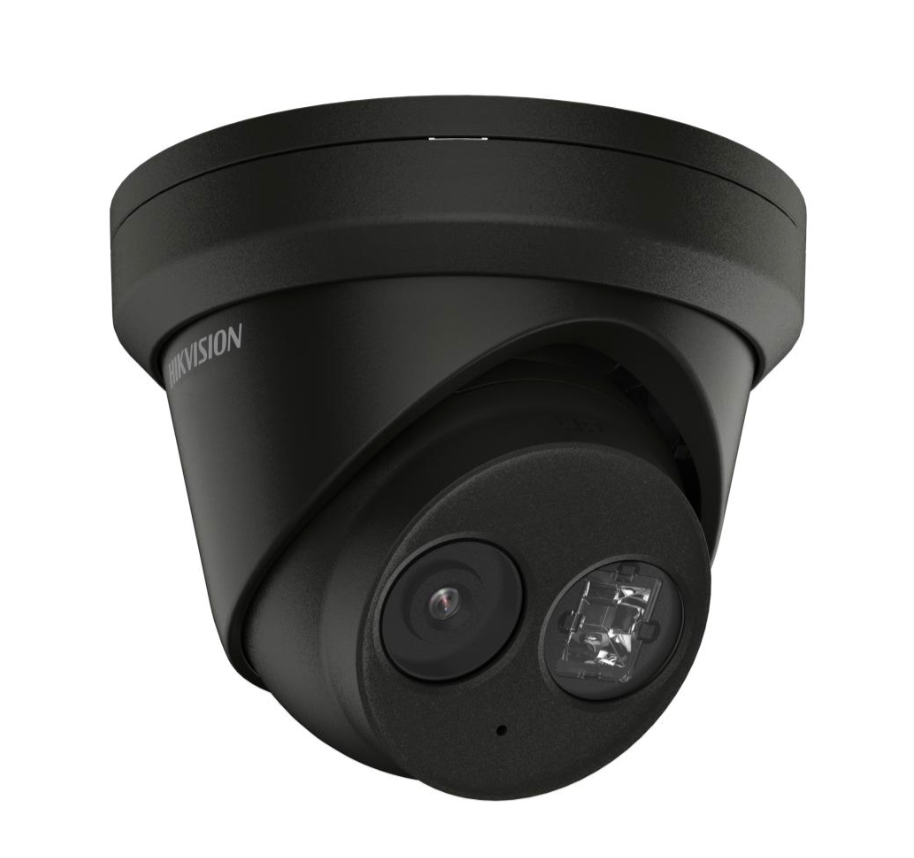

Hikvision AcuSense DS-2CD2383G2-IU 8MP IP Turret Camera (Black)
The Hikvision AcuSense DS-2CD2383G2-IU is an 8 MP IP turret camera designed for outdoor surveillance applications. It captures ultra-high-definition video at 3840 × 2160 using a 1/2.8" progressive scan CMOS image sensor and supports wide dynamic range rated at 120 dB for improved image detail in challenging lighting conditions.
This camera features a fixed 2.8mm lens and infrared illumination with a range of up to 30 meters. A built-in microphone enables mono audio capture, while Power over Ethernet (PoE) allows power and data to be transmitted through a single Ethernet cable.
AcuSense analytics support human and vehicle target classification to improve detection accuracy and reduce false alarms. The housing is constructed with an aluminum alloy body and plastic bubble and is rated IP67 for protection against dust and water.
Key Features
8 MP resolution (3840 × 2160)
Fixed 2.8mm lens
AcuSense human and vehicle classification
Infrared illumination up to 30 m
120 dB wide dynamic range (WDR)
Built-in microphone (mono audio)
Power over Ethernet (PoE, IEEE 802.3af Class 3)
IP67 weather-resistant housing
Video & Imaging
Main stream (50 Hz): 20 fps at 3840 × 2160, 25 fps at lower resolutions
Main stream (60 Hz): 20 fps at 3840 × 2160, 30 fps at lower resolutions
Sub-stream (50 Hz): 25 fps at 1280 × 720, 640 × 480, 640 × 360
Video bitrate: 32 Kbps to 16 Mbps
H.265+, H.265, H.264+, and H.264 compression
Scalable video coding (SVC)
Lens & Field of View
Focal length: 2.8mm
Angular field of view: Horizontal 107°, Vertical 57°, Diagonal 128°
Maximum aperture: f/1.6
Analytics & AI Capabilities
Motion detection (human and vehicle classification)
People detection
Vehicle detection
Face detection
Intrusion detection
Virtual line crossing detection
Unattended baggage detection
Object removal detection
Scene change detection
Audio exception detection
Camera sabotage / tampering alarm
Audio
Built-in microphone
Mono audio
Audio compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
Networking & Security
IPv4 and IPv6 support
Supported protocols include TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, NTP, SMTP, IGMP, UPnP, SSL/TLS, PPPoE, SNMP, WebSocket, and ONVIF Profiles S and G
Security features include password protection, HTTPS encryption, IP address filtering, security audit logs, and digest authentication
Storage
Built-in memory card slot supporting microSD, microSDHC, and microSDXC cards up to 512GB
Network-attached storage support (NAS with NFS and SMB/CIFS)
Memory card encryption and health detection supported with compatible Hikvision memory cards
Power
12 VDC ±25% power input
PoE supported (802.3af Class 3)
Power consumption: maximum 6 W, PoE maximum 7.5 W
Environmental & Physical
Operating temperature: -30°C to 60°C (-22°F to 140°F)
Operating humidity: up to 95% (non-condensing)
IR wavelength: 850 nm
Camera dimensions: 5 × 3.8 in
Camera weight: 1.3 lb
Frequently Asked Questions
What is the maximum resolution supported by this camera?
The Hikvision DS-2CD2383G2-IU supports a maximum resolution of 8 MP (3840 × 2160).
Does this camera include a built-in microphone?
Yes. This model includes a built-in microphone for mono audio capture.
Is this camera rated for outdoor use?
Yes. The camera features an IP67-rated housing for outdoor environments.
