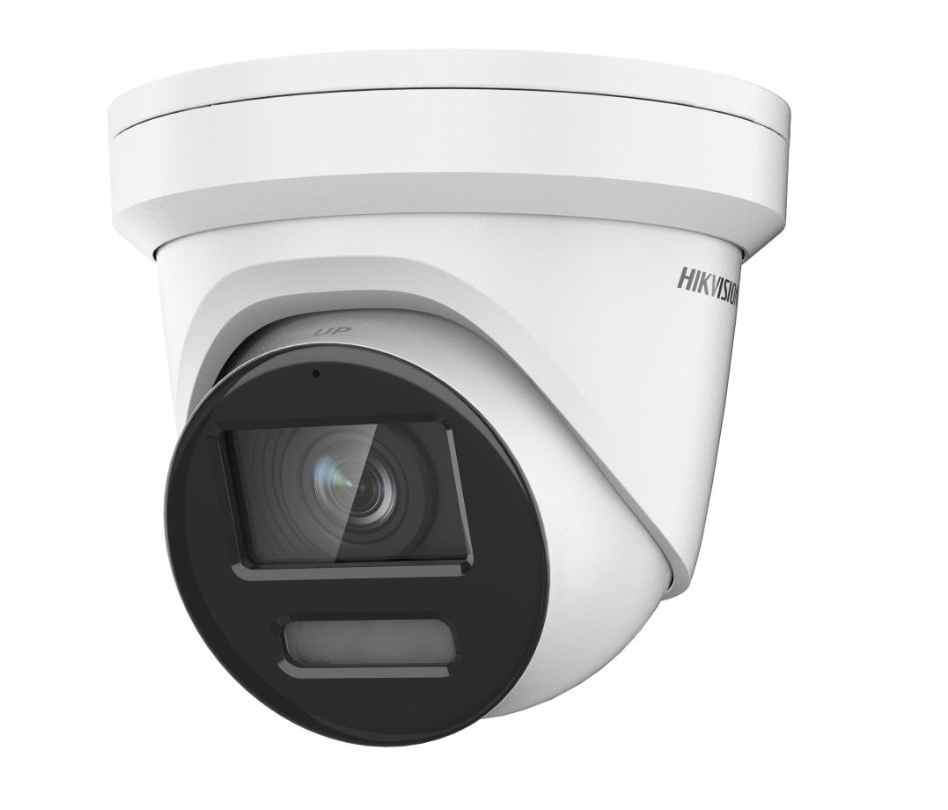

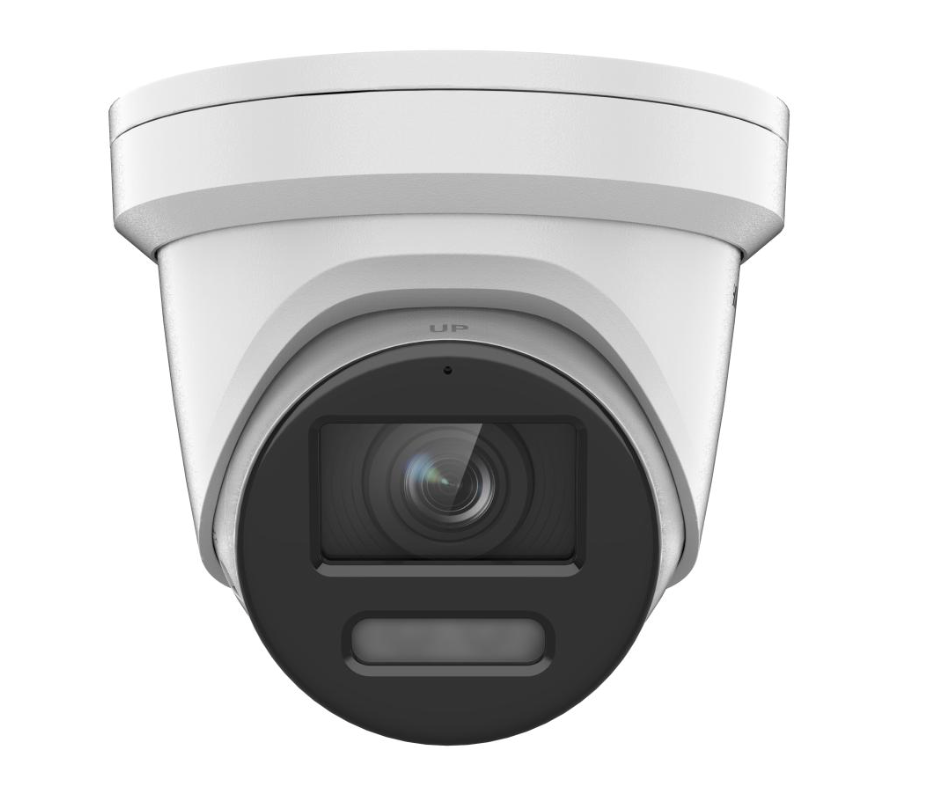

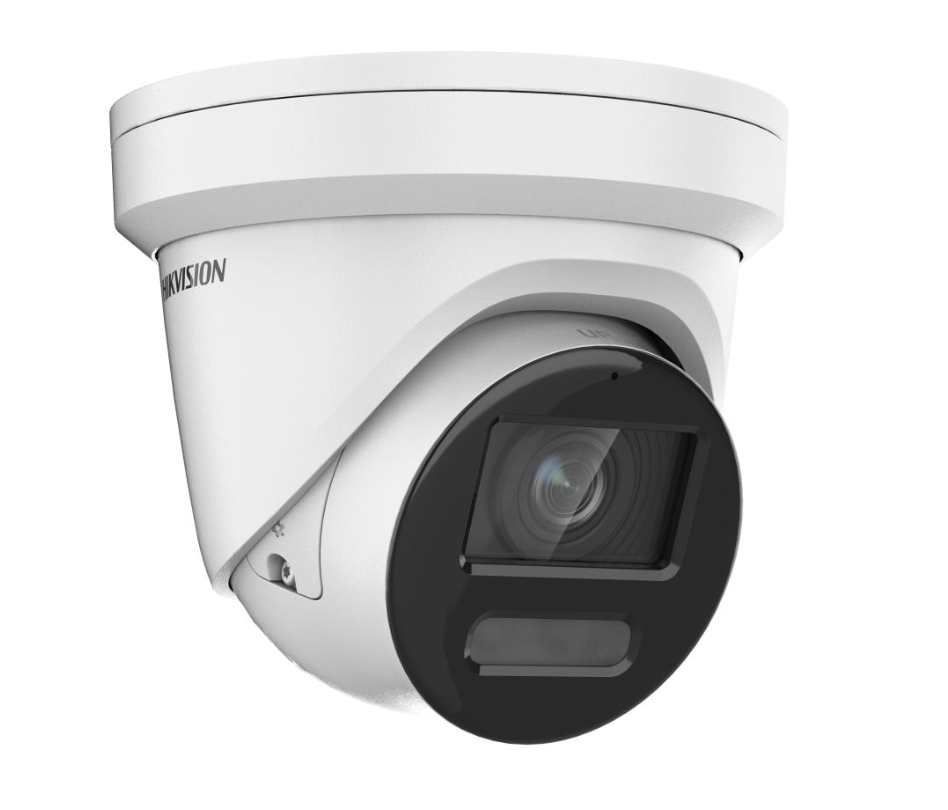

Hikvision ColorVu DS-2CD2387G2-LU 8MP IP Turret Camera (White, 4mm)
The Hikvision ColorVu DS-2CD2387G2-LU is an 8 MP IP turret camera designed for indoor and outdoor surveillance. It delivers high quality imaging at 3840 × 2160 resolution and supports efficient H.265+ compression. Wide dynamic range rated at 130 dB helps maintain image detail in scenes with strong backlight.
This camera supports 24/7 color imaging and includes a built-in microphone for real-time audio security. Human and vehicle targets classification based on deep learning helps improve alert accuracy. The camera is rated IP67 for water and dust resistance and supports Power over Ethernet (PoE, 802.3af) for simplified installation.
Network storage is supported, and together with high-end Hikvision memory cards, memory card encryption and health detection are supported.
Key Features
8 MP resolution (3840 × 2160)
Fixed 4mm lens
24/7 color imaging (ColorVu)
130 dB wide dynamic range (WDR)
Efficient H.265+ compression technology
Human and vehicle targets classification based on deep learning
Built-in microphone for real-time audio security
IP67 water and dust resistance
PoE support (802.3af)
Memory card encryption and health detection supported with high-end Hikvision memory cards
Video & Imaging
Main stream (50 Hz): 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Main stream (60 Hz): 24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-stream (50 Hz): 25 fps (640 × 480, 640 × 360)
Sub-stream (60 Hz): 30 fps
Video bitrate: 32 Kbps to 16 Mbps
Video compression: H.265, H.264, H.264+, H.265+
Scalable video coding (SVC): H.264 and H.265 encoding
Region of interest: 1 fixed region for main stream and sub-stream
Lens
Focal length: 4mm
Lens type: fixed focal
Lens mount: M16
Depth of field: 3.6 m to infinity
Maximum aperture ratio: f/1.0
Illumination & Low-Light
Up to 30 m IR white supplement light
Low-light performance: Color - 0.0005 Lux @ (F1.0, AGC On)
Analytics
Motion detection
People detection
Vehicle detection
Face detection
Intrusion detection
Virtual line crossing detection
Entering/Exiting
Scene change detection
Camera sabotage / tampering
Audio
Built-in microphone
Audio compression: G.711Ulaw, G.711Alaw, G.722.1, G.726, MP2L2, PCM, MP3, AAC
Networking & Security
IPv4 and IPv6 support
Supported protocols include TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
Security features include password protection, complicated password, HTTPS encryption, IP address filter, security audit log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for ONVIF
Storage
Built-in memory card slot
Supports microSD / microSDHC / microSDXC cards up to 256 GB
Network storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Power
12 VDC (0.46 A)
PoE supported (802.3af)
Power consumption: maximum 5.5 W, PoE maximum 6.5 W
Environmental & Physical
Outdoor rated (IP67)
Material: metal
Camera dimensions: 5.4 × 4.7 in
Camera weight: 1.9 lb
Operating humidity: 95% or less RH (non-condensing)
Operating temperature: -30°C to 60°C (-22°F to 140°F)
Frequently Asked Questions
Does this camera support 24/7 color imaging?
Yes. This model supports 24/7 color imaging.
Does the DS-2CD2387G2-LU include audio?
Yes. The camera includes a built-in microphone for real-time audio security.
Is this camera rated for outdoor use?
Yes. The camera is water and dust resistant with an IP67 rating.
