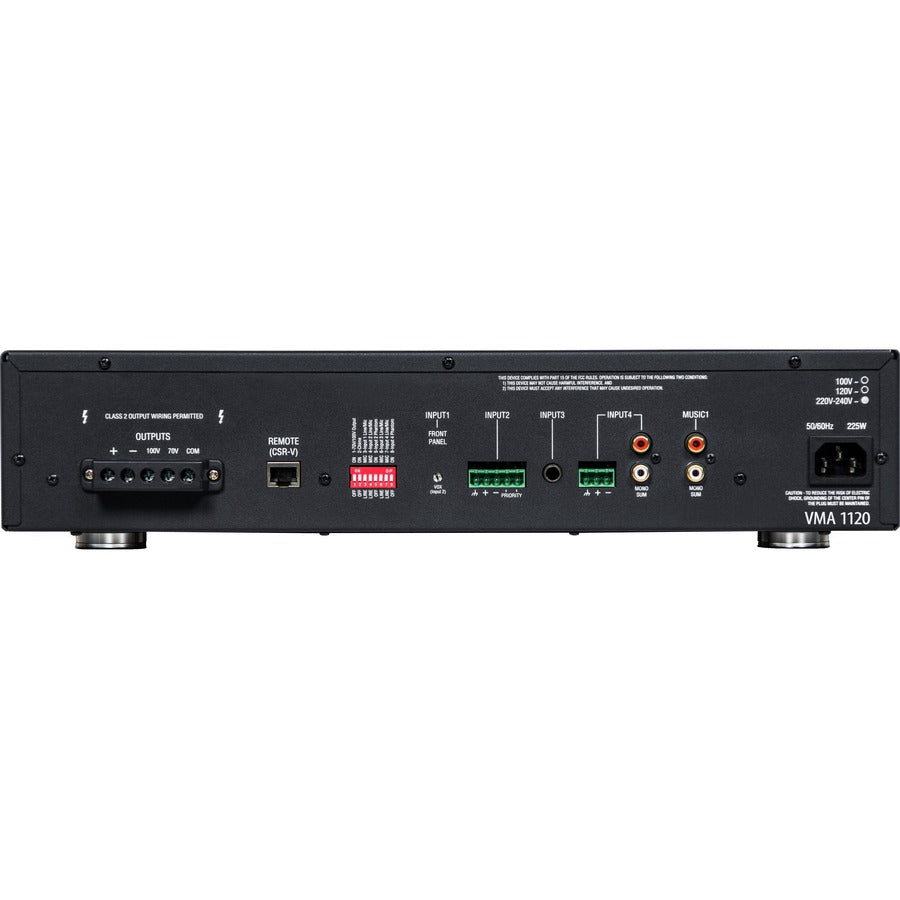

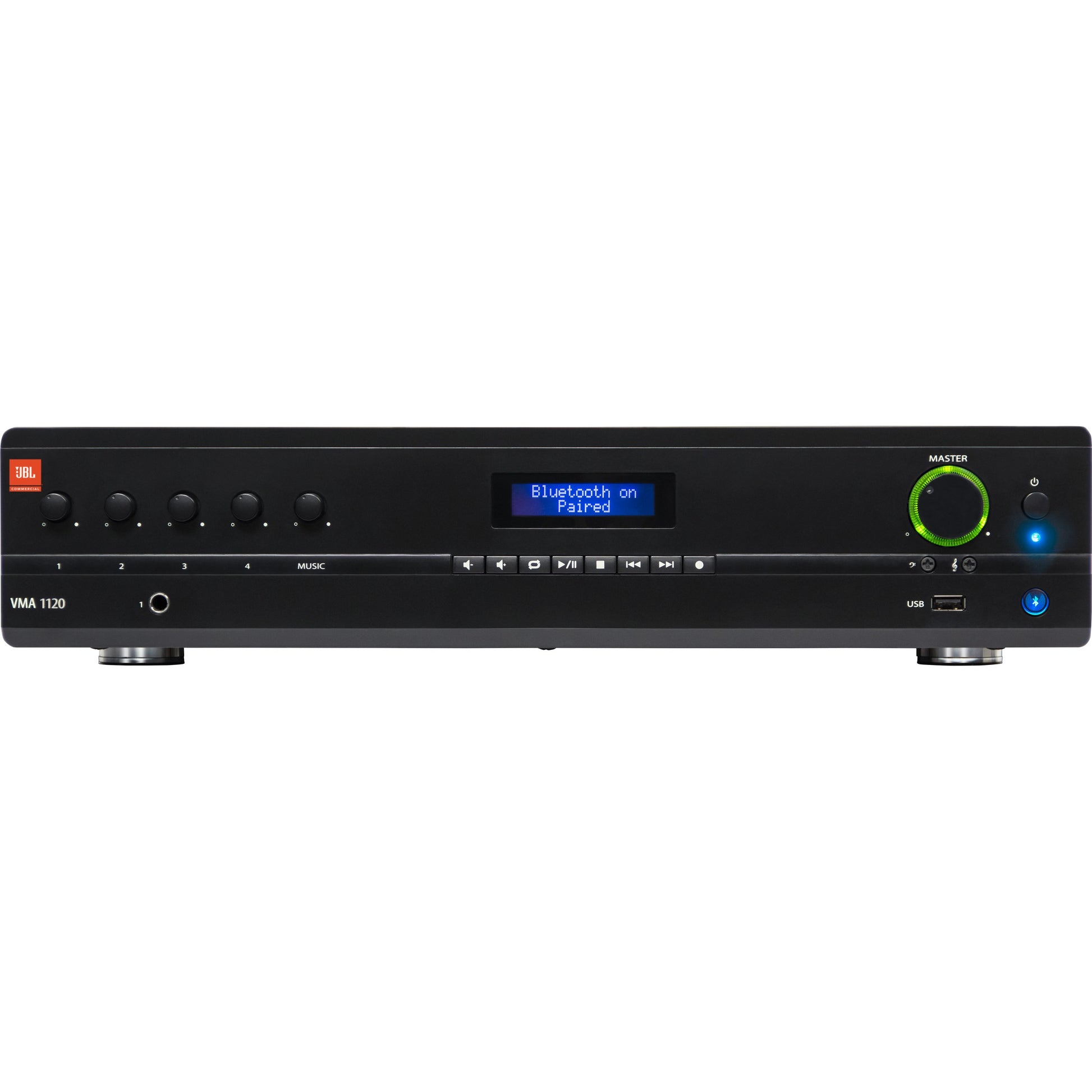

JBL Commercial VMA1120 Amplifier - 120 W RMS - 1 Channel - Black - NVMA1120-0-US
Key Features
- 100V and 70V output, or 4?/8?
- 5 inputs with 1 output of 60, 120, or 240-watts of power
- Balanced mic/line inputs; RCA (.775V) inputs
- Independent bass and treble controls for each output channel
- Paging Chime, and Priority muting
- Rack mounting hardware included
- Works with JBL CSR-V wall controllers
Product Overview
The JBL VMA Series is a cost-effective line of Mixer/Amplifiers with low impedance functionality (4Ω, 8Ω) and high impedance 70V and 100V output. They are designed with convenient and flexible features to be used by commercial integrators worldwide, ideal for emerging markets.General Information
- Manufacturer: Harman International Industries, Inc
- Manufacturer Part Number: NVMA1120-0-US
- Brand Name: JBL Commercial
- Product Series: VMA
- Product Model: VMA1120
- Product Name: VMA1120 Amplifier
- Product Type: Amplifier
Technical Information
- Minimum Frequency Response: 20 Hz
- Maximum Frequency Response: 20 kHz
- Total Harmonic Distortion (THD): 0.5%
Audio
- Audio Channels: 1
- RMS Output Power: 120 W
Network & Communication
- Ethernet: Yes
Interfaces/Ports
- USB: Yes
- Number of Analog Audio Inputs: 4
Power Description
- Operating Power Consumption: 225 W
Physical Characteristics
- Product Color: Black
- Height: 3.5"
- Width: 17"
- Depth: 16.3"
- Weight (Approximate): 20.20 lb
Miscellaneous
- Package Contents:
- VMA1120 Amplifier
- Rack mounting hardware
