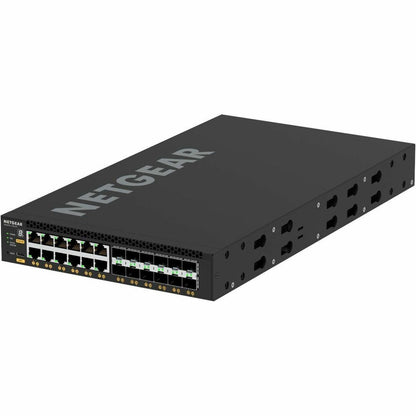

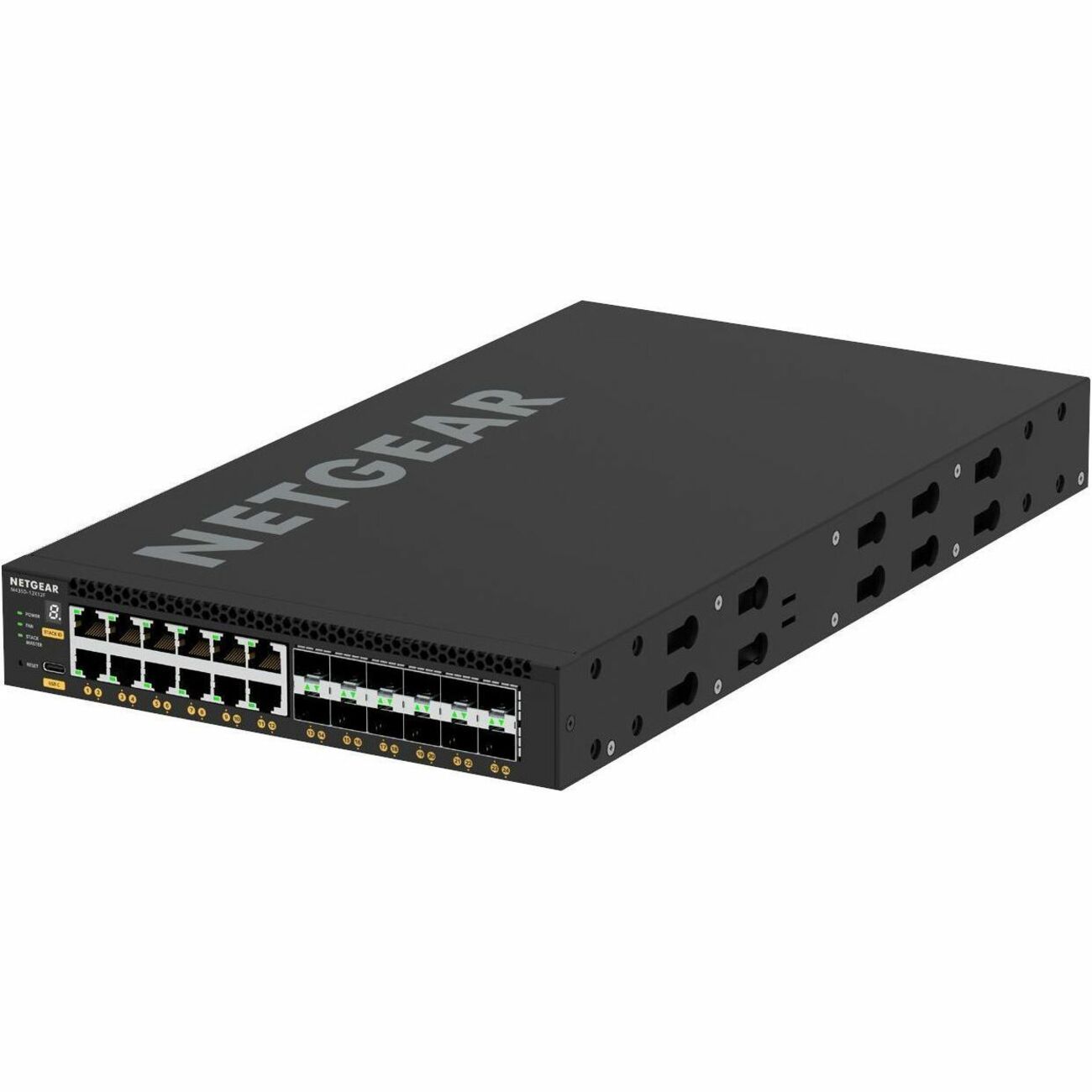

Netgear AV Line M4350-12X12F Ethernet Switch - XSM4324-100NES

Key Features

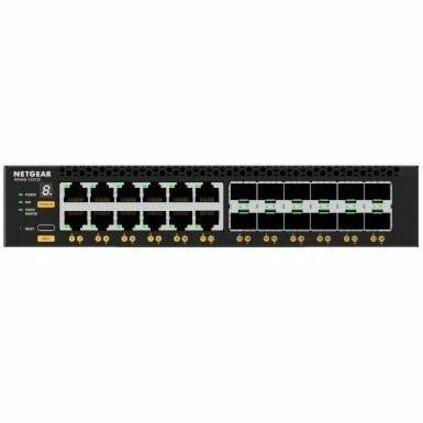

• 12 10G/Multi-Gig ports, and 12 10GBASE-X SFP+ ports.

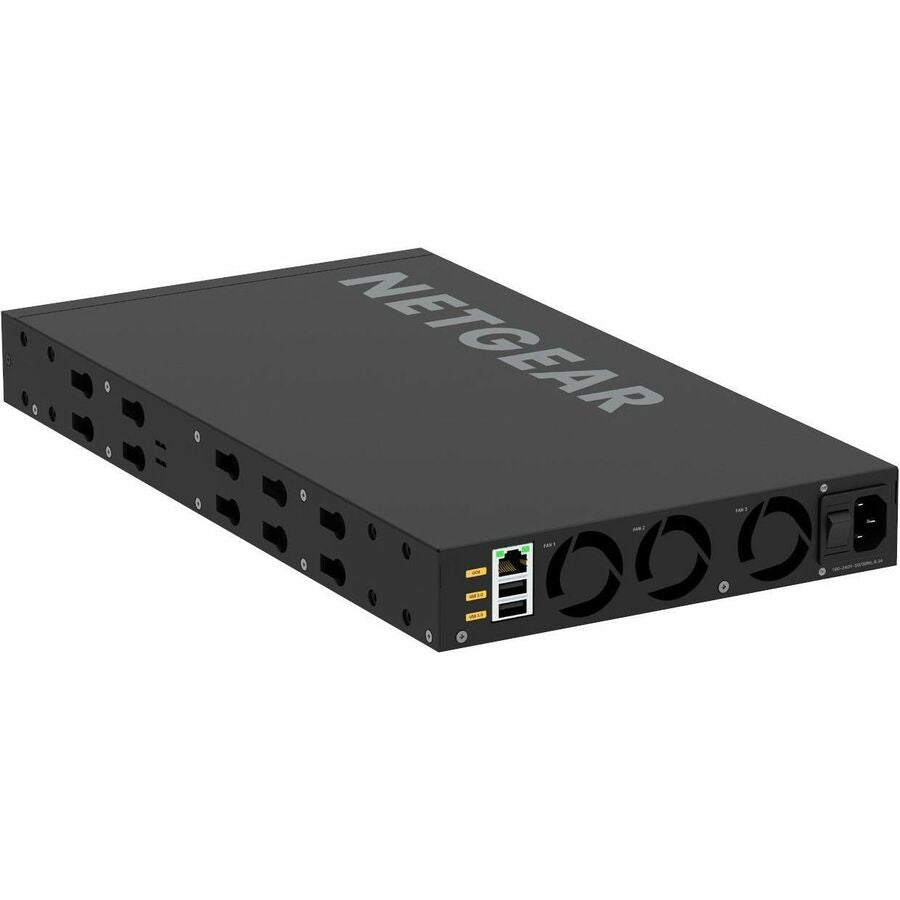

• 240W internal power supply.
• Dimensions: 220x400x43.2 mm

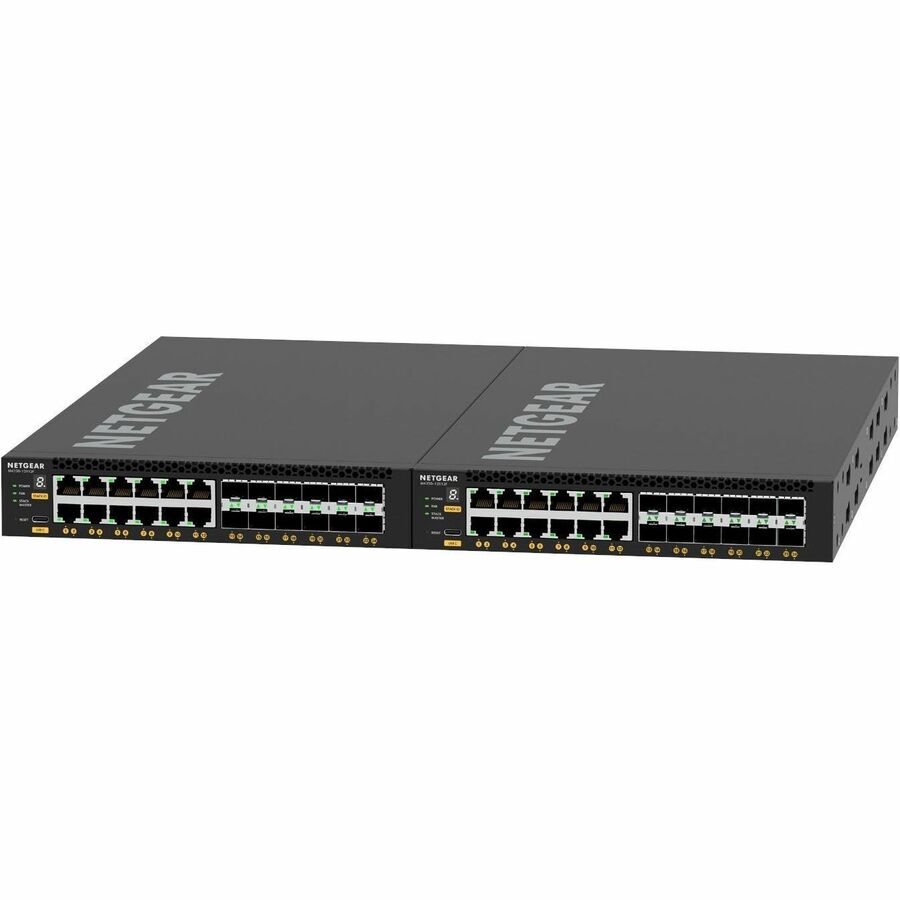

• Half-width form factor enables one or two switches in a single rack space for redundant top-of-rack.
• Layer 3 feature set includes static, policy-based, and dynamic routing.
• Lifetime Next Business Day Hardware Replacement.
• NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations.
• NETGEAR ProSAFE® Limited Lifetime Hardware Warranty.
• Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover.
• Weight: 4.3Kg (9.48 lb)

Product Overview

Introducing the NETGEAR AV and IT M4350 Switches, engineered and certified for audio/video over IP with dedicated service and support. The M4350 brings all the simplicity from the M4250 AV Line packed in more Enterprise-class hardware with redundant power supplies and larger fabrics with 25G and 100G uplinks. The revolutionary NETGEAR AV user interface and Engage™ Controller contain pre-configured profiles for all major audio, video, and lighting protocols.

NETGEAR listens to and supports the Pro AV community

• IGMP Plus™ means AV-over-IP multicasting will work out of the box and not flood your network
• Auto-LAG and Auto-Trunk automatically configure the uplinks between multiple switches
• The Engage™ Controller manages all M4250, M4300, and M4350 switches for your AV installations
• NETGEAR ProAVDesign team tohelp with system design andimplementation toensure theproject will work
• AVB, Dante, Q-SYS, AES67, NVX, AMX, Q-SYS, NDI 4, NDI 5, ZeeVee, Aurora Multimedia, Kramer, Atlona, LibAV, Visionary, SDVoE, and many others!
• SMPTE ST 2110 supported on select models, always with the same simplicity from the AV UI

Enterprise-class hardware

• From 1G to 2.5G, to 10G, to 25G, to 100G always within 40cm (15.7in) depth
• Controlled thermal and acoustics (intelligent fans configurable in Quiet Mode to minimize noise, or Cool Mode to minimize heat)

Other IT use cases

• Edge to core stackable platform, from 1 Gigabit to 100 Gigabit for midsize organizations
• Non-stop forwarding (NSF) provides advanced High Availability (HA) with hitless failover across the stack

Industry standard management

• Industry standard command line interface (CLI), main NETGEAR IT web interface (GUI)
• SNMP, sFlow and RSPAN - the entire feature set is available without license

Industry leading warranty

• NETGEAR M4350 series is covered under NETGEAR ProSAFE Limited Lifetime Hardware Warranty
• 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement
