10-Port 10 GbE Layer 3 Switch with PoE+++ and Etherlighting for High-Performance Aggregation

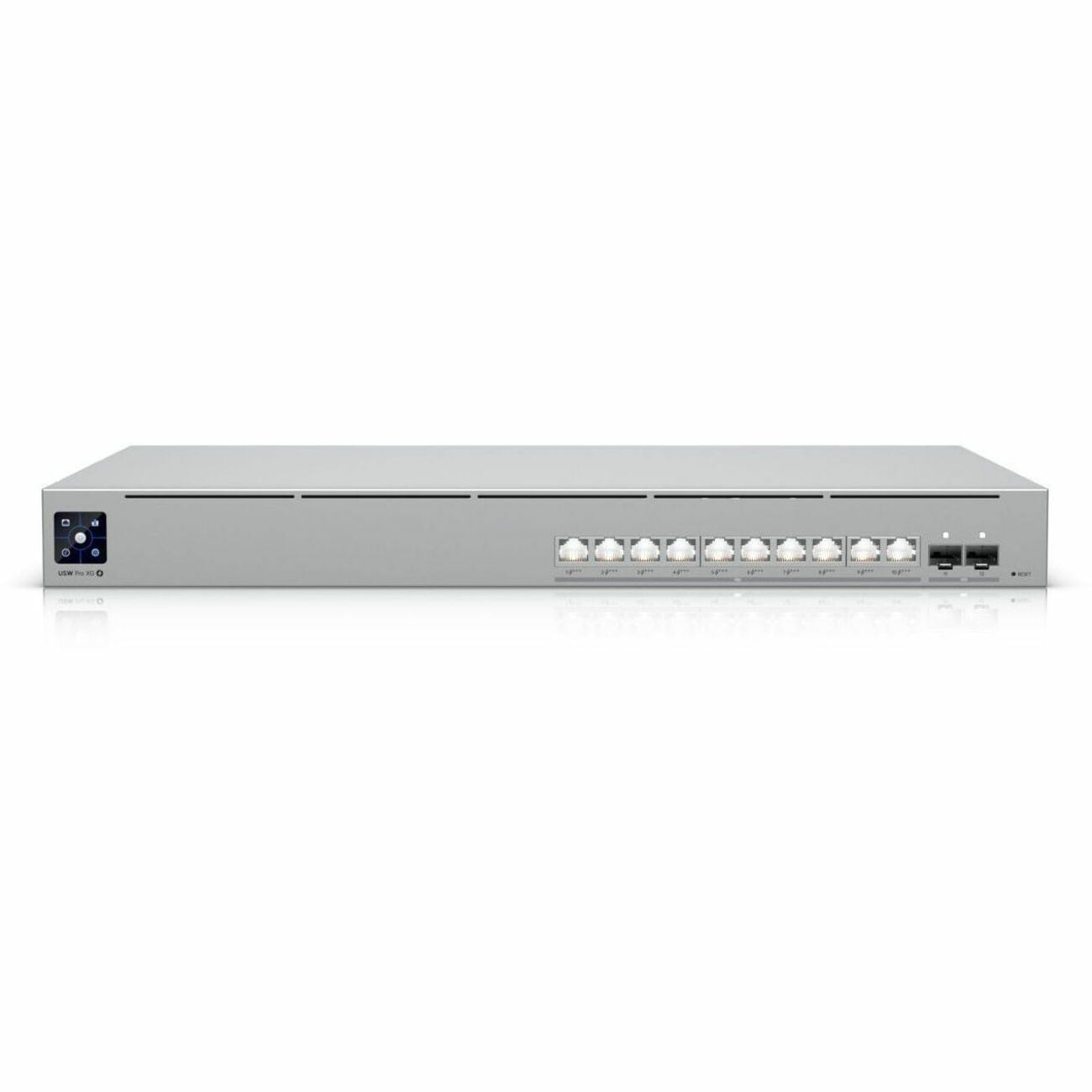

The Ubiquiti UniFi Pro XG 10 PoE (USW-Pro-XG-10-PoE) is a 1U rack-mount Layer 3 managed switch with 10x 10 GbE RJ45 ports delivering PoE+++ (802.3bt Type 4, up to 90W per port) and 2x 10G SFP+ uplink slots. Every copper port runs at 10/5/2.5/1 Gbps with auto-negotiation, so it connects NVRs, multi-gig access points, other switches, and servers at full 10 Gbps while simultaneously powering them over PoE.
The Pro XG 10 PoE is the aggregation switch for deployments where the devices behind each port need both high bandwidth and high-wattage power delivery. Connect a UniFi NVR, a stack of access-layer switches, or high-draw WiFi 7 APs directly at 10 GbE without separate injectors. The 400W PoE budget and Etherlighting port LEDs make this the top-tier short-port-count UniFi switch for aggregation and backbone roles.
Where the Pro XG 10 PoE Fits
- Aggregation layer in multi-switch deployments where 10 GbE uplinks from access switches, NVRs, and servers terminate at a single high-throughput switch that routes between VLANs locally
- High-density camera deployments where the NVR and PoE++-powered PTZ cameras connect at 10 GbE with up to 90W per port, eliminating injectors and consolidating power and data into one chassis
- Small server rooms and network closets where 10 devices need 10 GbE connectivity with Layer 3 routing, DC power backup readiness, and Etherlighting for visual port identification
What the Pro XG 10 PoE Delivers
- 10x 10 GbE PoE+++ (802.3bt Type 4): Every RJ45 port delivers up to 90W and runs at 10/5/2.5/1 Gbps. Connect NVRs, multi-gig APs, access switches, or any high-draw PoE device at full 10 Gbps without external injectors.
- 2x 10G SFP+ uplinks: Fiber or DAC connections to a core switch, router, or redundant path. Keeps the RJ45 ports free for PoE endpoints while the SFP+ slots handle backbone traffic.
- Layer 3 switching: Inter-VLAN routing, static routes, and DHCP server built into the switch. Cross-VLAN traffic stays local instead of hairpinning through the gateway.

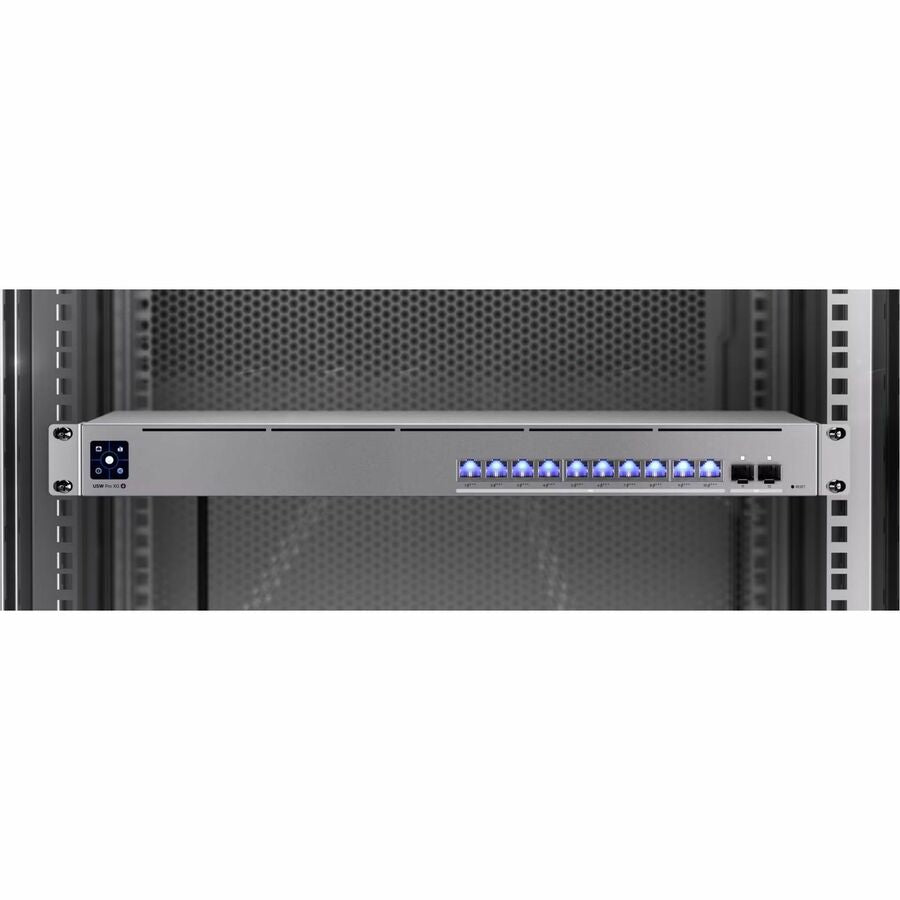

- Etherlighting: Color-coded LED illumination on every port shows link speed, status, and native VLAN assignment. Identify connections from across the rack without tracing cables.

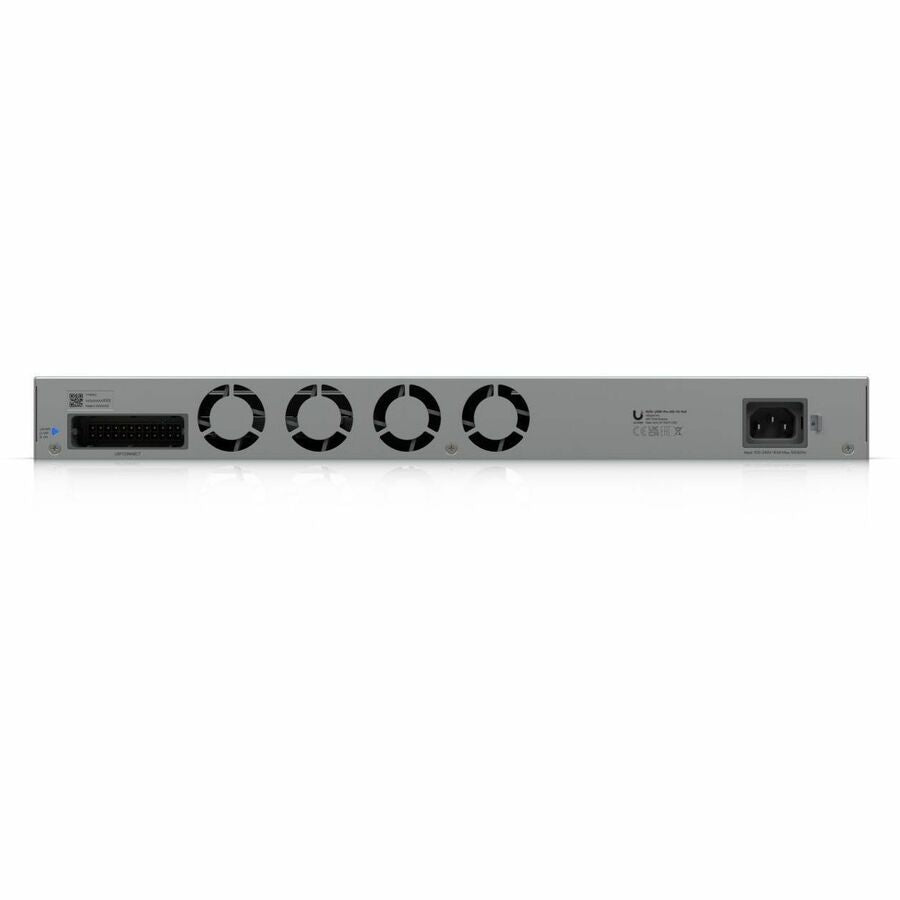

- 400W PoE budget with DC backup: Total PoE output covers high-draw devices across all 10 ports. USP RPS input keeps the switch and its PoE loads online during AC power failures.

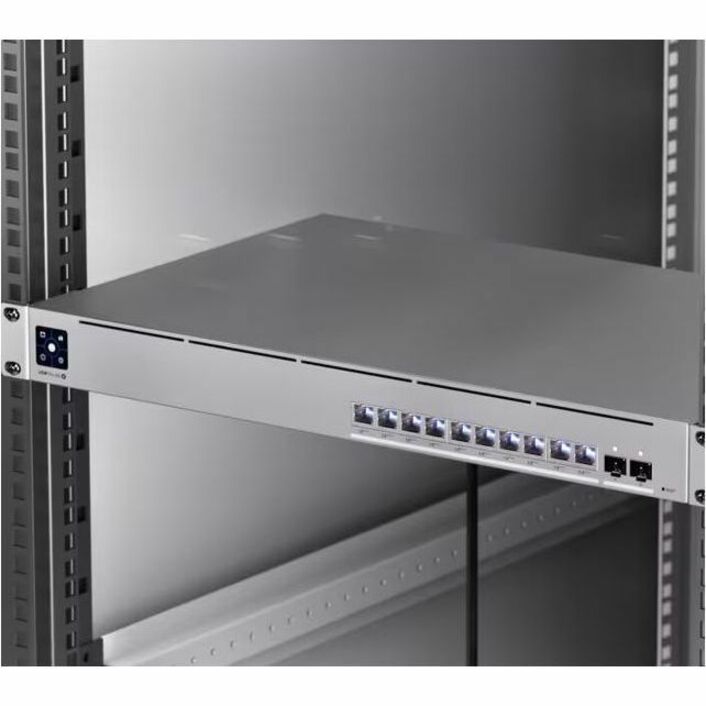

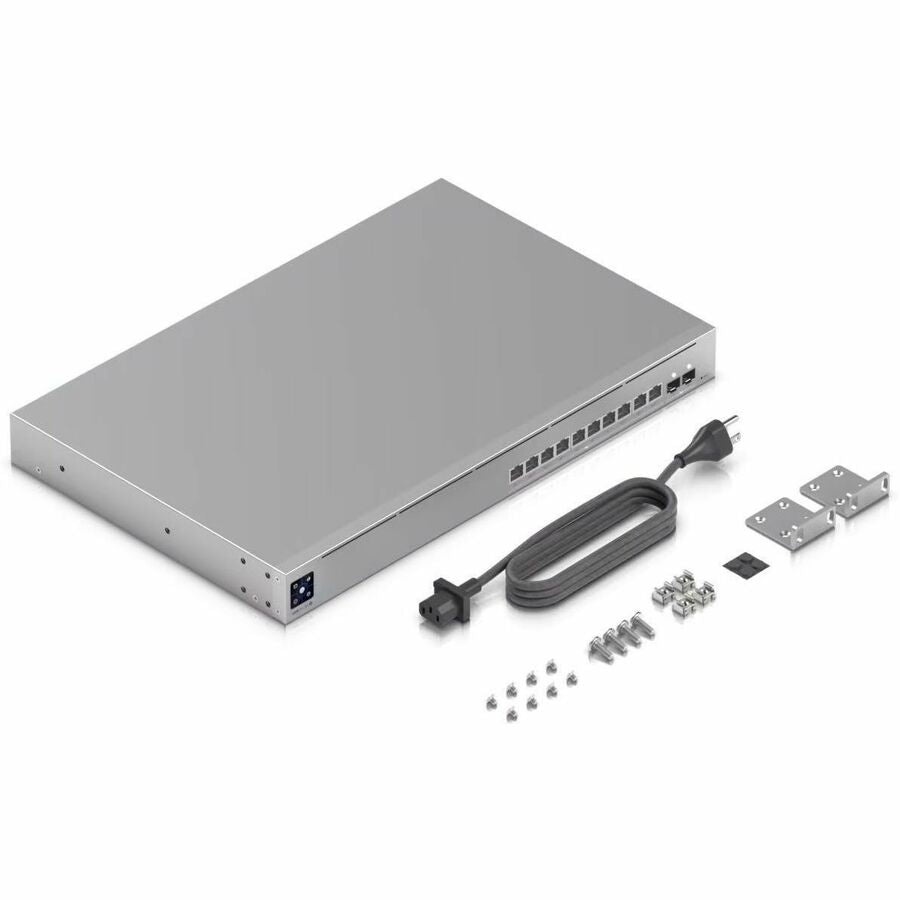

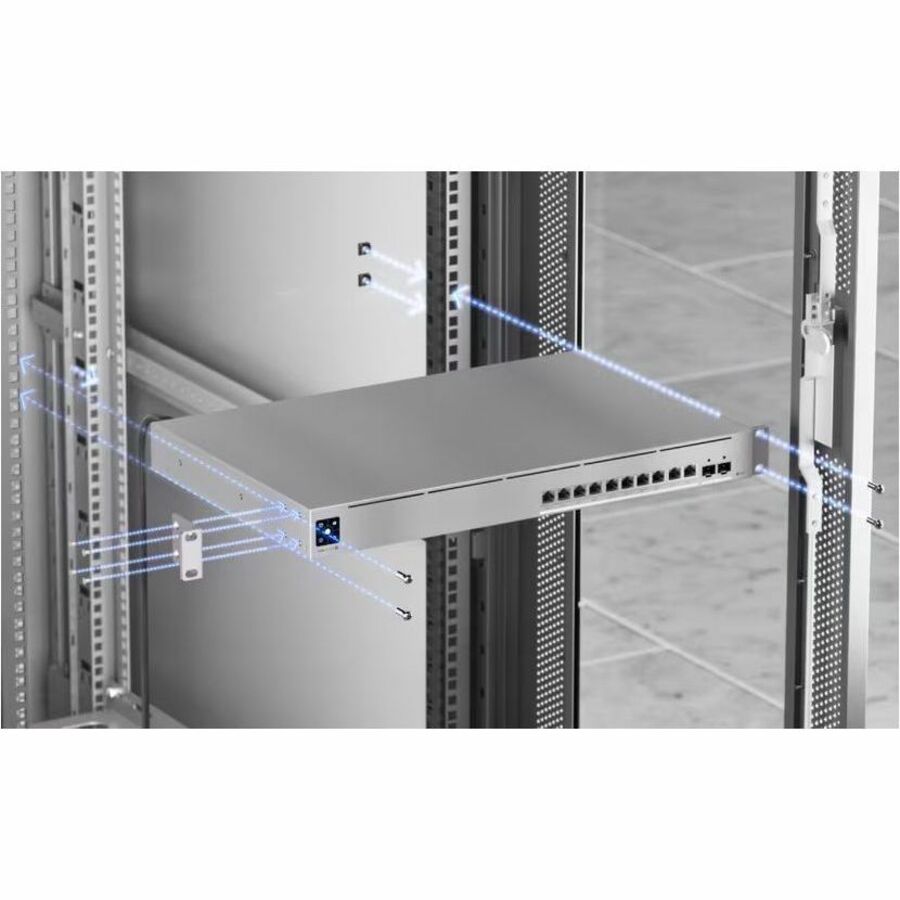

Build and Racking

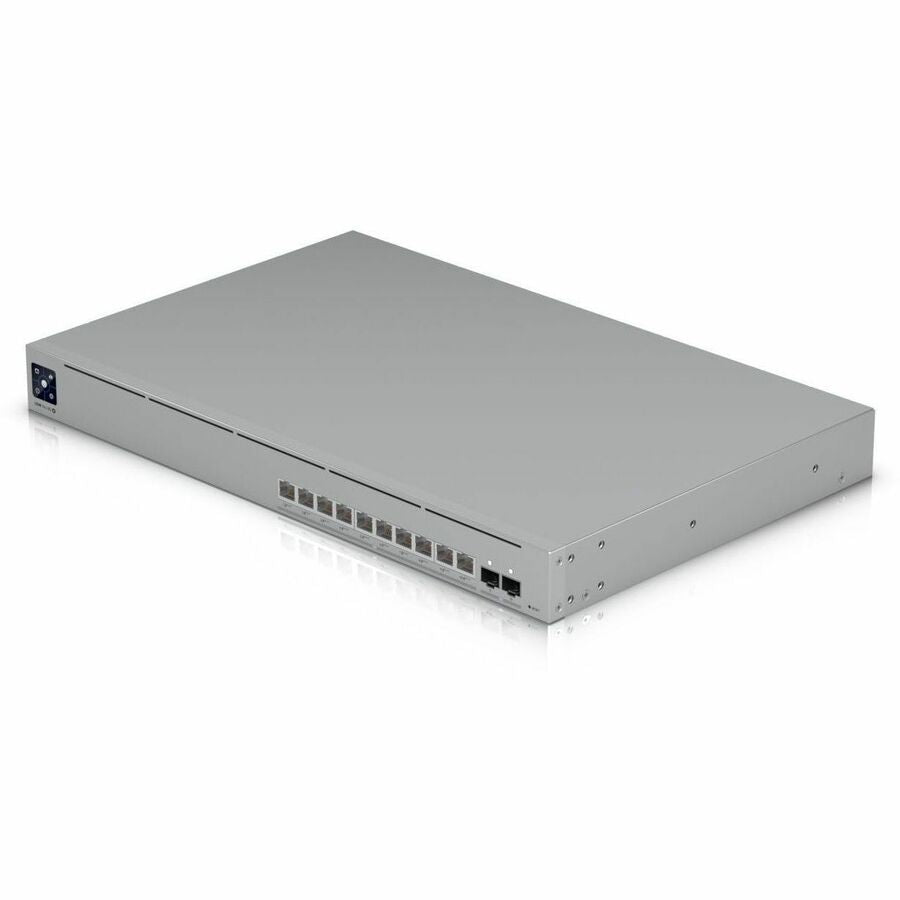

1U rack-mount SGCC steel enclosure (17.4 x 11.2 x 1.7 in., 10.14 lb). 10x 10 GbE RJ45 PoE+++ (802.3bt Type 4, 90W per port max), 400W total PoE budget. 2x 10G SFP+ uplink slots. Layer 3: inter-VLAN routing, static routes, DHCP server. Layer 2: 802.1Q VLANs, IGMP snooping, port mirroring, spanning tree, storm control. Etherlighting port LEDs. Internal PSU (100-240V AC) with DC power backup via USP RPS. Managed through UniFi Network. Part Number: USW-Pro-XG-10-PoE.
