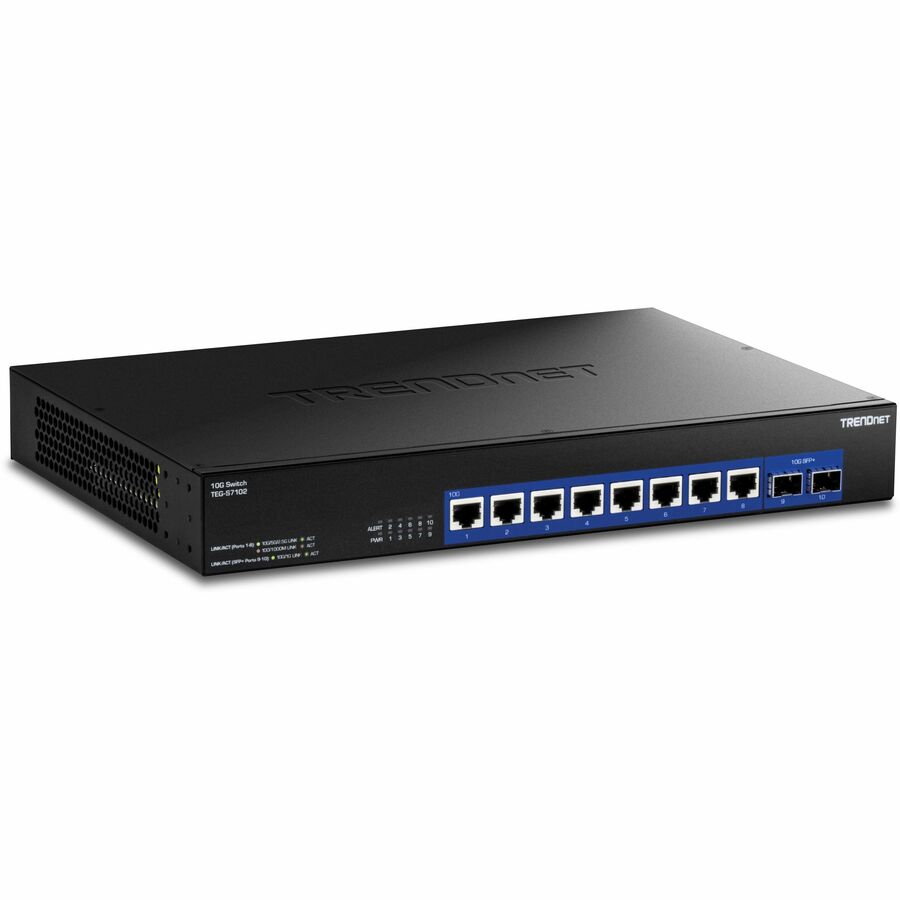

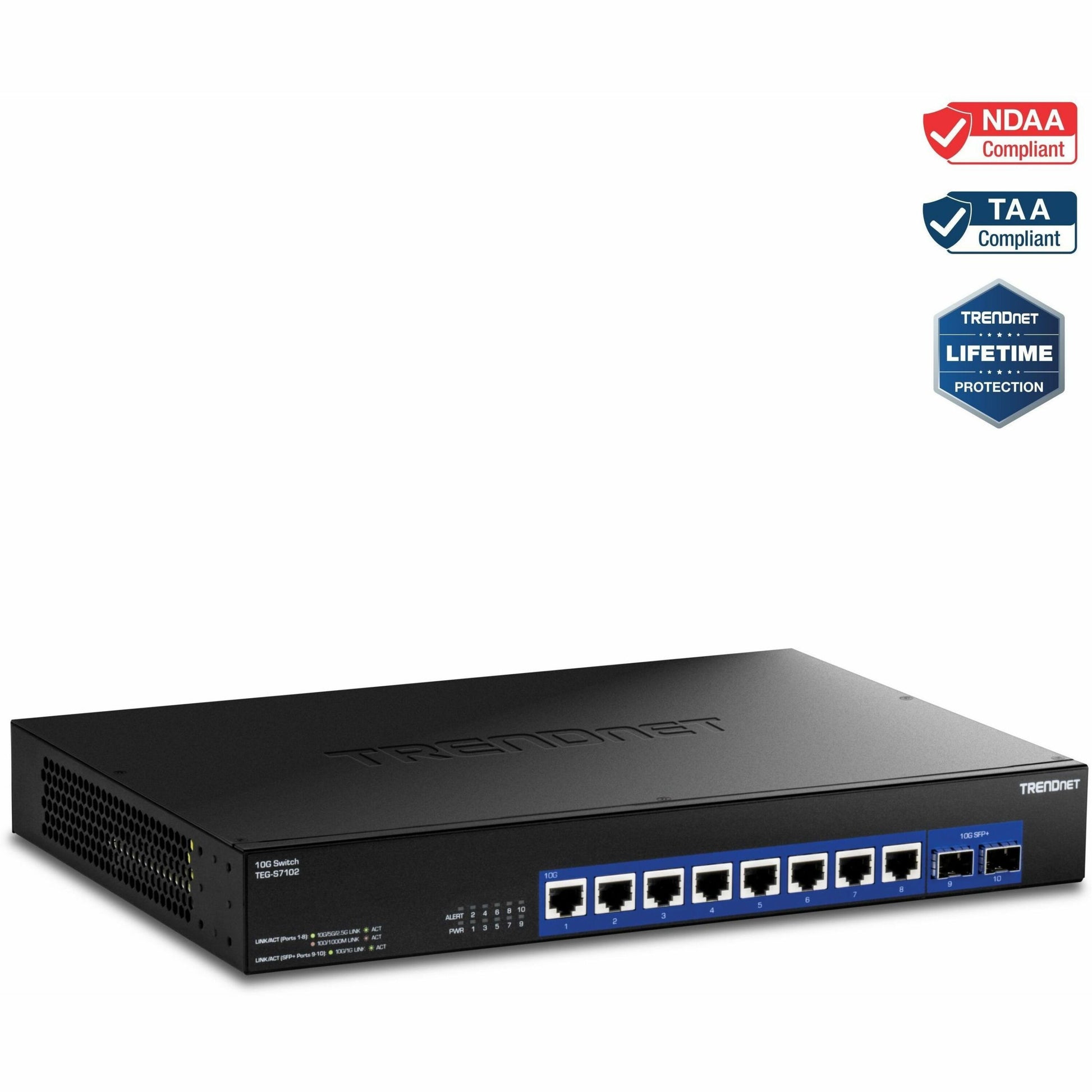

TRENDnet 10-Port 10G Unmanaged Switch, TEG-S7102, 8 x 10G RJ-45 Ports, 2 x 10G SFP+ Ports, 200Gbps Switching Capacity, Rackmount Design, Lifetime Protection, Black - TEG-S7102
Key Features
- 2 x 10G SFP+ ports
- 200Gbps switching capacity
- 8 x 10G RJ-45 ports
- Backwards compatible with 100/1000BASE-T devices
- IEEE 802.3ae (SFP+) and IEEE 802.3an (RJ-45) compliant
- Lifetime Warranty
- NDAA / TAA compliant (U.S. and Canada only)
- Rackmount design
- Smart fan design eliminates noise
Product Overview

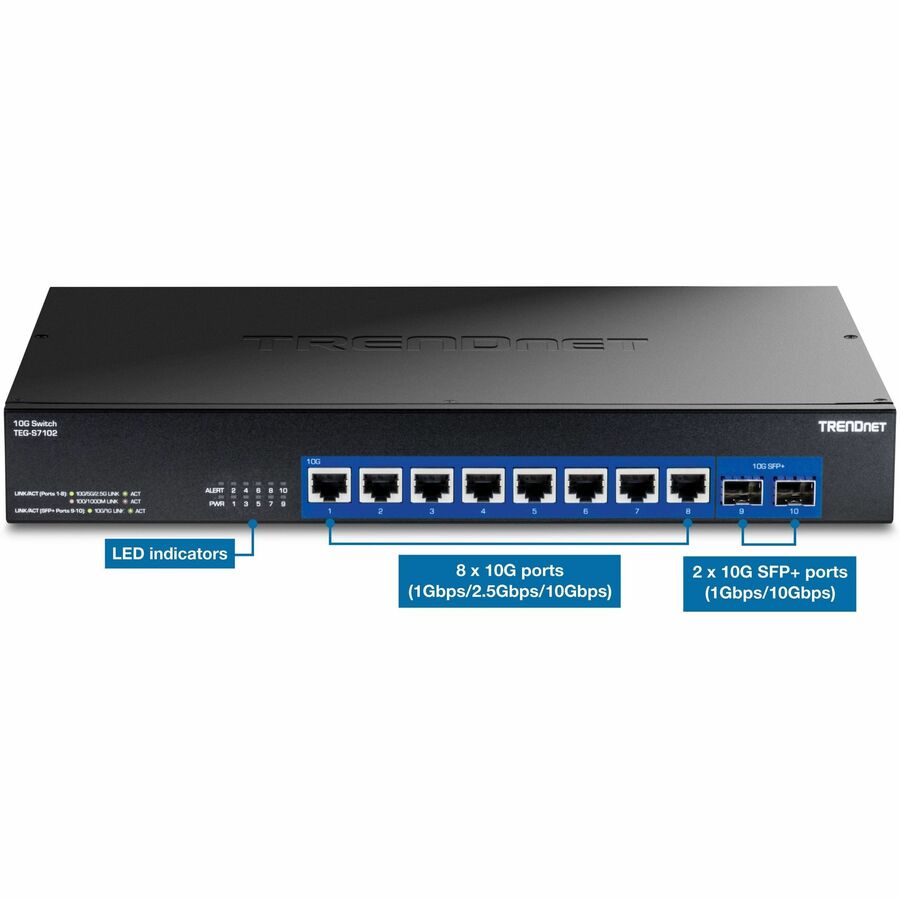

Expand your network's bandwidth and reduce traffic bottlenecks with TRENDnet's Unmanaged 10G Switches. This 10G switchcomes equipped with eight 10GBASE-T RJ-45 ports that provide speeds capable of up to 10Gbps over your existing Cat6A or bettercabling. The 10G switch also offers two dedicated 10G SFP+ slots for high-speed network connections, providing a cost-effectivesolution in adding 10G link capability to an SMB network. The smart fan design lowers energy consumption and eliminatesdistracting operating noise. TRENDnet's reliable 10G switches are cost-effective solutions to increase your network's throughputDEVICE INTERFACE: 8 x 10G Ports (1Gbps/2.5Gbps/10Gbps), 2 x 10G SFP+ slots (1Gbps/10Gbps); LED Indicators
LIFETIME PROTECTION -We stand by the quality of our products. The TEG-S7102 10-Port 10G Unmanaged Switch is secured with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only)
NDAA + TAA COMPLIANT: With our NDAA and TAA compliant network switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
10G PORTS: This Multi-Gig Ethernet switch offers eight 10GBASE-T RJ-45 Ethernet ports that provide higher gigabit speeds capable of up to 10Gbps over existing Cat6A or better cabling
10G SFP+ PORTS: The 10-port multi-gig switch features two 10G SFP+ ports for high-speed network uplinks or downlink NAS/ access server connections for a cost-effective solution to add 10G link capability
SMART FAN DESIGN: The smart fan design of the 10G network switch lowers energy consumption costs and eliminates distracting operating noise
EASY INSTALLATION: No configuration needed, simply connect network devices to the 10G Ethernet switch
SWITCHING CAPACITY: 200Gbps switching capacity
COMPLIANCE: IEEE 802.3ae (SFP+) and IEEE 802.3an (RJ-45) compliant
COMPATABILITY: Backwards compatible with 100/1000BASE-T devices; RACKMOUNT DESIGN: The network switch is equipped with 1U 19" rack mountable metal housing
General Information
- Manufacturer: TRENDnet
- Manufacturer Part Number: TEG-S7102
- Brand Name: TRENDnet
- Product Model: TEG-S7102
- Product Name: 10-Port 10G Unmanaged Switch
- Product Type: Ethernet Switch
Interfaces/Ports
- Total Number of Network Ports: 8
- Network (RJ-45): Yes
- Modular: Yes
- Port/Expansion Slot Details:
- 8 x 10 Gigabit Ethernet Network
- 2 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
- Media Type Supported:
- Twisted Pair
- Optical Fiber
- Ethernet Technology: 10 Gigabit Ethernet
- Network Technology:
- 10GBase-T
- 10GBase-X
- Maximum Data Transfer Rate: 2.50 GB/s
I/O Expansions
- Total Number of Expansion Slots: 2
- Expansion Slot Type: SFP+
- Number of SFP+ Slots: 2
Network & Communication
- Layer Supported: 2
- Networking Standards:
- IEEE 802.3ab
- IEEE 802.3ae
- IEEE 802.3an
- IEEE 802.3az
- IEEE 802.3bz
- IEEE 802.1x
Management & Protocols
- Manageable: No
Power Description
- Input Voltage:
- 120 V AC
- 230 V AC
- Power Source: AC
- Power Consumption: 40 W
Physical Characteristics
- Product Material: Metal
- Form Factor: Rack-mountable
- Height: 1.7"
- Width: 13"
- Depth: 9.1"
- Weight (Approximate): 5.60 lb
Miscellaneous
- Package Contents:
- 10-Port 10G Unmanaged Switch
- Quick Installation Guide
- Power Cord (1.5m / 4.9ft.)
- Rackmount Kit
- Country of Origin: Taiwan
Warranty
- Limited Warranty: Lifetime
